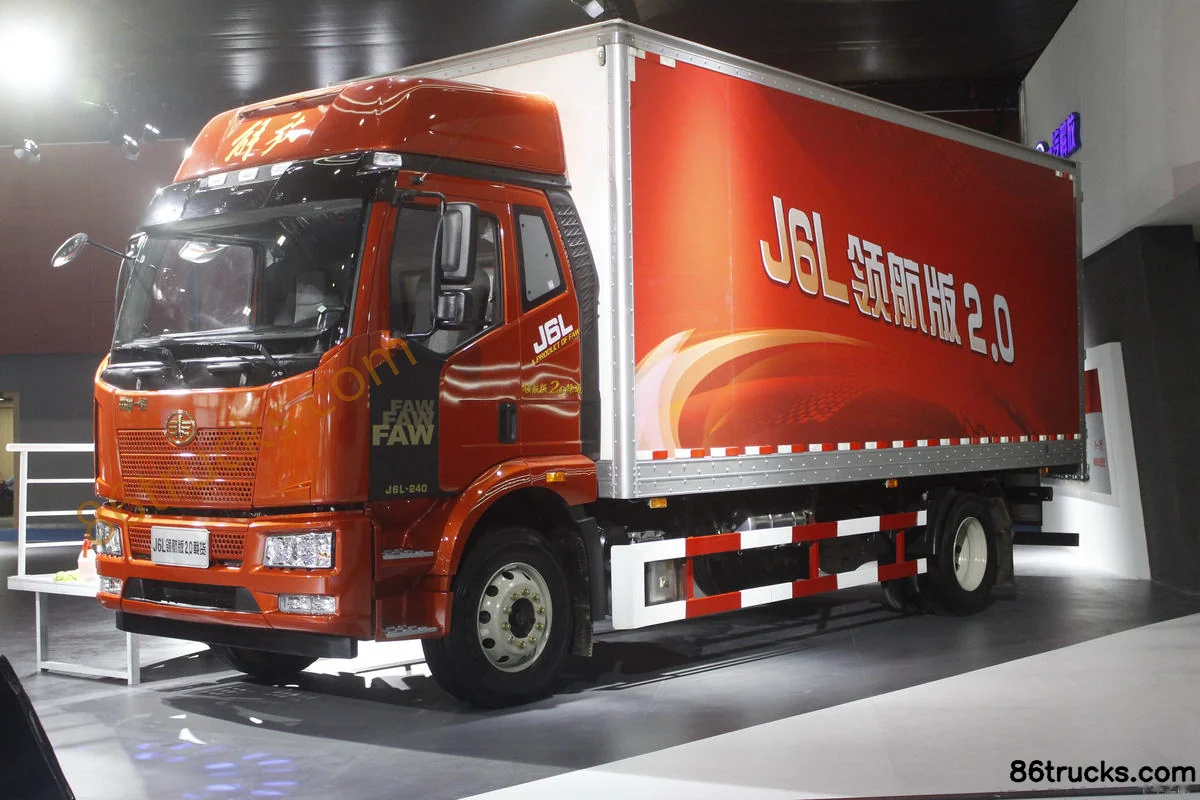

FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI)

Export reference
MSRP N/A
Horsepower: 220
Emission: China VI
Fuel: Diesel
Engine: CA4DK1 Series
Transmission: FAW Jiefang
Curb Weight:: 7.905ton
seating capacity: 2Personnel
Rated payload: 9.9ton
Drive 4X2 (6 wheels)
Cargo box type: Van body

Overview

The FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) is a Medium-duty truck featuring 6.8m cargo length, Van body cargo body, 2Personnel volume and 9.9t payload. Its segment focus covers Agricultural product transport, logistics distribution and LTL transport, matching those duty cycles. On the powertrain side, it comes with a CA4DK1 Series engine, 220 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 220 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA5180XXYP62K1L4E6
Type: enclosed cargo truck
Drive type: 4X2
Wheelbase: 5300mm
Box length class: 6.8m
engine: DachaiCA4DK1-22E6
transmission: FAW JiefangCA8TAX100FS
Rear Axle Ratio: 4.333
Cab length: 9.06m
Cab width: 2.55m
Cab height: 4m
Front track width: 1960mm
rear track: 1878mm
Curb Weight: 7.905ton
Rated payload: 9.9ton
GVWR: 18ton
Origin: Changchun/Qingdao/Chengdu
tonnage class: Medium-duty truck
Approach angle: 18°
departure angle: 10°
market segment: Agricultural product transport, logistics distribution, LTL transport

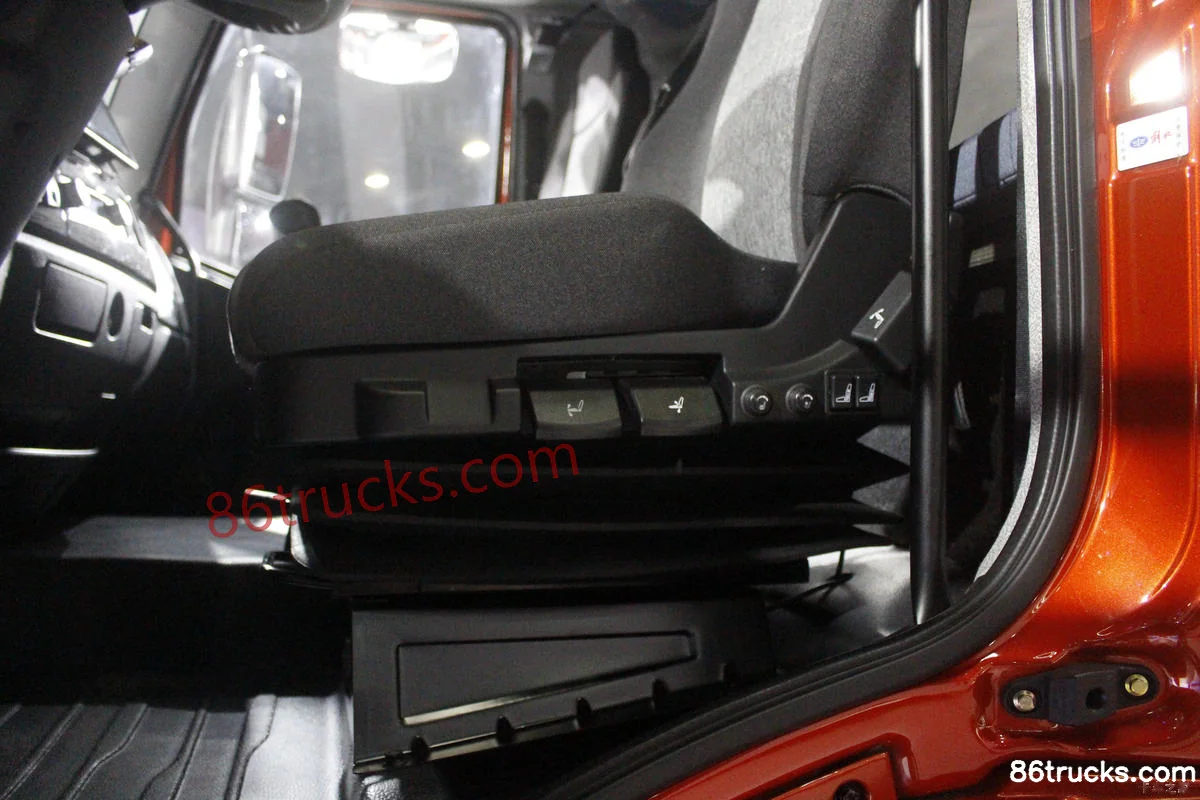

Remarks: Seats with armrests, lumbar support, ventilation and heating
Front/rear suspension: 1.4/2.26m
Version: Pilot Edition 2.0
Energy Type: Diesel
Engine parameters
Engine Brand: Dachai
Engine Model: DachaiCA4DK1-22E6
Engine info: CA4DK1 Series
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.8L
Emission standard: China VI
Max output power: 165kW
Max hp: 220Horsepower
Max torque: 850N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: FAW JiefangCA8TAX100FS
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Van body
Cargo box length: 6.8m
Cargo box width: 2.46m
Cargo box height: 2.6m
*Cargo box interior width: 2.460000038147
Cab parameters
Cab: High roof double bunk flat floor
Cab width: 1950mm
seating capacity: 2Personnel
Seat rows: Sleeper cab
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 400L
Chassis Specs
Front axle description: 1900 front axle
Front axle allowable load: 6500kg
Frame Dimensions: 237×75×7mm
rear axle description: ф378 welded axle
rear axle allowable load: 11500kg
Axle ratio: 4.333
Leaf spring count: 7/7+6
Tire

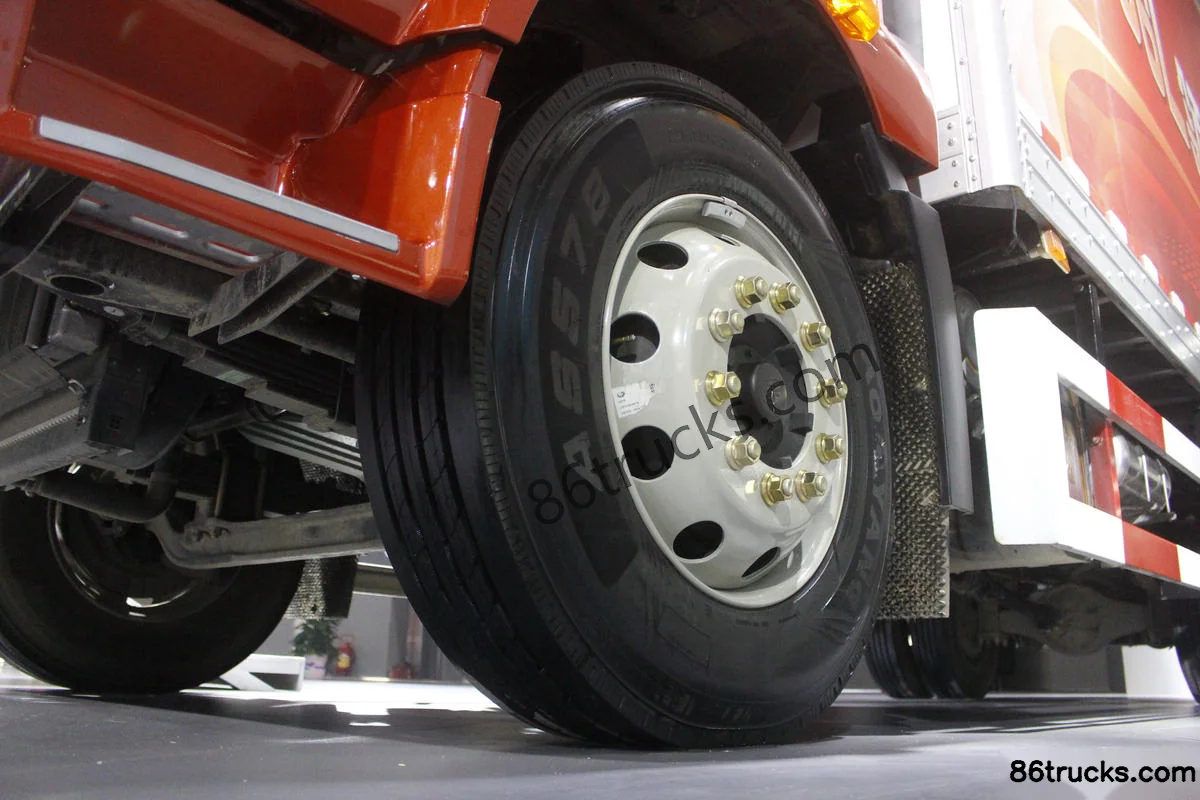

Tire Size: 275/80R22.5
Tire Type: tubeless tire
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
Bluetooth / hands-free calling:
Radio:

Photos

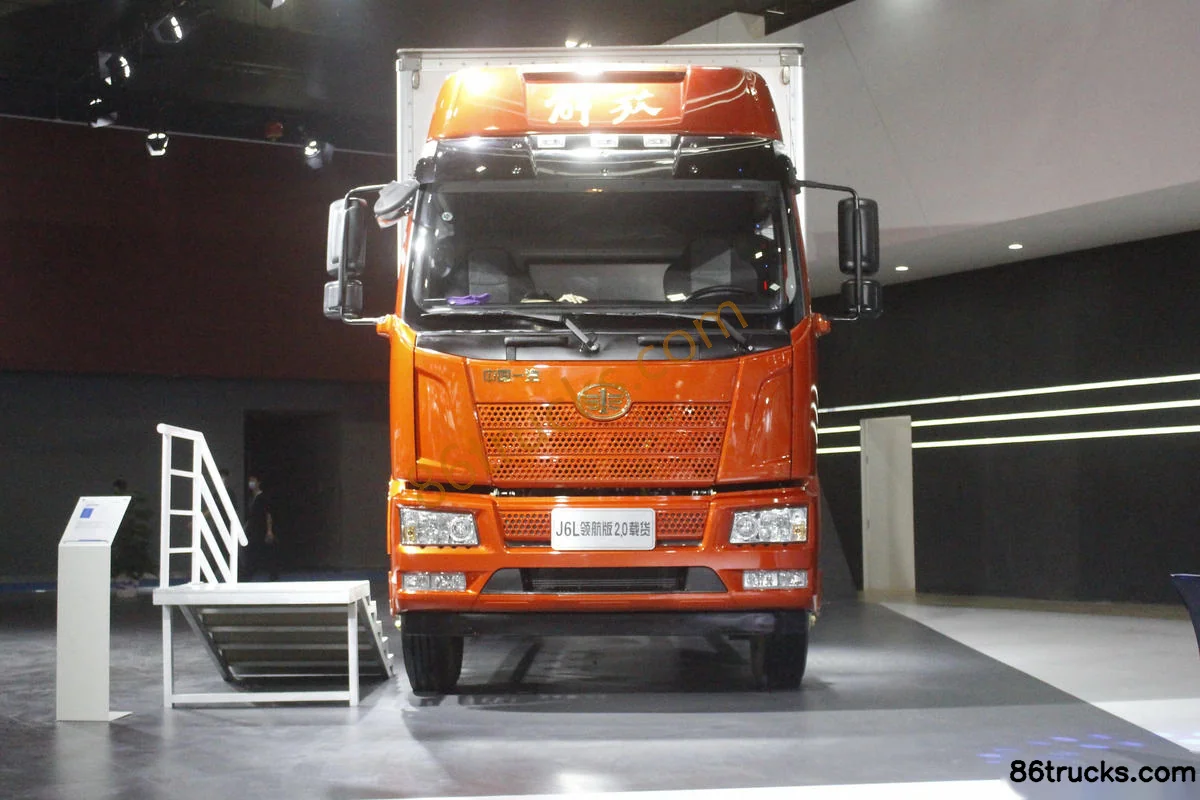

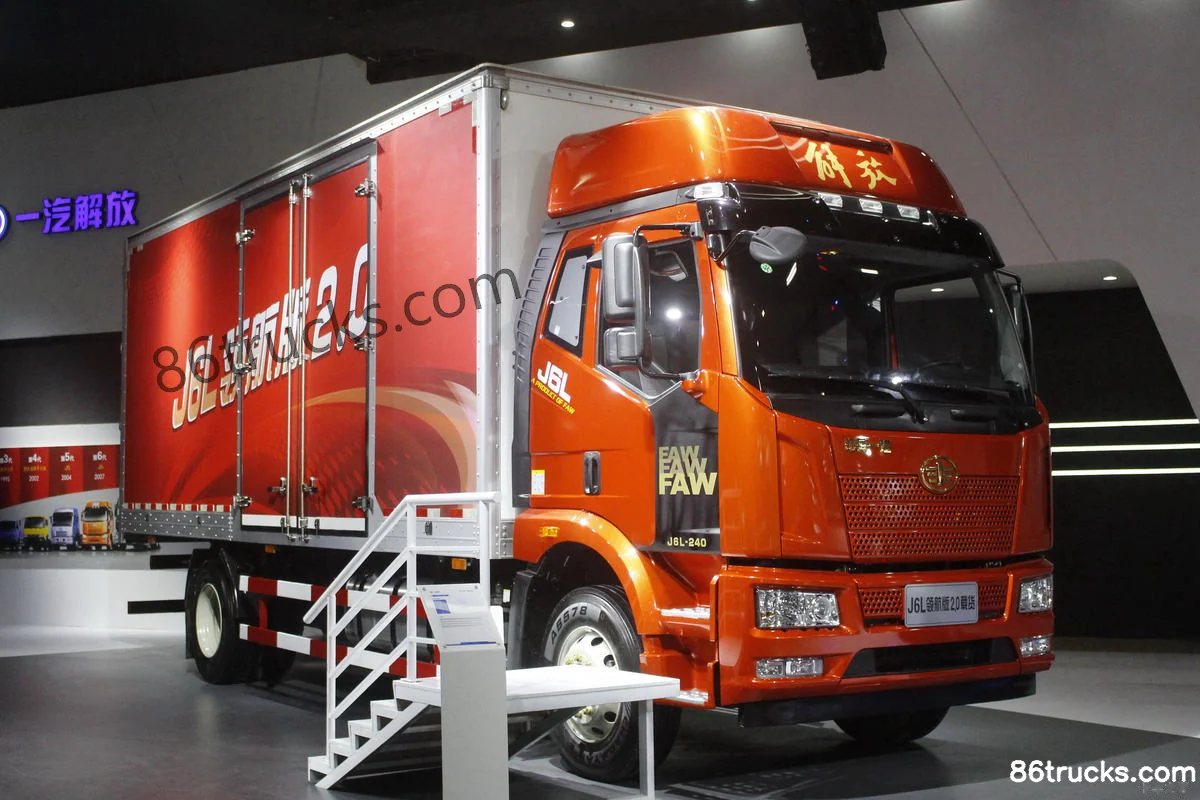

Exterior3

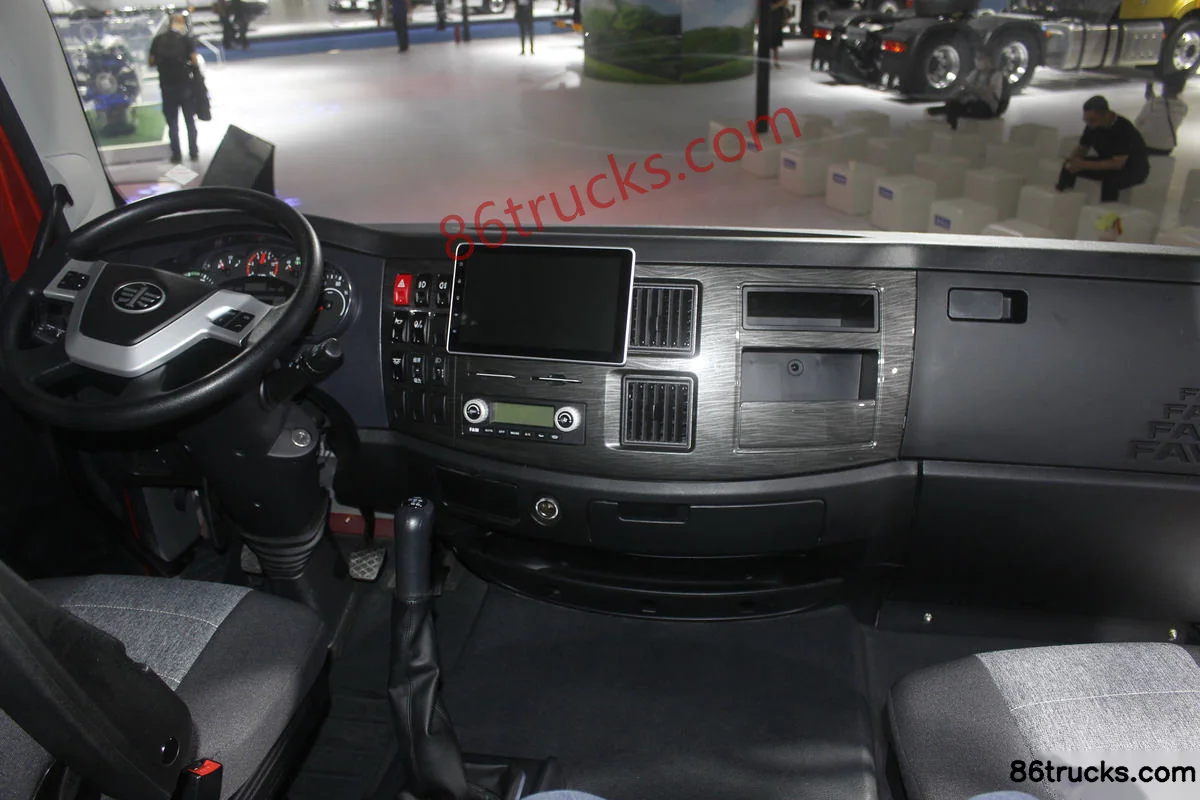

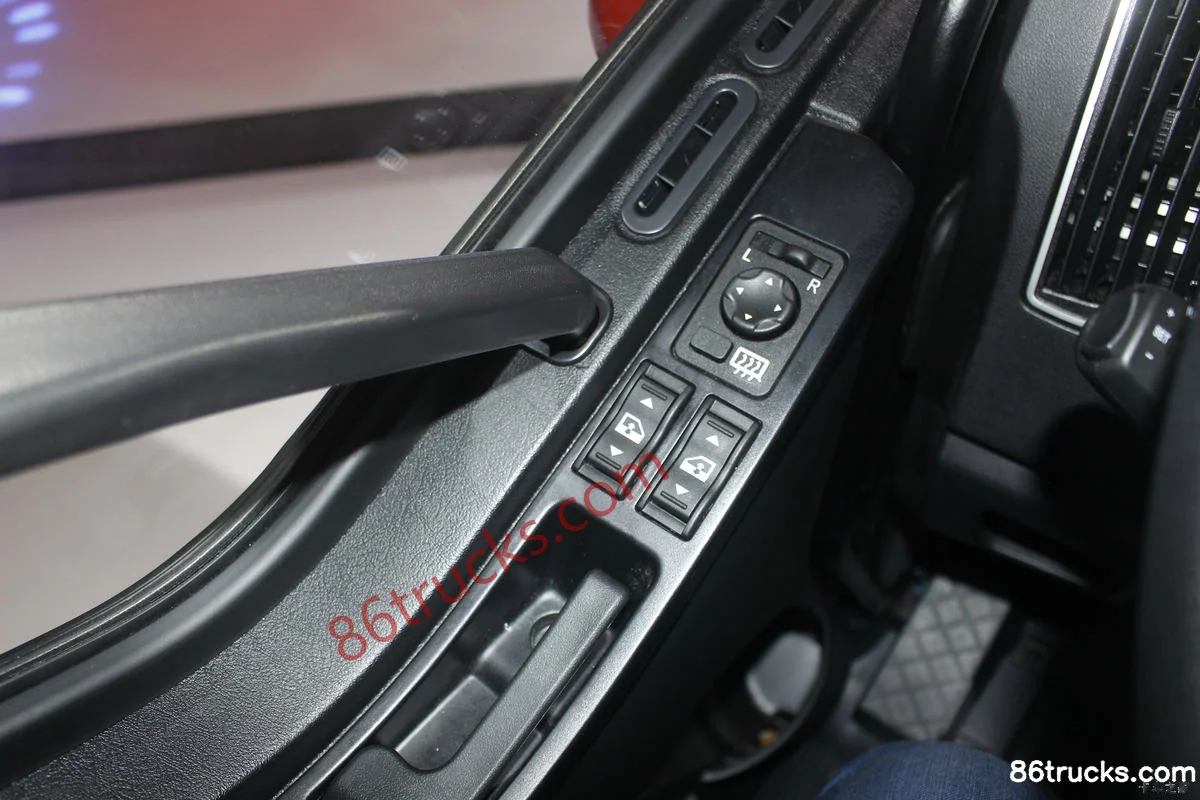

Cab3

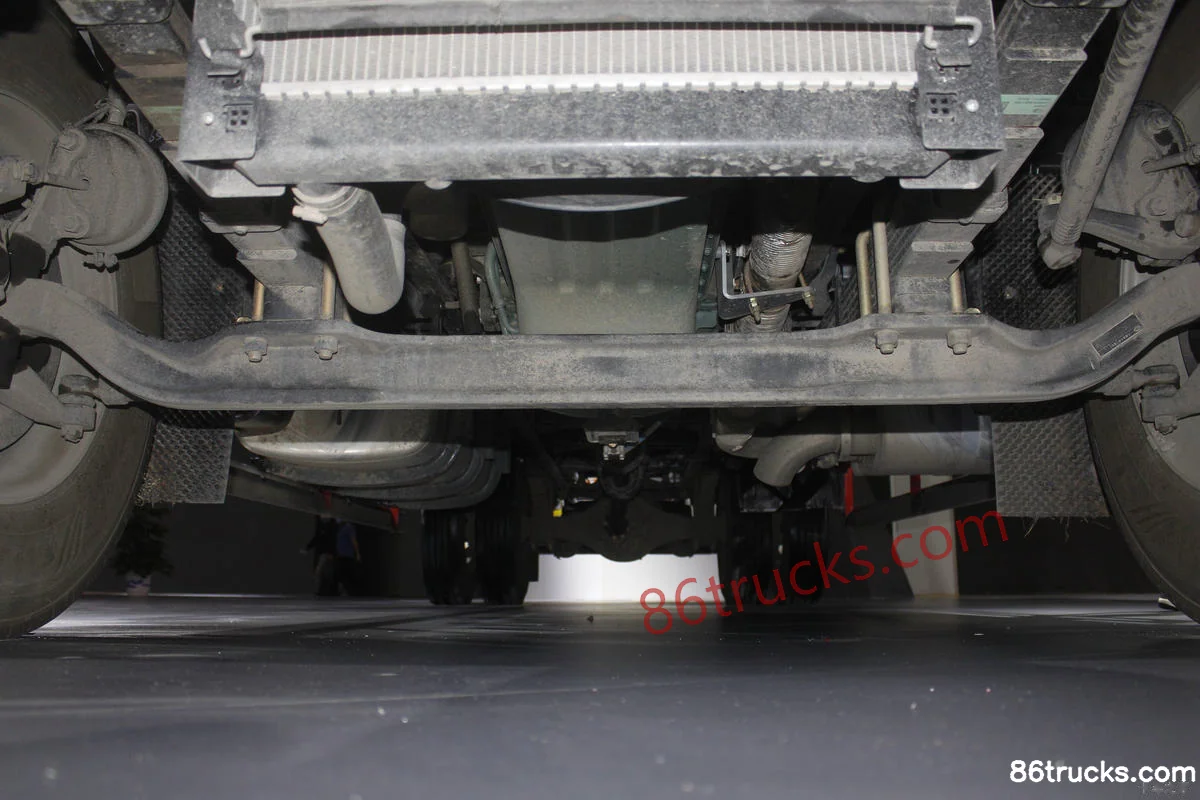

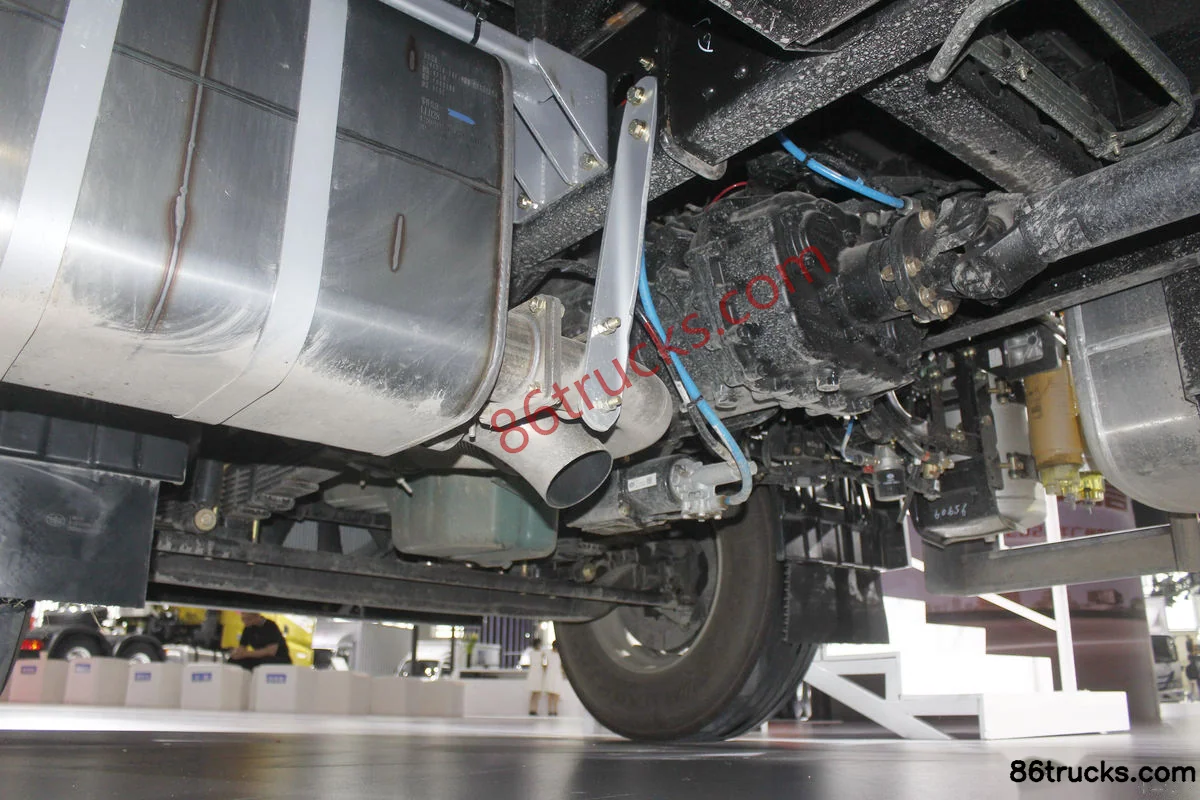

Chassis3

9 photos

FAQ

What emission standard does FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI)?

Key specs of FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI): Drive: 4x2; Horsepower: 220 hp; Emission: China VI; Fuel: Diesel; Engine: CA4DK1 Series; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) suited for?

FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) differ from other variants in the same series?

FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI) belongs to FAW Jiefang J6L Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang New J6L Heavy Truck Leading Edition 2.0 240 hp 4X2(6 wheels) 6.8m Van Cargo Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
