FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis

Export reference
From $18,472
MSRP ¥13.3M CNY
Horsepower: 180
Emission: China V
Fuel: Diesel
Engine: Xichai 4-cylinder
Transmission: FAW Jiefang
Curb Weight:: 6.15ton
seating capacity: 3Personnel
Rated payload: 9.72ton
Drive 4X2 (6 wheels)
Cargo box type: Chassis

Overview

The FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis is a Medium-duty truck featuring 6.75m cargo length, Chassis cargo body, 3Personnel volume and 9.72t payload. On the powertrain side, it comes with a Xichai 4-cylinder engine, 180 hp, 4X2 (6 wheels) drive and China V emissions.

China V 180 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA1169PK2L2E5A80
Type: Chassis
Drive type: 4X2
Wheelbase: 5250mm
engine: XichaiCA4DLD-18E5
transmission: FAW Jiefang 8-speed gearbox
Rear Axle Ratio: 4.333
Cab length: 9m
Cab width: 2.496m
Cab height: 3.05m
Front track width: 1800mm
rear track: 1740,1800mm
Curb Weight: 6.15ton
Rated payload: 9.72ton
GVWR: 16ton
Max. speed: 98km/h
Origin: Qingdao, Shandong
tonnage class: Medium-duty truck
Approach angle: 21°
departure angle: 11°
Front/rear suspension: 1.375/2.375m
Energy Type: Diesel

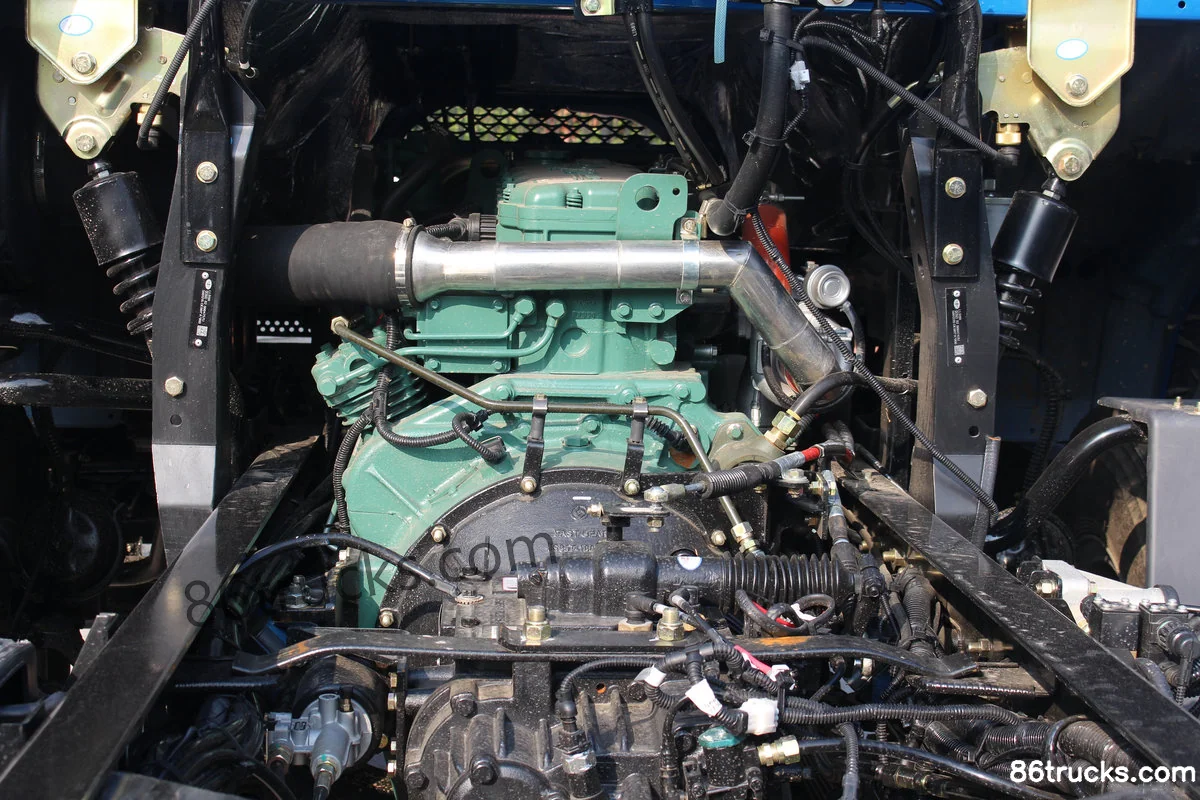

Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DLD-18E5
Engine info: Xichai 4-cylinder
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 4.4L
Emission standard: China V
Max output power: 134kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1300-1700rpm
Rated speed: 2500rpm

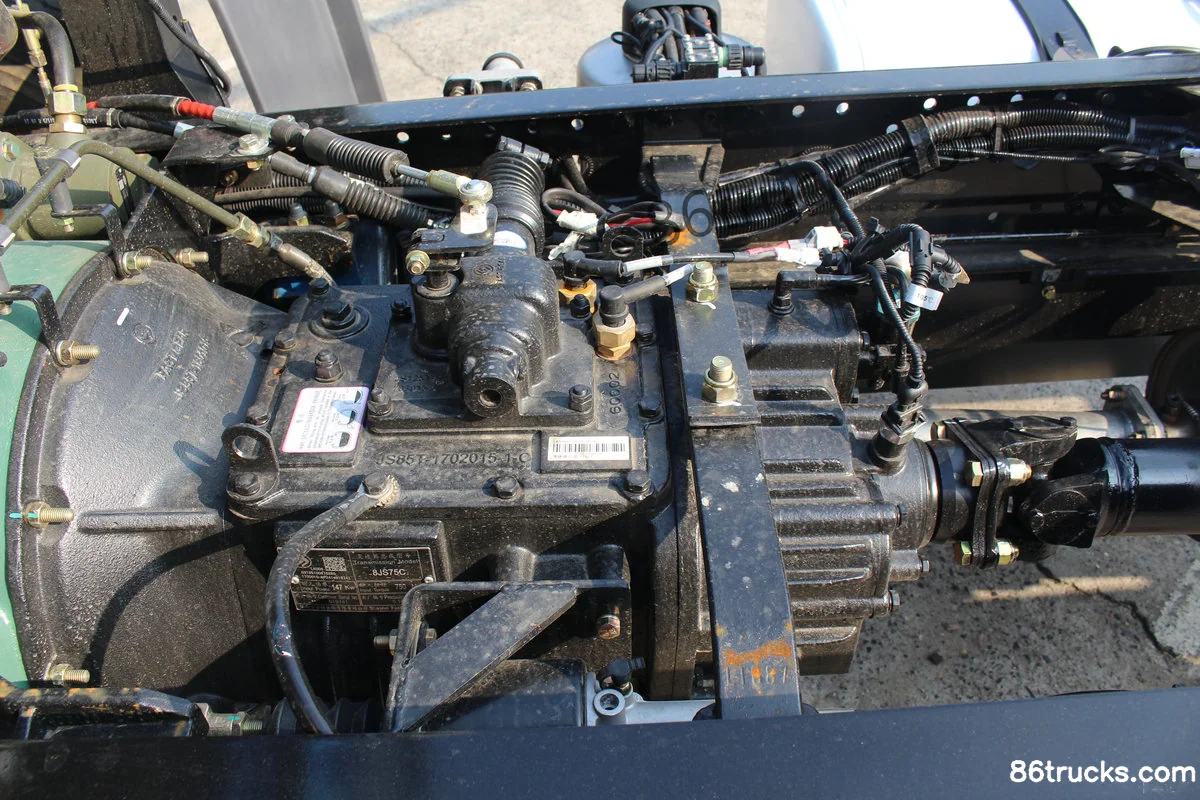

Transmission Parameters
Transmission Model: FAW Jiefang 8-speed gearbox
Transmission Brand: FAW Jiefang
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Housing Material: aluminum alloy
Cargo box parameters
Cargo box type: Chassis
Cargo box length: 6.75m
Cargo box width: 2.4m
Cargo box height: 0.6m
*Cargo box interior width: 2.4000000953674
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 6000kg
rear axle allowable load: 10000kg
Axle ratio: 4.333
Leaf spring count: 7/10+3

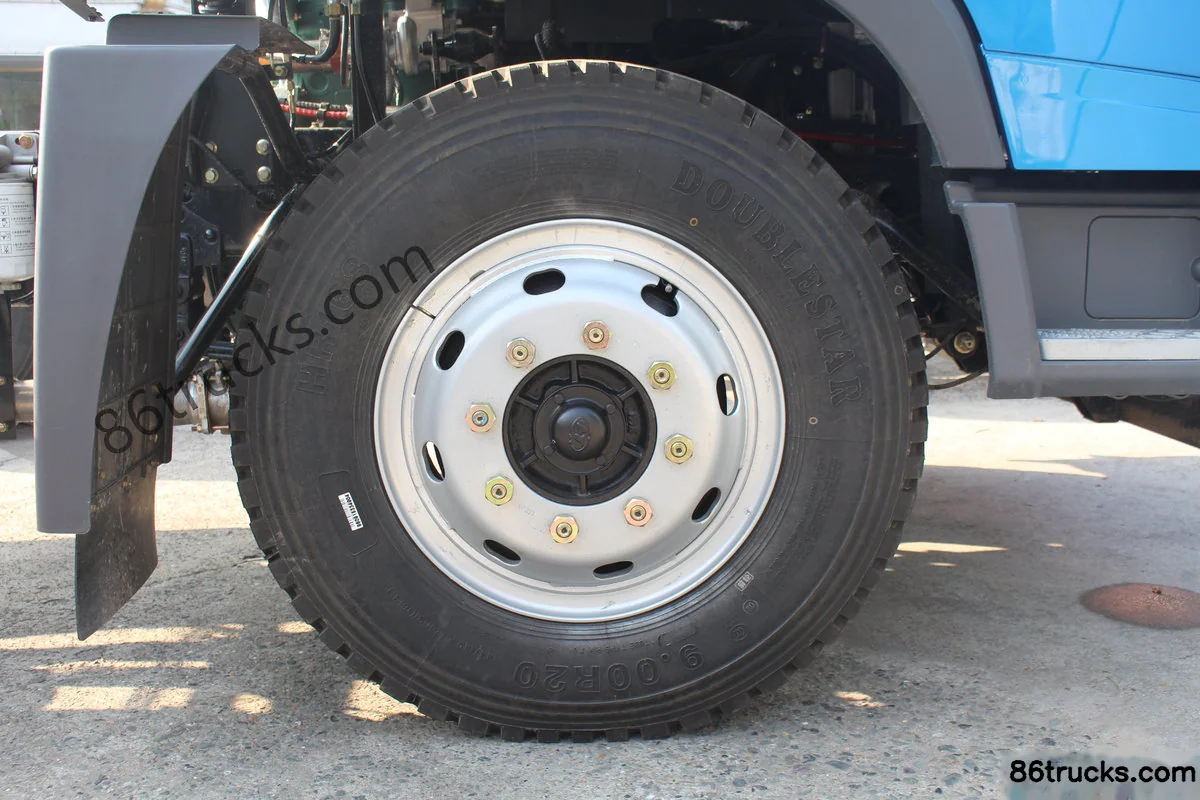

Tire
Tire brand: Double Coin
Tire Size: 9.00R20 2016-ply
Tire Type: Steel radial tire
Number of tires: 6pcs
Control configuration
ABS:

Photos

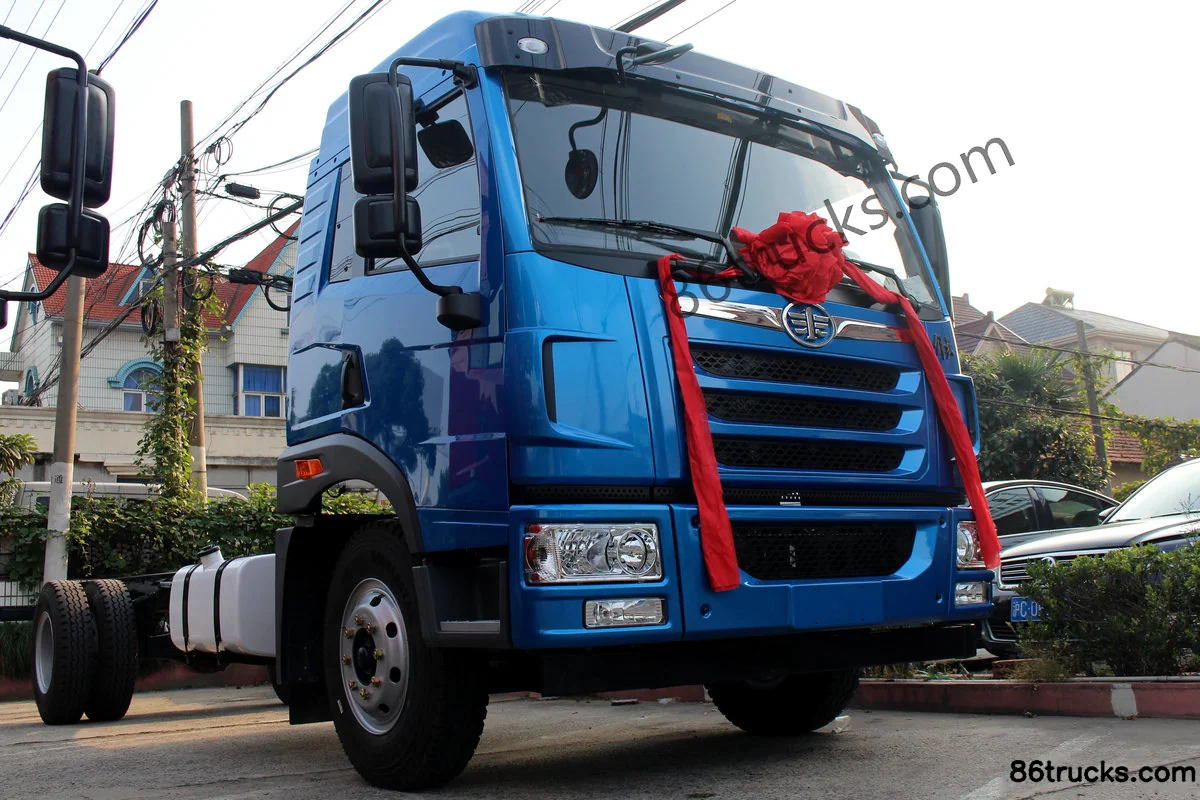

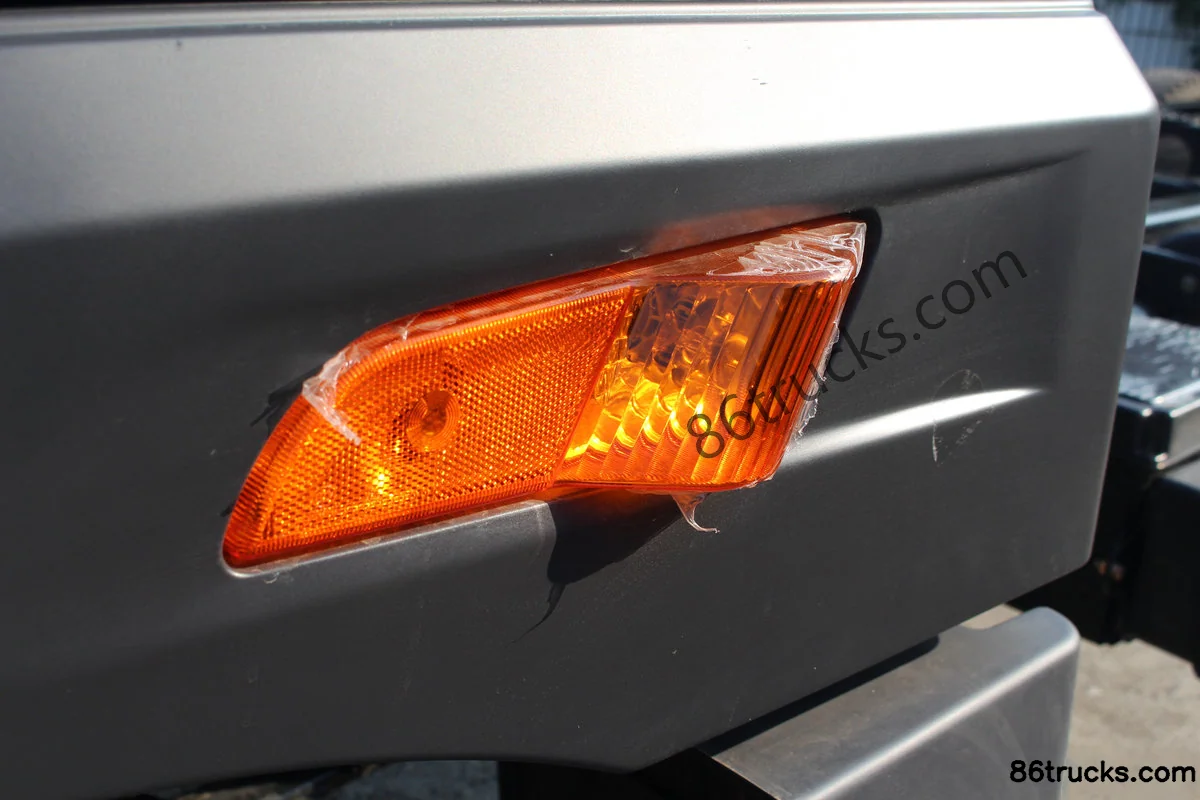

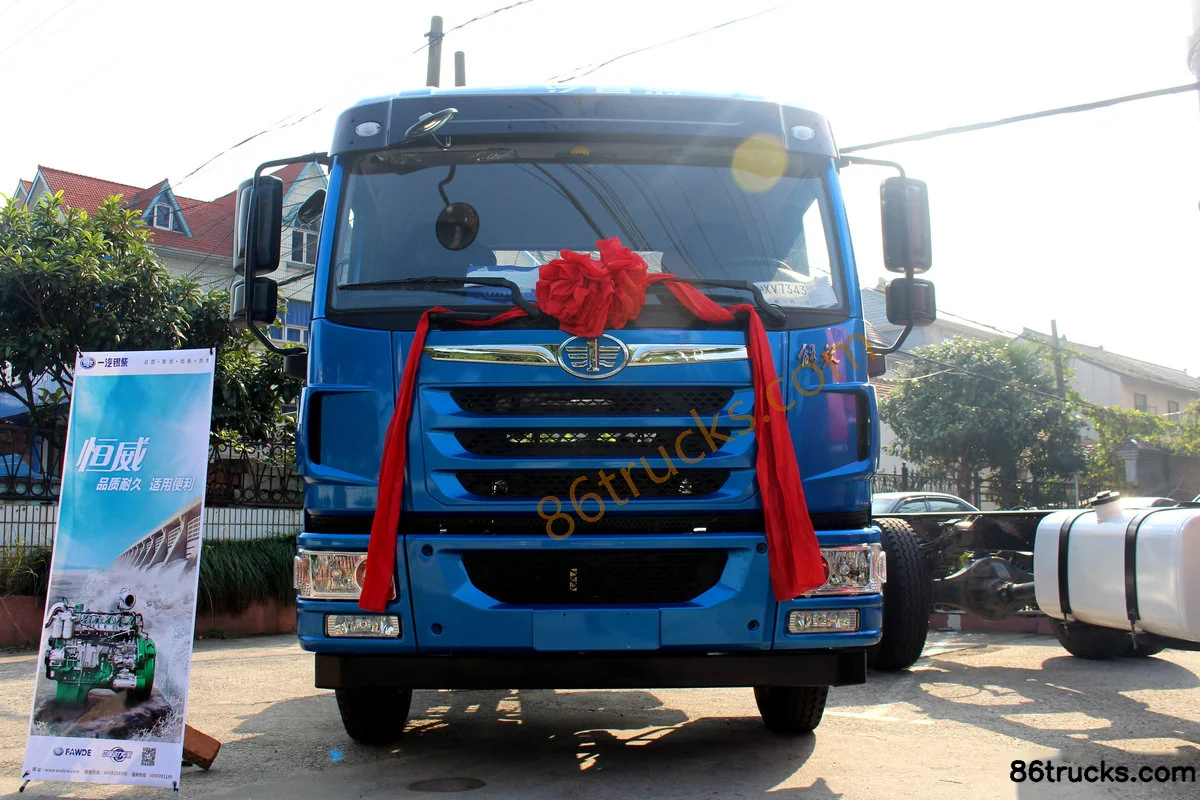

Exterior3

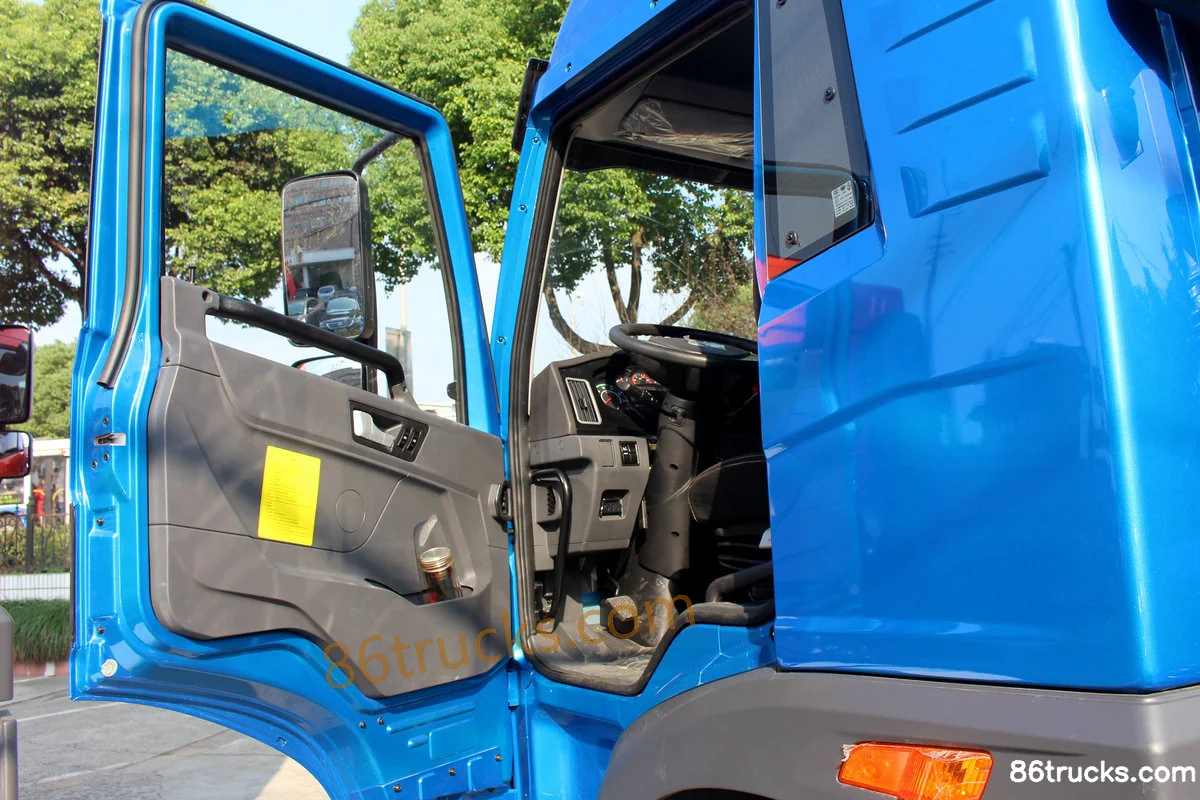

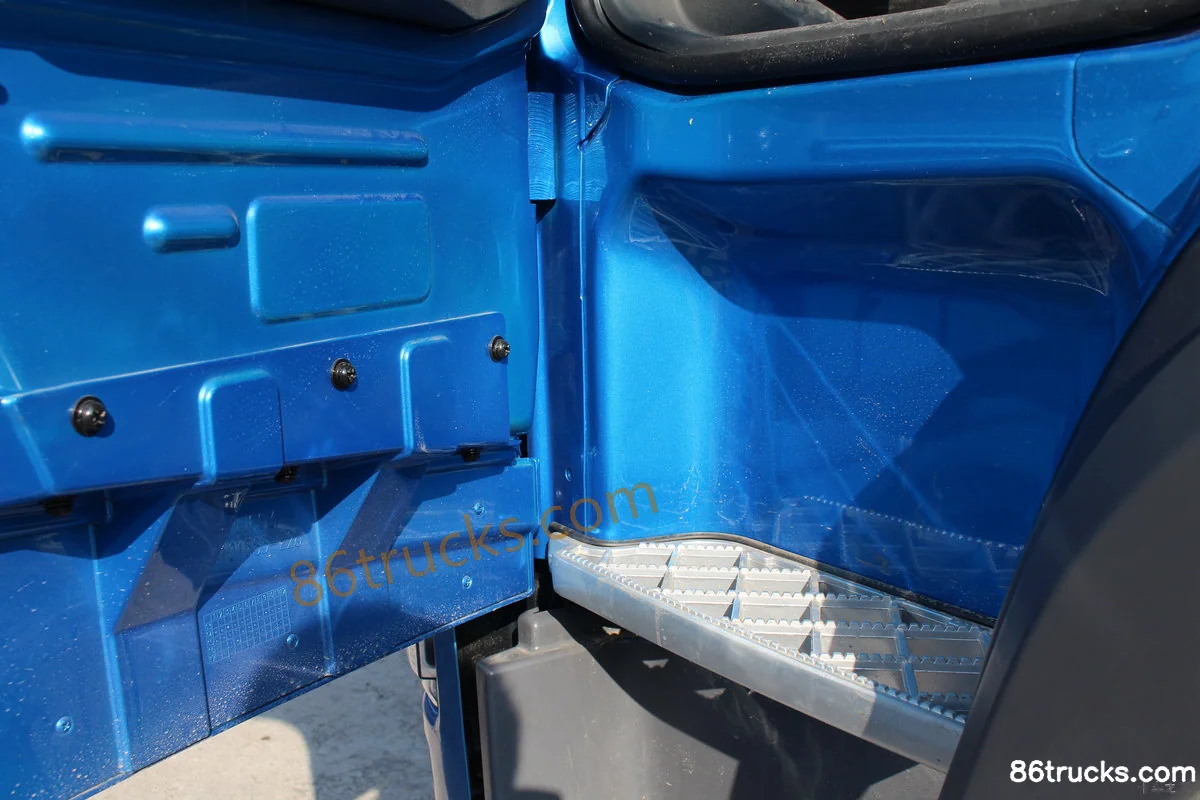

Cab3

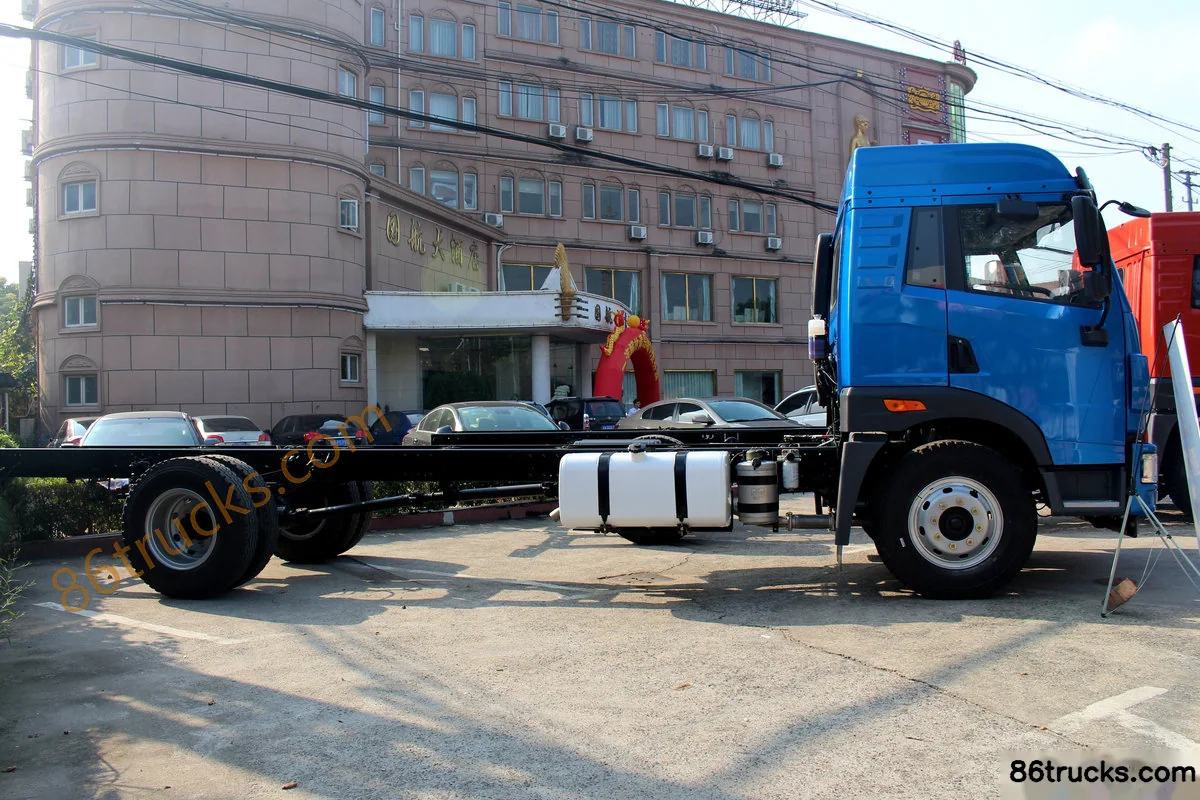

Chassis3

9 photos

FAQ

What is the export price of FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis, and what does it include?

FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis export reference is about From $18,472; MSRP is ¥13.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis?

Key specs of FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis: Drive: 4x2; Horsepower: 180 hp; Emission: China V; Fuel: Diesel; Engine: Xichai 4-cylinder; Transmission: FAW Jiefang. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis suited for?

FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis differ from other variants in the same series?

FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis belongs to FAW Jiefang Qingdao Lu V Medium Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Lu V 180 hp 4x2(6 wheels) cargo truck chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
