Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis

Export reference
From $17,417
MSRP ¥12.54M CNY
Transmission: Sinotruk
Curb Weight:: 1.78ton
Wheelbase:: 3600mm
Tire Size:: 10.00R20
Model code (announced):: EQ1030LZ4DJ
engine:: YuchaiYC4FA115-40
Drive 4X2 (6 wheels)
Horsepower 115
Emission China IV
Fuel Diesel

Overview

The Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis is a Medium-duty truck featuring 3.495t GVW, 4X2 (6 wheels) drive and 5.38m cab. On the powertrain side, it comes with a YuchaiYC4FA115-40 engine, 115 hp, China IV emissions and Sinotruk transmission.

China IV 115 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): EQ1030LZ4DJ
Drive type: 4X2
Wheelbase: 3600mm
engine: YuchaiYC4FA115-40
transmission: SinotrukHW90510
Rear Axle Ratio: 6.58
Cab length: 5.38m
Cab width: 2.1m
Cab height: 2.65m
Front track width: 1750mm
rear track: 1586mm
Curb Weight: 1.78ton
GVWR: 3.495ton
Origin: Hubei Laohekou
tonnage class: Medium-duty truck
Approach angle: 30°
departure angle: 29°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC4FA115-40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.982L
Emission standard: China IV
Max output power: 85kW
Max hp: 115Horsepower
Max torque: 300N·m
Max torque speed: 1600-2400rpm
Rated speed: 3200rpm
Engine Type: BOSCH common rail EGR+POC+DOC
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: SinotrukHW90510
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
fuel tank
Fuel tank capacity: 280L
Chassis Specs
Frame Dimensions: 280*80*7+5mm
Axle ratio: 6.58
Leaf spring count: 9/10+8
clutch: Φ350
Tire
Tire Size: 10.00R20
Number of tires: 6pcs

Photos

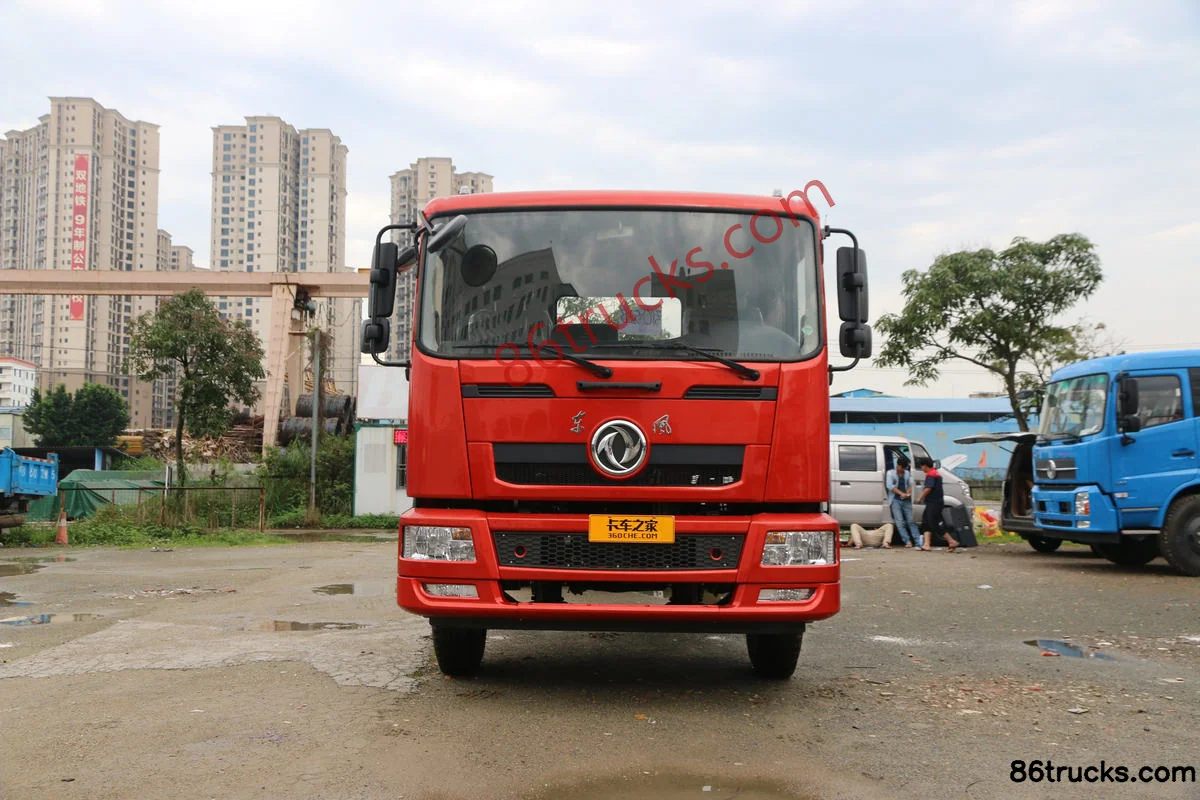

Exterior1

1 photos

FAQ

What is the export price of Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis, and what does it include?

Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis export reference is about From $17,417; MSRP is ¥12.54M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis?

Key specs of Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis: Drive: 4x2; Horsepower: 115 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis suited for?

Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis differ from other variants in the same series?

Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis belongs to Dongfeng Chuangpu Near-heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng (Original Pu) 115 hp 4X2(6 wheels) Dump Truck Chassis?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
