Sinotruk Wangpai 7 Series 129 hp 4X2(6 wheels) truck-mounted concrete pump truck

Export reference
From $14,250
MSRP ¥10.26M CNY
Fuel: Diesel
Drive: 4X2 (6 wheels)
Wheelbase:: 3600mm
Model code (announced):: CDW5140THBA2R5
Overall Dimensions: L×W×H:: 7.22×2.45×3.28m
Max. travel speed:: 80km/h
Curb Weight: 13.385ton
Horsepower 129
Max output power: 95kW
Emission China V

Overview

The Sinotruk Wangpai 7 Series 129 hp 4X2(6 wheels) truck-mounted concrete pump truck is a concrete pump truck featuring 13.385ton GVW, 129 hp, 95kW power and 4X2 (6 wheels) drive. On the powertrain side, it comes with China V emissions and Diesel fuel.

China V 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CDW5140THBA2R5
Drive type: 4X2
Wheelbase: 3600mm
Overall Dimensions: L×W×H: 7.22×2.45×3.28m
Max. travel speed: 80km/h
Curb Weight: 13.385ton
Chassis Specs
Axle Count: 2
Chassis Series: Wangpai 7 Series
Chassis Model: CDW1140HA2R5
rear axle description: 7T
Axle ratio: 5.833
Engine parameters
Injection System: Common Rail
Engine Model: Yunnei PowerYN38CRE1
fuel type: Diesel
Displacement: 3.76L
Emission standard: China V
Max output power: 95kW
Max hp: 129Horsepower
Rated speed: 3000rpm
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLYWLY10H46
Cab parameters
Cab: Flat roof
Tire
Tire Size: 8.25R20

Photos

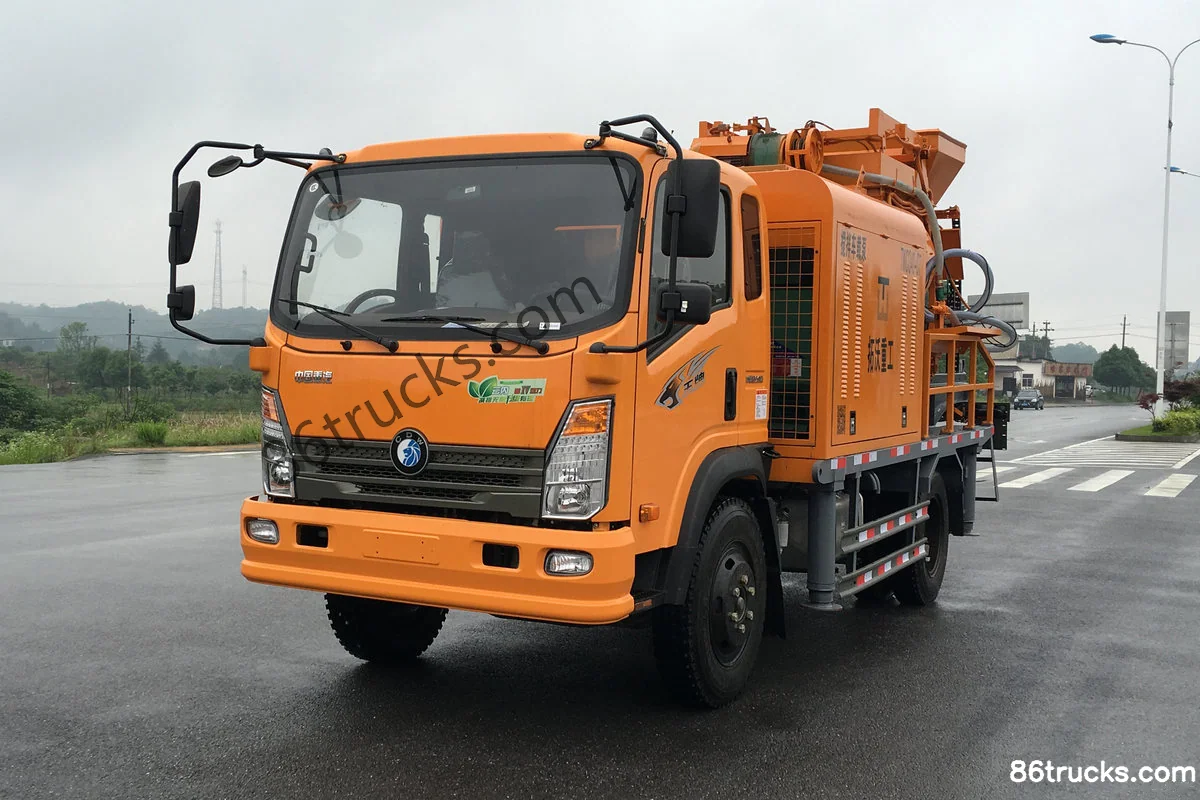

Exterior1
