Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck

Export reference
MSRP N/A
Rated payload:: 9.505ton
Wheelbase:: 3750mm
Cargo box length:: 4.2m
Model code (announced):: DYQ3181BEVAB
Cab length:: 6.85m
GVWR:: 18ton
Drive 4X2 (6 wheels)
Battery Brand: CATL
Motor 1 Brand: Langao
Curb Weight: 8.3ton

Overview

The Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck is a Light Truck featuring CATL battery/range, Langao motor, 4X2 (6 wheels) drive and 9.505t payload.

4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3181BEVAB
Drive type: 4X2
Wheelbase: 3750mm
Cab length: 6.85m
Cab width: 2.55m
Cab height: 2.85m
Curb Weight: 8.3ton
Rated payload: 9.505ton
GVWR: 18ton
Max. speed: 80km/h
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Energy Type: Electric
electric motor
Motor 1 Brand: Langao
Motor 1 Model: TZ342XSLGV01
Motor Type: Permanent magnet synchronous motor
total rated power: 105kW
Peak power: 165kW
Battery/Charging
Battery Brand: CATL
Cargo box parameters
Cargo box length: 4.2m
Cargo box width: 2.25m
Cargo box height: 0.8m
Cab parameters
seating capacity: 3Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500kg
rear axle allowable load: 11500kg
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Manual
Power Windows:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
Front fog lamp:
Headlight height adjustment:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

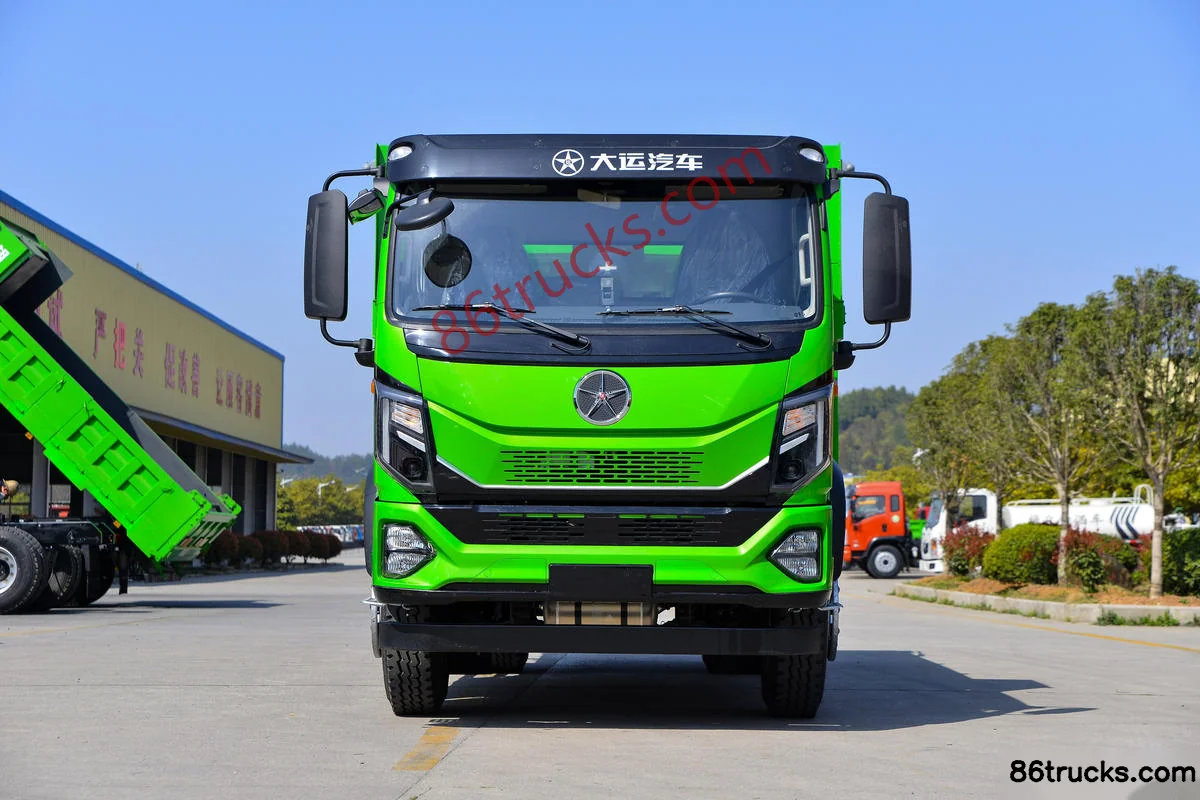

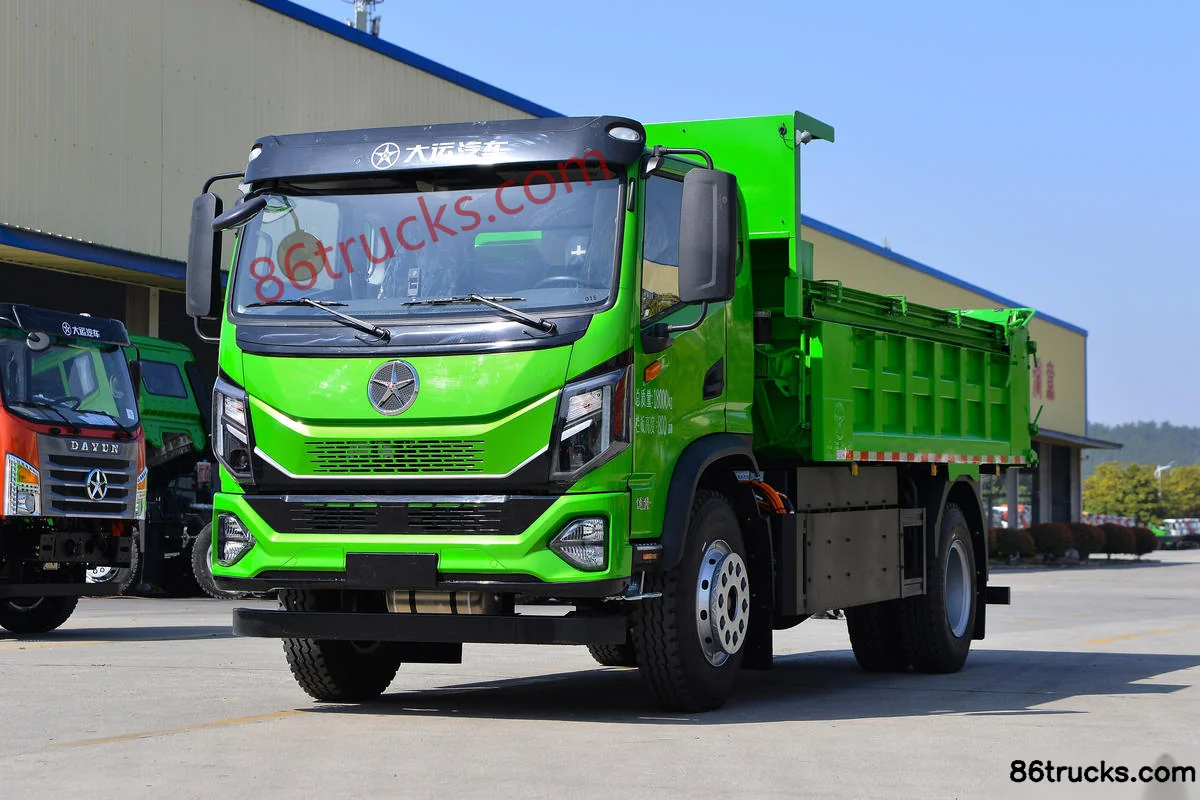

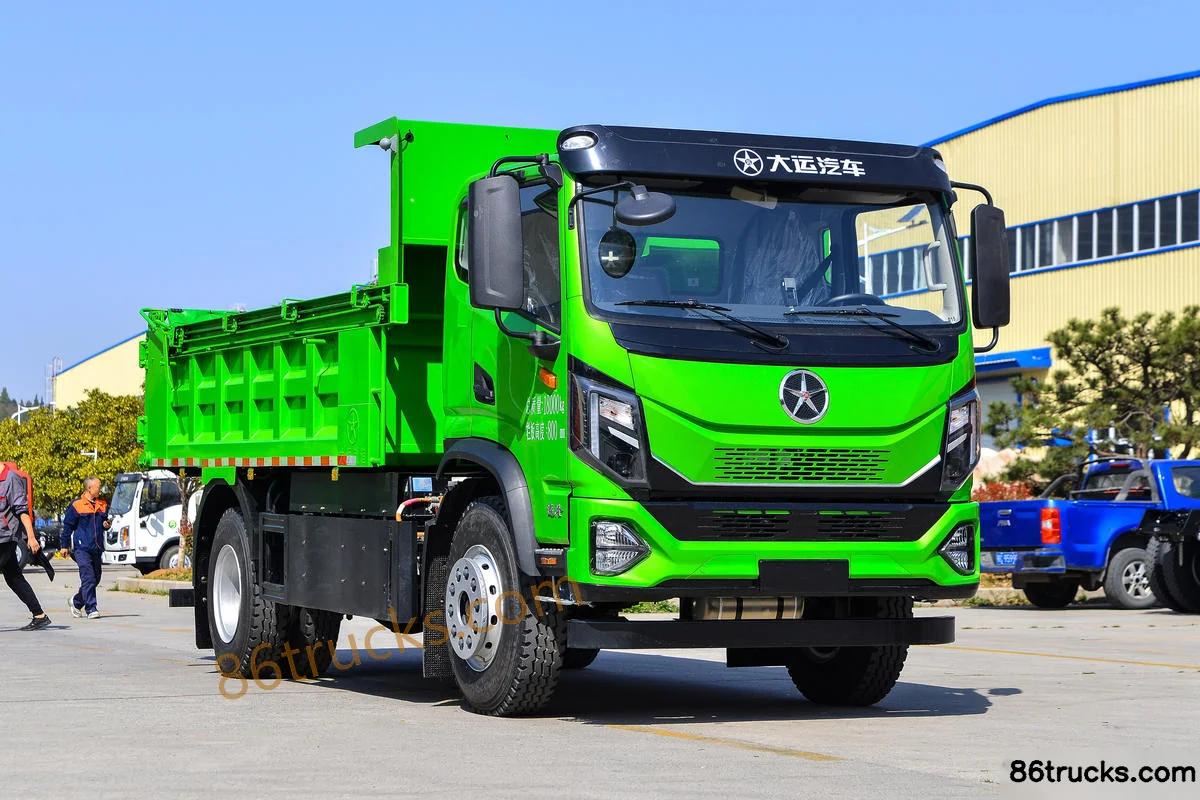

Exterior3

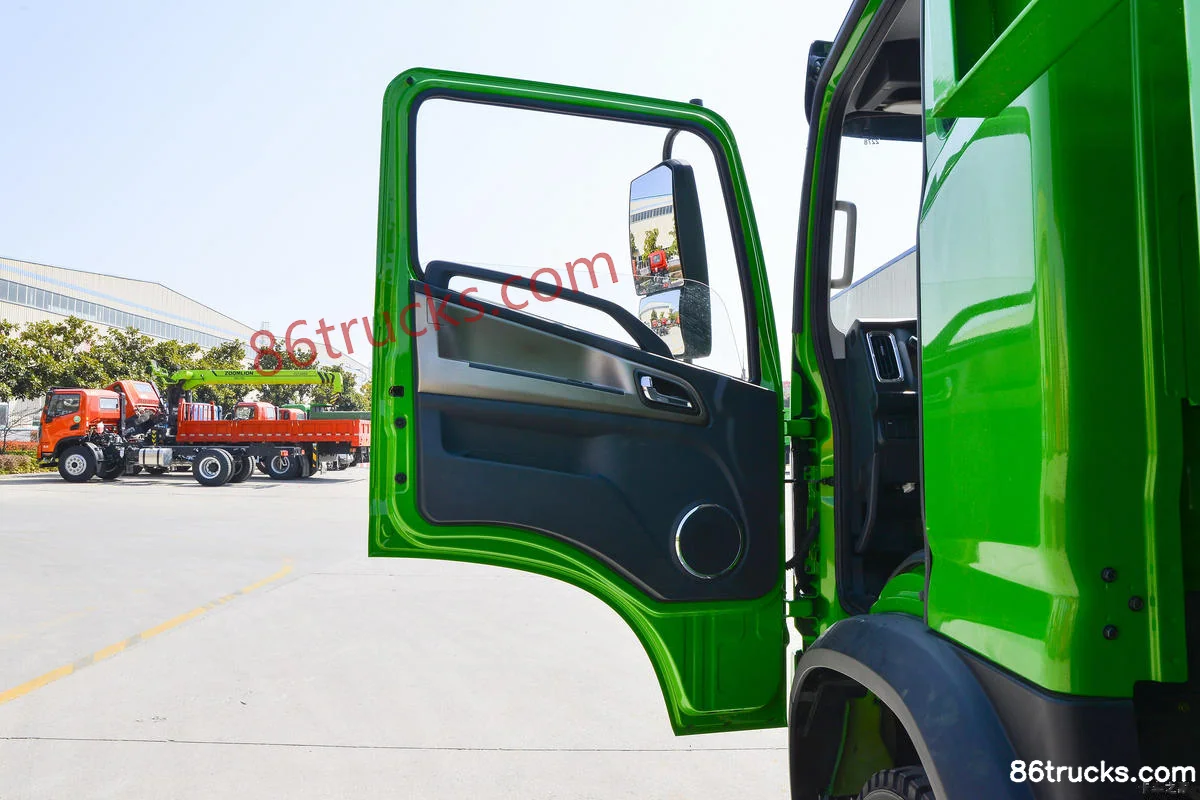

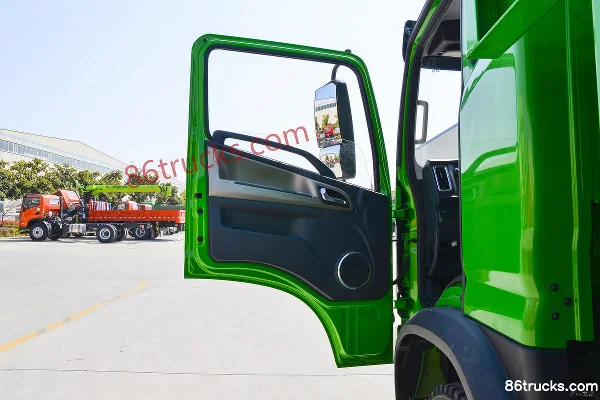

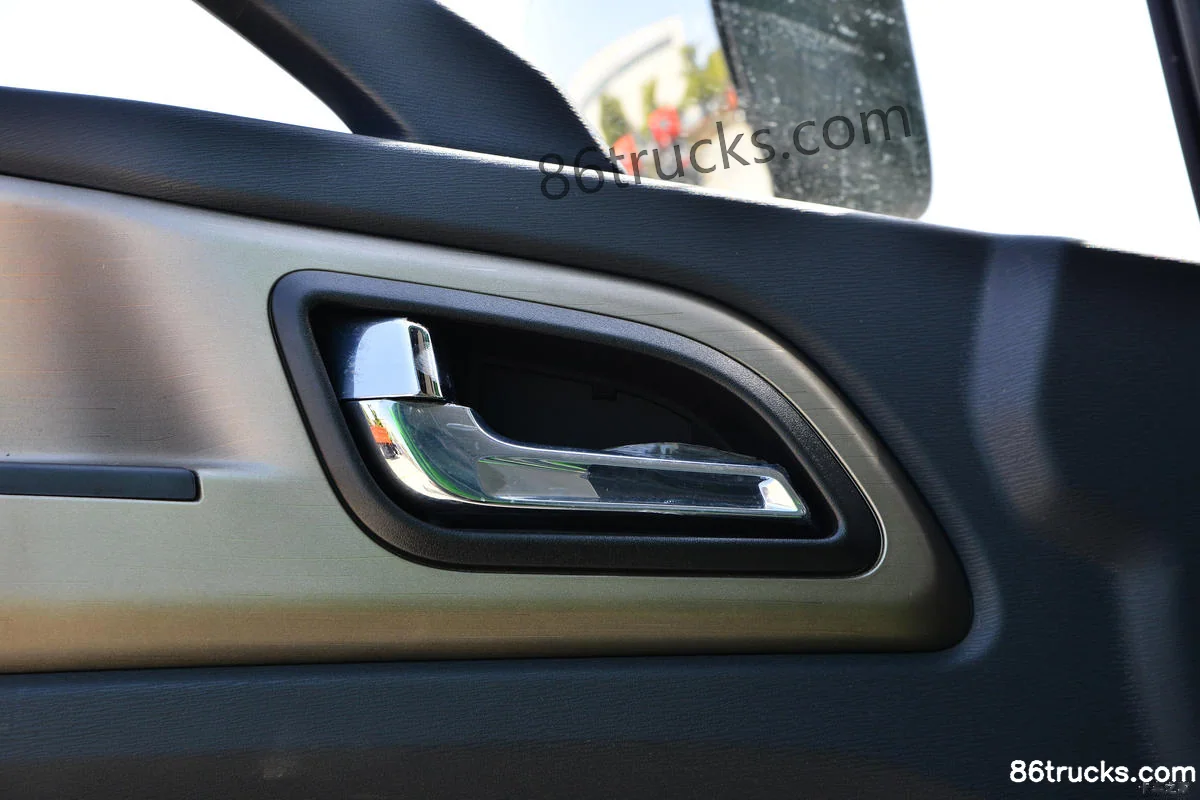

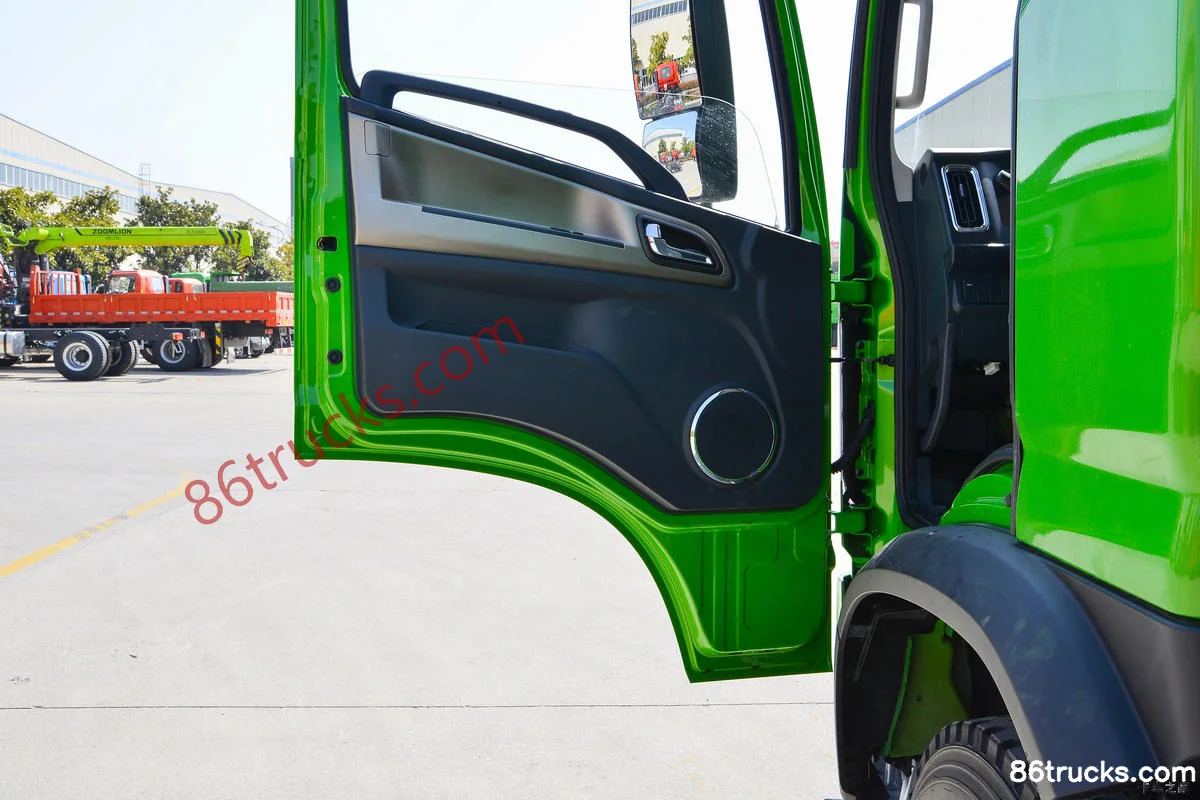

Cab3

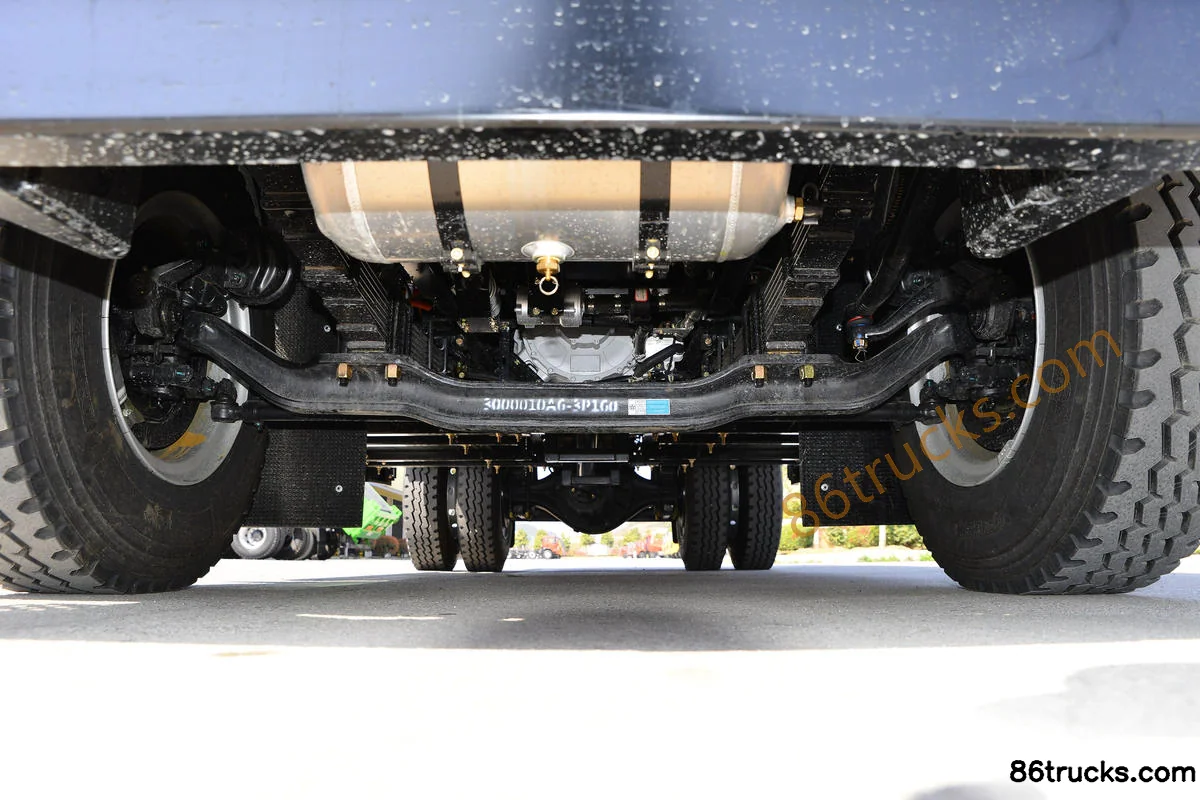

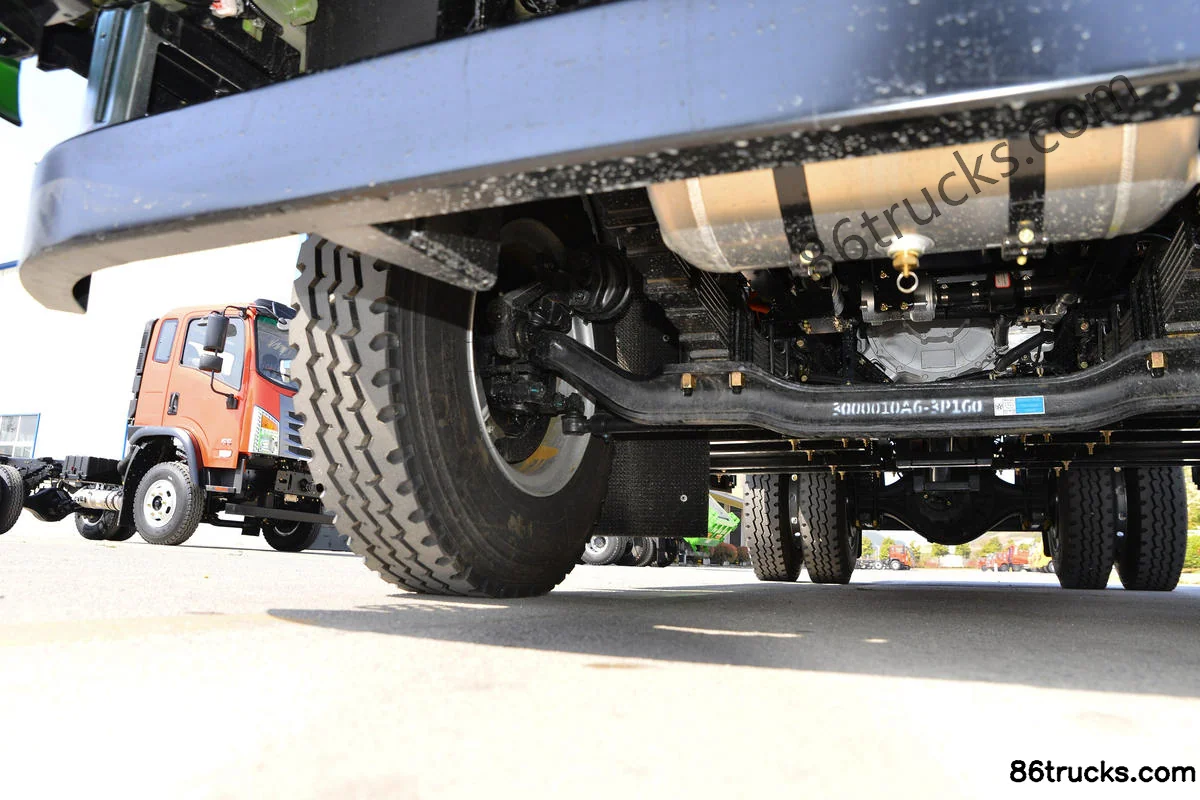

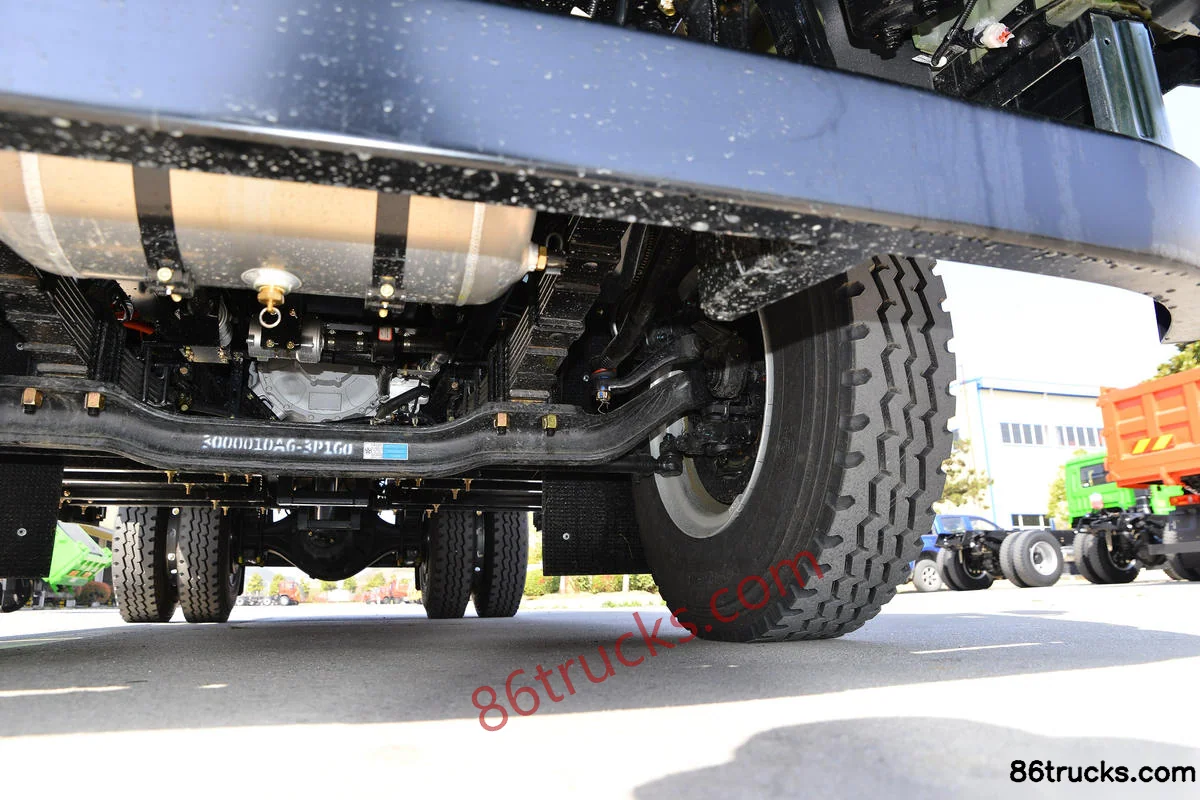

Chassis3

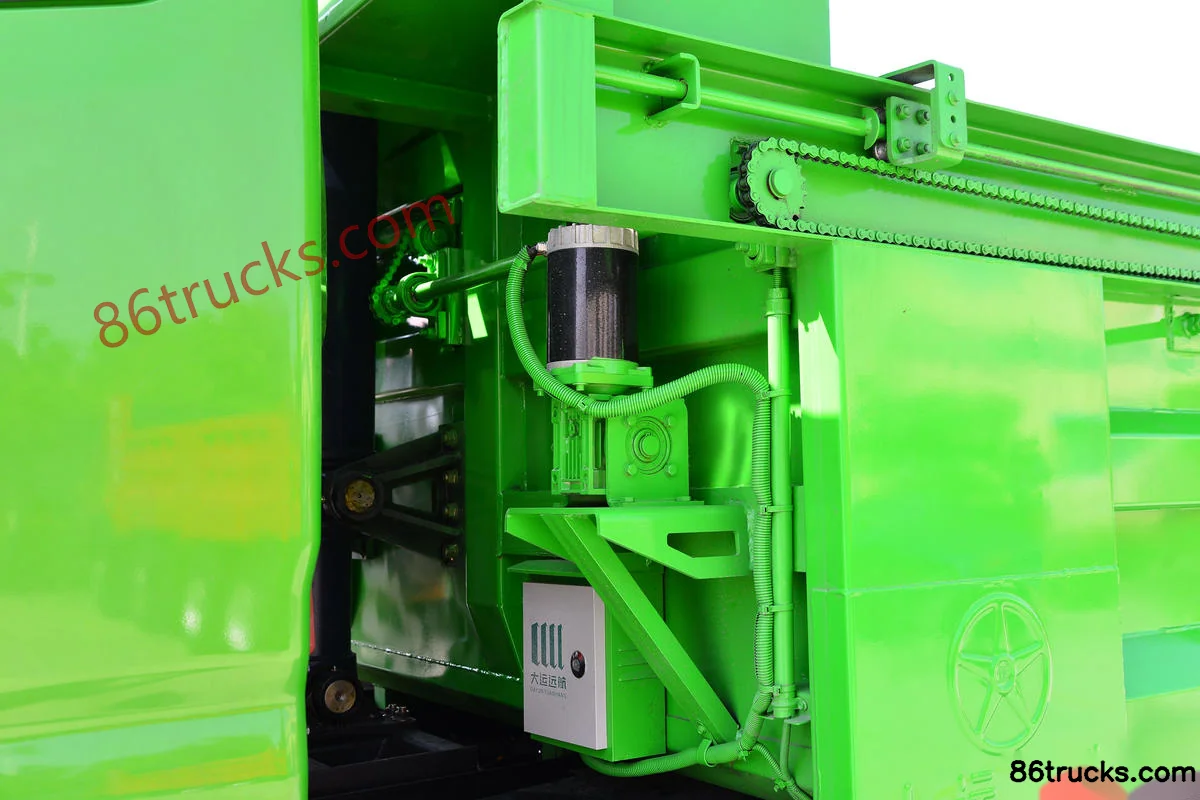

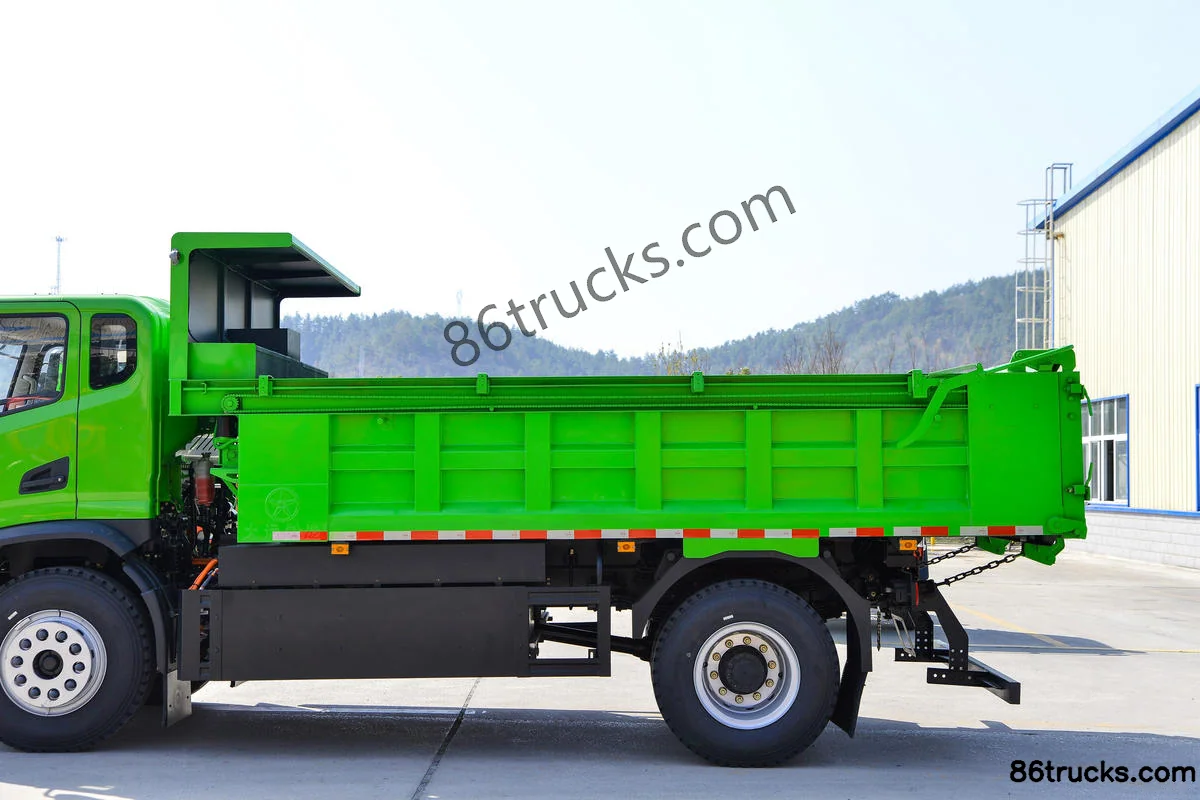

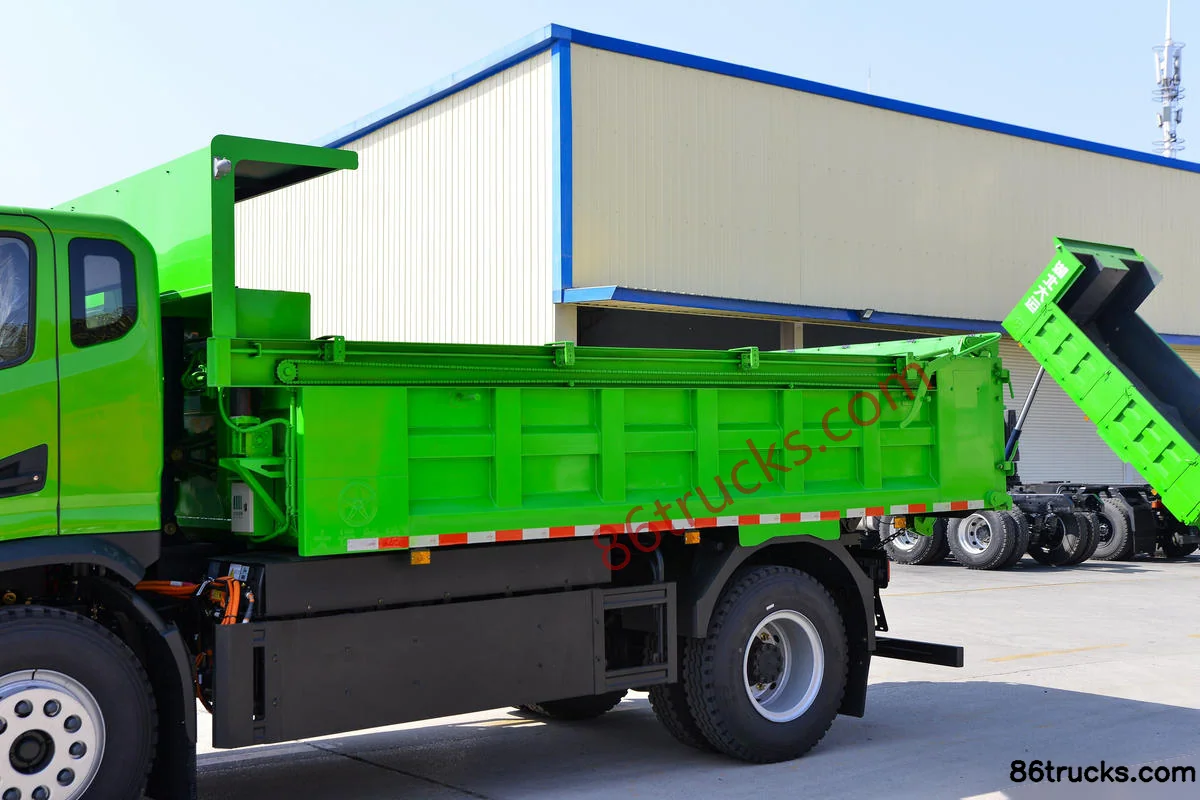

Body3

12 photos

FAQ

What are the key specs of Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck?

Key specs of Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck: Drive: 4x2. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck suited for?

Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck differ from other variants in the same series?

Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck belongs to Dayun Yunlong Medium Truck (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Yunlong 4X2(6 wheels) 4.2m electric dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
