SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane

Export reference
MSRP N/A
Engine Brand:: Weichai
Displacement:: 9.7L
Max output power:: 213kW
Max hp:: 290Horsepower
Max torque:: 1420N·m
Max torque speed:: 1200-1500rpm
Drive 6X4 (10 wheels)
Horsepower 290
Emission China IV
Fuel Diesel

Overview

The SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane is a truck-mounted crane featuring 6X4 (10 wheels) drive. On the powertrain side, it comes with a Weichai engine, 290 hp, China IV emissions and Diesel fuel.

China IV 290 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Drive type: 6X4
Energy Type: Diesel
Engine parameters
Engine Brand: Weichai
Engine Model: WeichaiWP10.290E40
fuel type: Diesel
Displacement: 9.7L
Emission standard: China IV
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1420N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Body Parameters
Vehicle certification code: SX5256JSQDR584
Body Brand: SHACMAN
Chassis Specs
Chassis Brand: SHACMAN
Chassis Series: Delong New F3000
rear axle description: Hande 7.5 MAN disc front axle + disc brake wear alarm, Hande 13t MAN double reduction axle
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9JS135
Tire
Tire Size: 12.00R20
Number of tires: 10pcs

Photos

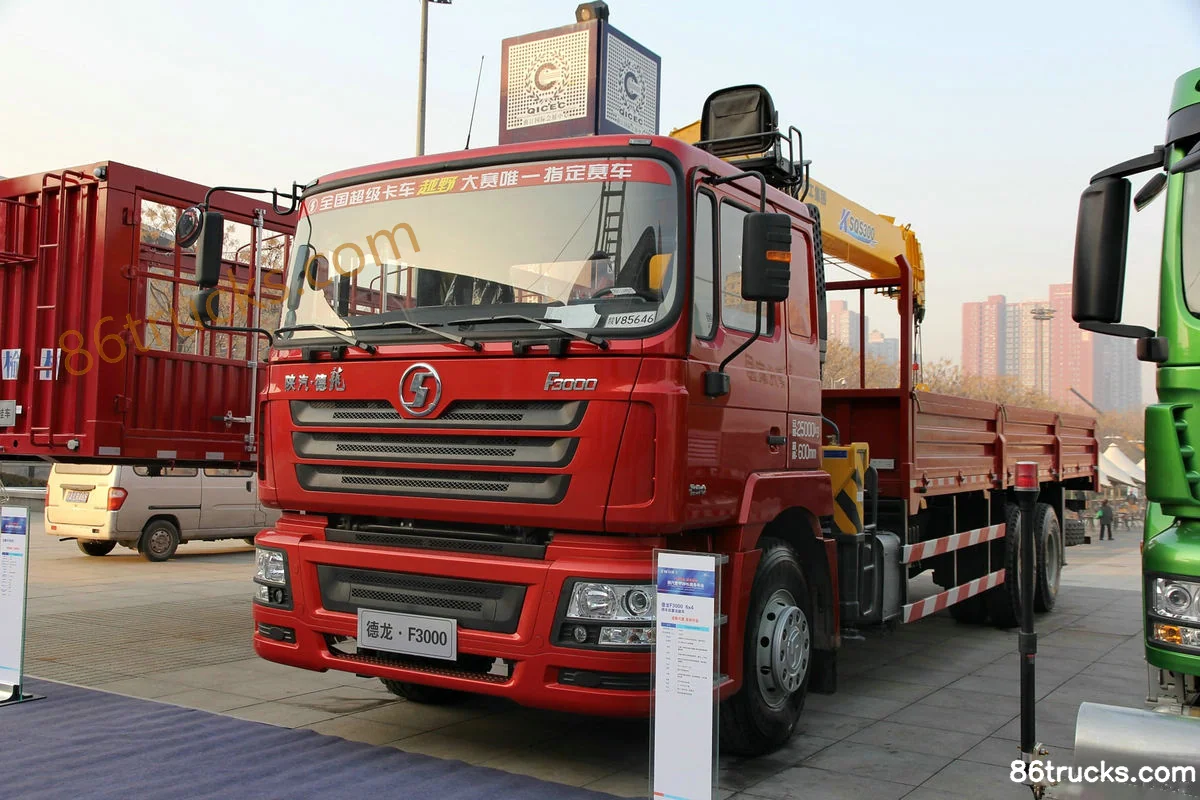

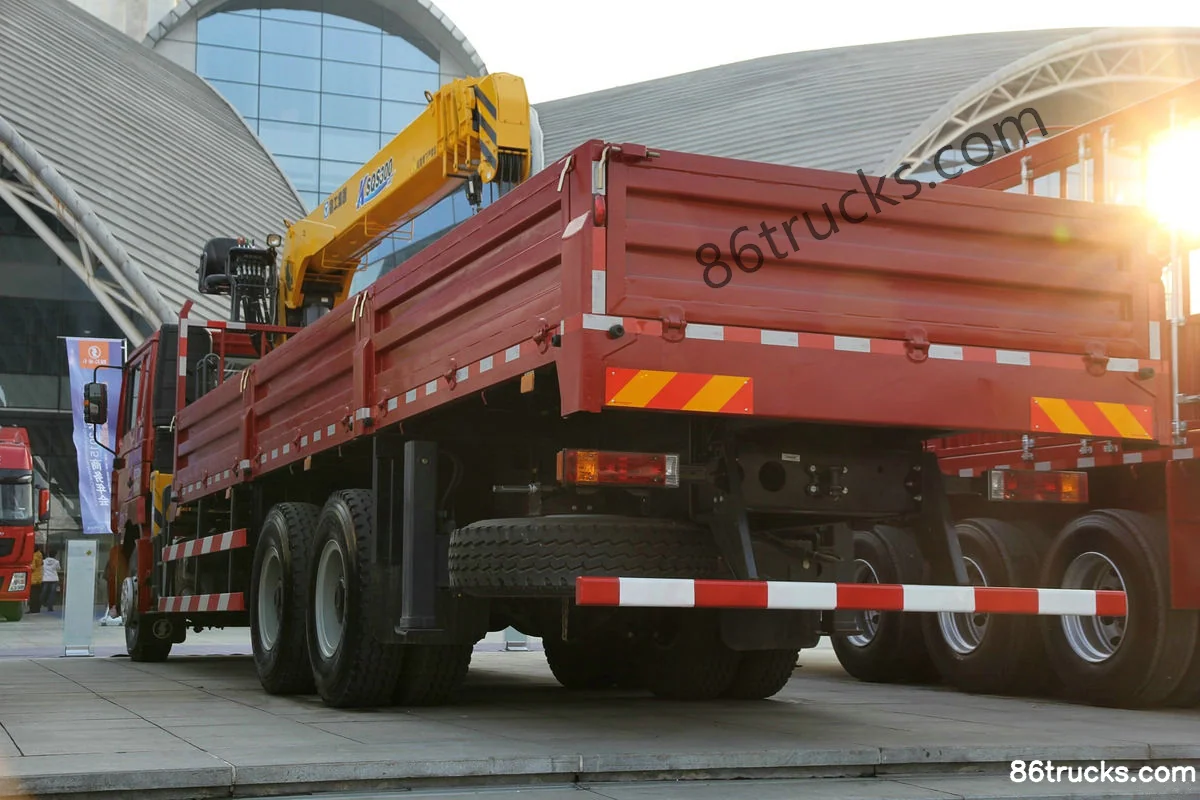

Exterior3

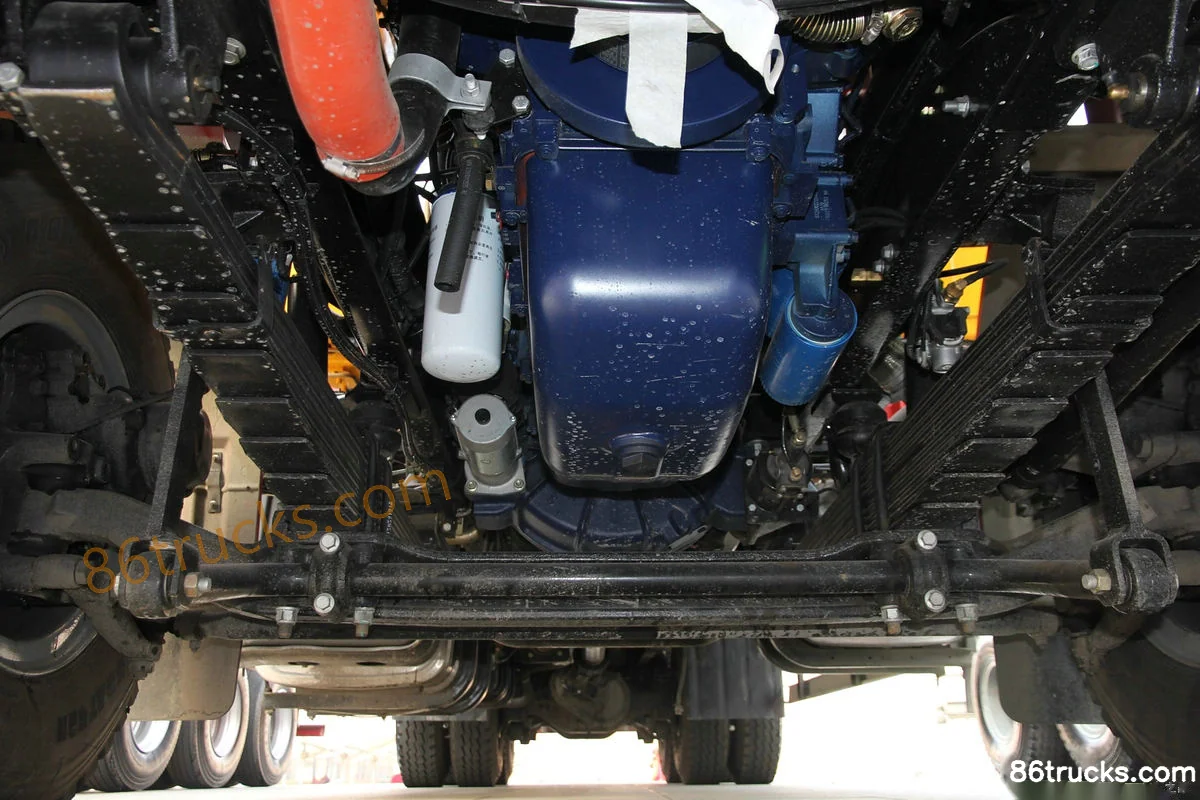

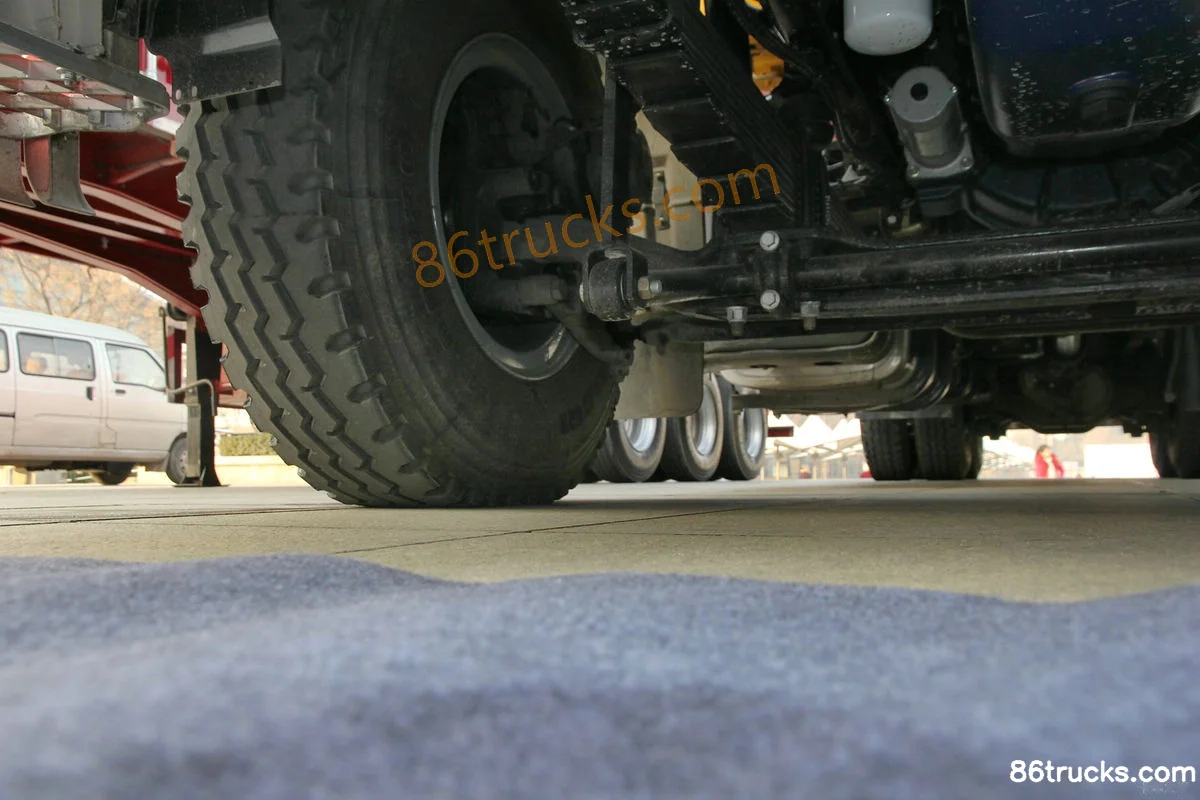

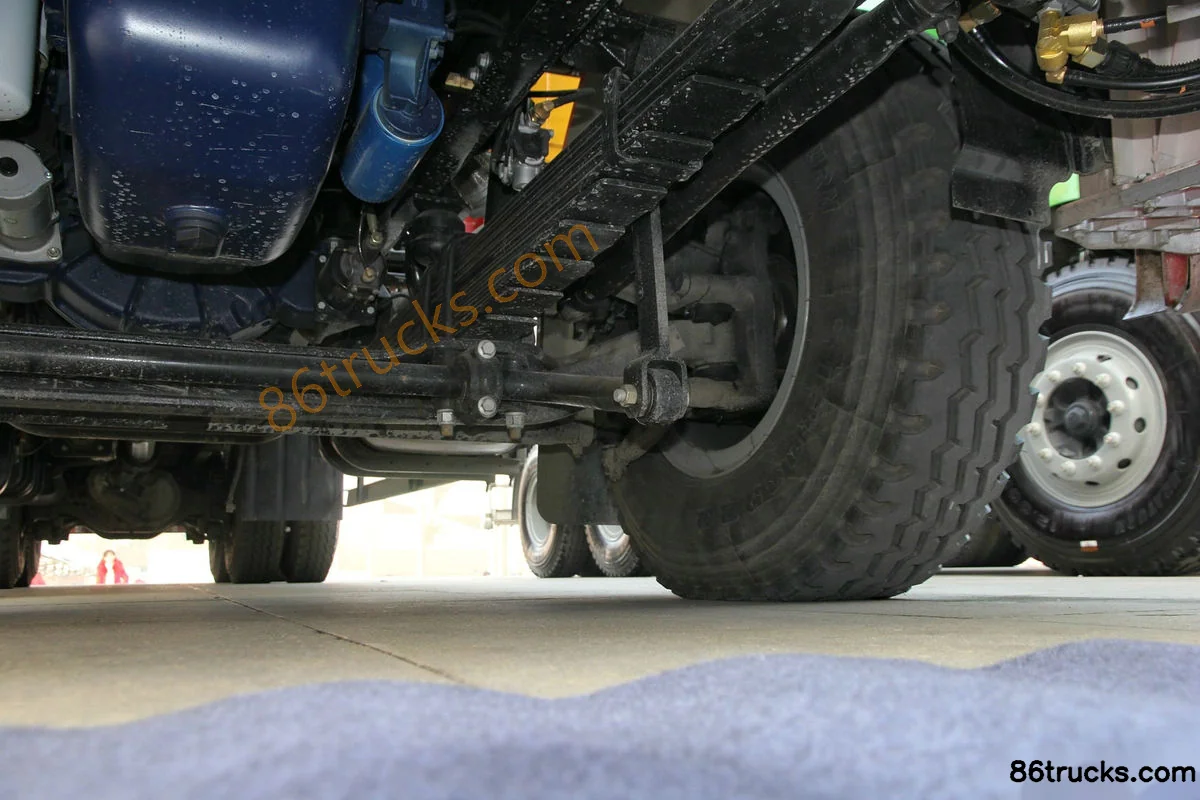

Chassis3

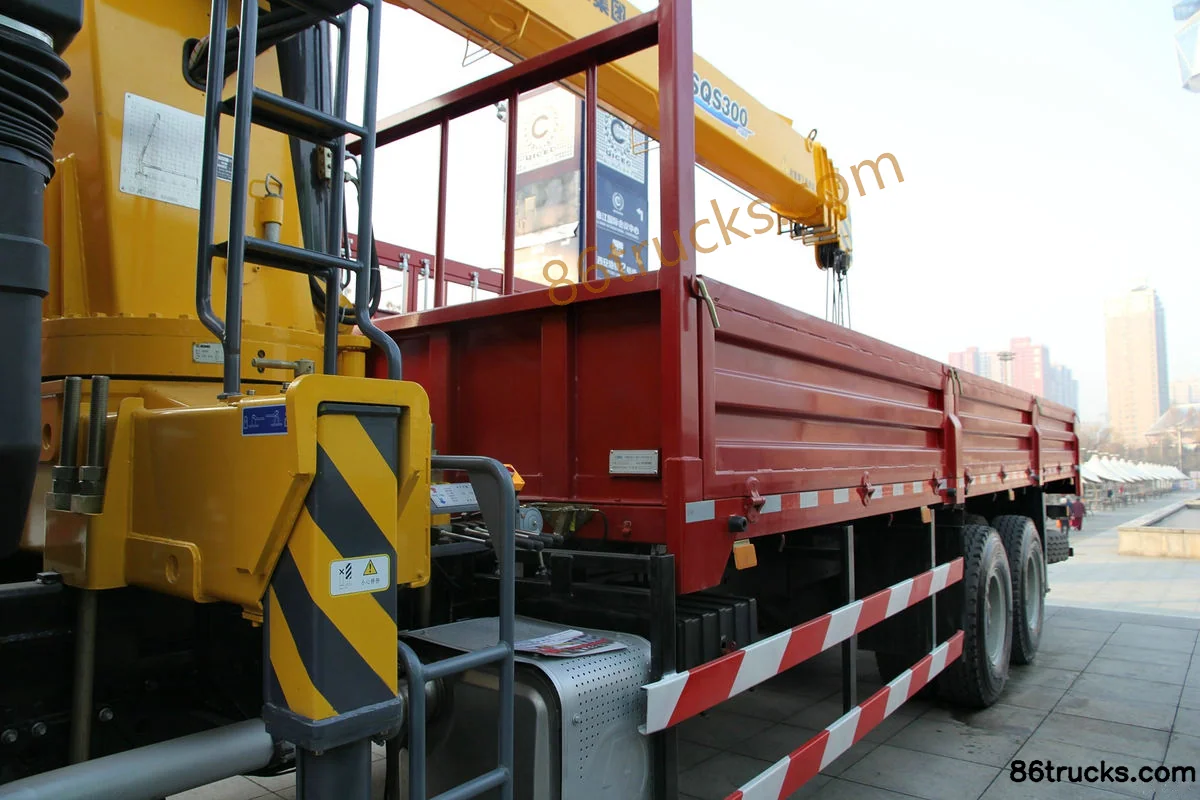

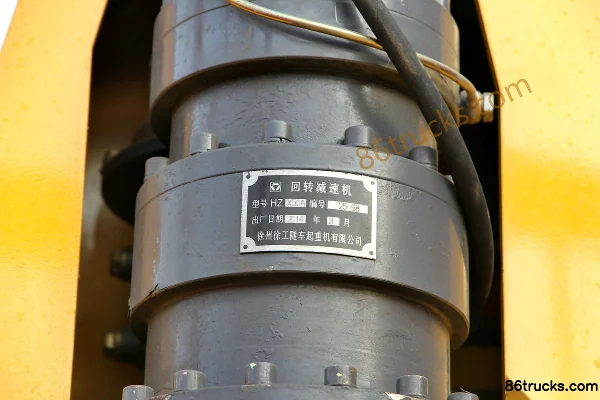

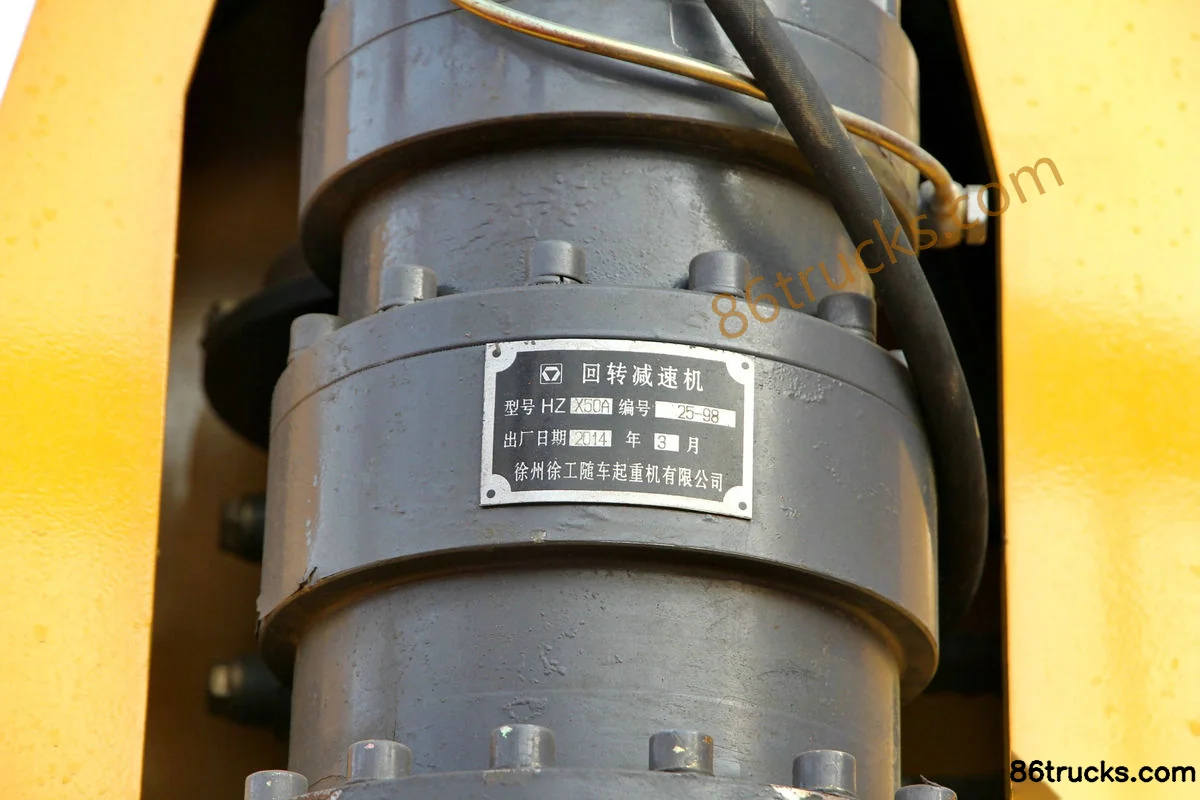

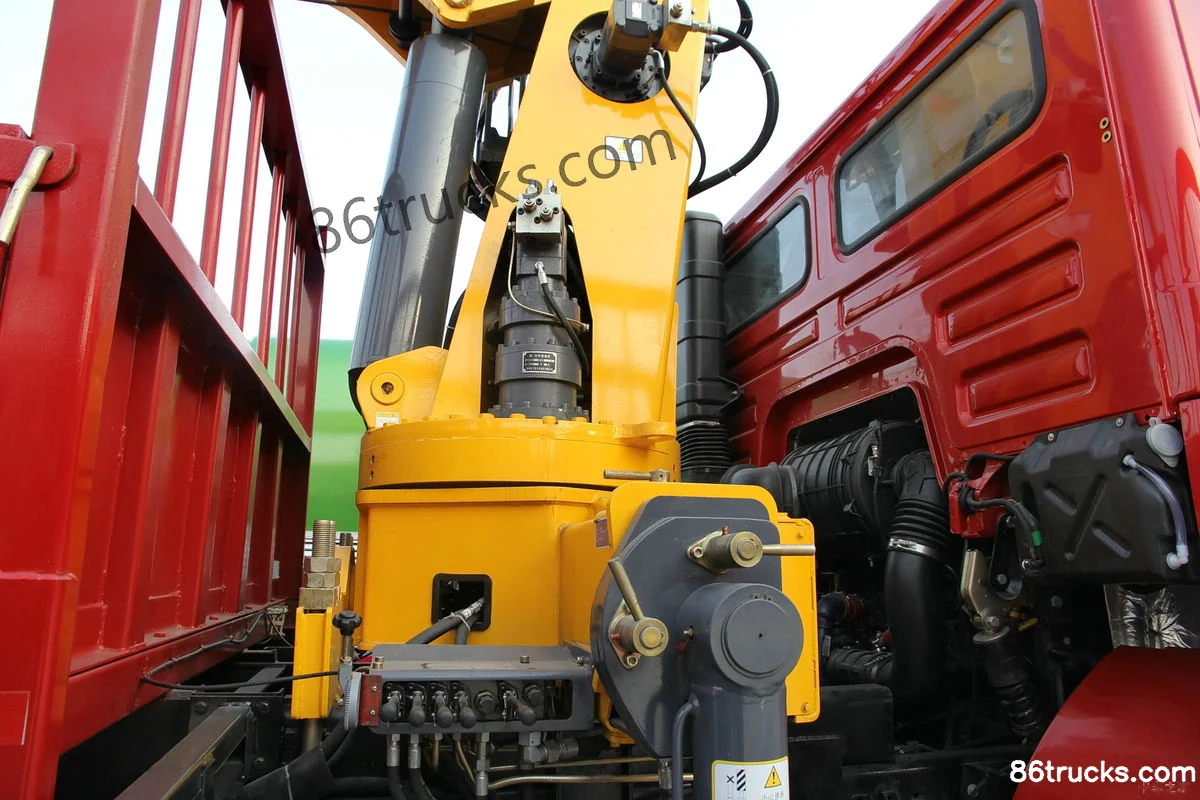

Body3

9 photos

FAQ

What emission standard does SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane?

Key specs of SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane: Drive: 6x4; Horsepower: 290 hp; Emission: China IV; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane suited for?

SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane differ from other variants in the same series?

SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane belongs to SHACMAN Delong F3000 Heavy Truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong F3000 290 hp 6X4(10 wheels) Truck-mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
