Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng)

Export reference
From $54,722
MSRP ¥39.4M CNY
Fuel: Diesel
Wheelbase:: 2150+4250+1350mm
Cab dimensions:: 12x2.5x3.85m
Type:: truck-mounted crane
GVWR:: 31ton
Front/rear suspension:: 1.515/1.685m
Drive 8X4 (12 wheels)
Horsepower 290
Rated mass: 10.525ton
Emission China V

Overview

The Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) is a truck-mounted crane featuring 31t GVW and 8X4 (12 wheels) drive. On the powertrain side, it comes with 290 hp, China V emissions and Diesel fuel.

China V 290 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12x2.5x3.85m
Type: truck-mounted crane
Drive type: 8X4
Wheelbase: 2150+4250+1350mm
Rated mass: 10.525ton
GVWR: 31ton
Front/rear suspension: 1.515/1.685m
Energy Type: Diesel
Body Parameters
Other special notes: Cargo box size 8.2×2.4×0.55
Vehicle certification code: DFZ5310JSQSZ5D
Body Brand: DongfengLiuqi
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A290-50
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 213kW
Max hp: 290Horsepower
Max torque: 1150N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: DongfengLiuqi
Chassis Series: ChenglongH5
Chassis Model: EQ1310GSZ5DJ2
Leaf spring count: 9/9/9
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JS90A
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

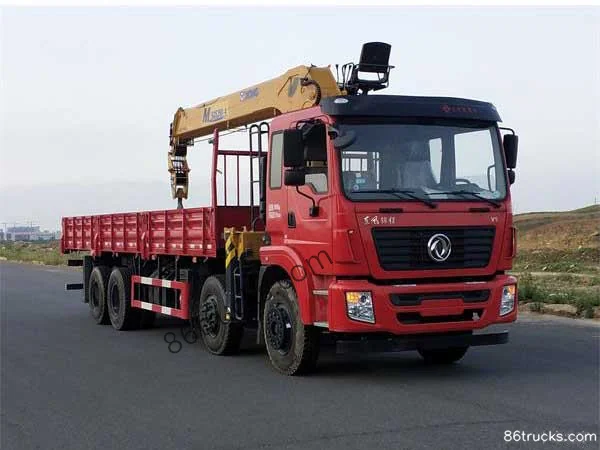

Exterior1

1 photos

FAQ

What is the export price of Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng), and what does it include?

Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) export reference is about From $54,722; MSRP is ¥39.4M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng)?

Key specs of Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng): Drive: 8x4; Horsepower: 290 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) suited for?

Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) differ from other variants in the same series?

Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng) belongs to Dongfeng Liuqi chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Liuqi Chenglong H5 290hp 8X4(12 wheels) 8.2m truck-mounted crane (Dongfeng)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
