XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand)

Export reference
MSRP N/A
Emission: China III / Euro III
Wheelbase:: 5000mm
Cab dimensions:: 9×2.495×3.53m
Type:: truck-mounted crane
GVWR:: 16ton
Front/rear suspension:: 1.25/2.75m
Lifting capacity: 6.3ton
Drive 4X2 (6 wheels)
Horsepower 180
Rated mass: 7.8ton

Overview

The XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) is a truck-mounted crane featuring 6.3ton tank capacity, 16t GVW and 4X2 (6 wheels) drive. On the powertrain side, it comes with 180 hp and China III / Euro III emissions.

China III / Euro III 180 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9×2.495×3.53m
Type: truck-mounted crane
Drive type: 4X2
Wheelbase: 5000mm
Rated mass: 7.8ton
GVWR: 16ton
Front/rear suspension: 1.25/2.75m
Body Parameters
Other special notes: Optional crane type: knuckle boom.
Crane model: SQ6.3SK3Q
Lifting capacity: 6.3ton
crane self-weight: 2.074ton
Vehicle certification code: XZJ5160JSQX
Body Brand: XCMG brand
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai CA6DF3-18E3
Displacement: 6.74L
Emission standard: China III / Euro III
Max output power: 143kW
Max hp: 180Horsepower
Max torque: 680N·m
Max torque speed: 1100-1400rpm
Chassis Specs
Chassis Brand: XCMG Truck
Chassis Series: Ruilong
Chassis Model: NXG1160D3ZAL1X
rear axle description: 5T/10T
Leaf spring count: 10/10+8
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Hachi CA6-85
Tire
Tire Size: 10.00R-20
Number of tires: 6pcs

Photos

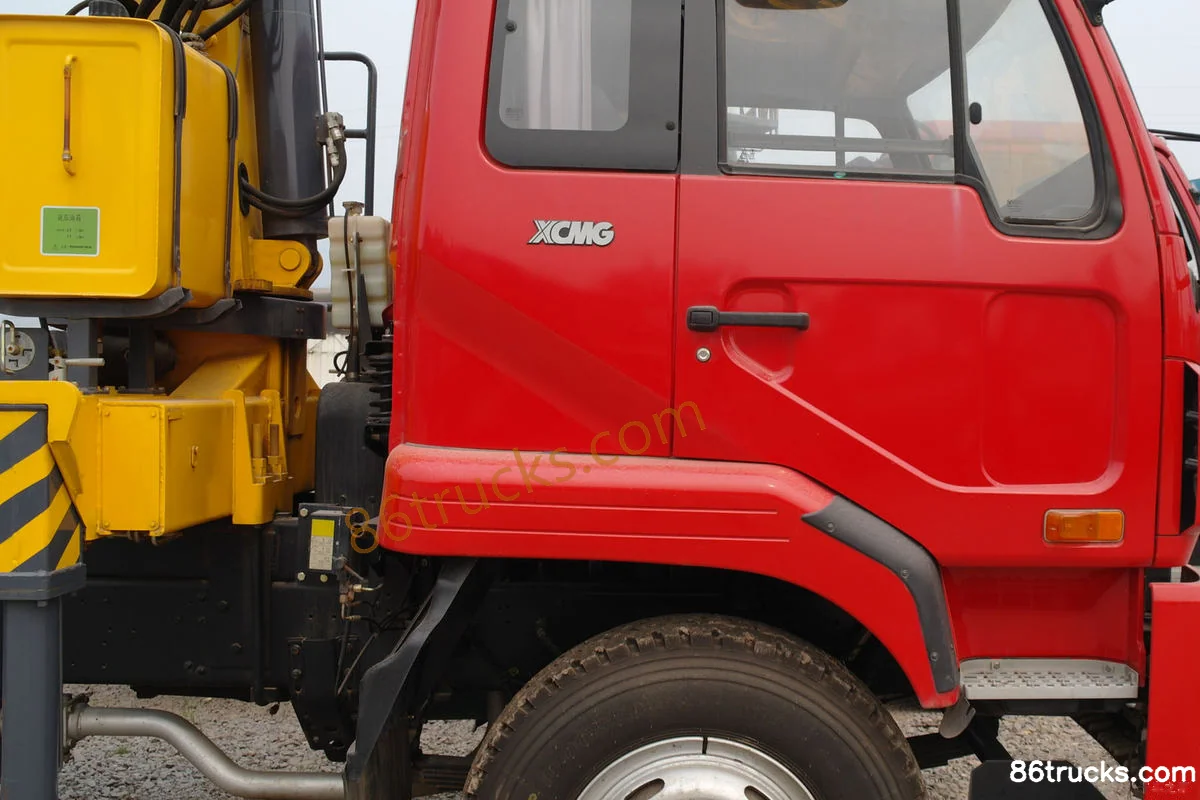

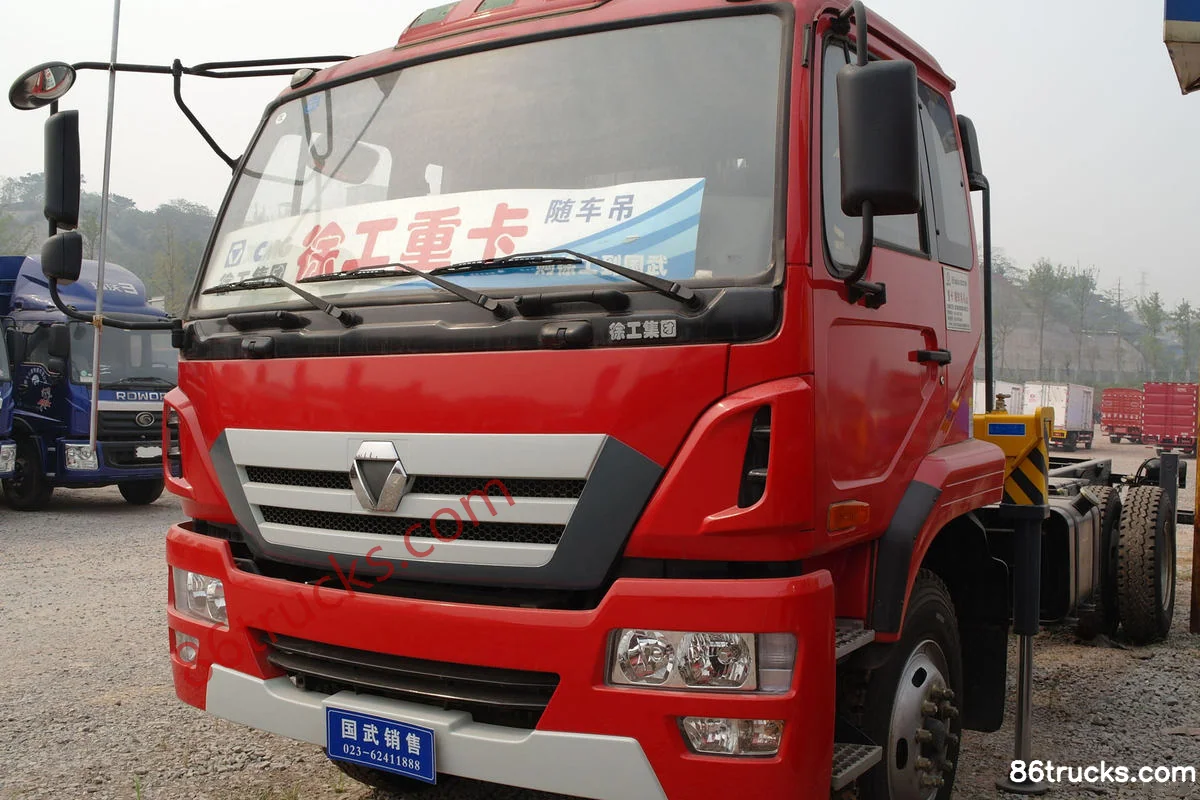

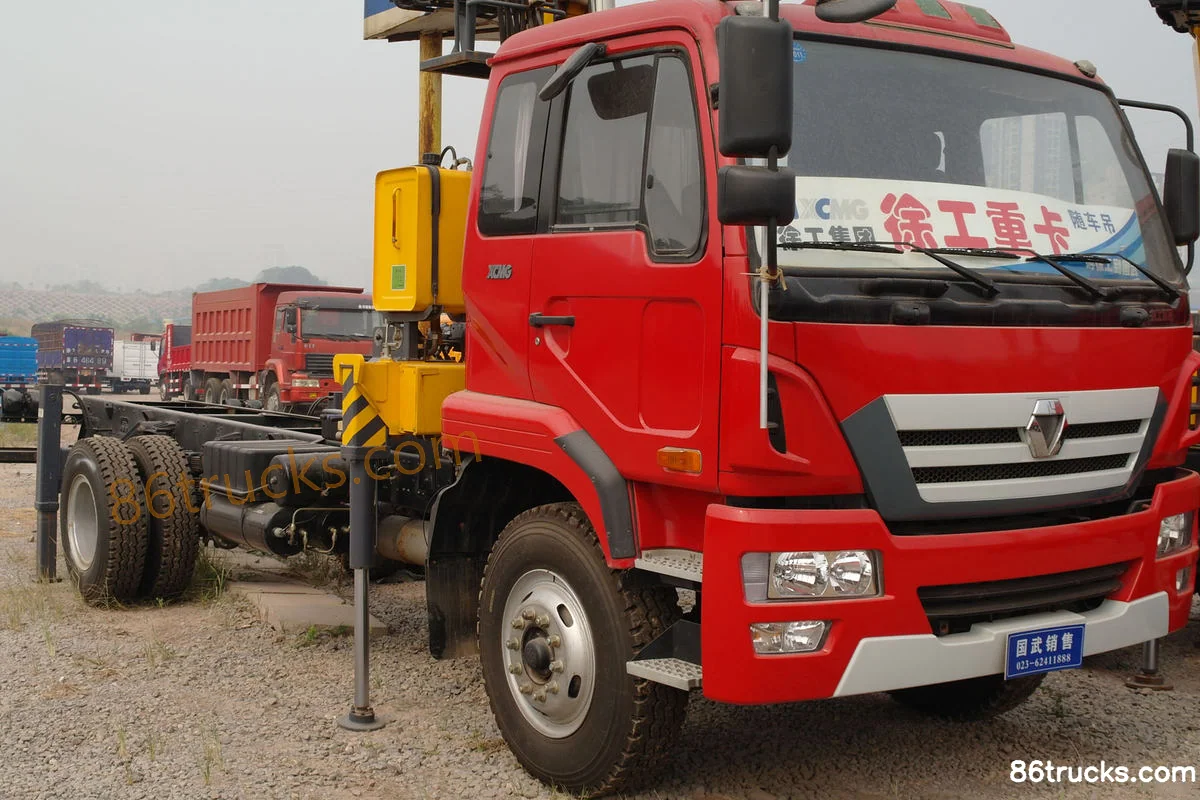

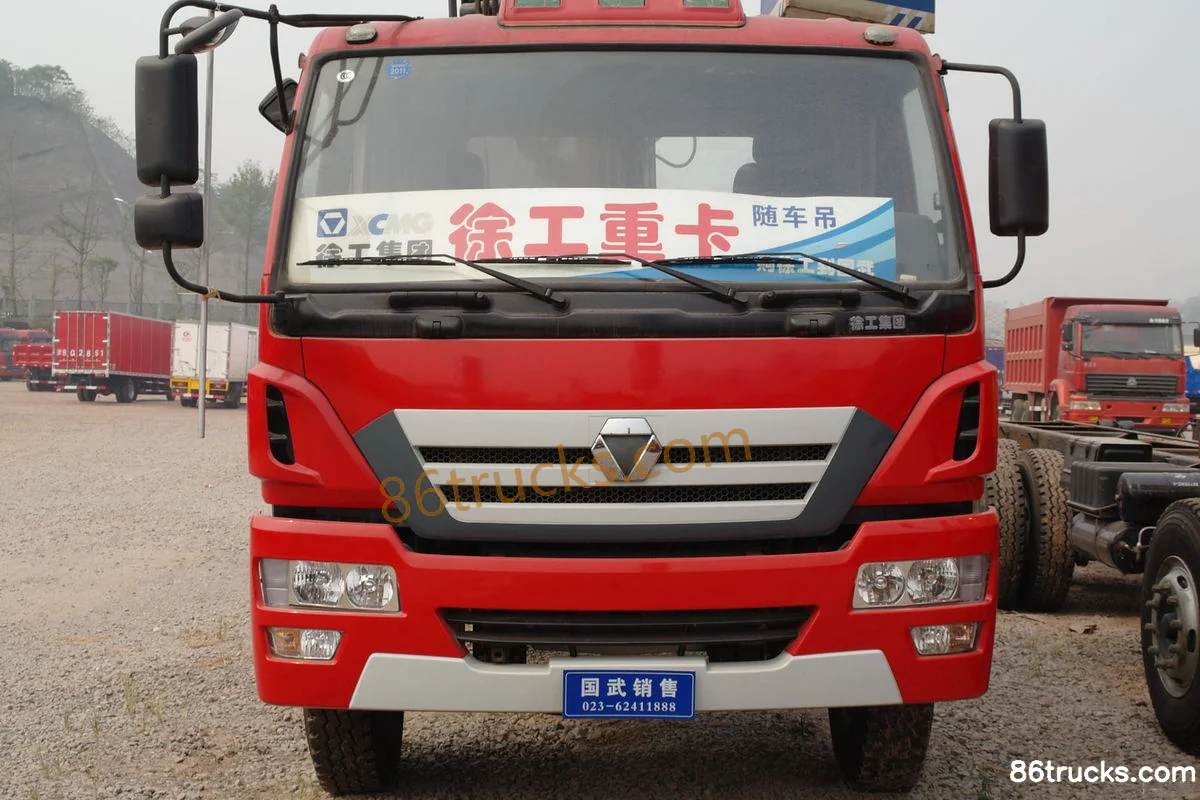

Exterior3

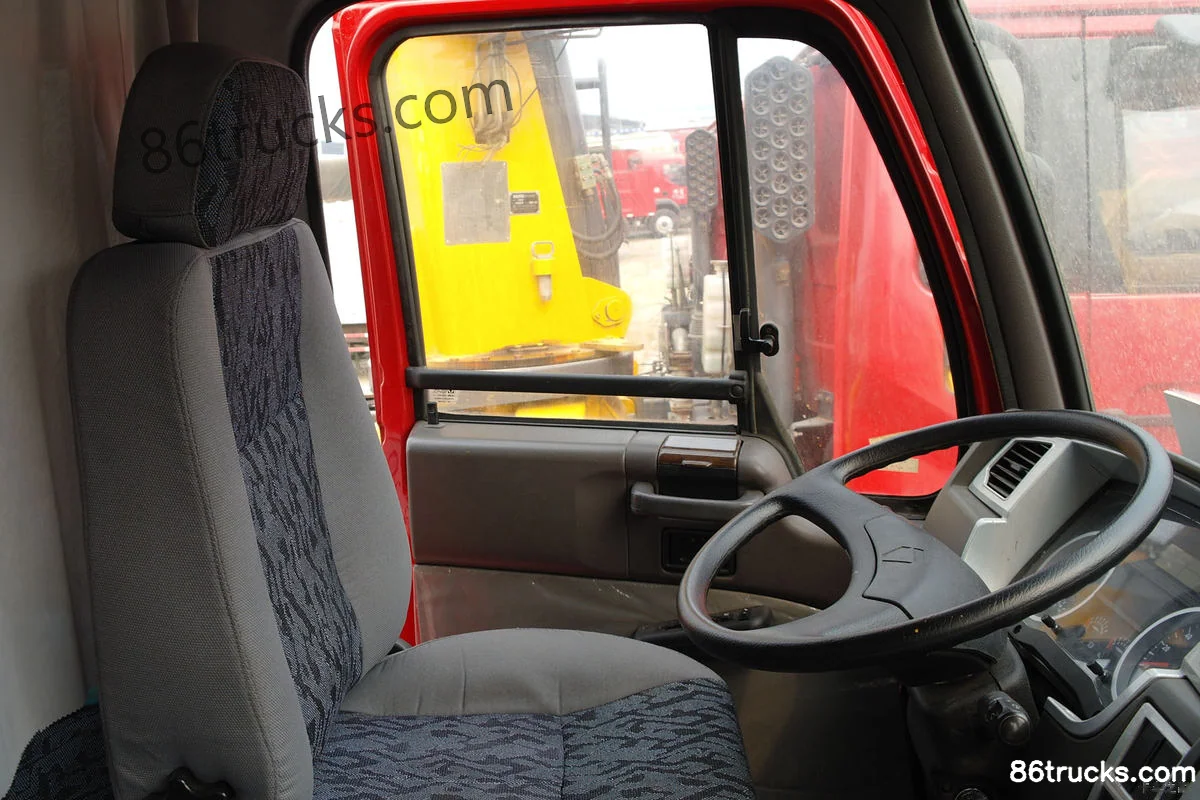

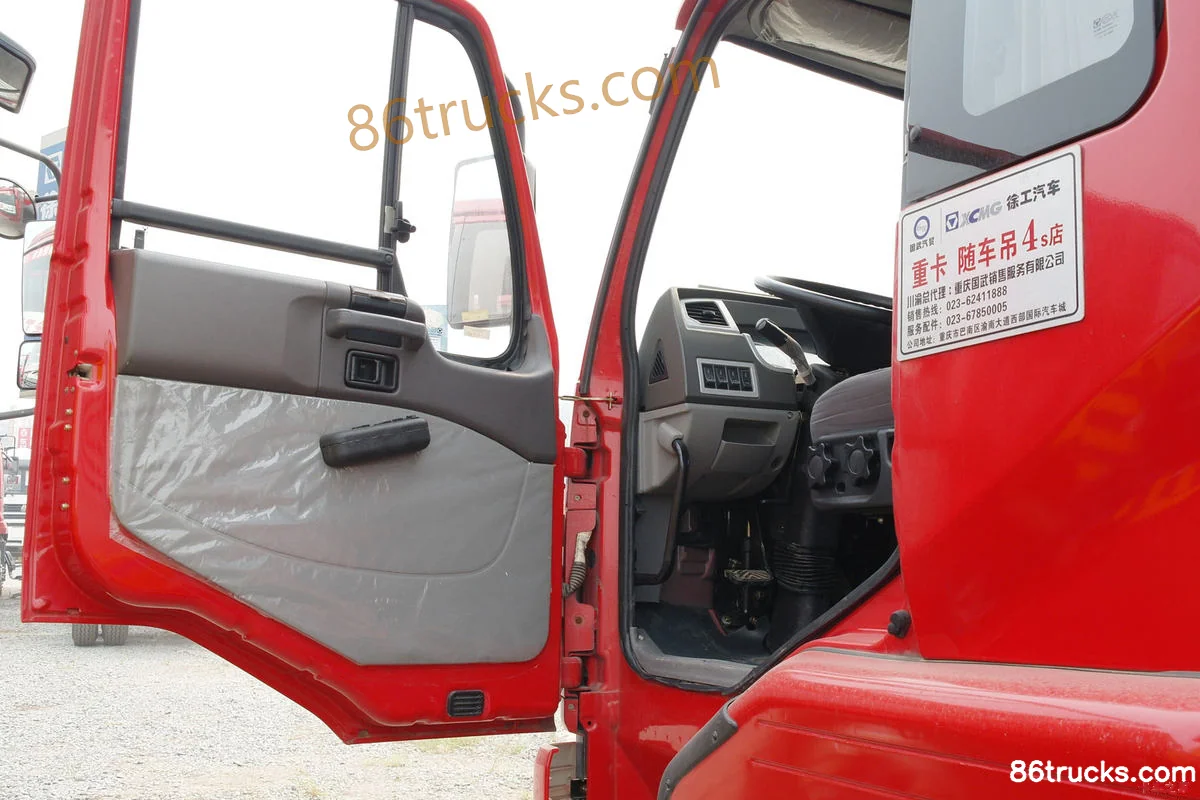

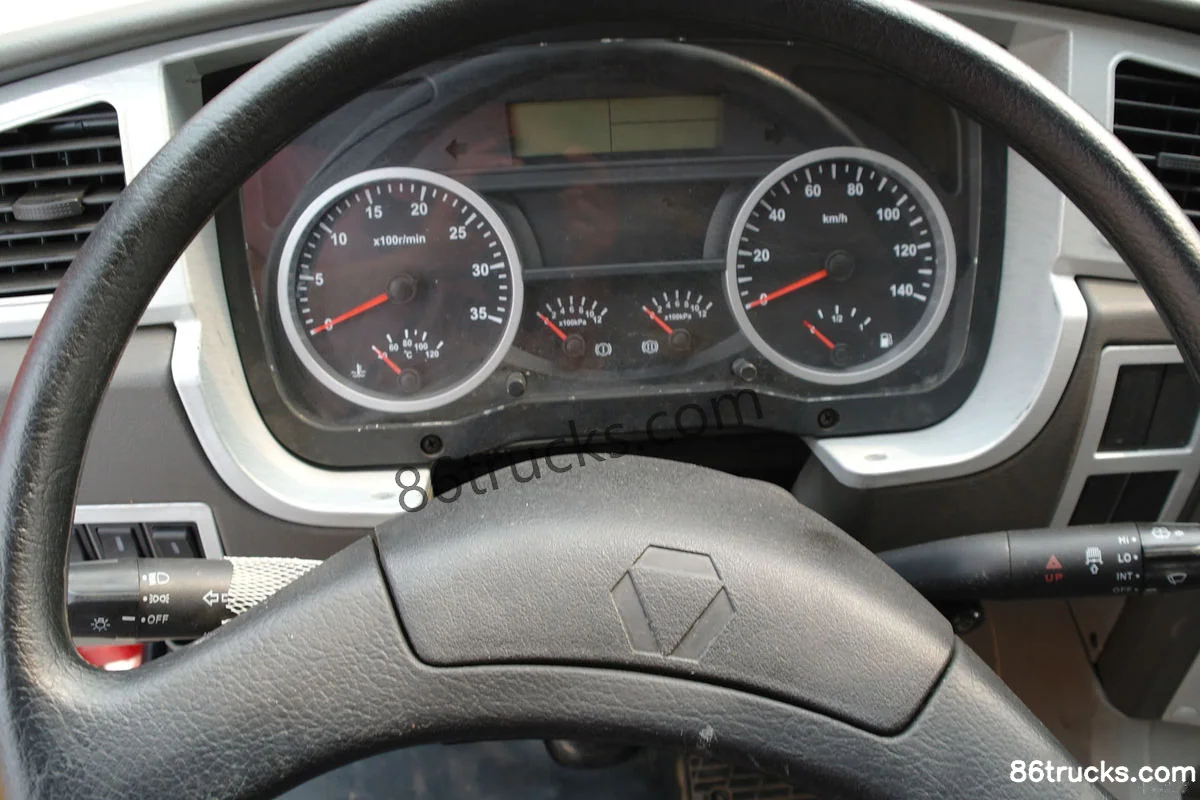

Cab3

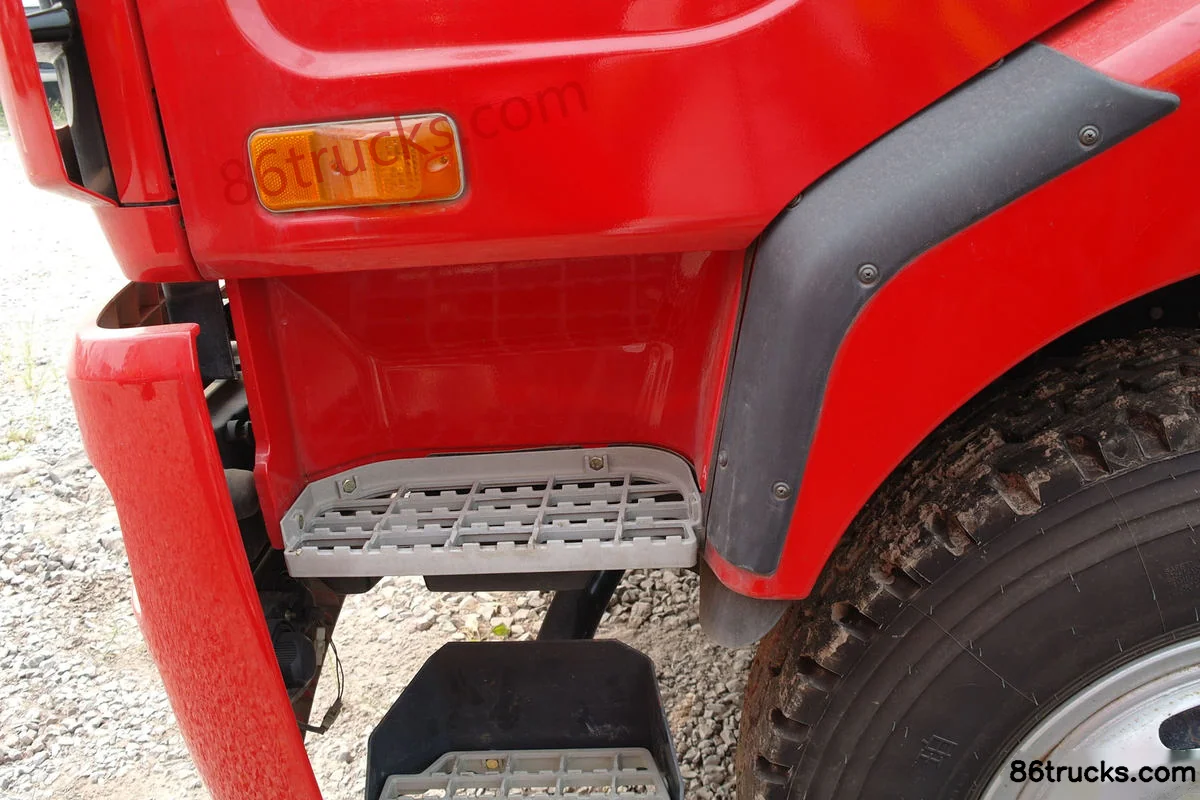

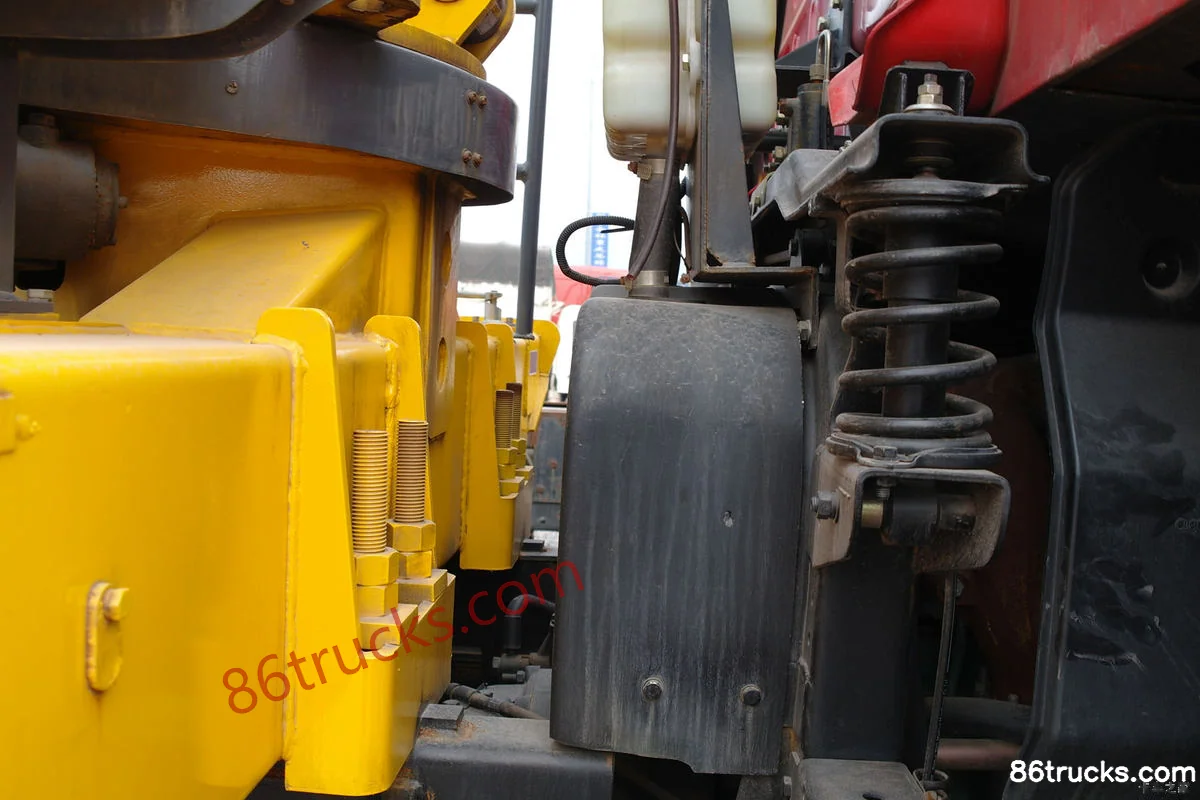

Chassis3

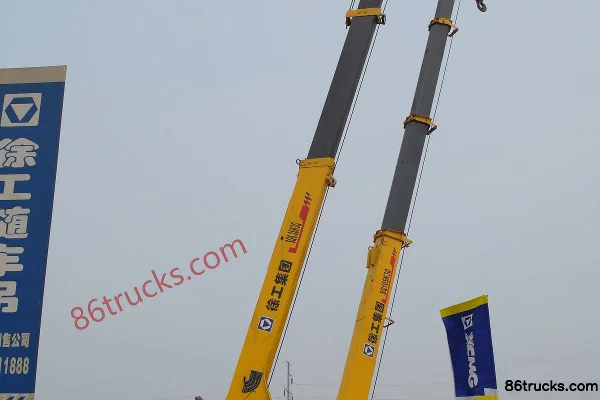

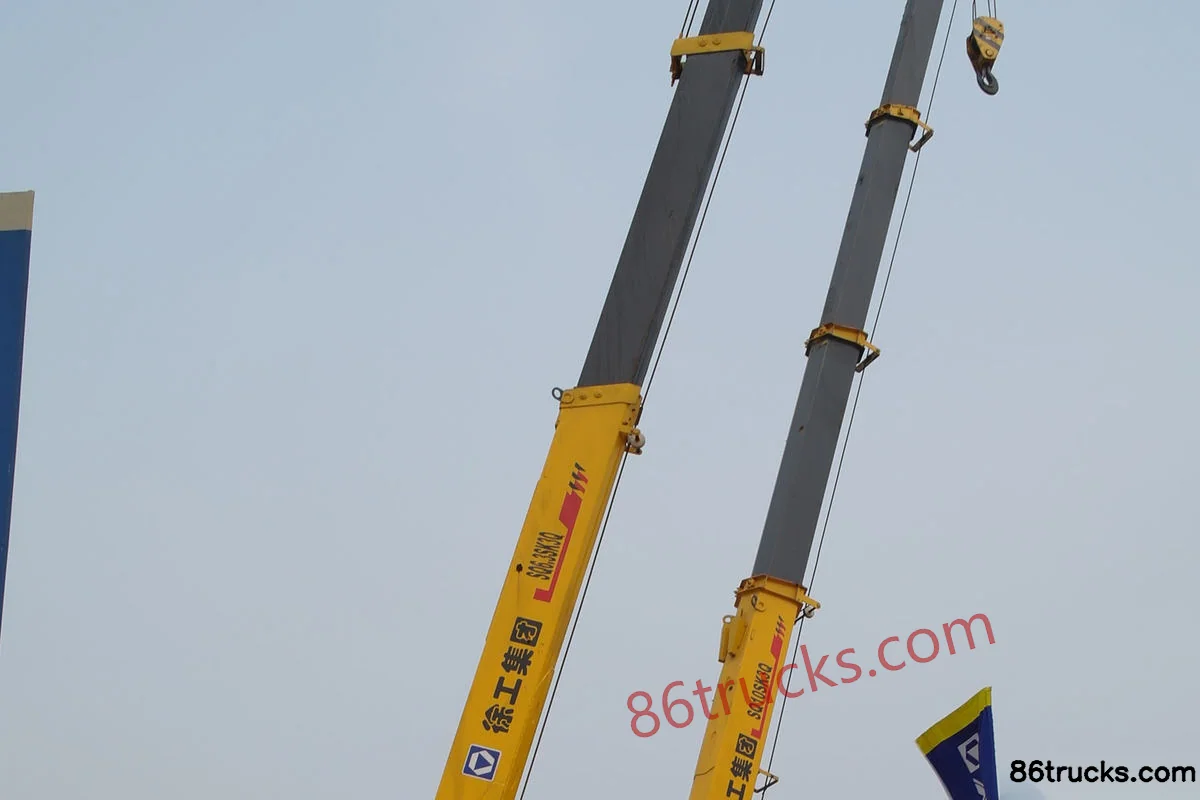

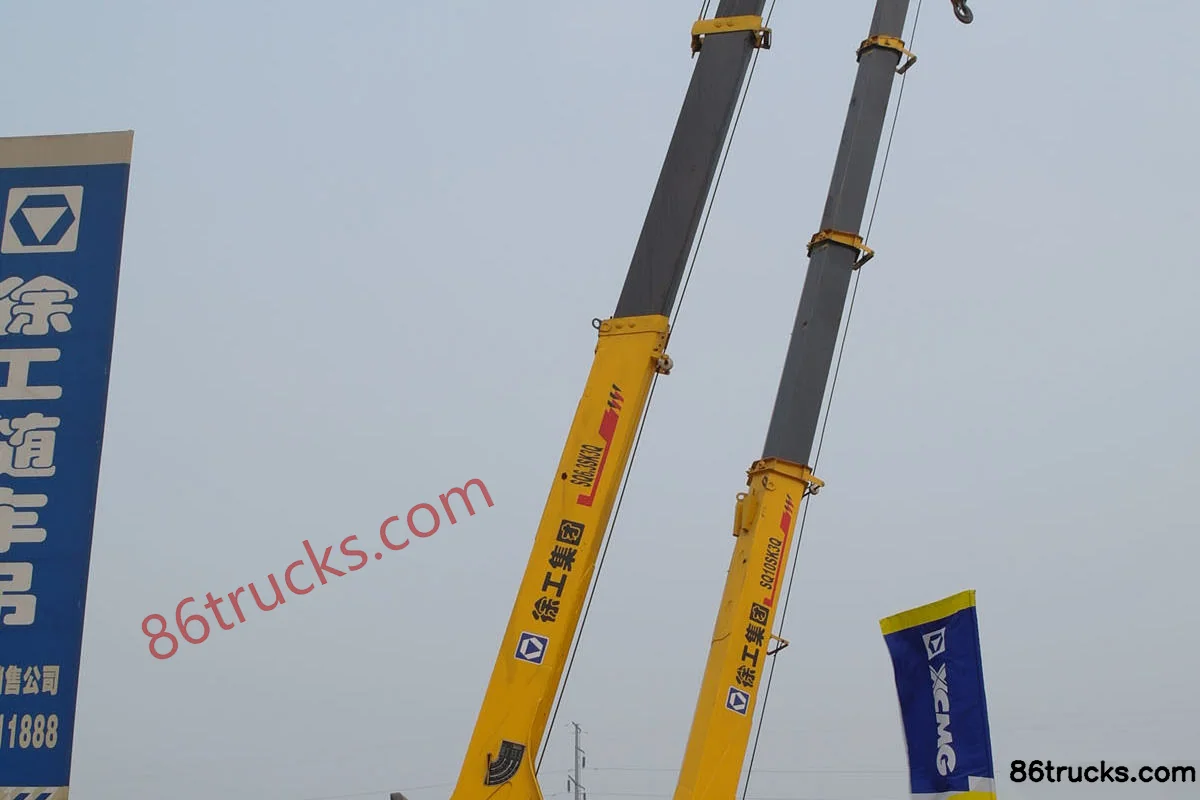

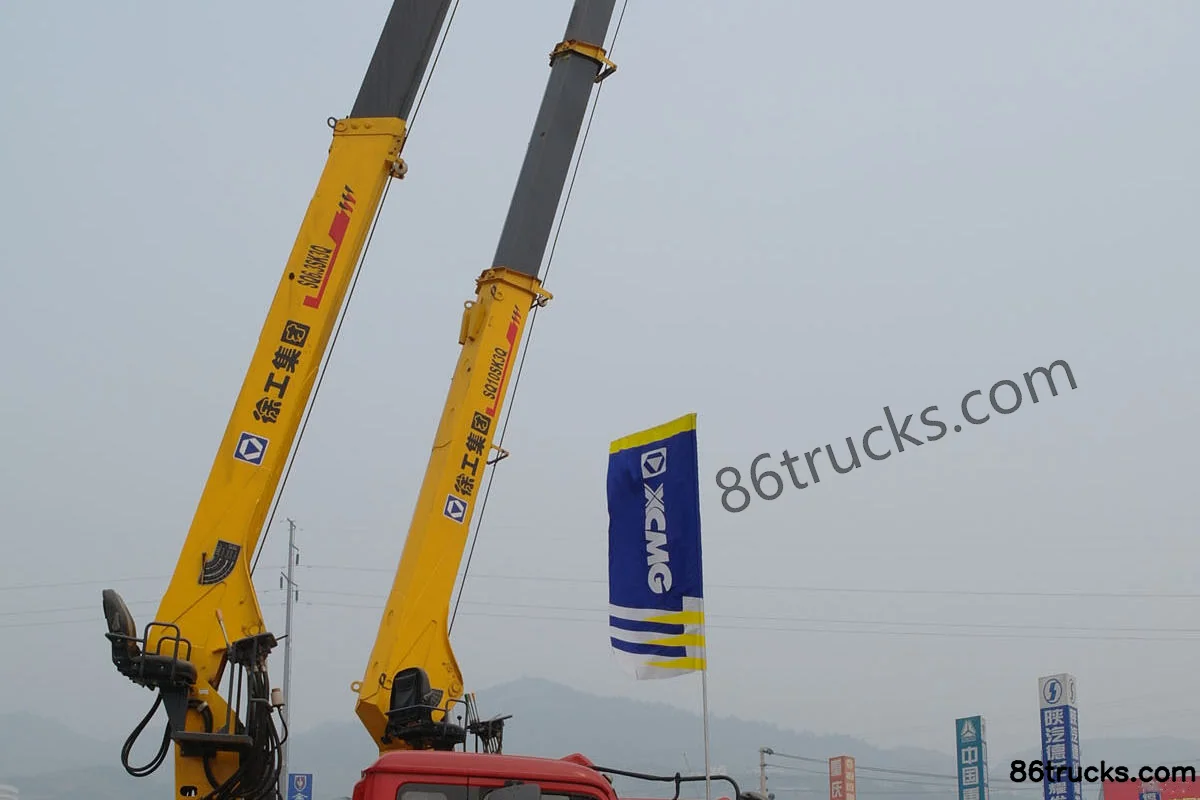

Body3

12 photos

FAQ

What emission standard does XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand)?

Key specs of XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand): Drive: 4x2; Horsepower: 180 hp; Emission: China III / Euro III. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) suited for?

XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) differ from other variants in the same series?

XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand) belongs to XCMG XCMG Truck Chassis (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export XCMG Ruilong 180 hp 4X2(6 wheels) Truck-Mounted Crane (XCMG brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
