Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck

Export reference
From $13,611
MSRP ¥9.8M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 4.61ton
Wheelbase:: 2800mm
Tire Size:: 265/70R19.5 16PR
Rated payload: 9.08ton
Drive 4X2 (6 wheels)
Horsepower 160
Cargo box length: 3.5m

Overview

The Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck is a Medium-duty truck featuring 9.08t payload, 13.82t GVW, 3.5m cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCF25160-66 engine, 160 hp, China VI emissions and Fast Gear transmission.

China VI 160 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3141GP6D
Drive type: 4X2
Wheelbase: 2800mm
engine: YuchaiYCF25160-66
transmission: Fast Gear10JS90A
Rear Axle Ratio: 6.33
Cab length: 5.45m
Cab width: 2.1m
Cab height: 2.18m
Front track width: 1650mm
rear track: 1660mm
Curb Weight: 4.61ton
Rated payload: 9.08ton
GVWR: 13.82ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 14°
departure angle: 19°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YCF25160-66
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.488L
Emission standard: China VI
Max output power: 116kW
Max hp: 160Horsepower
Transmission Parameters
Transmission Model: 10JS90A
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box length: 3.5m
Cargo box width: 2m
Cargo box height: 0.8m
Cab parameters
seating capacity: 2Personnel
Chassis Specs
Front axle allowable load: 4860kg
rear axle allowable load: 8960kg
Axle ratio: 6.33
Leaf spring count: 8/10+8
Tire
Tire Size: 265/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

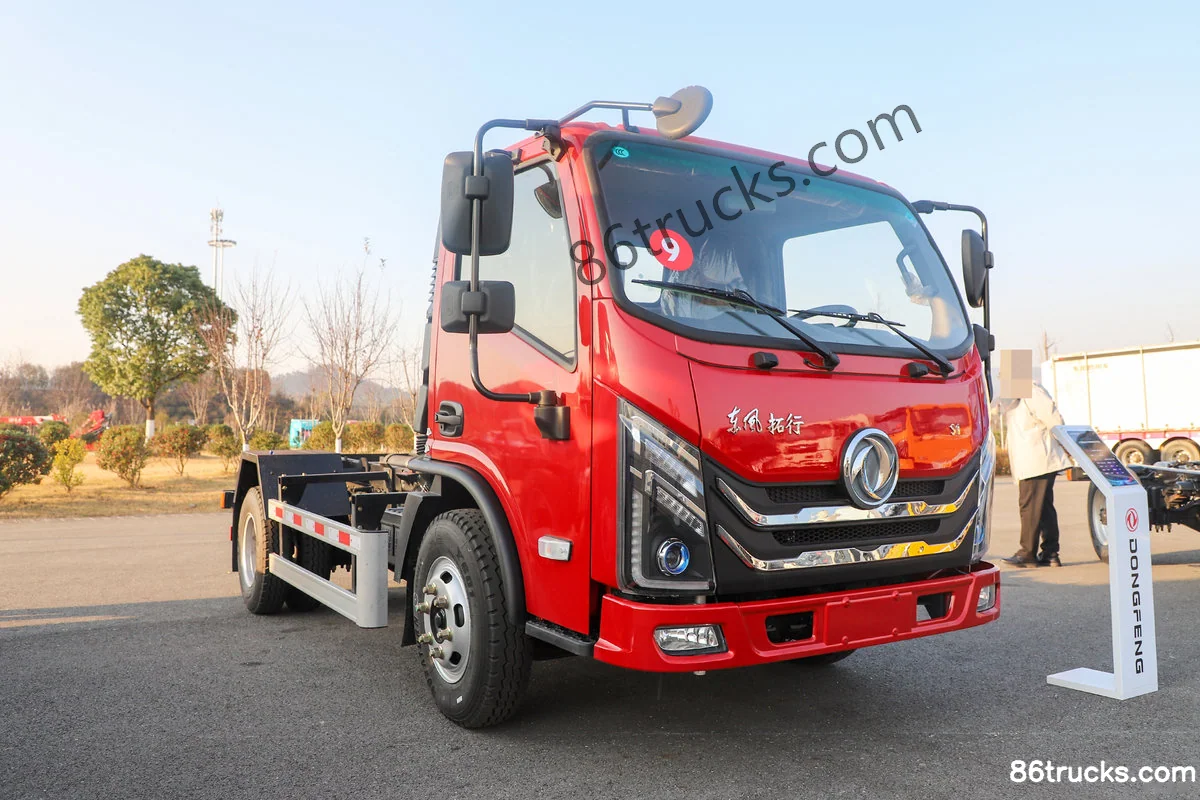

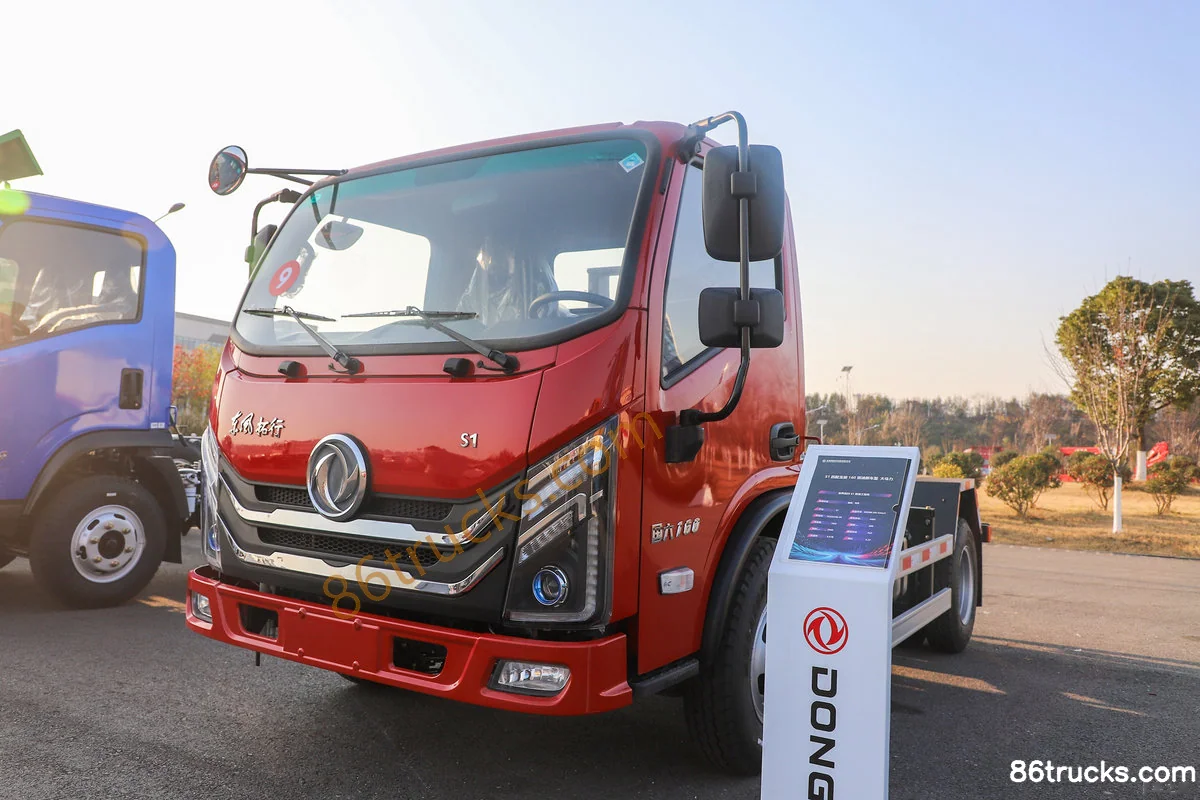

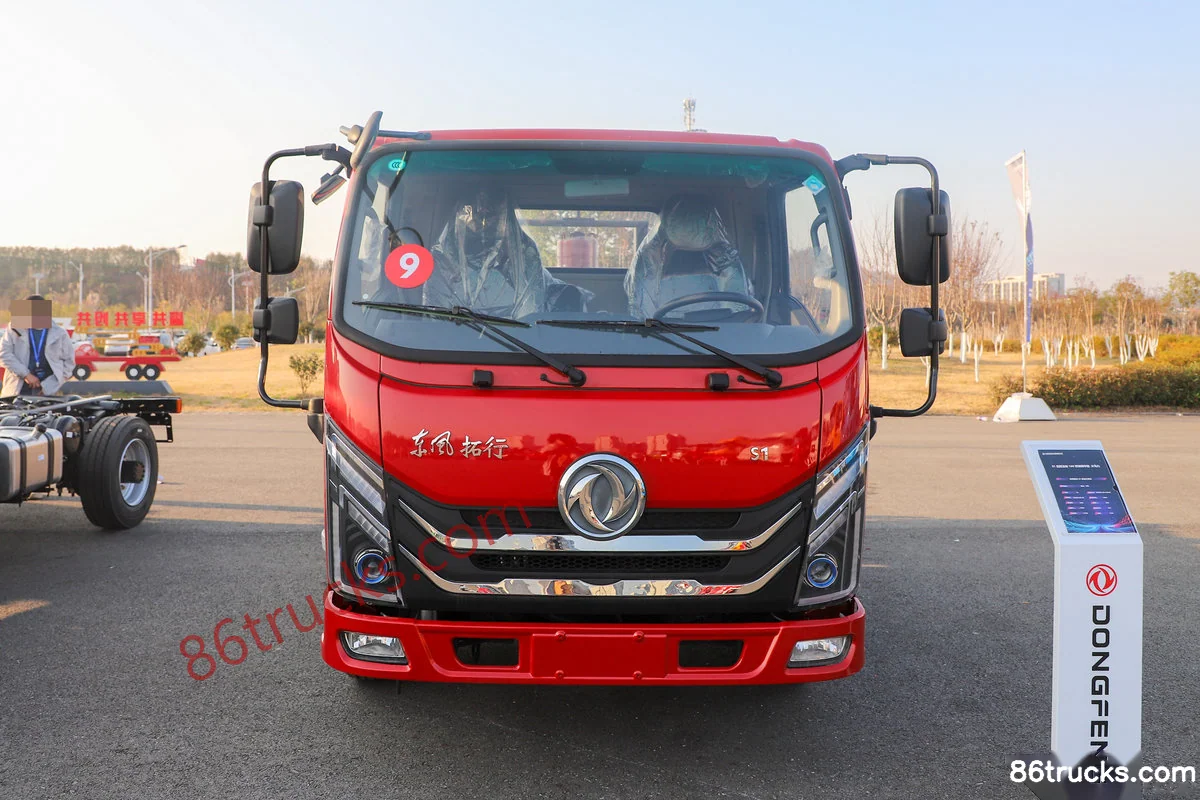

Exterior3

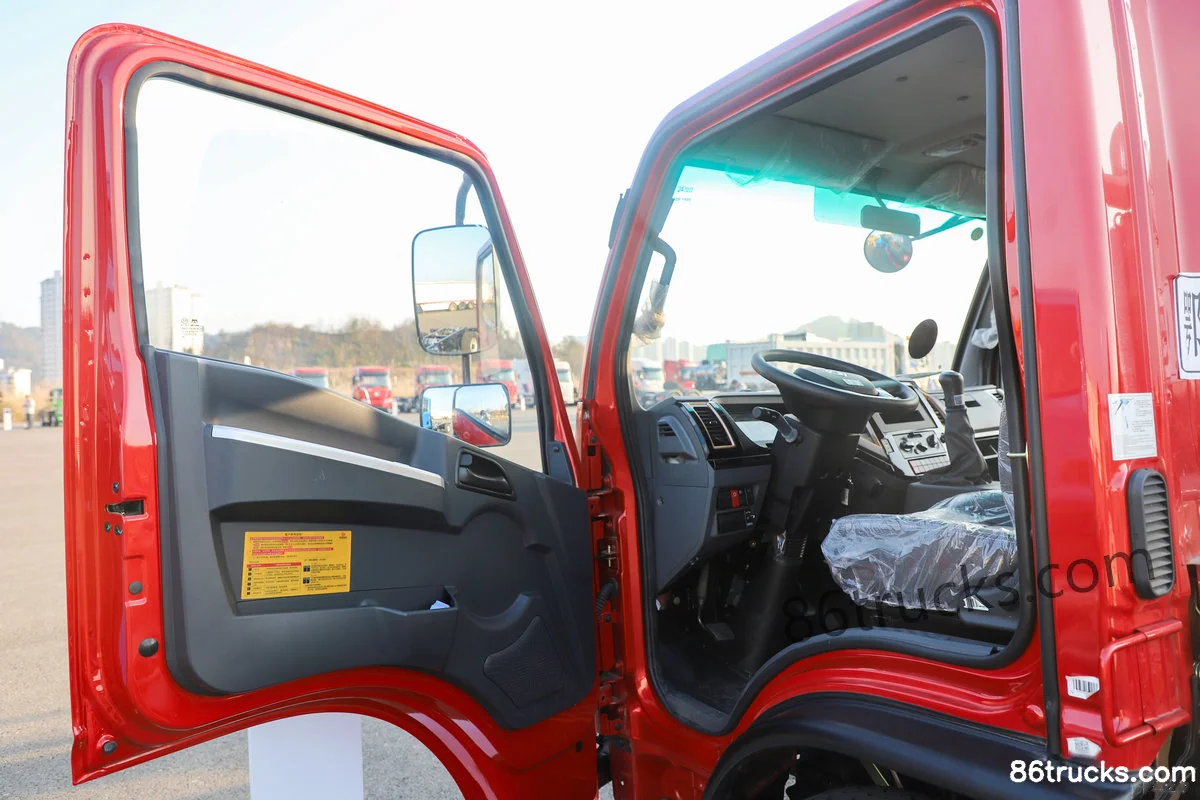

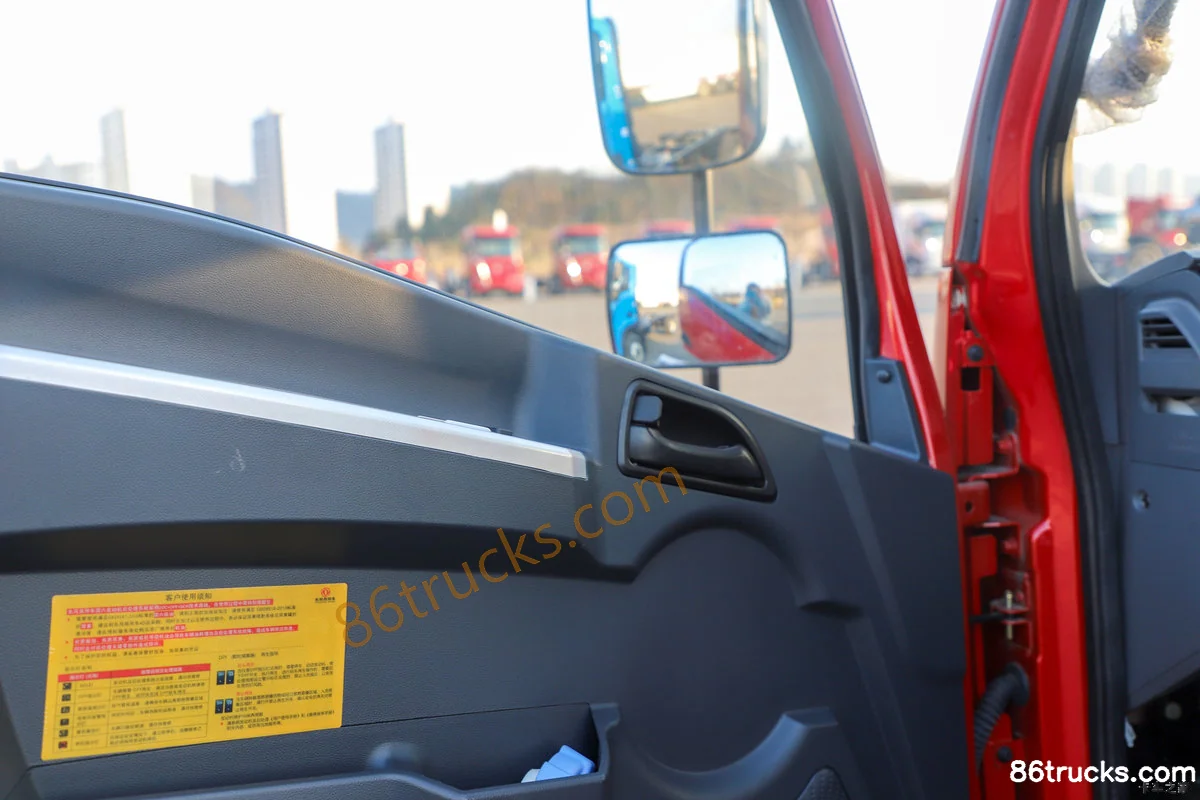

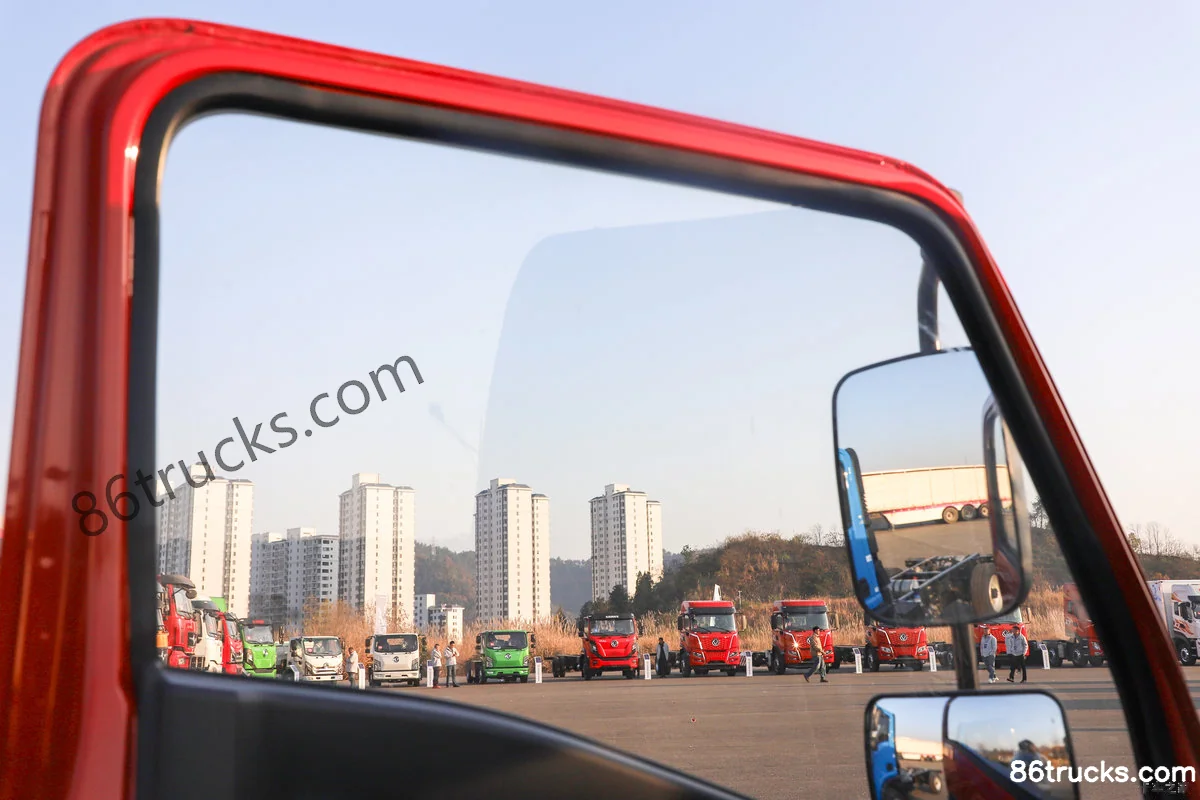

Cab3

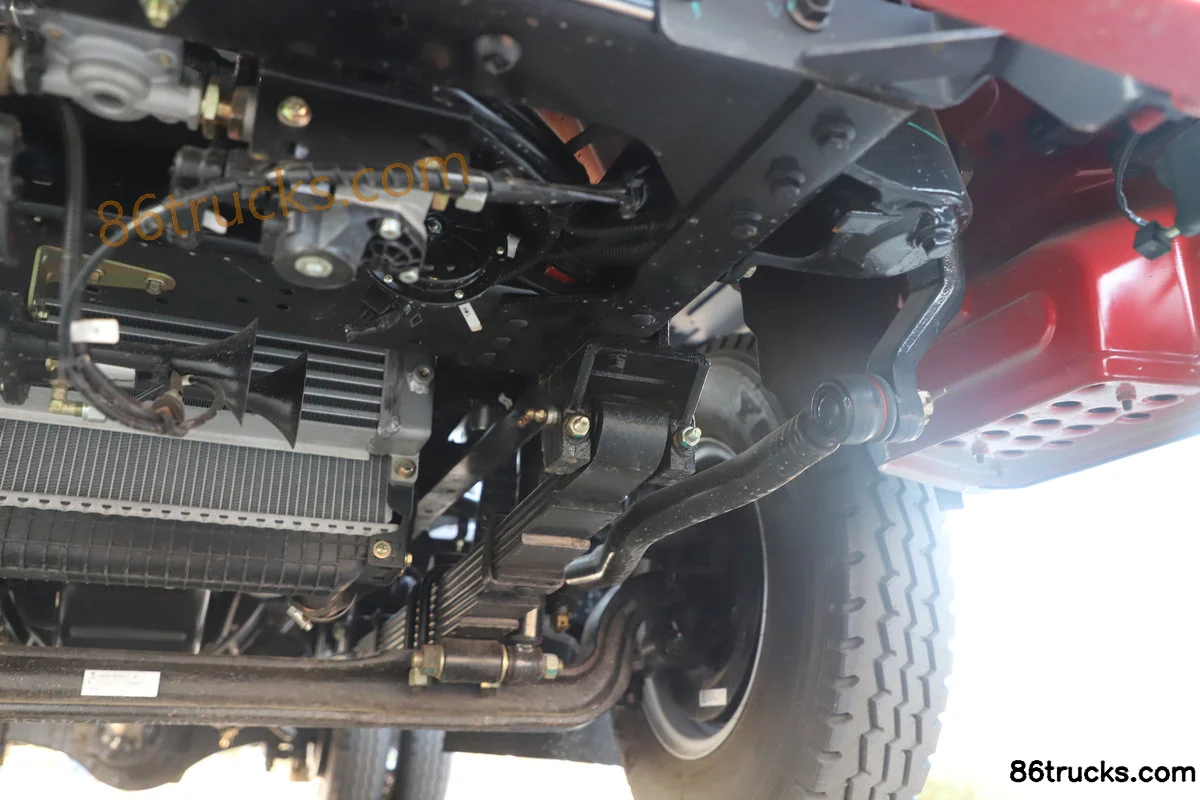

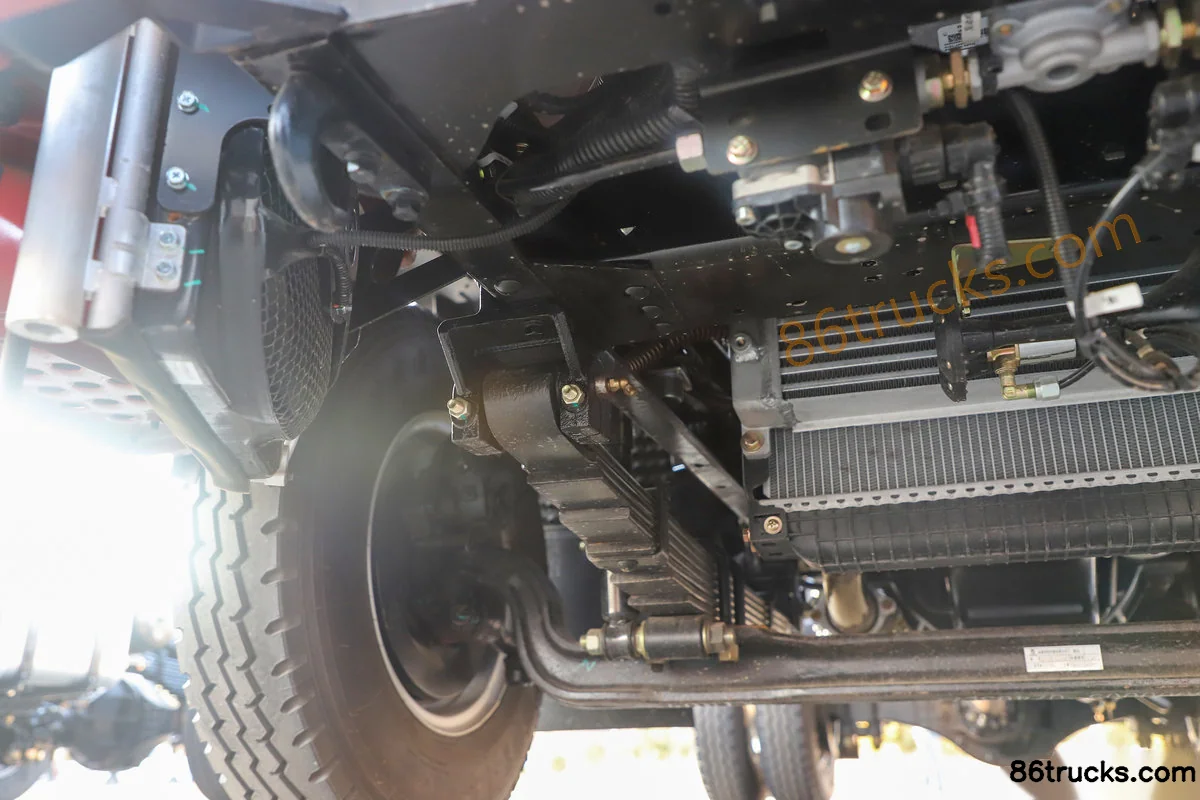

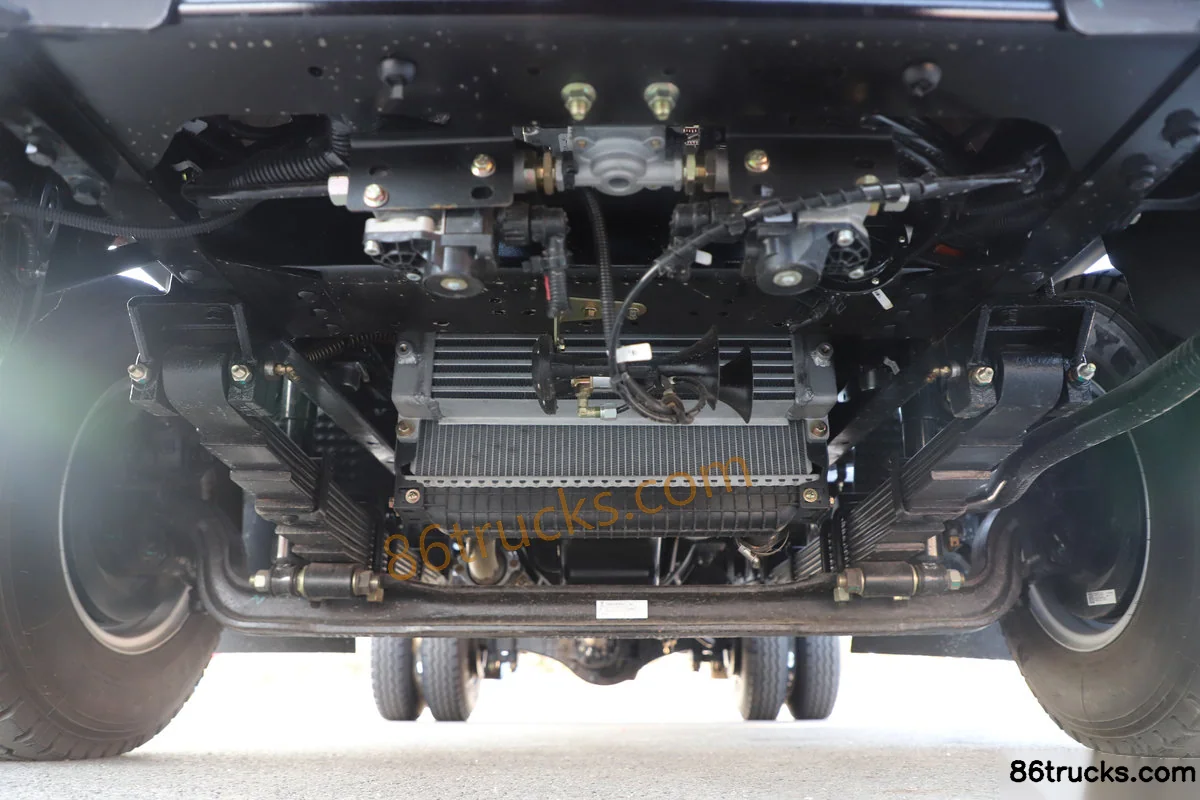

Chassis3

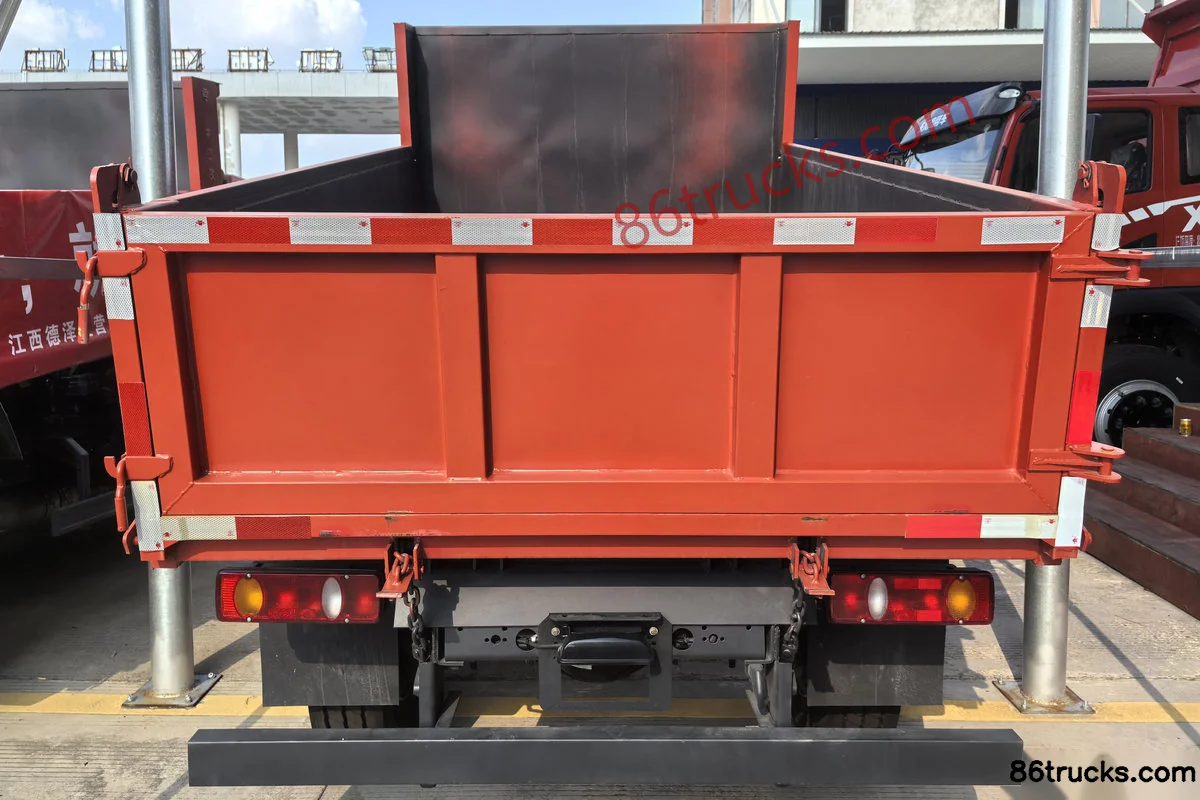

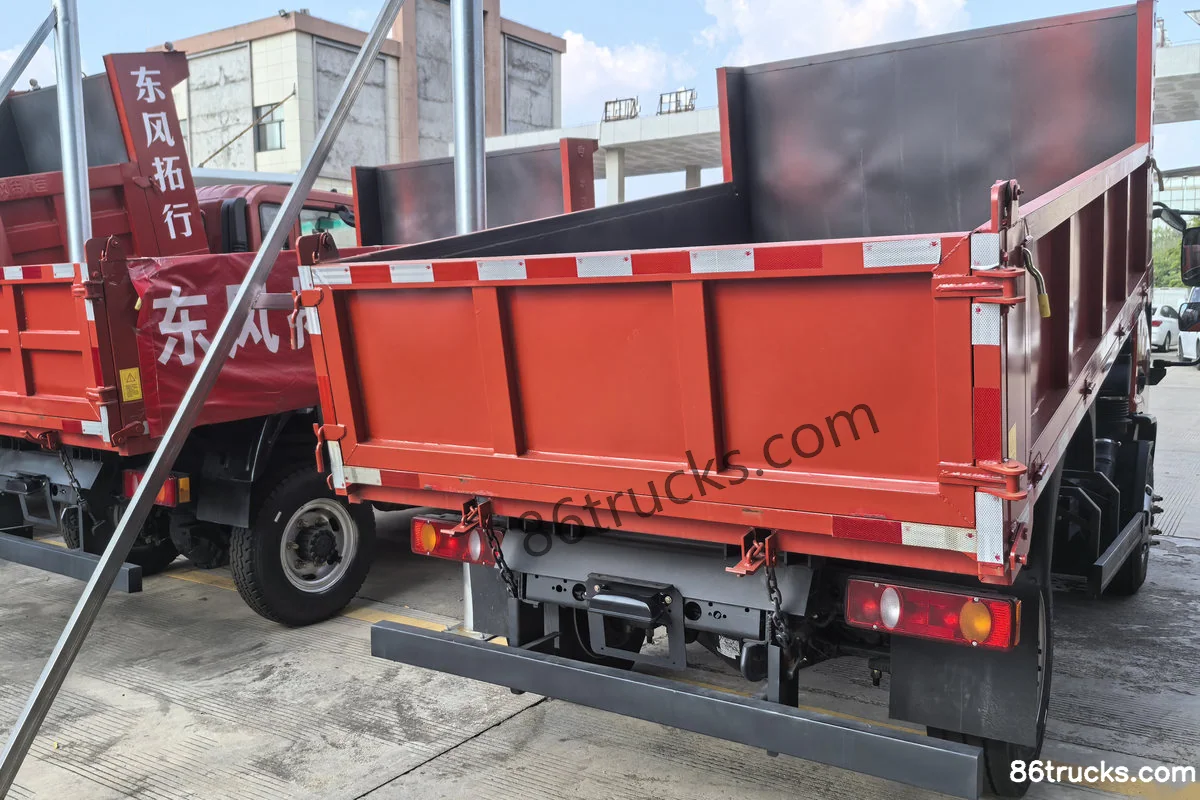

Body2

11 photos

FAQ

What is the export price of Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck, and what does it include?

Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck export reference is about From $13,611; MSRP is ¥9.8M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck?

Key specs of Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck: Drive: 4x2; Horsepower: 160 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck suited for?

Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck differ from other variants in the same series?

Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck belongs to Dongfeng Tuoxing S series medium truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing S1 2.5L Diesel 160hp 4X2(6 wheels) Fast Gear 10-speed 3.5m Single Row Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
