Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck

Export reference
From $23,472
MSRP ¥16.9M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 5ton
Wheelbase:: 3850mm
Tire Size:: 265/70R19.5 16PR
Rated payload: 8.605ton
Drive 4X2 (6 wheels)
Horsepower 170
Cargo box type: Dump type

Overview

The Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck is a Light Truck featuring 8.605t payload, 13.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF1 engine, 170 hp, China VI emissions and Fast Gear transmission.

China VI 170 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SH3143VFDDWW
Drive type: 4X2
Wheelbase: 3850mm
engine: Yunnei PowerD30TCIF1
transmission: Fast Gear 8-speed
Rear Axle Ratio: 6.167
Cab length: 6.95m
Cab width: 2.55m
Cab height: 2.48m
Front track width: 1740mm
rear track: 1650mm
Curb Weight: 5ton
Rated payload: 8.605ton
GVWR: 13.8ton
Origin: Nanjing, Jiangsu
tonnage class: Light Truck
Approach angle: 18°
departure angle: 16°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 125kW
Max hp: 170Horsepower
Max torque: 500N·m
Max torque speed: 1200-2200rpm
Rated speed: 2800rpm
Engine Type: Electronic control common rail system HEGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear 8-speed
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 8Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.6m
Cargo box width: 2.3m
Cargo box height: 0.6m
Cab parameters
Cab width: 1995mm
seating capacity: 3Personnel
Chassis Specs
Front axle allowable load: 4850kg
rear axle allowable load: 8950kg
Axle ratio: 6.167
Leaf spring count: 9/13+8
Tire
Tire Size: 265/70R19.5 16PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

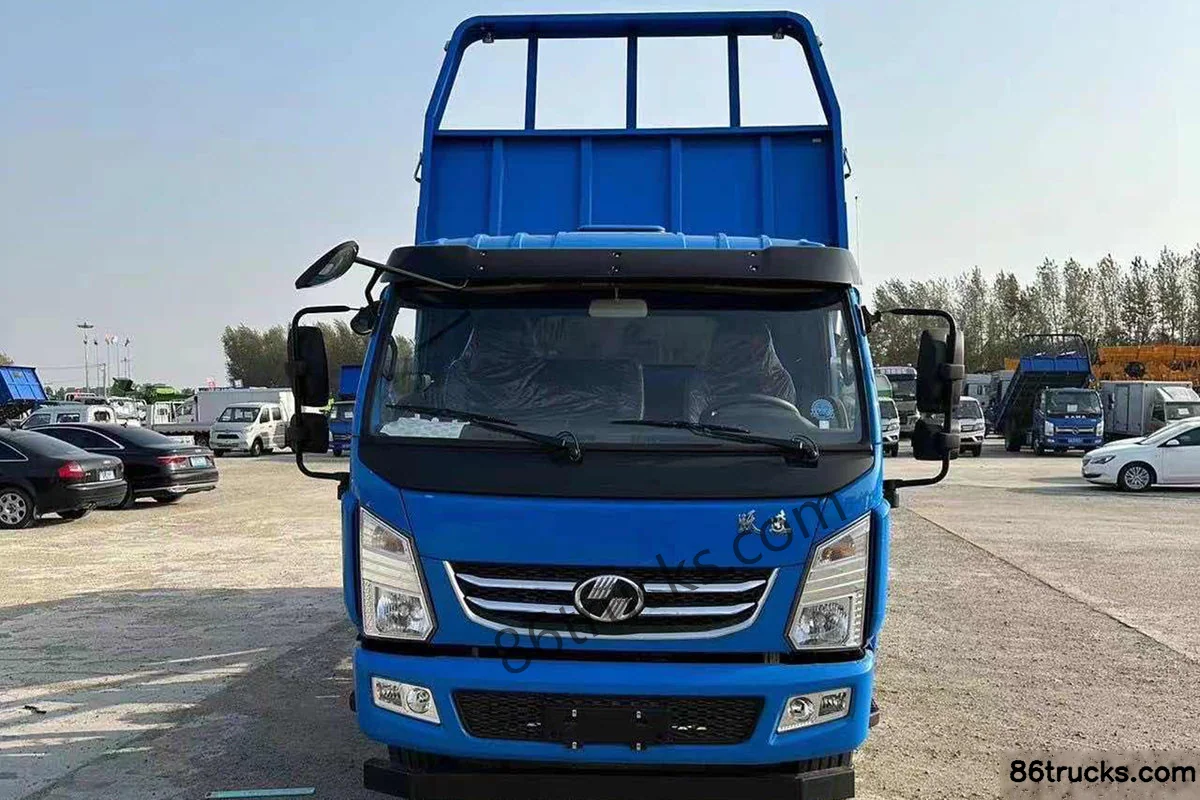

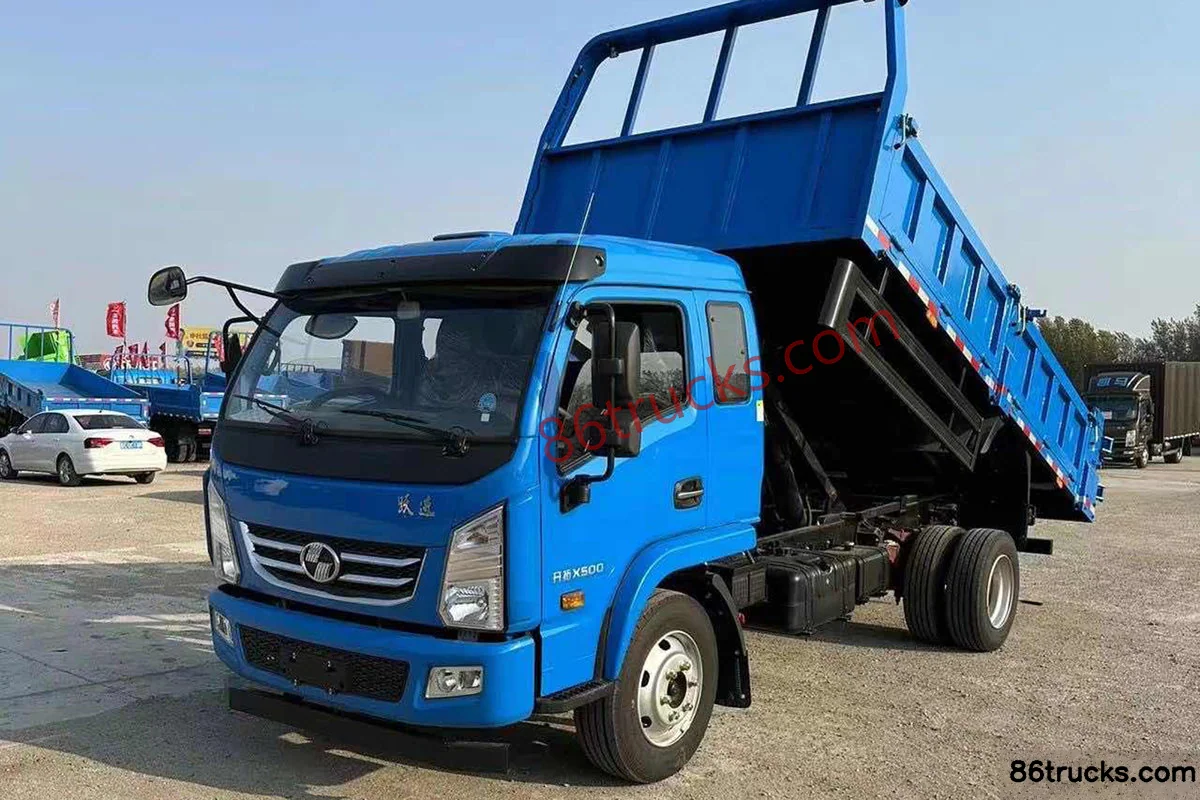

Exterior2

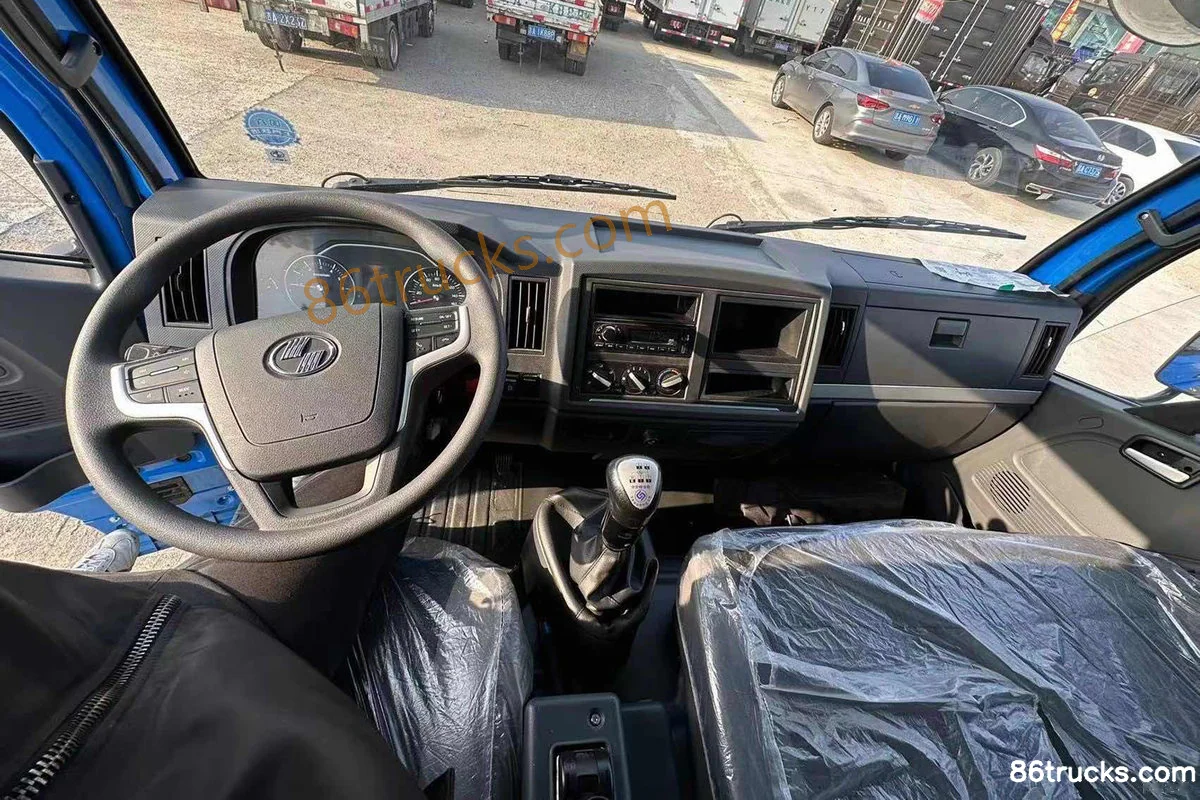

Cab1

3 photos

FAQ

What is the export price of Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck, and what does it include?

Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck export reference is about From $23,472; MSRP is ¥16.9M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck?

Key specs of Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck: Drive: 4x2; Horsepower: 170 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck suited for?

Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck differ from other variants in the same series?

Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck belongs to Yuejin Kaituo X500 Light-duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Yuejin Kaituo X500 transport type 170hp 4X2(6 wheels) 4.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
