Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane

Export reference
From $30,556
MSRP ¥22M CNY
Fuel: Diesel
Wheelbase:: 5850+1350mm
Cab dimensions:: 12×2.55×3.92m
Type:: Truck with crane
GVWR:: 25ton
Front/rear suspension:: 1.25/3.2m
Drive 6X4 (10 wheels)
Horsepower 270
Rated mass: 8.59ton
Emission China VI

Overview

The Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane featuring 25t GVW and 6X4 (10 wheels) drive. On the powertrain side, it comes with 270 hp, China VI emissions and Diesel fuel.

China VI 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 12×2.55×3.92m
Type: Truck with crane
Drive type: 6X4
Wheelbase: 5850+1350mm
Rated mass: 8.59ton
GVWR: 25ton
Front/rear suspension: 1.25/3.2m
Energy Type: Diesel
Body Parameters
Other special notes: XCMG 14-ton G-type boom, 19.6m boom length
Vehicle certification code: EQ5259JSQL6D
Body Brand: Dongfeng
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS06270-60
fuel type: Diesel
Displacement: 6.23L
Emission standard: China VI
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1050N·m
Max torque speed: 1200-1700rpm
Rated speed: 2300rpm
Chassis Specs
Chassis Brand: Dongfeng
Chassis Series: Huashen T5
Chassis Model: EQ1259GL6DJ
rear axle description: 153
Leaf spring count: 9/13
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear 9-speed
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs

Photos

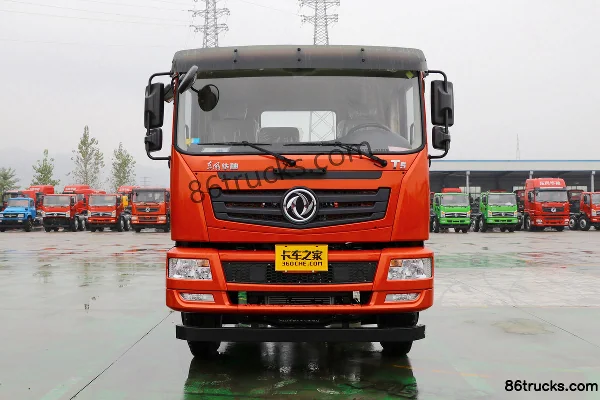

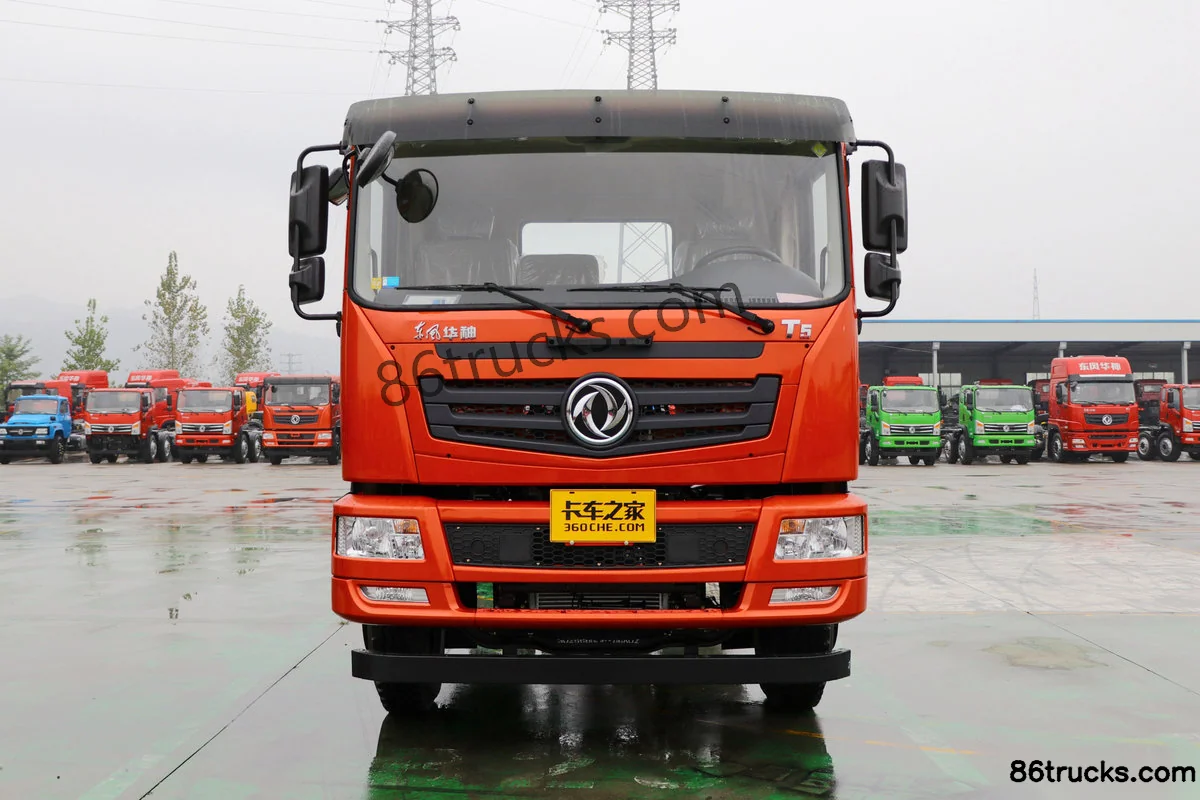

Exterior1

1 photos

FAQ

What is the export price of Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane, and what does it include?

Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane export reference is about From $30,556; MSRP is ¥22M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane?

Key specs of Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane: Drive: 6x4; Horsepower: 270 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane suited for?

Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane is a truck-mounted crane model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane differ from other variants in the same series?

Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane belongs to Dongfeng T5 medium truck (truck-mounted crane). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng T5 270 hp 6X4(10 wheels) Truck Mounted Crane?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
