Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck

Export reference
From $43,333
MSRP ¥31.2M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.39ton
Wheelbase:: 3425+1350mm
Tire Size:: 11.00-20 11.00R20 12.00-20 12.00R20
Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck exterior
View more photos (2)
Rated payload: 12.48ton
Drive 6X4 (10 wheels)
Horsepower 336
Cargo box type: Dump type

Overview

The Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck is a Heavy truck featuring 12.48t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukWD615.95E engine, 336 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 336 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3257N3447C1
Drive type: 6X4
Wheelbase: 3425+1350mm
engine: SinotrukWD615.95E
transmission: SinotrukHW15710
Rear Axle Ratio: 5.45
Cab length: 7.835m
Cab width: 2.496m
Cab height: 3.45m
Front track width: 2022,2041mm
rear track: 1830/1830mm
Curb Weight: 12.39ton
Rated payload: 12.48ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 19°
departure angle: 30°
Remarks: Curb weight is given without and with top cover. This model can be equipped with an eco-friendly covered cargo box; top cover weight is 170 kg. When the cargo box is tilted forward, overall height is 3450 mm. Optional engine: WD615.96E 375 hp
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.95E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 247kW
Max hp: 336Horsepower
Max torque: 1350N·m
Max torque speed: 1100-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Transmission Parameters
Transmission Model: SinotrukHW15710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4.88m
Cargo box width: 2.3m
Cargo box height: 1.2m
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: AC16
rear axle allowable load: 16000kg
Axle ratio: 5.45
Leaf spring count: 10/12
Tire
Tire Size: 11.00-20 11.00R20 12.00-20 12.00R20
Number of tires: 10pcs

Photos

Exterior2

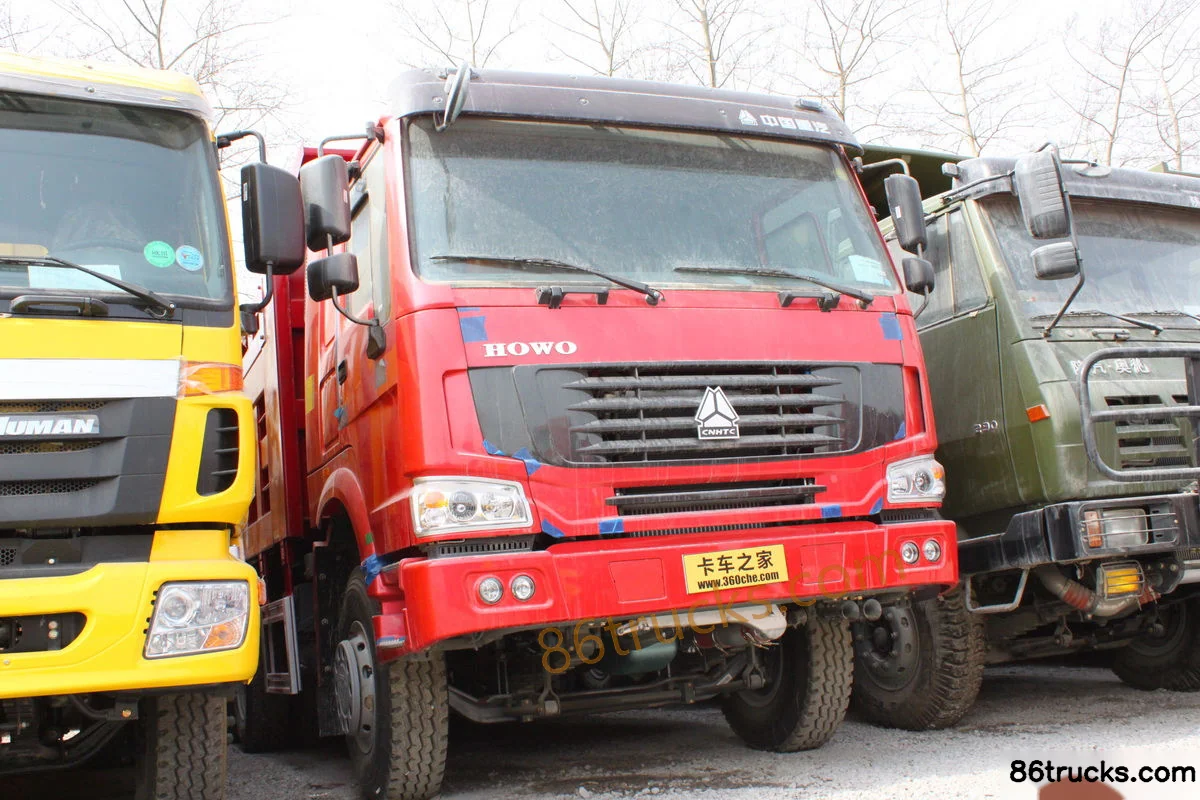

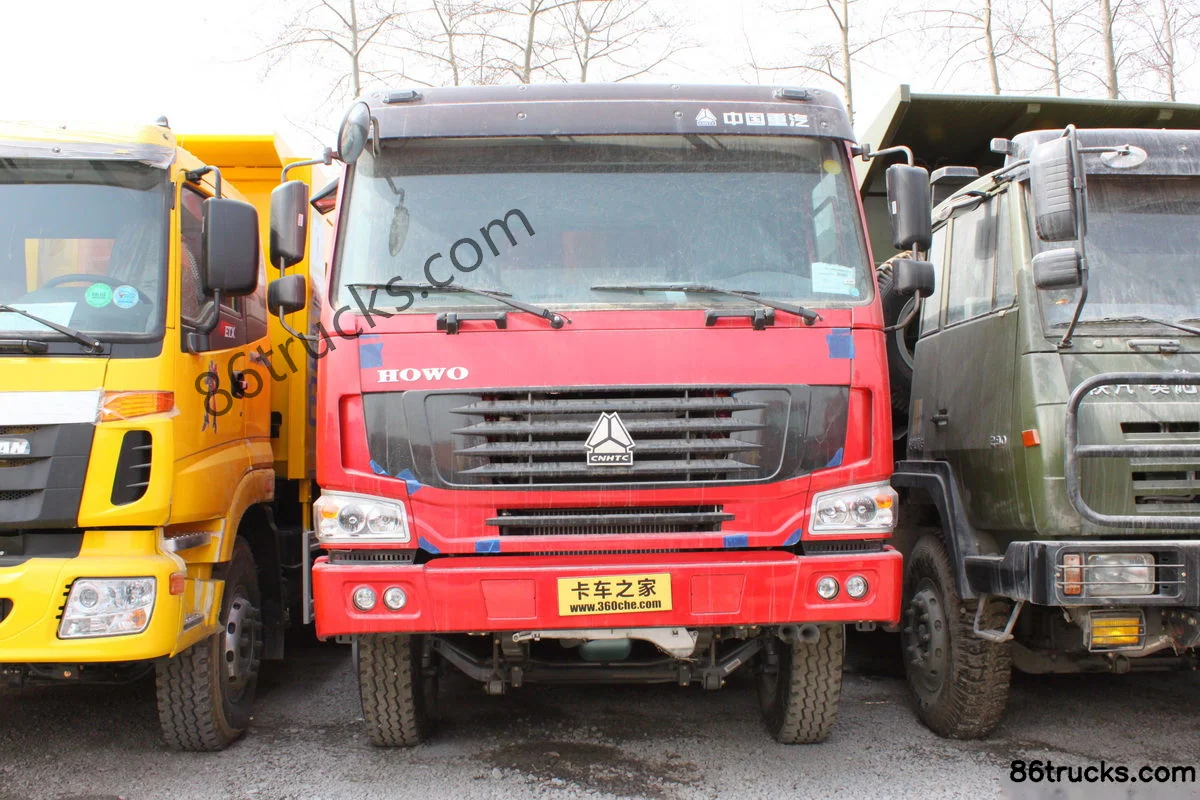

Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck Exterior (1) | 86Trucks Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck Exterior (2) | 86Trucks

2 photos

FAQ

What is the export price of Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck, and what does it include?

Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck export reference is about From $43,333; MSRP is ¥31.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck?

Key specs of Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck: Drive: 6x4; Horsepower: 336 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck suited for?

Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck differ from other variants in the same series?

Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck belongs to Sinotruk HOWO-7 heavy-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO 336hp 6X4(10 wheels) 4.88m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
