JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck

Export reference
From $14,583
MSRP ¥10.5M CNY
Emission: China IV
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.685ton
Wheelbase:: 3600mm
Tire Size:: 8.25R16
Rated payload: 4.99ton
Drive 4X2 (6 wheels)
Horsepower 129
Cargo box type: Rear-dump body

Overview

The JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck is a Light Truck featuring 4.99t payload, 9.87t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerYN38CRD1 engine, 129 hp, China IV emissions and WLY transmission.

China IV 129 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC3100KR1Z
Drive type: 4X2
Wheelbase: 3600mm
engine: Yunnei PowerYN38CRD1
transmission: WLYWLY145H-426-10
Rear Axle Ratio: 5.83
Cab length: 6.76m
Cab width: 2.31m
Cab height: 2.53m
Front track width: 1560mm
rear track: 1650mm
Curb Weight: 4.685ton
Rated payload: 4.99ton
GVWR: 9.87ton
Origin: Hefei, Anhui
tonnage class: Light Truck
Approach angle: 26°
departure angle: 20°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerYN38CRD1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.76L
Emission standard: China IV
Max output power: 95kW
Max hp: 129Horsepower
Max torque: 315N·m
Max torque speed: 1600-2400rpm
Rated speed: 3000rpm
Engine Type: Electronic control, water-cooled EGR technology, electronic high-pressure common rail fuel injection technology, aftertreatment DOC+POC
Technology route: Common Rail SCR
Transmission Parameters
Transmission Model: WLYWLY145H-426-10
Transmission Brand: WLY
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 4.6m
Cargo box width: 2.1m
Cargo box height: 0.6m
Body Parameters
Lifting type: 160 construction top
fuel tank
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 1062(2.1T)
Front axle allowable load: 3970kg
Frame Dimensions: 800×230×75×(6.5+5)mm
rear axle description: 1092T Rear Axle
rear axle allowable load: 5900kg
Axle ratio: 5.83
Leaf spring count: 8/11+8
Suspension (front/rear): Leaf spring
Tire
Tire Size: 8.25R16
Number of tires: 6pcs
interior configuration
AC control type: Manual
Electronic Central Lock:
Multimedia features
Radio:

Photos

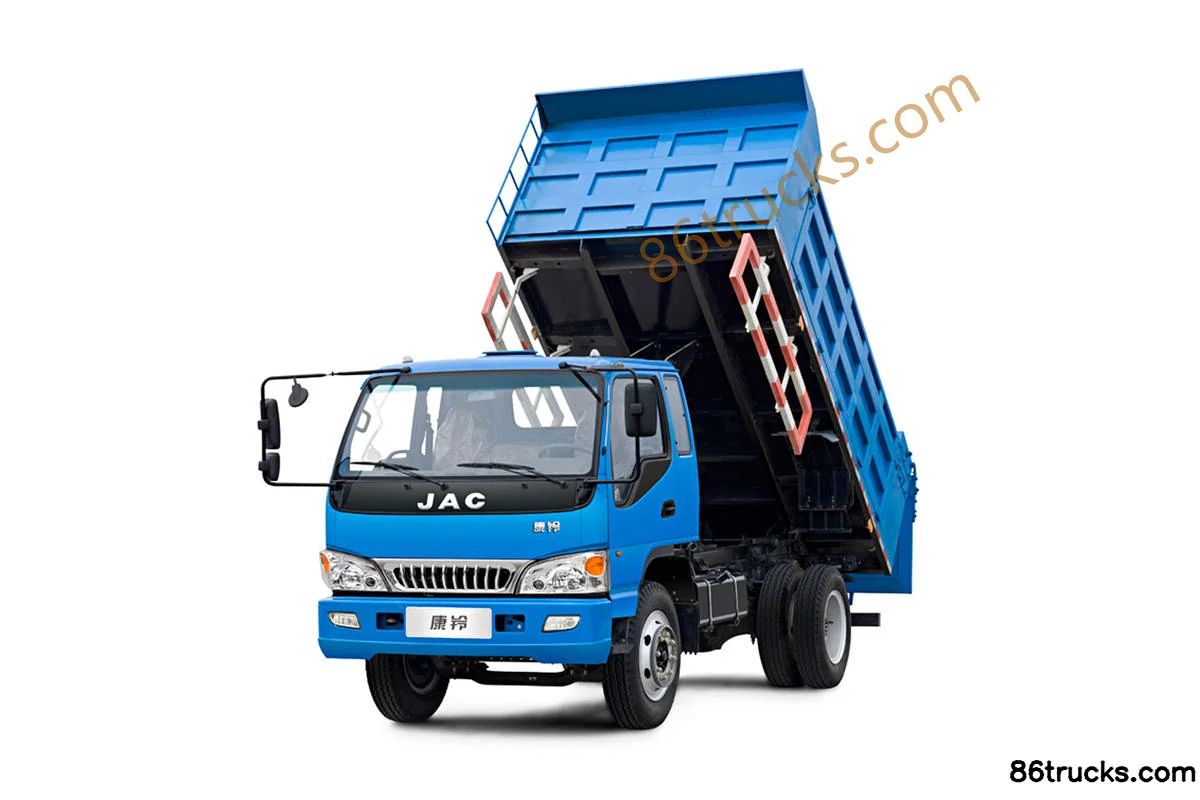

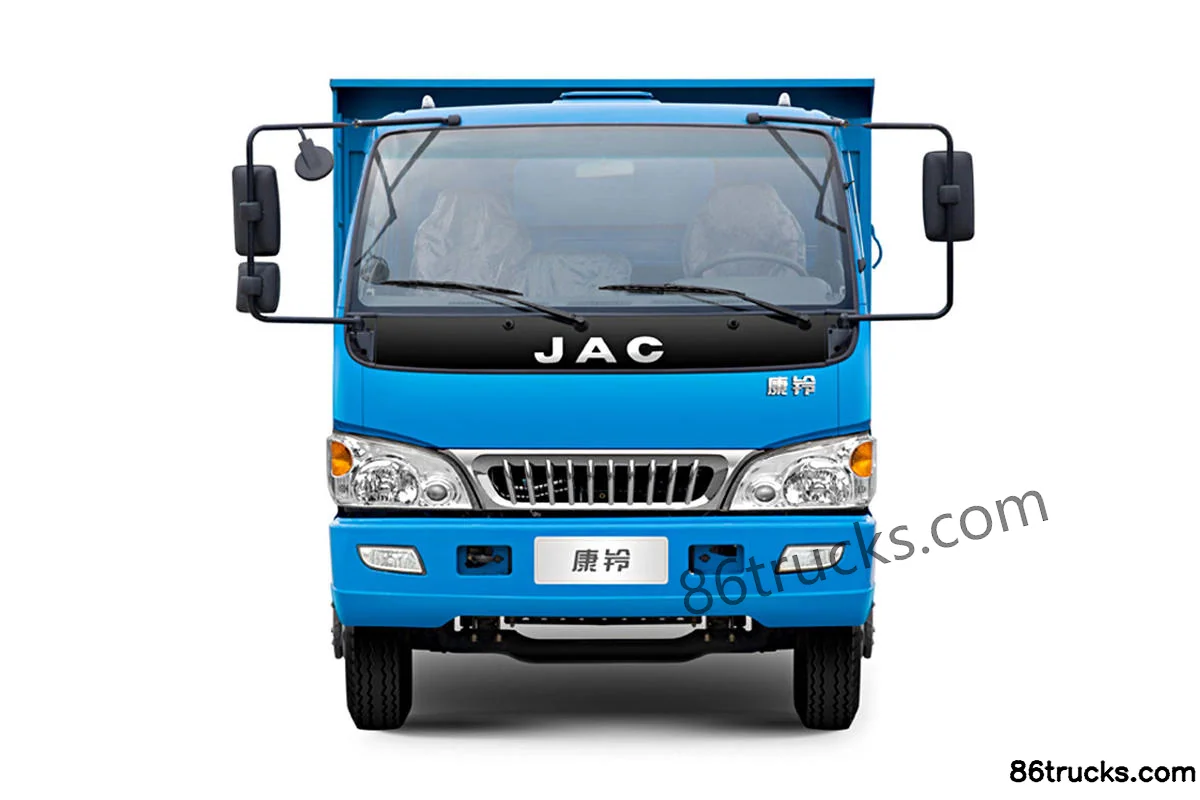

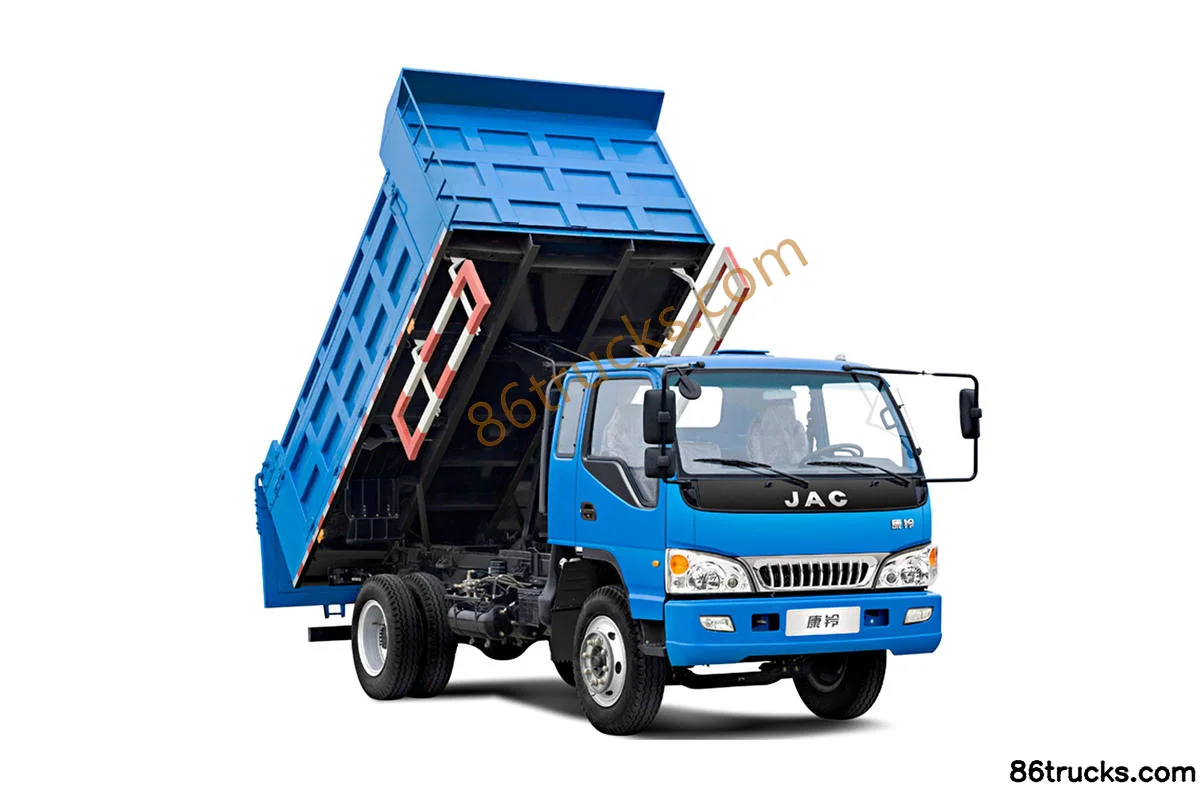

Exterior3

3 photos

FAQ

What is the export price of JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck, and what does it include?

JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck export reference is about From $14,583; MSRP is ¥10.5M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck?

Key specs of JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck: Drive: 4x2; Horsepower: 129 hp; Emission: China IV; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck suited for?

JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck differ from other variants in the same series?

JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck belongs to JAC G light truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Junling G 129 hp 4X2(6 wheels) 4.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
