NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI)

Export reference
From $33,958
MSRP ¥24.45M CNY
Emission: China VI
Fuel: Diesel
Curb Weight:: 8.26ton
Wheelbase:: 3850mm
Tire Size:: 10.00R20 18PR
Model code (announced):: NJA2180PPB38A
Rated payload: 9.545ton
Drive 4X4 (6 wheels)
Horsepower 230
Cargo box thickness: 8mm base, 5mm sides

Overview

The NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) is a Medium-duty truck featuring 9.545t payload, 18t GVW, 8mm base, 5mm sides cargo body and 4X4 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCK05230-61 engine, 230 hp, China VI emissions and 10-speed transmission transmission.

China VI 230 Diesel 4X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): NJA2180PPB38A
Drive type: 4X4
Wheelbase: 3850mm
engine: YuchaiYCK05230-61
transmission: 10-speed transmission
Rear Axle Ratio: 6.73
Cab length: 6.82m
Cab width: 2.43m
Cab height: 2.92m
Front track width: 1740mm
rear track: 1780mm
Curb Weight: 8.26ton
Rated payload: 9.545ton
GVWR: 18ton
Origin: Ziyang, Sichuan
tonnage class: Medium-duty truck
Approach angle: 36°
departure angle: 18°
Version: Luxury Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCK05230-61
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 5.13L
Emission standard: China VI
Max output power: 169kW
Max hp: 230Horsepower
Max torque: 840N·m
Max torque speed: 1200-1700rpm
Rated speed: 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: 10-speed transmission
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
hydraulic cylinder brand & model: 3TG-130×3060C
Cargo box thickness: 8mm base, 5mm sides
Cargo box length: 4.5m
Cargo box width: 2.3m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift
Cab parameters
Cab: Sleeper cab
Cab width: 1995mm
seating capacity: 3Personnel
Chassis Specs
Front axle description: 6.5T
Front axle allowable load: 6500kg
Frame Dimensions: 280mm
rear axle description: 16T
rear axle allowable load: 11500kg
Axle ratio: 6.73
Leaf spring count: 9/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Electronic Central Lock:

Photos

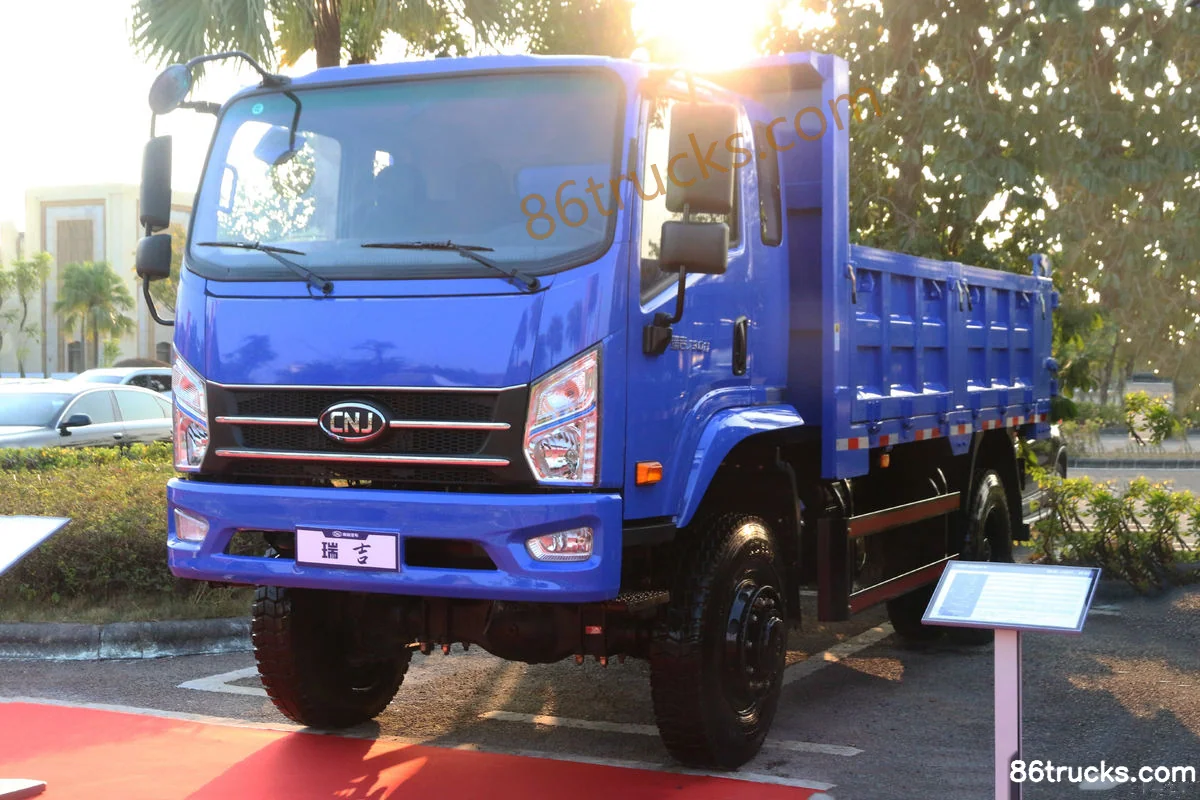

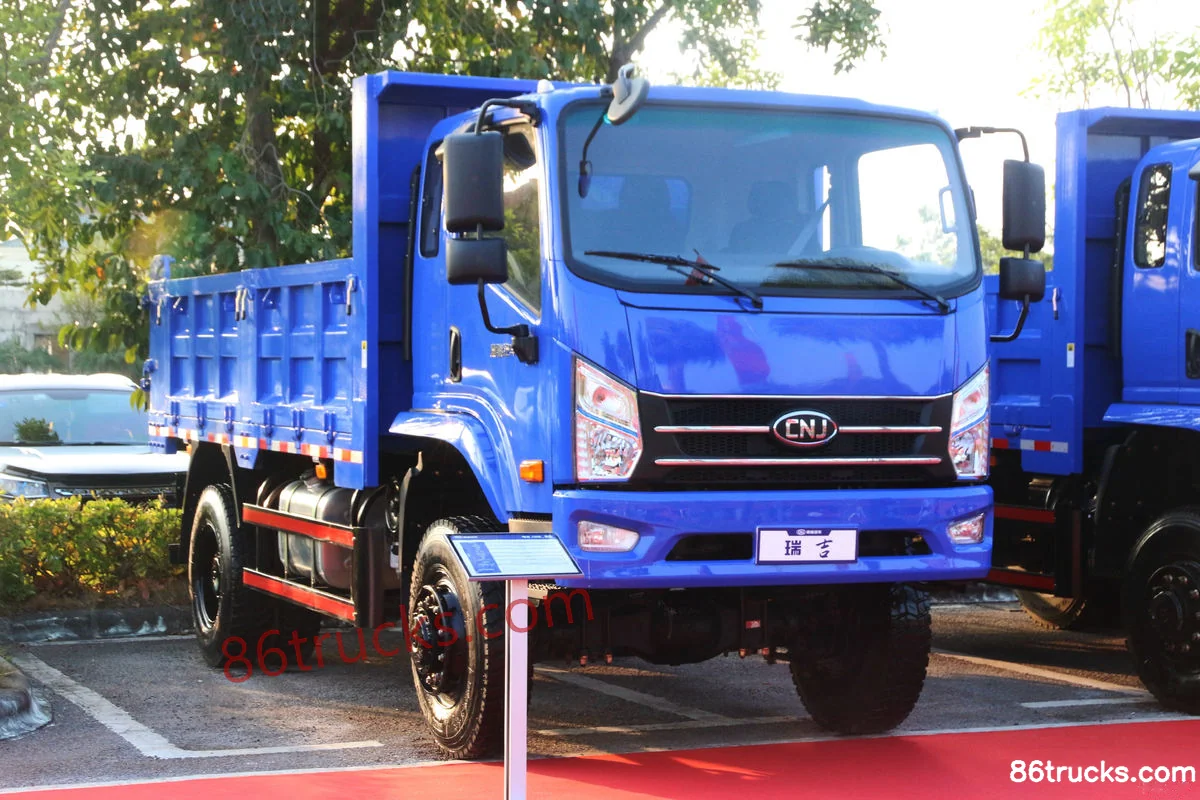

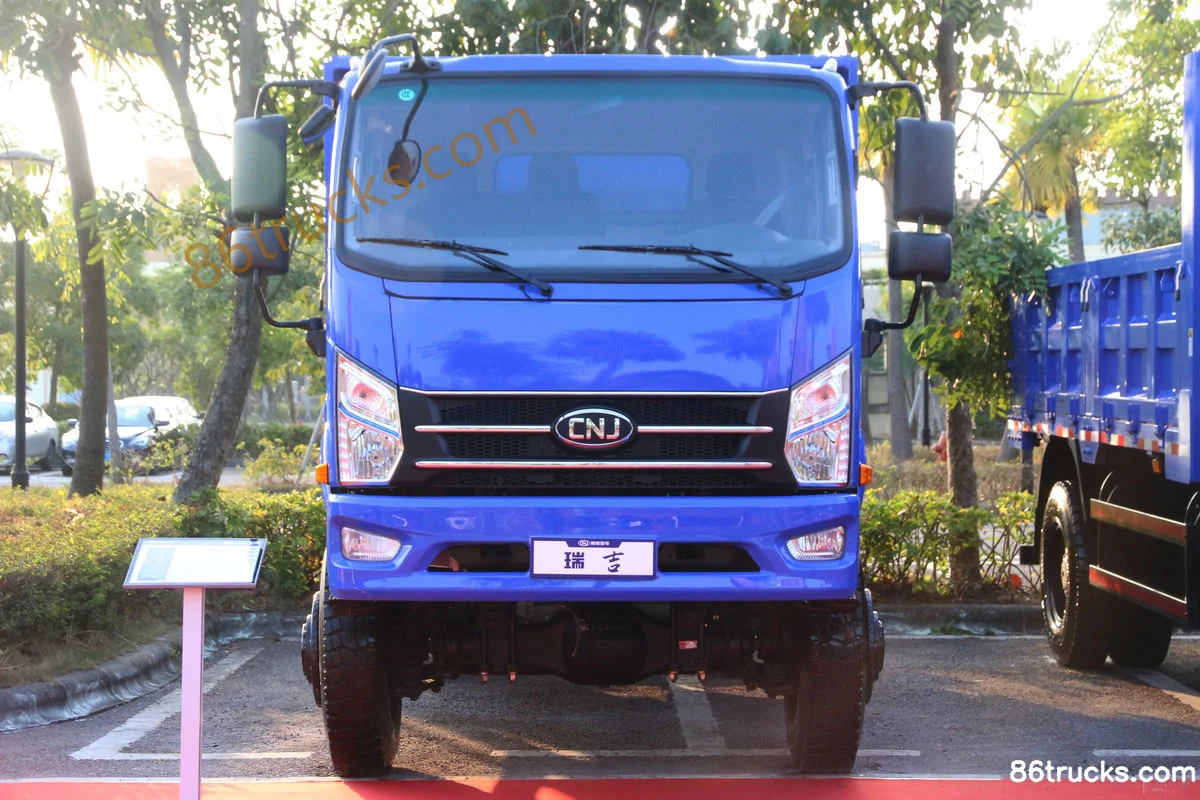

Exterior3

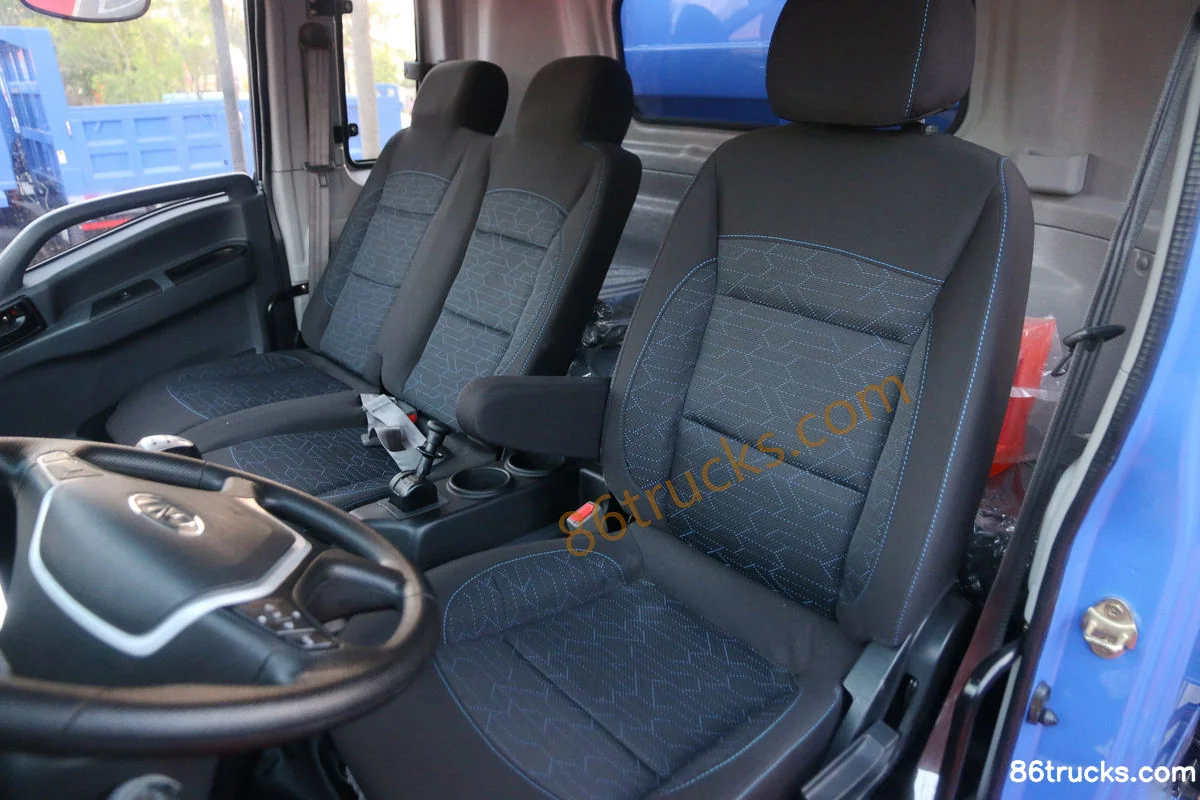

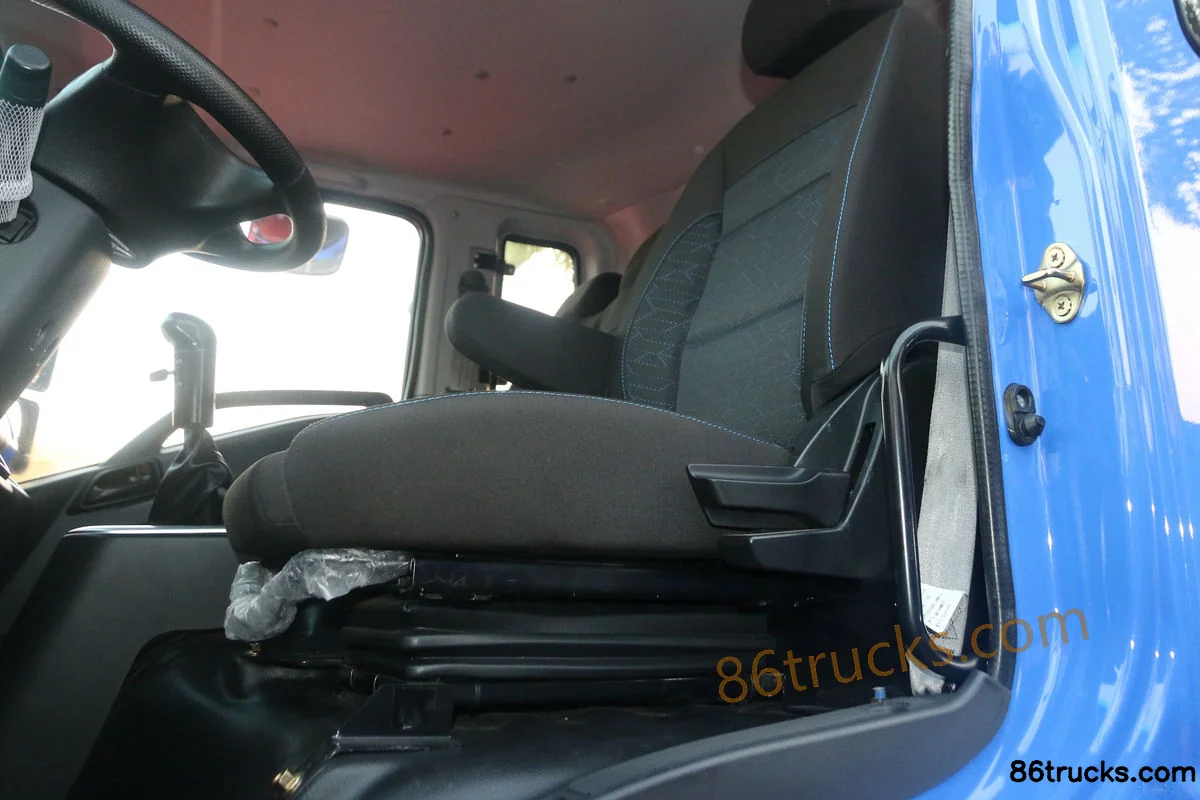

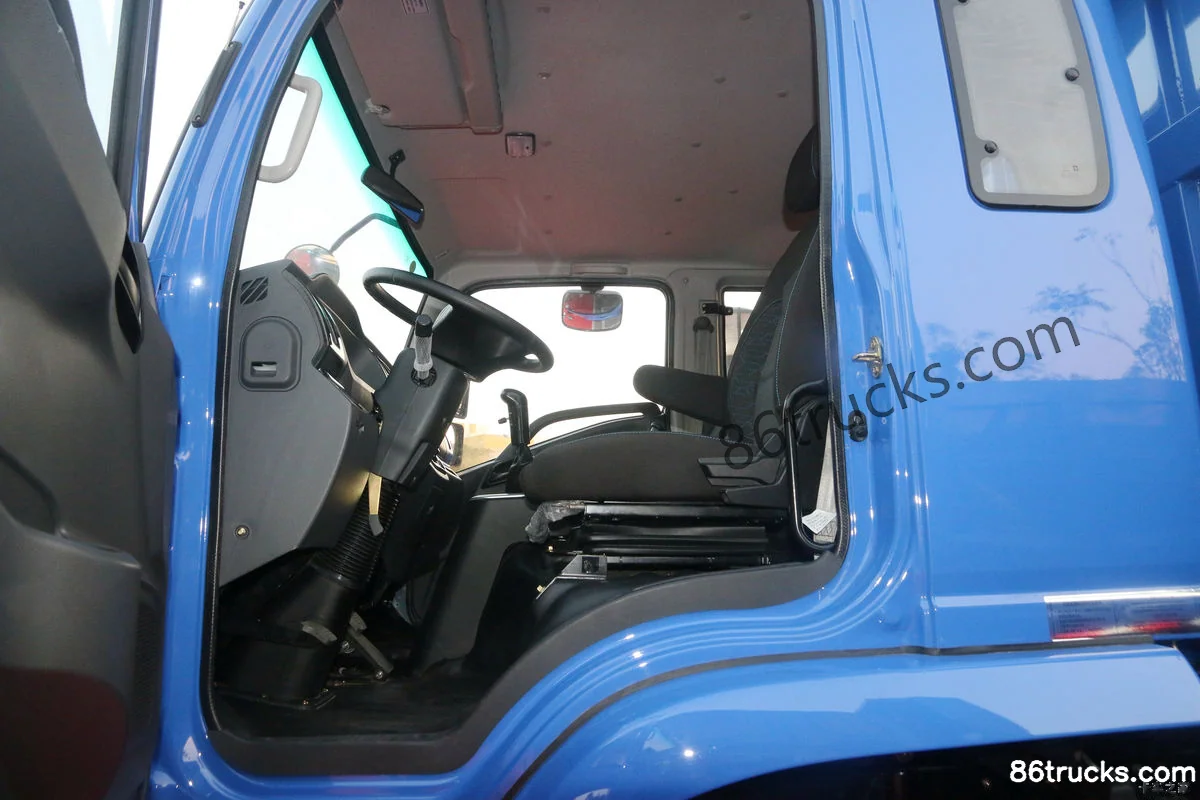

Cab3

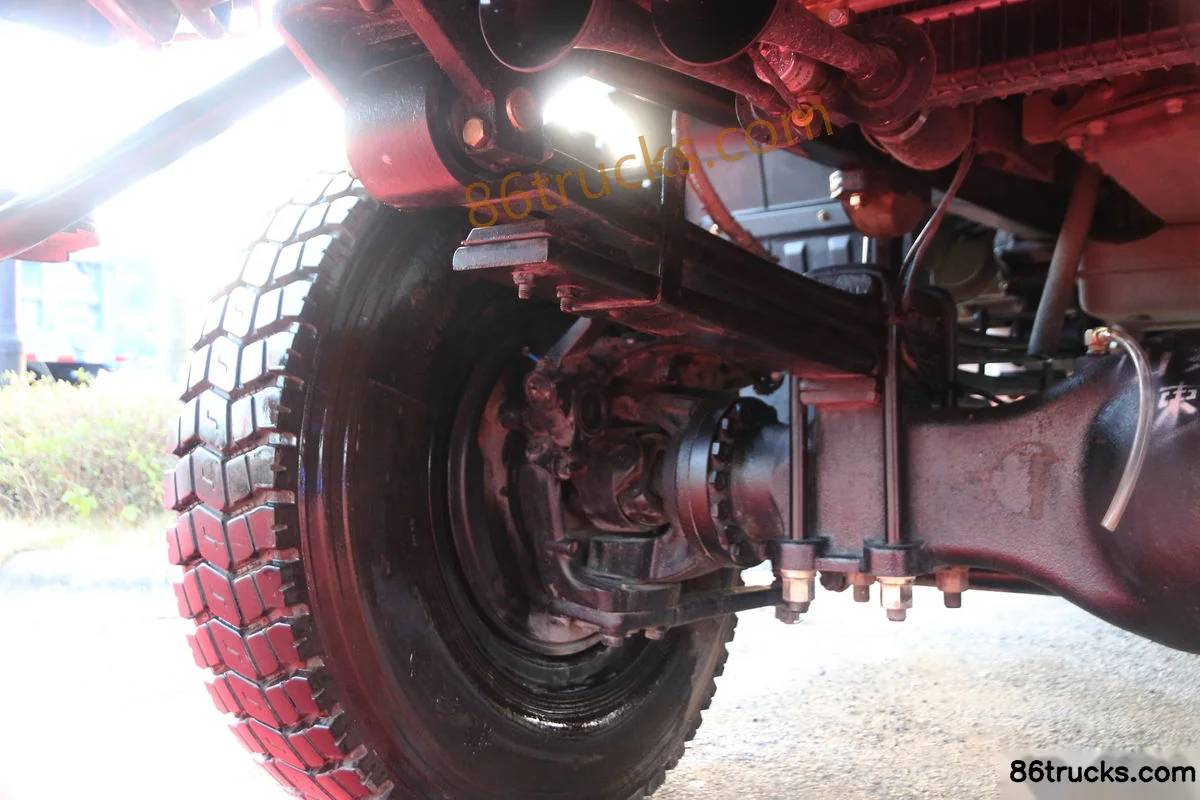

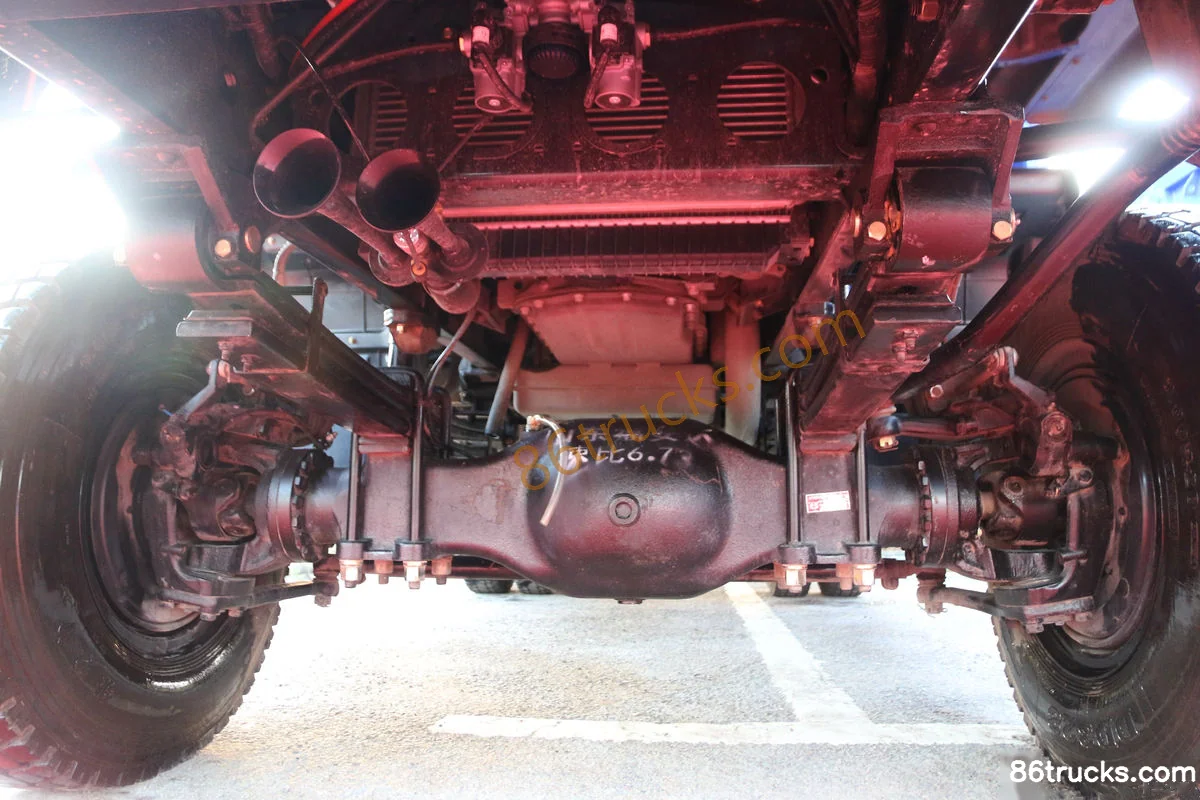

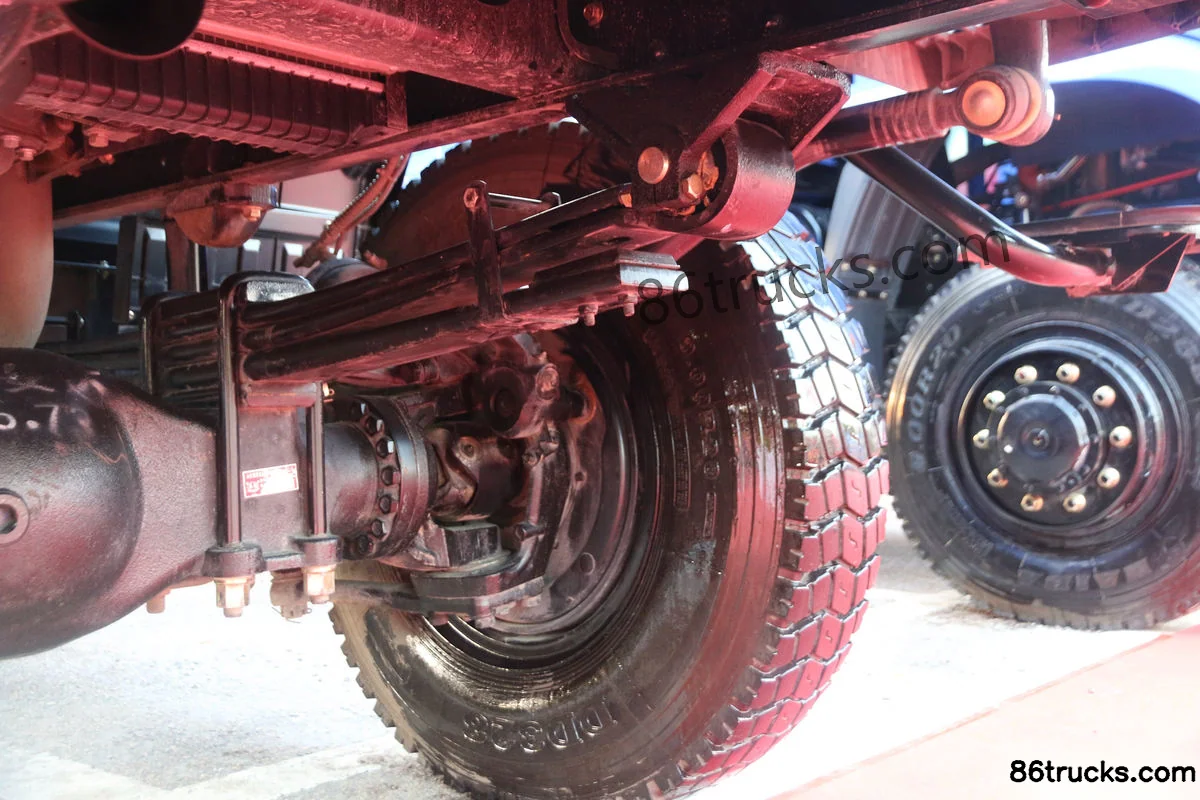

Chassis3

9 photos

FAQ

What is the export price of NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI), and what does it include?

NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) export reference is about From $33,958; MSRP is ¥24.45M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI)?

Key specs of NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI): Drive: 4x4; Horsepower: 230 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) suited for?

NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) differ from other variants in the same series?

NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI) belongs to NanJun Ruiji J30 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export NanJun Ruiji J30 Luxury Edition 230 hp 4X4(6 wheels) 4.5m Dump Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
