Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.05ton
Wheelbase:: 3600+1350mm
Tire Size:: 12.00R20

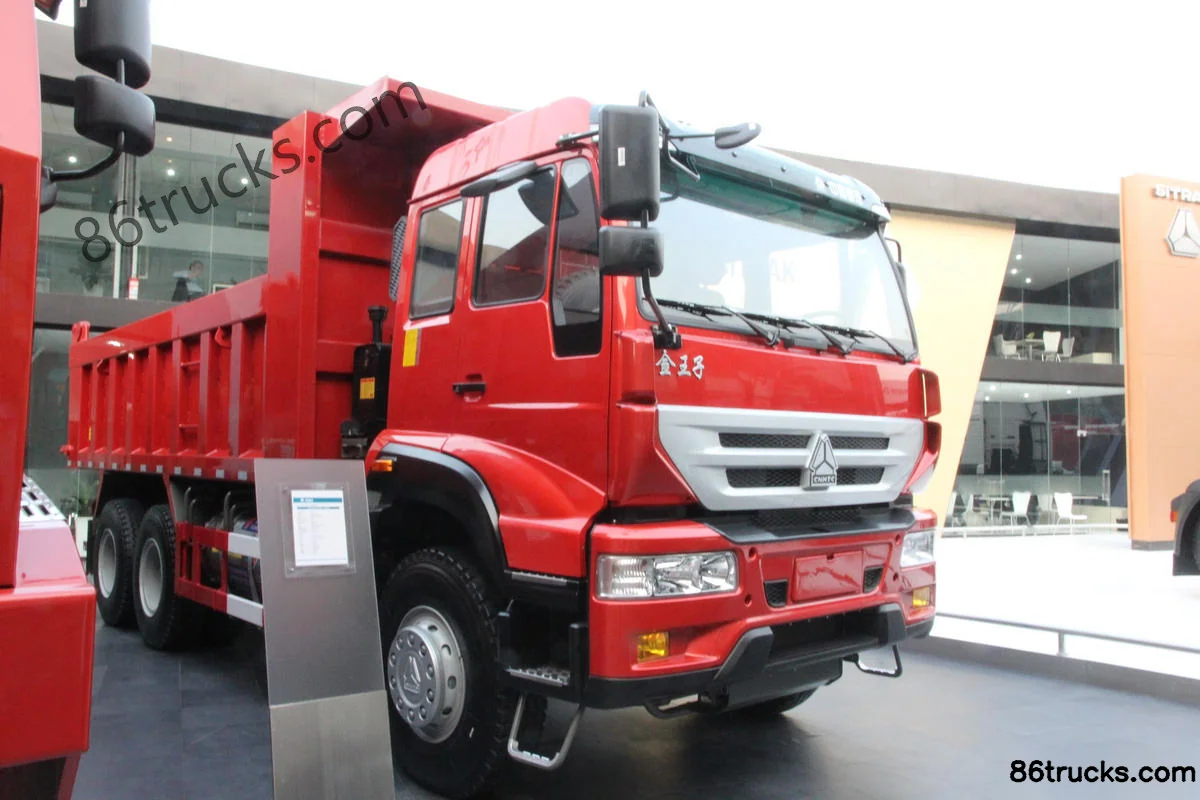

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck exterior
View more photos (10)
Rated payload: 12.82ton
Drive 6X4 (10 wheels)
Horsepower 300
Cargo box type: Dump type

Overview

The Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck is a Heavy truck featuring 12.82t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukD10.30-40 engine, 300 hp, China IV emissions and Sinotruk transmission.

China IV 300 Diesel 6X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3251M3641D1
Drive type: 6X4
Wheelbase: 3600+1350mm
engine: SinotrukD10.30-40
transmission: SinotrukHW19712
Rear Axle Ratio: 5.45
Cab length: 8m
Cab width: 2.496m
Cab height: 3.45m
Front track width: 2022mm
rear track: 1830/1830mm
Curb Weight: 12.05ton
Rated payload: 12.82ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20.5°
departure angle: 26°
Remarks: Max speed: 78 km/h
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.30-40
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China IV
Max output power: 221kW
Max hp: 300Horsepower
Max torque: 1340N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW19712
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 12Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
Body Parameters
Lifting type: Front lift 180
fuel tank
Fuel tank capacity: 300L
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: AC16 axle
Steering gear: Domestic
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 5.45
Leaf spring count: 10/12
Tire
Tire Size: 12.00R20
Tire Type: Steel-belted tire
Number of tires: 10pcs
Control configuration
ABS:

Photos

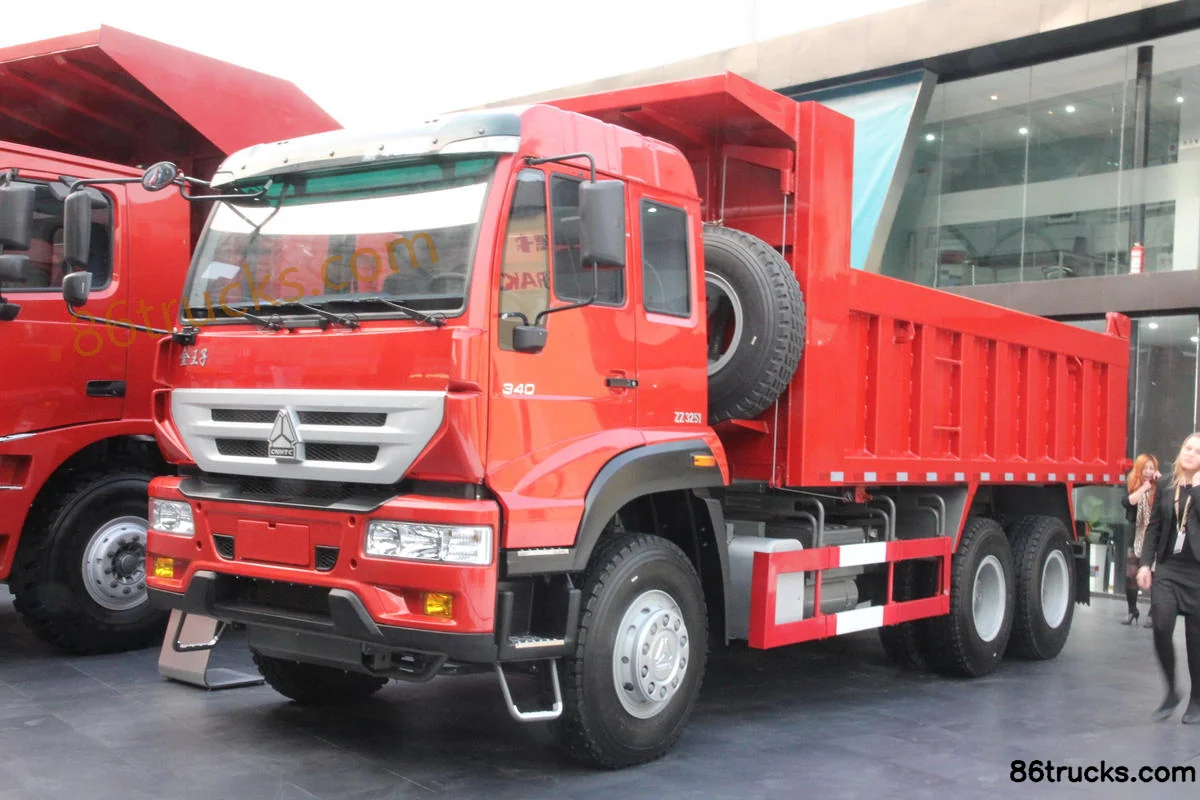

Exterior3

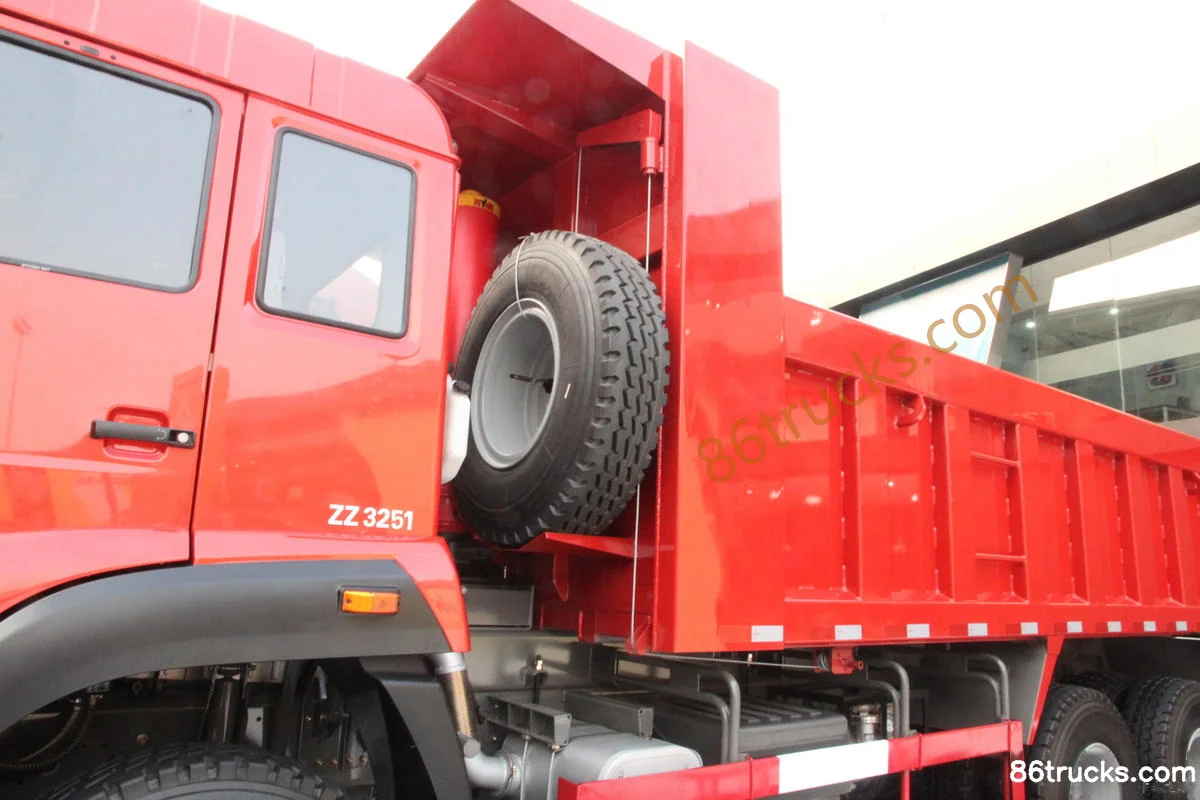

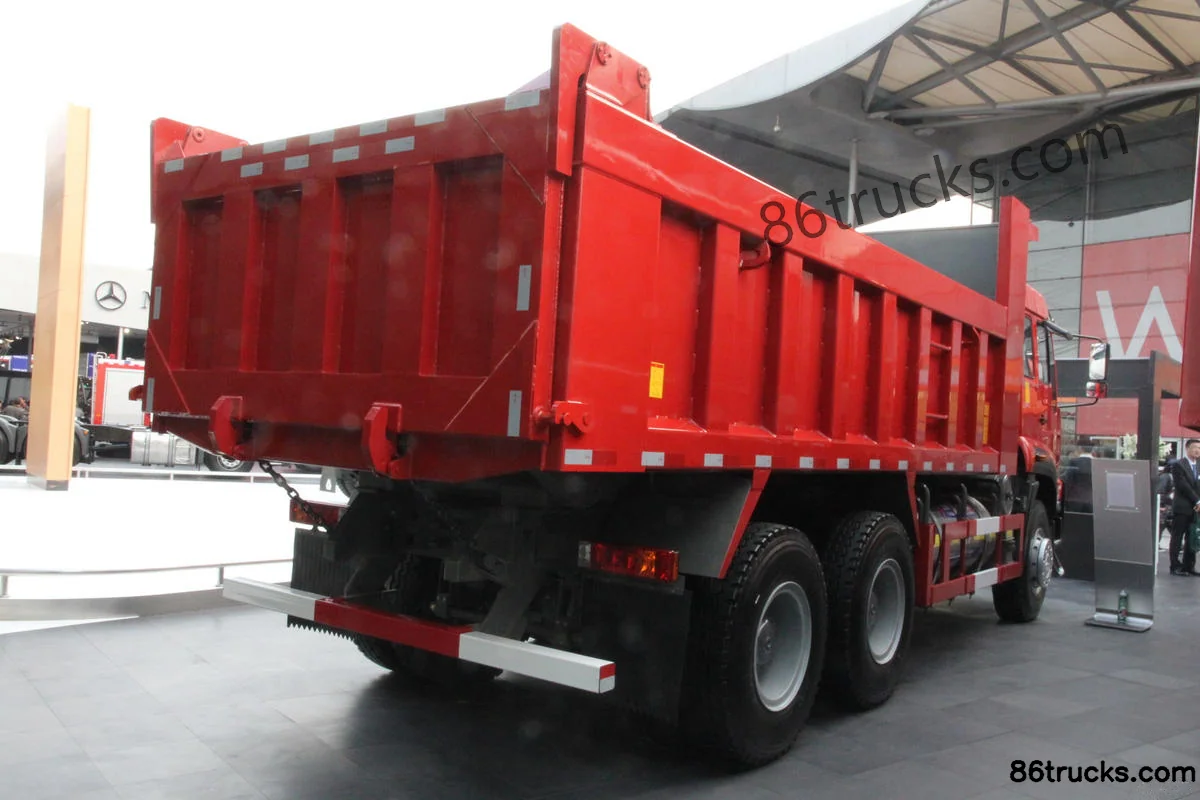

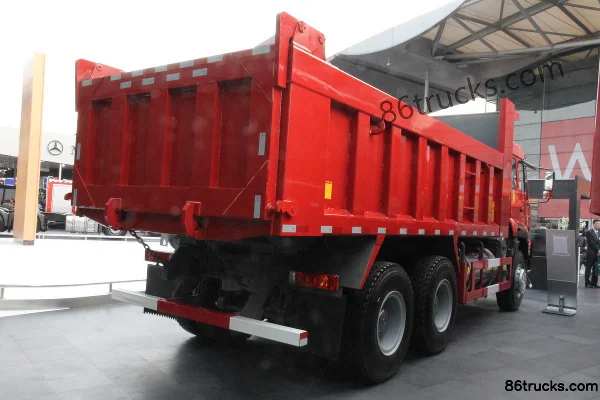

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Exterior (1) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Exterior (2) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Exterior (3) | 86Trucks

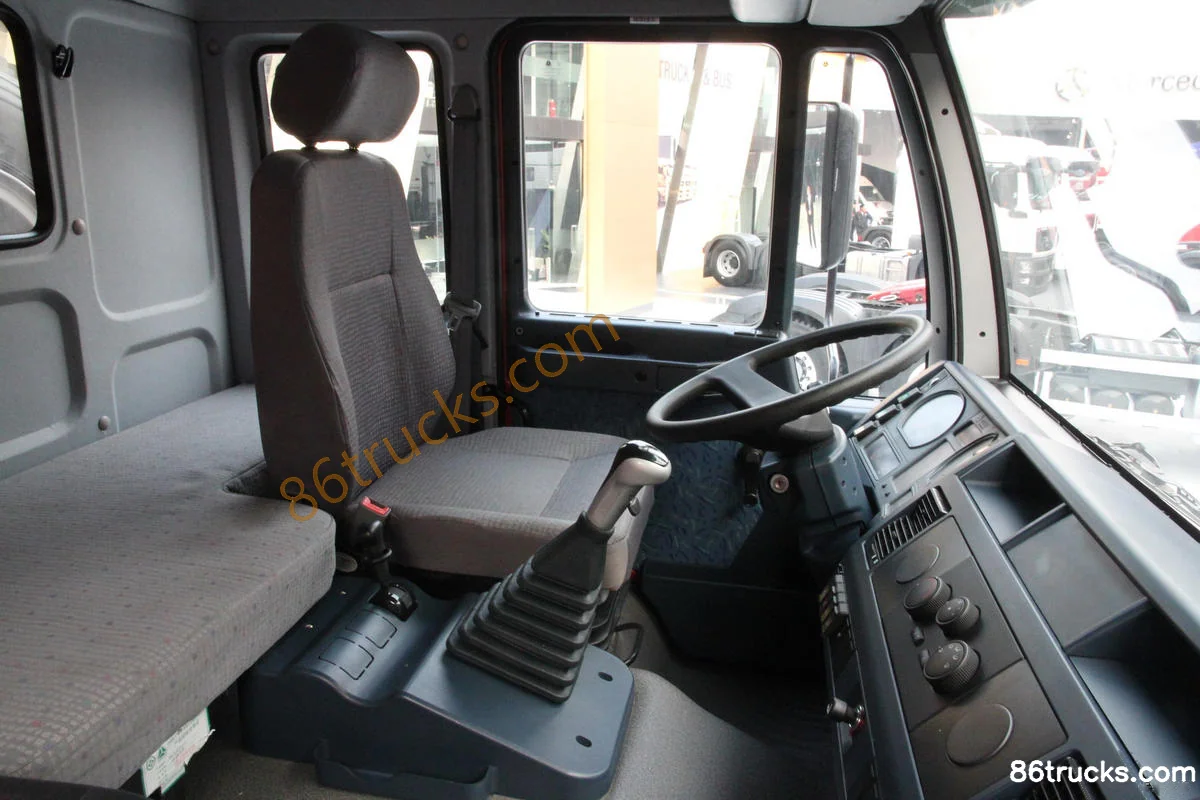

Cab3

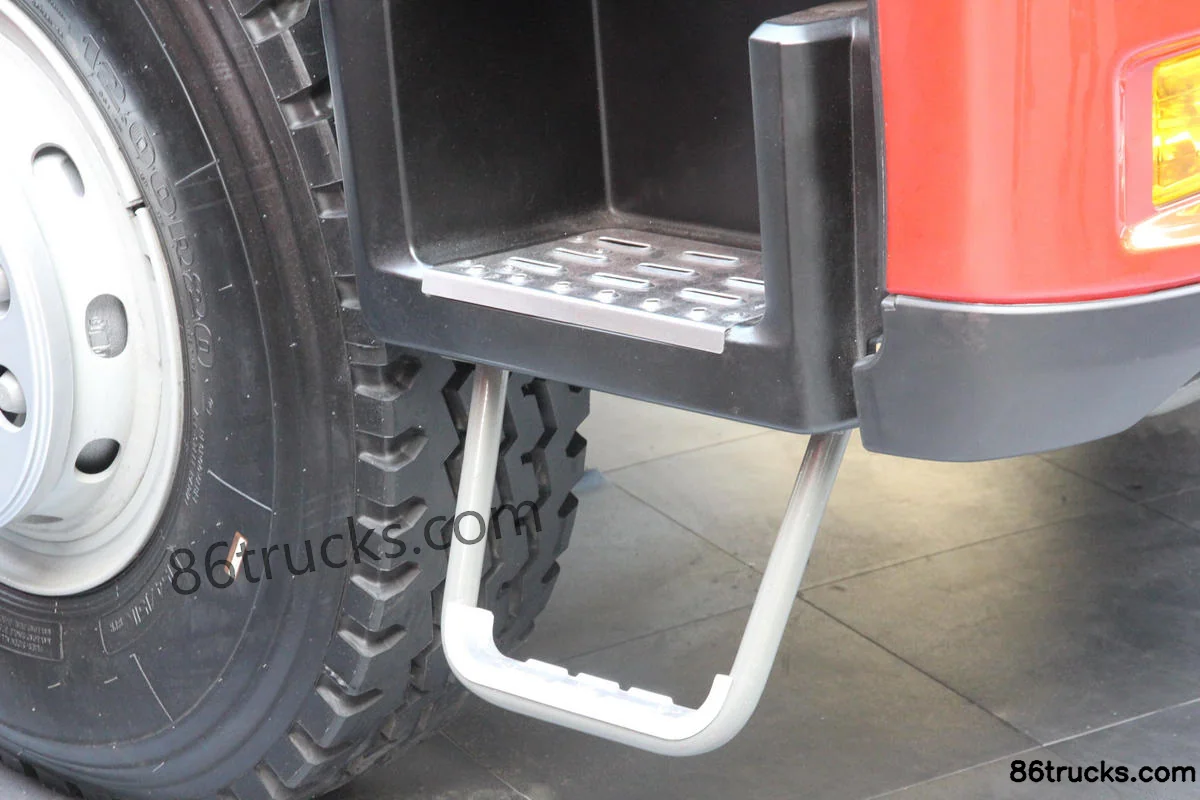

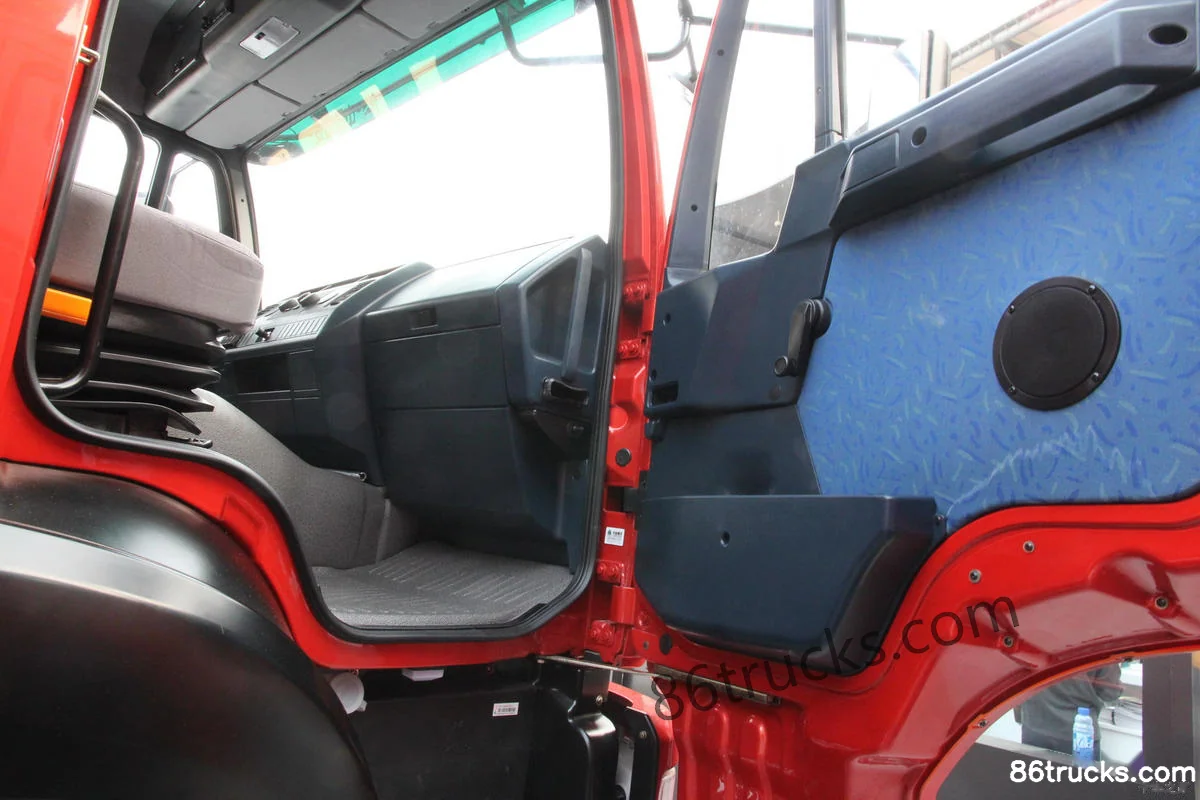

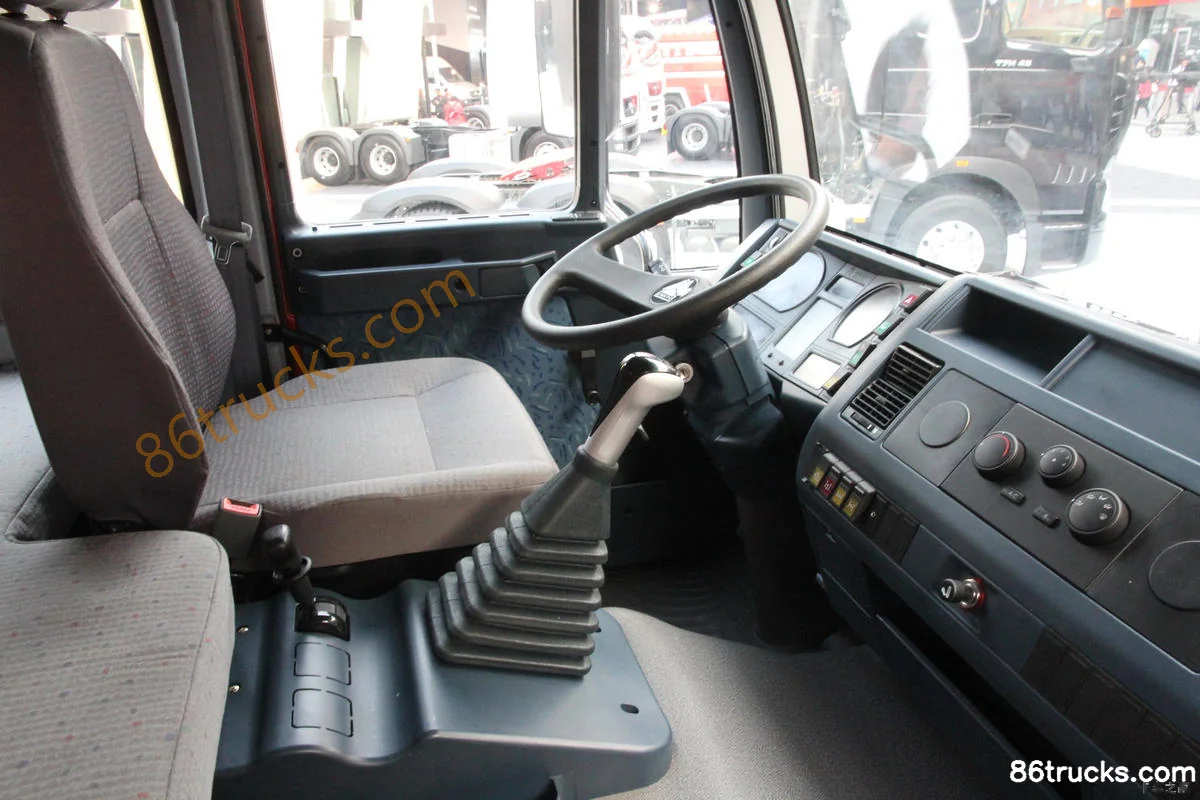

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Cab (1) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Cab (2) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Cab (3) | 86Trucks

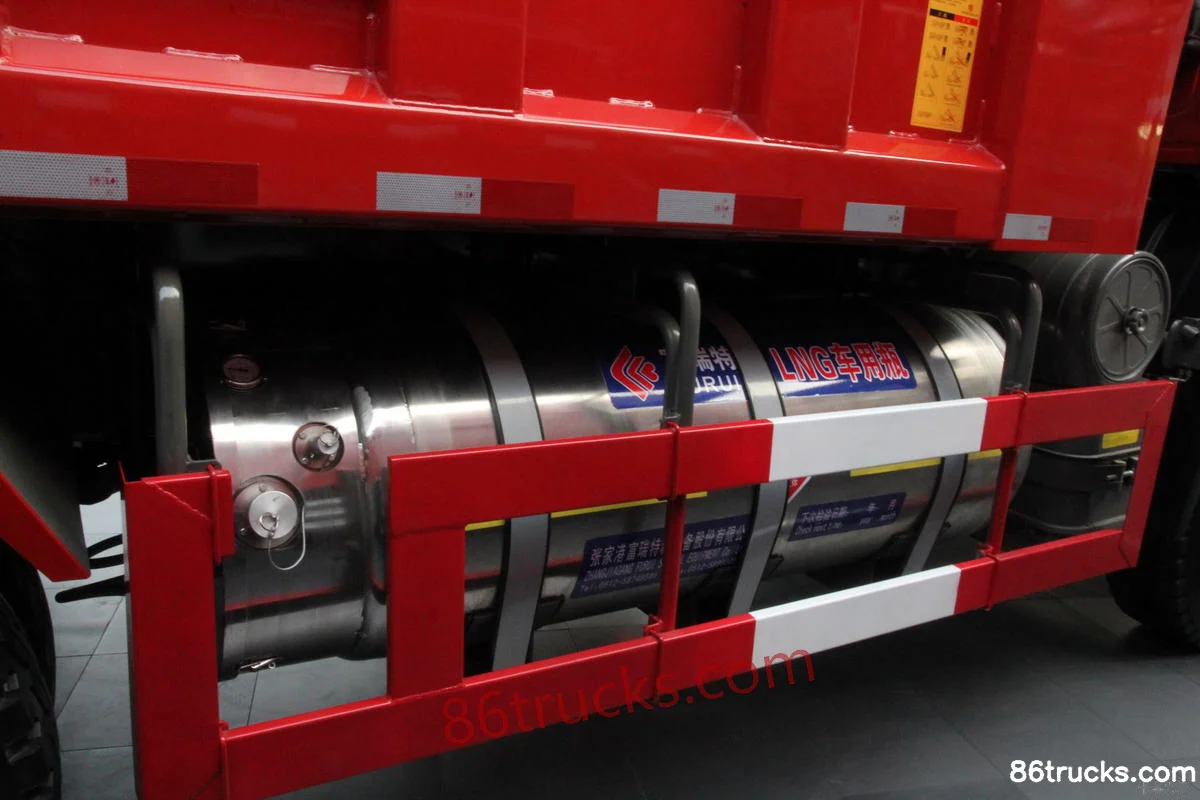

Chassis3

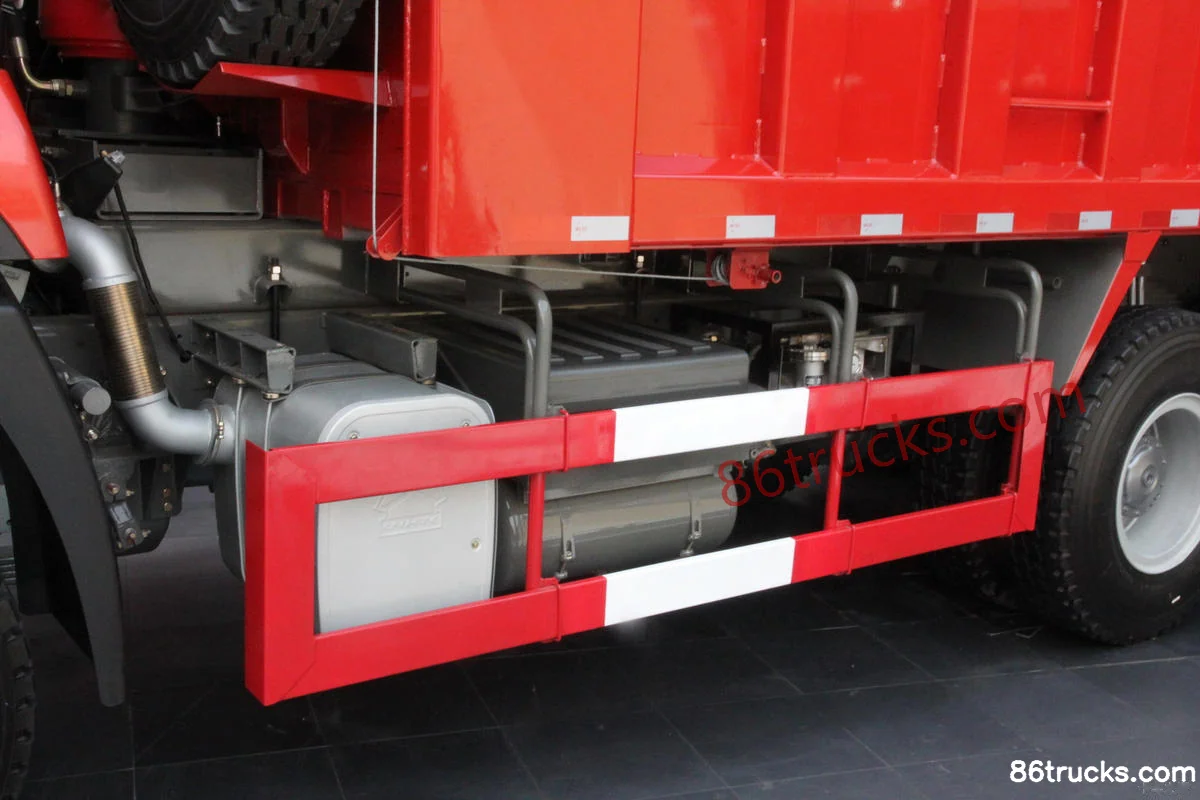

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Chassis (1) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Chassis (2) | 86Trucks Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Chassis (3) | 86Trucks

Body1

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck Body (1) | 86Trucks

10 photos

FAQ

What emission standard does Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck?

Key specs of Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck: Drive: 6x4; Horsepower: 300 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck suited for?

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck differ from other variants in the same series?

Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck belongs to Sinotruk Golden Prince Quasi-heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Golden Prince heavy truck 300 hp 6X4(10 wheels) 5.6m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
