Kobelco SK350LC-8 Crawler Excavator

Export reference
MSRP N/A
Model:: SK350LC-8
Engine Model:: crawler excavator
Tonnage:: 35ton
Bucket capacity:: 1.6cubic meter
Arm Length:: 3300mm
Machine dimensions:: 11.2×3.4×3.42mm
Kobelco SK350LC-8 Crawler Excavator exterior
View more photos (3)
Operating weight: 34.7ton
Bucket type: backhoe
Fuel Tank Capacity: 580L
Product power: Conventional Power

Overview

The Kobelco SK350LC-8 Crawler Excavator is a excavator featuring 34.7ton GVW, backhoe bucket capacity, 580L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model: SK350LC-8
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 35ton
Operating weight: 34.7ton
Bucket capacity: 1.6cubic meter
Arm Length: 3300mm
Machine dimensions: 11.2×3.4×3.42mm
Track shoe width: 600mm
Track gauge: 2600mm
Counterweight ground clearance: 1190mm
Min ground clearance: 500cm
Rear Overhang Radius: 3500mm
hydraulic system
Max flow of main pump: 2*294L/min
Working hydraulic circuit: 34.3
travel hydraulic circuit: 34.3Mpa
Swing Hydraulic Circuit: 29Mpa
Oil capacity
Fuel Tank Capacity: 580L
coolant: 31.1L
hydraulic oil tank: 280L
Engine Oil Capacity: 28.5L
performance specs
Travel speed: 5.6/3.3km/h
Bucket digging force: 222kN
Arm Digging Force: 165kN
Max tractive force: 322kN
Operating Range
Max digging radius: 11260mm
Max digging depth: 7560mm
Max digging height: 10580mm
Max unloading height: 7370mm
Max vertical digging depth: 6610mm
Engine parameters
Engine Model: HINOHino JO8E
Max output power: 196.9kW

Photos

Exterior3

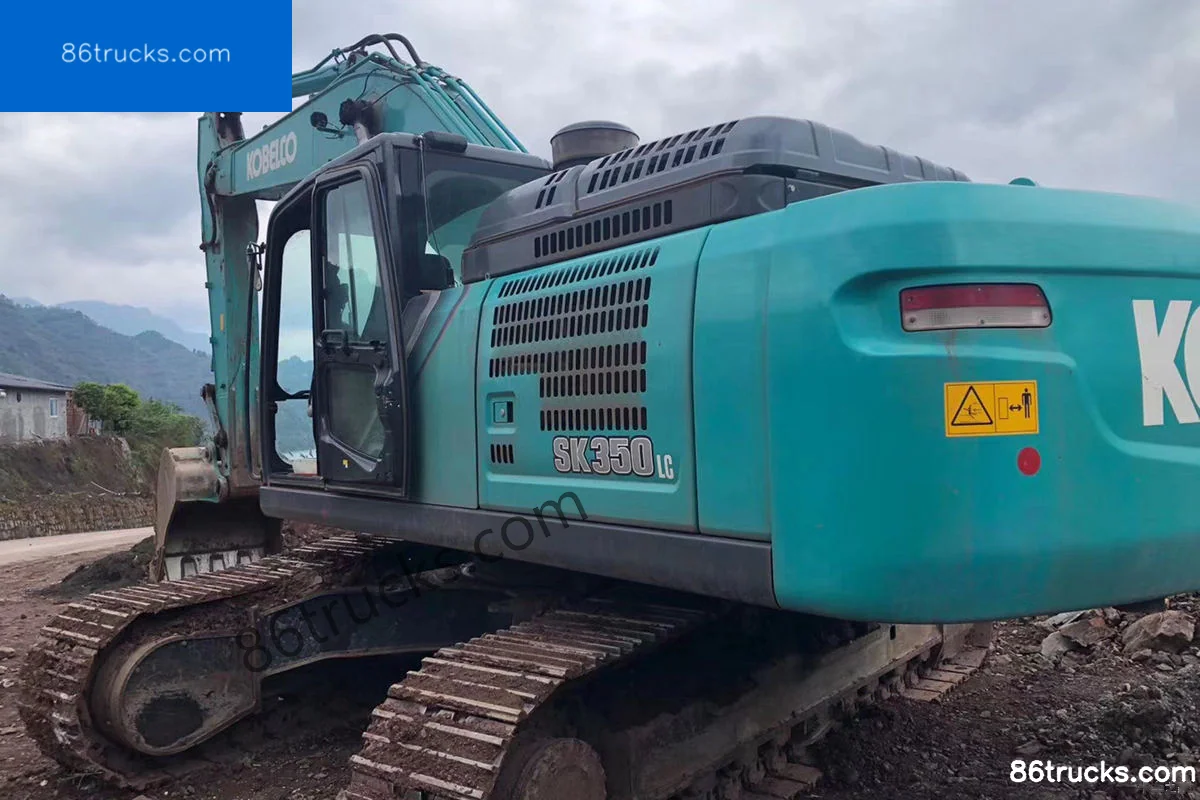

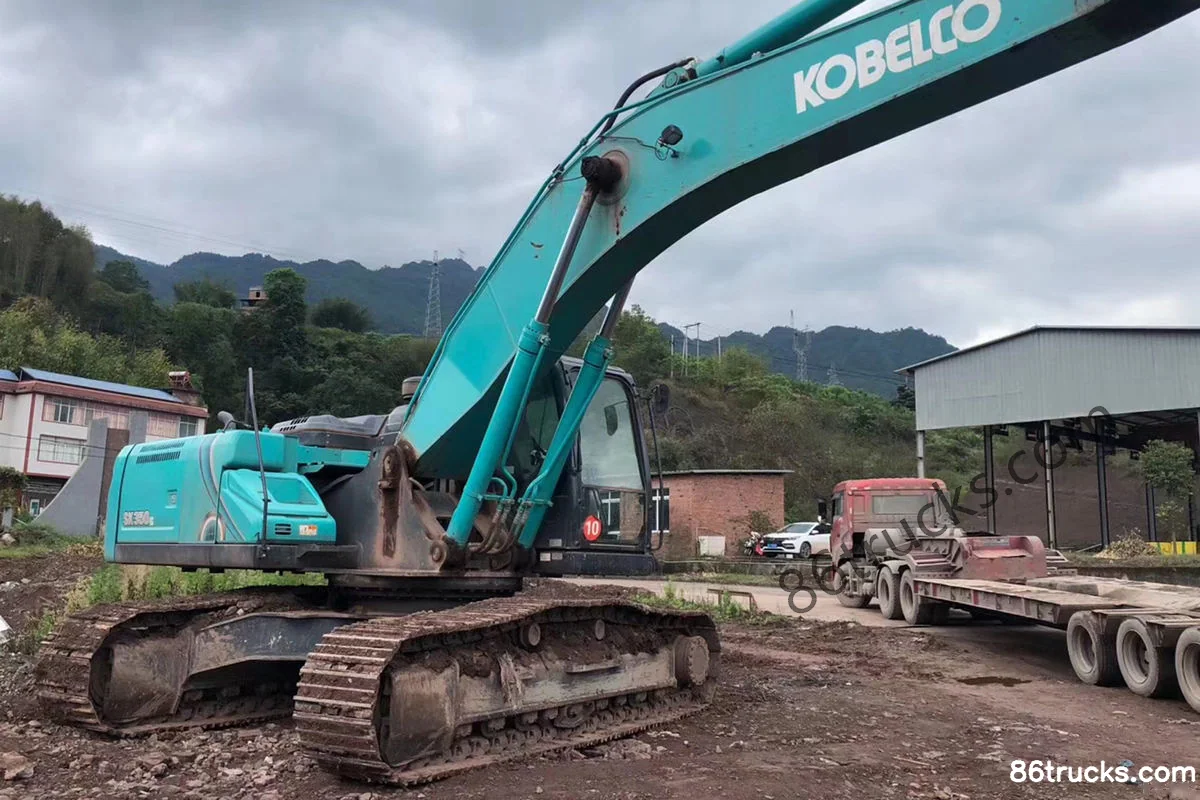

Kobelco SK350LC-8 Crawler Excavator Exterior (1) | 86Trucks Kobelco SK350LC-8 Crawler Excavator Exterior (2) | 86Trucks Kobelco SK350LC-8 Crawler Excavator Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Kobelco SK350LC-8 Crawler Excavator suited for?

Kobelco SK350LC-8 Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Kobelco SK350LC-8 Crawler Excavator differ from other variants in the same series?

Kobelco SK350LC-8 Crawler Excavator belongs to Kobelco crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kobelco SK350LC-8 Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kobelco SK350LC-8 Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
