Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Mengwo
Curb Weight:: 2.45ton
Wheelbase:: 2400mm
Tire Size:: 6.00-15LT 10PR,6.00R15LT
Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck exterior
View more photos (12)
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Horsepower 90
Cargo box type: Dump type

Overview

The Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck is a mini truck featuring 1.495t payload, 4.075t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a XichaiCA4DB1-09E5 engine, 90 hp, China V emissions and Mengwo transmission.

China V 90 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): SSF3042DDJ41-X
Drive type: 4X2
Wheelbase: 2400mm
engine: XichaiCA4DB1-09E5
transmission: MengwoMR85H10
Cab length: 4.67m
Cab width: 1.715m
Cab height: 2.125m
Front track width: 1440mm
rear track: 1315mm
Curb Weight: 2.45ton
Rated payload: 1.495ton
GVWR: 4.075ton
Origin: Gaotang, Shandong
tonnage class: mini truck
Approach angle: 21°
departure angle: 18°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: XichaiCA4DB1-09E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.21L
Emission standard: China V
Max output power: 65kW
Max hp: 90Horsepower
Max torque: 225N·m
Max torque speed: 1500-2400rpm
Rated speed: 3200rpm
Engine Type: Inline 4-cylinder, four-stroke, water-cooled, turbocharged intercooled
Transmission Parameters
Transmission Model: MengwoMR85H10
Transmission Brand: Mengwo
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 2.6m
Cargo box width: 1.63m
Cargo box height: 0.4m
Cab parameters
Cab: Single Row
Cab width: 1660mm
Chassis Specs
Front axle description: SF130-130C
Front axle allowable load: 1510kg
rear axle description: SF130-12A
rear axle allowable load: 2565kg
Leaf spring count: 3/5,3/5+5,3/3+3
Tire
Tire Size: 6.00-15LT 10PR,6.00R15LT
Number of tires: 6pcs
Control configuration
ABS:
Service brake
Parking brake: Spring brake

Photos

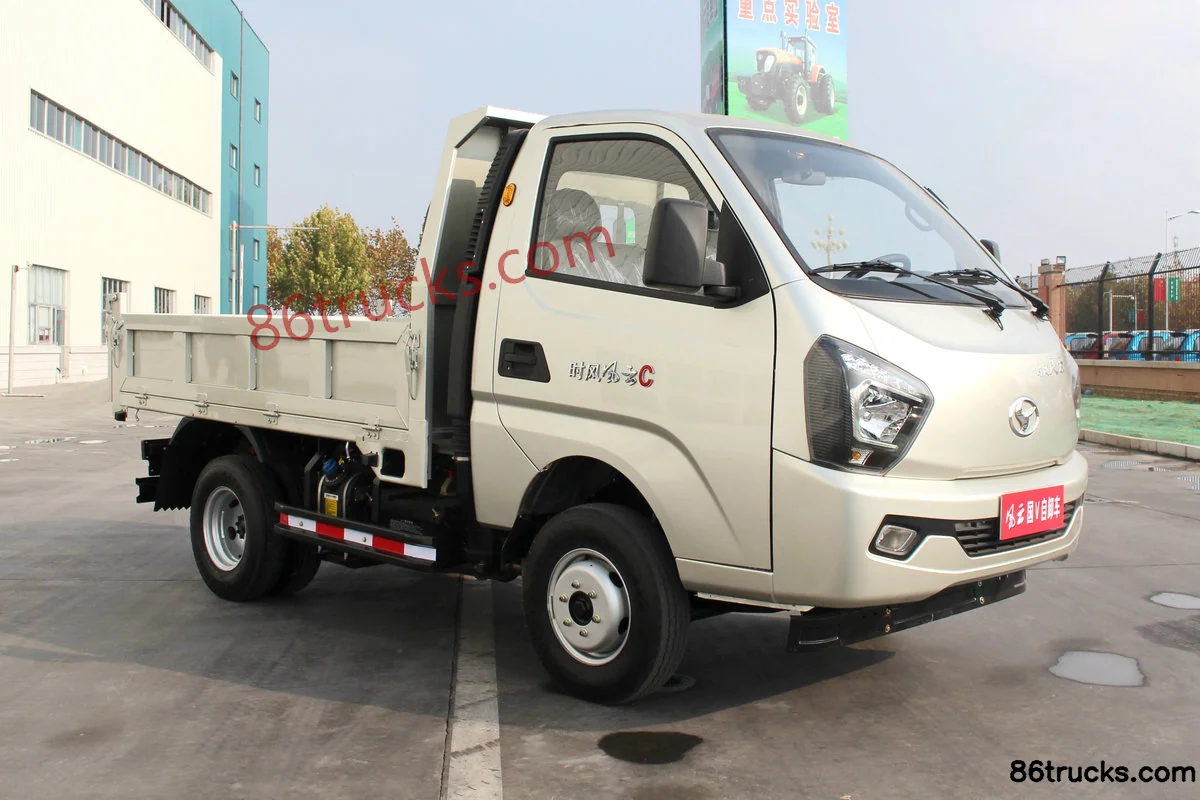

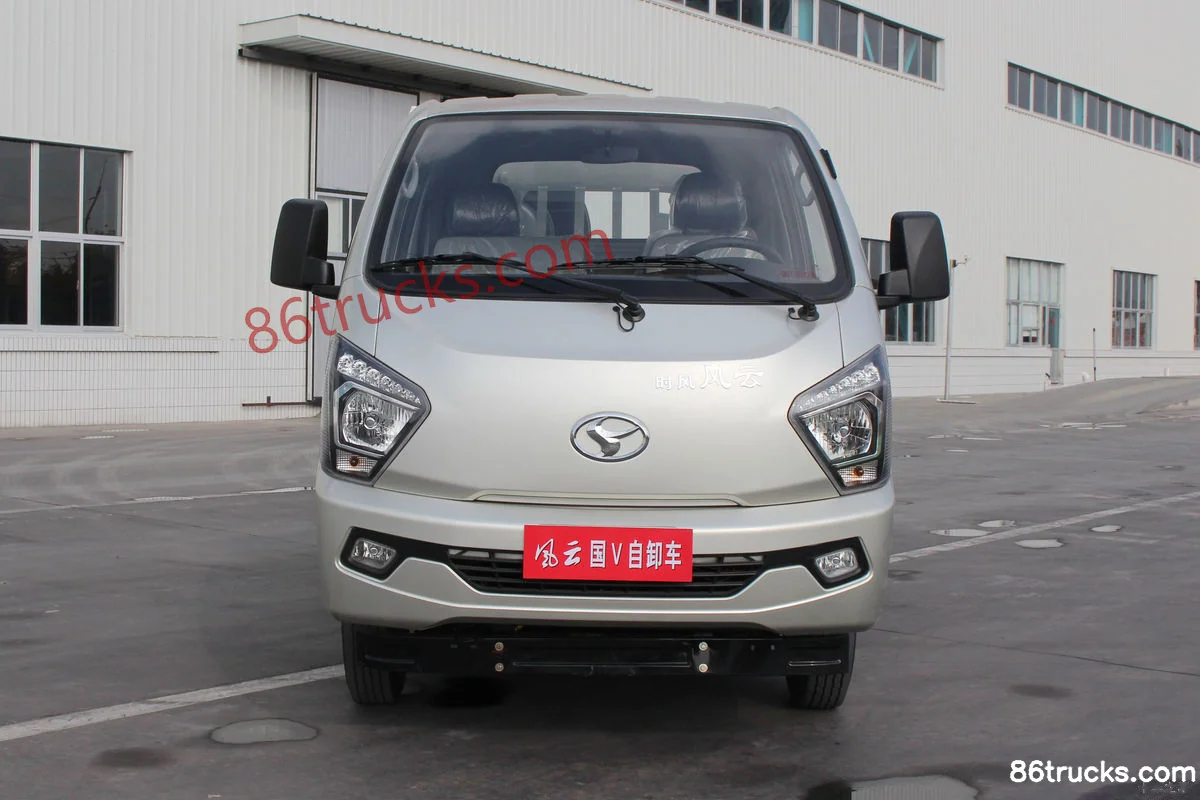

Exterior3

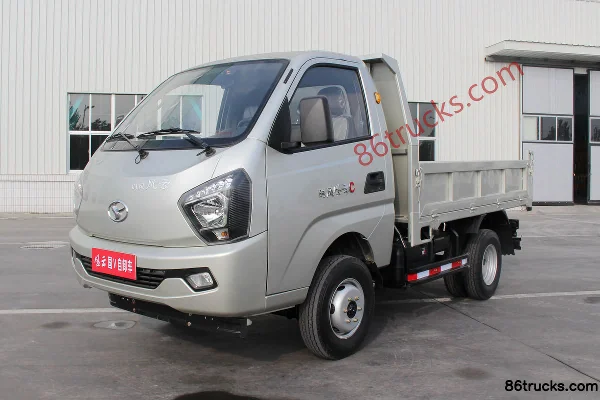

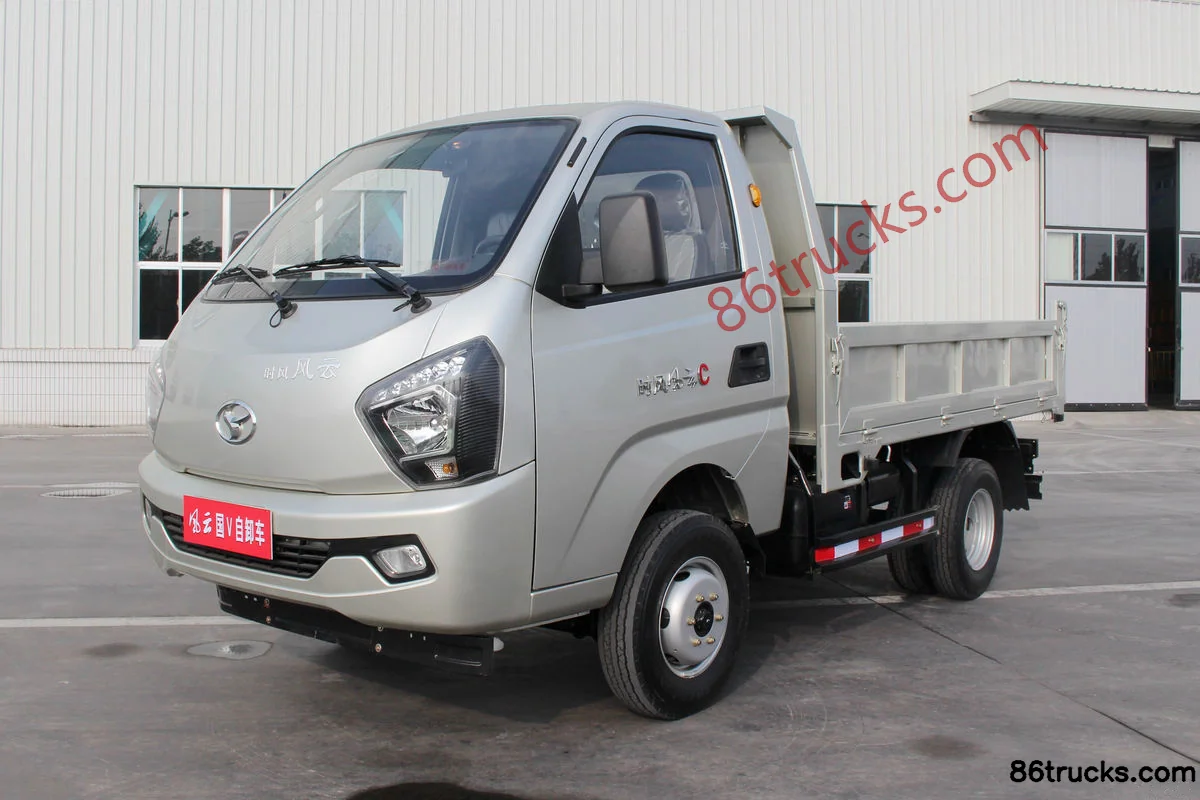

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Exterior (1) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Exterior (2) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Exterior (3) | 86Trucks

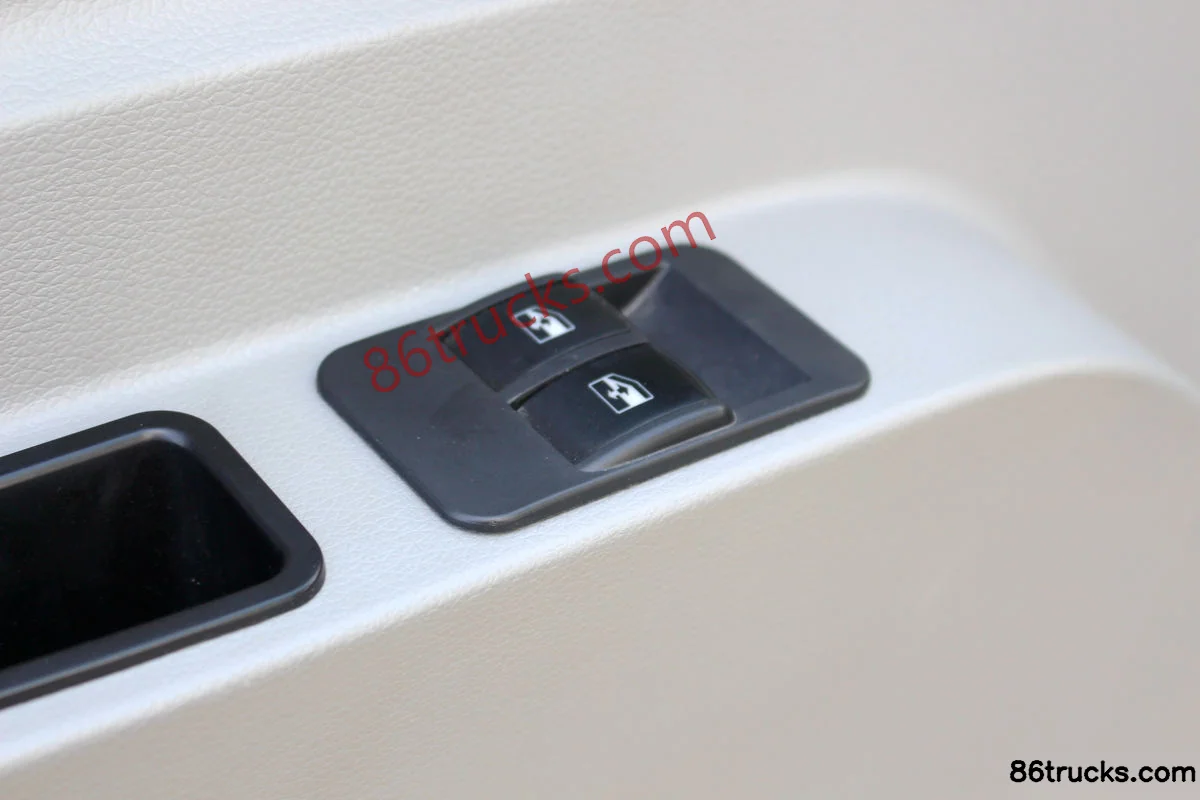

Cab3

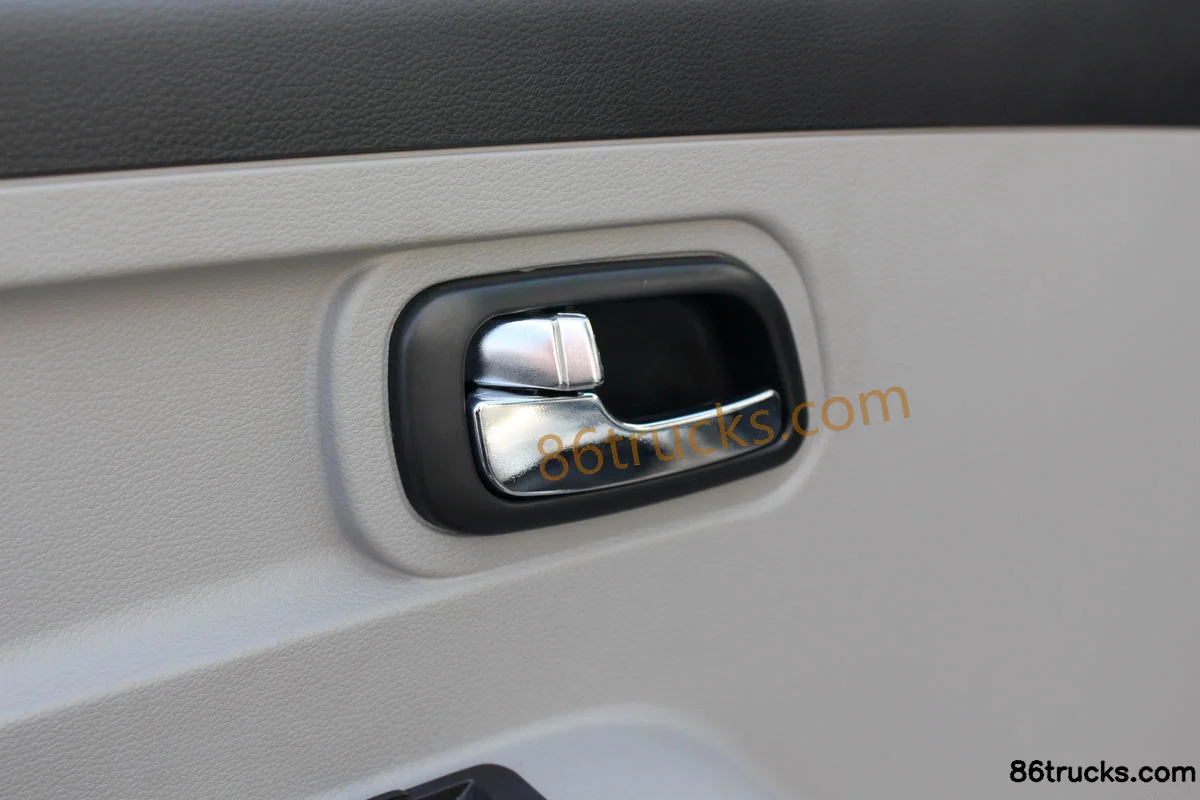

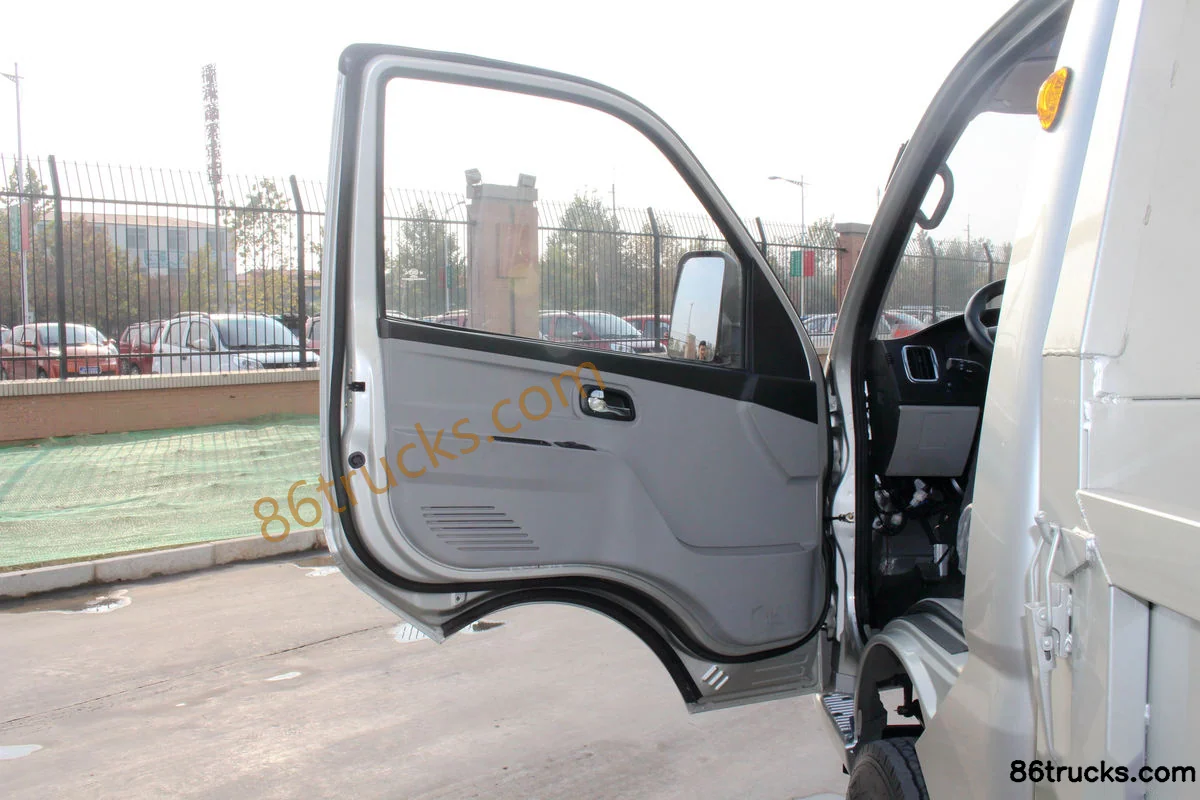

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Cab (1) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Cab (2) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Cab (3) | 86Trucks

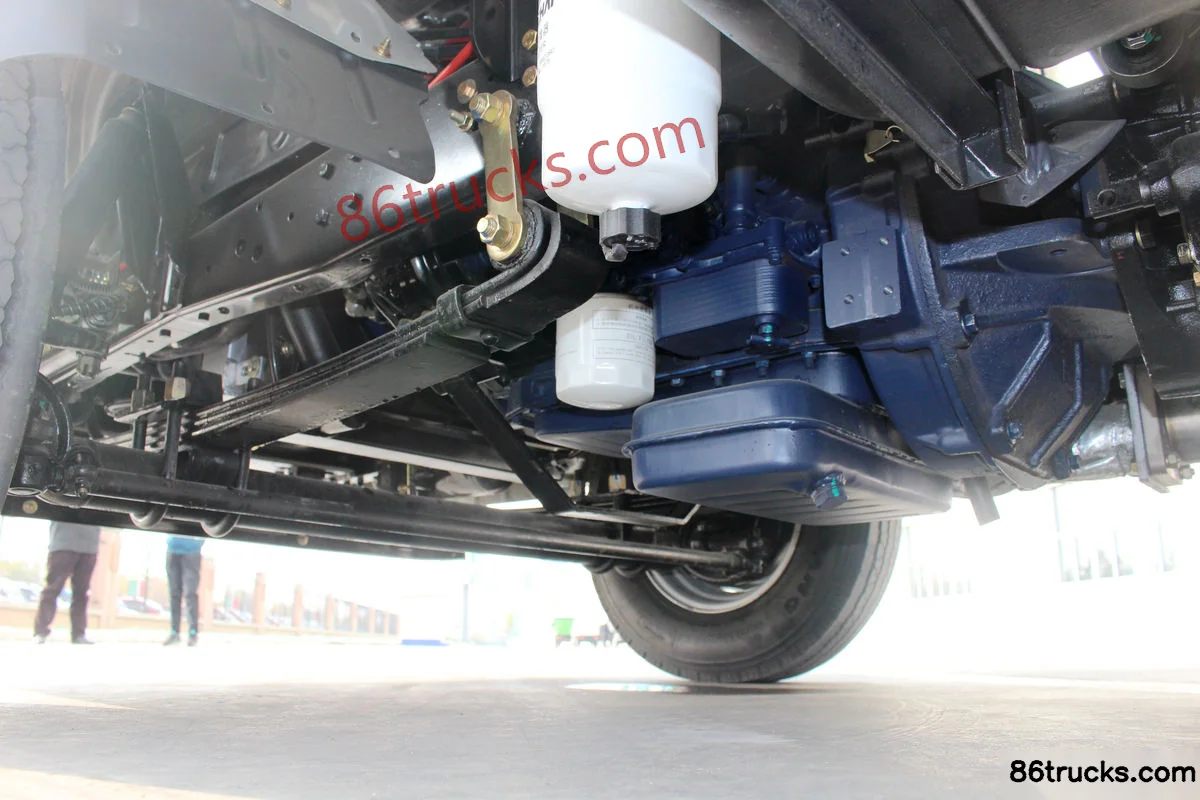

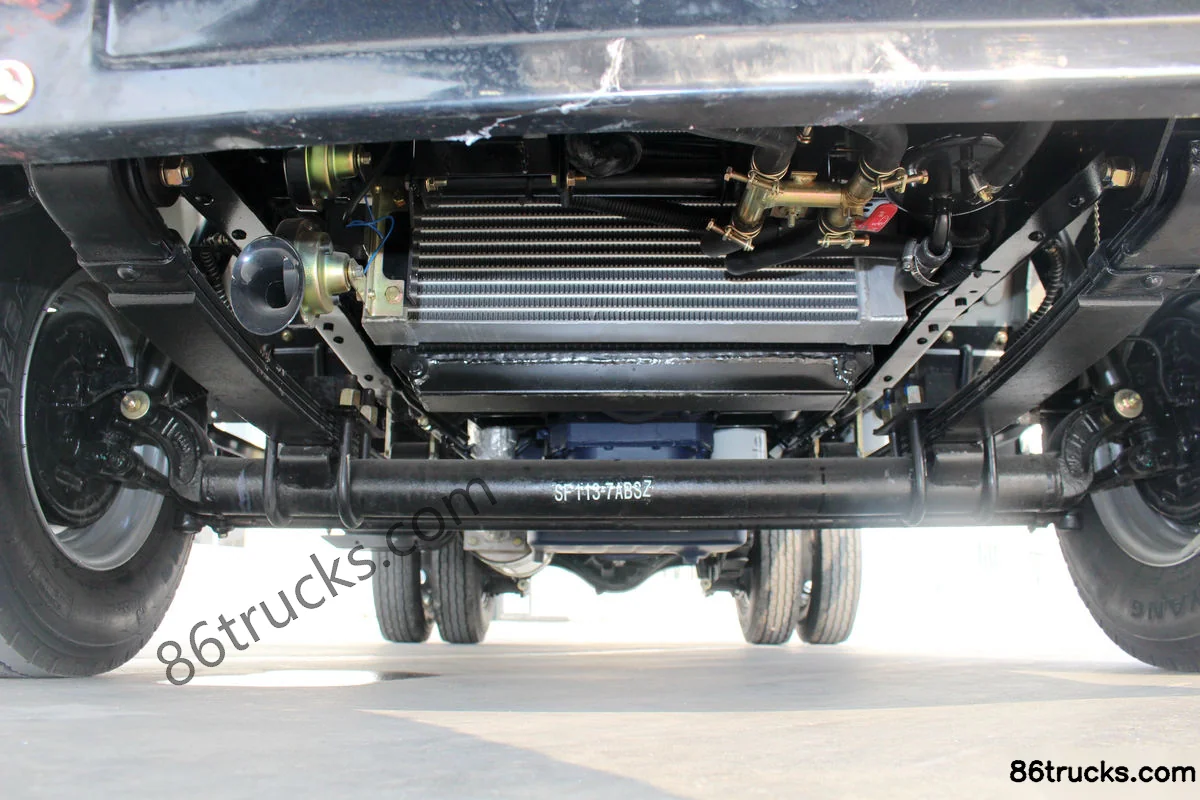

Chassis3

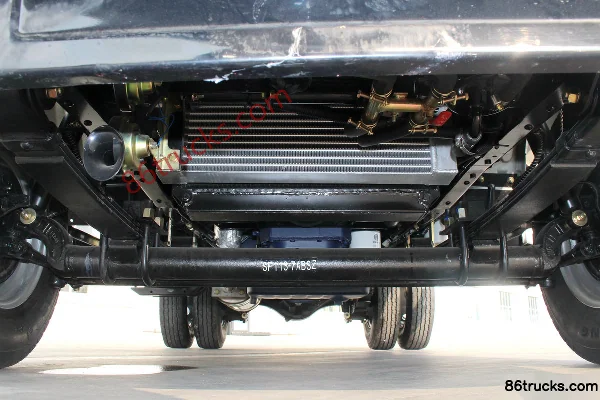

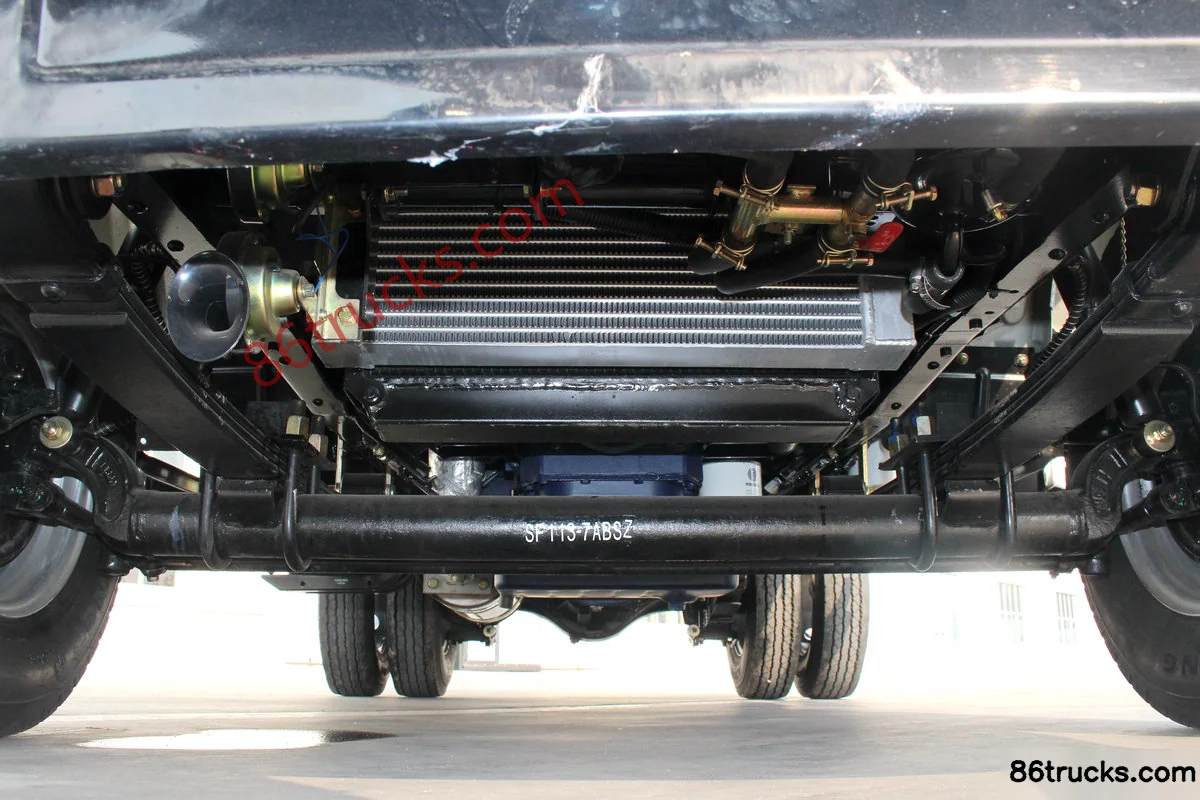

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Chassis (1) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Chassis (2) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Chassis (3) | 86Trucks

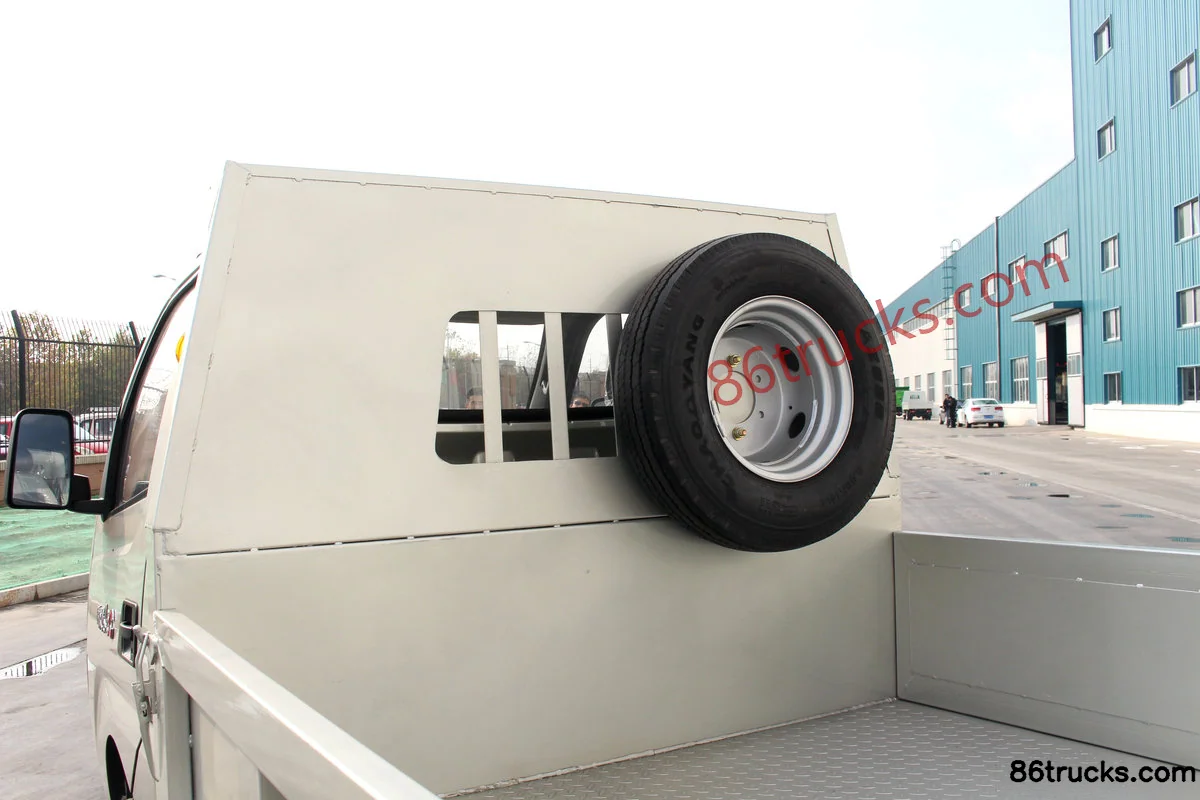

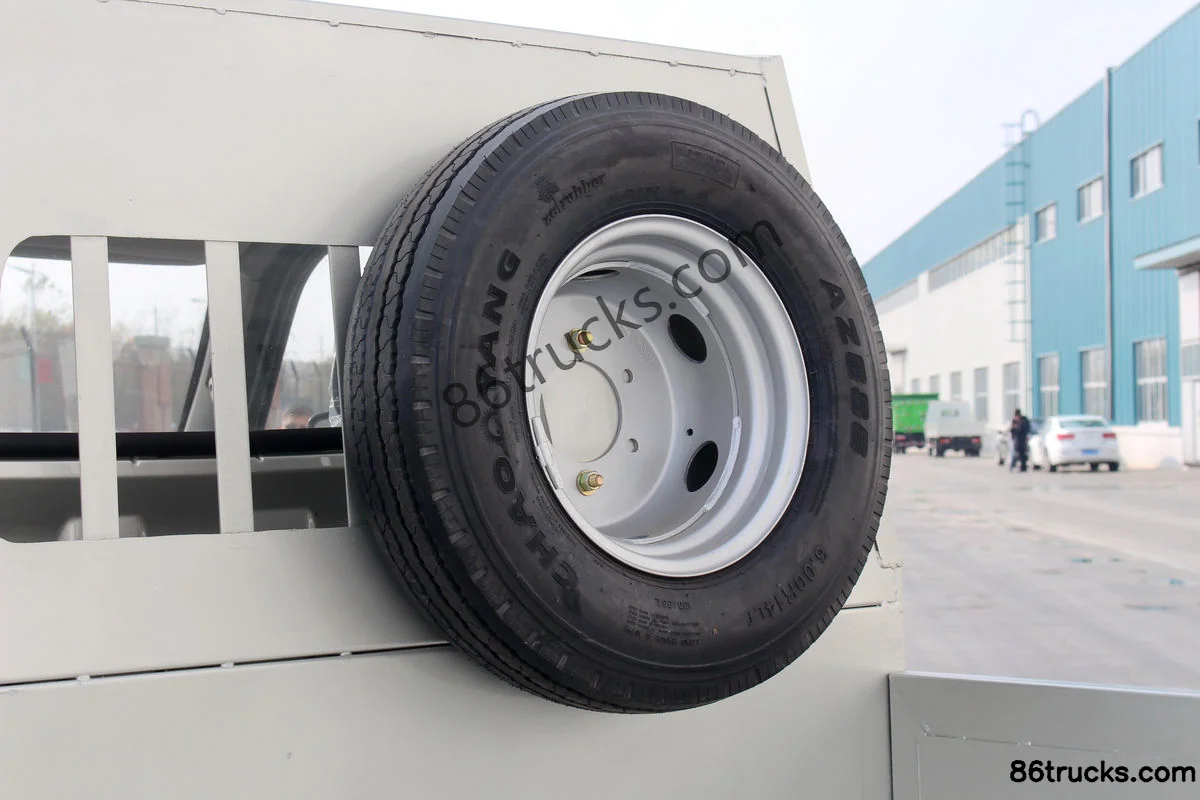

Body3

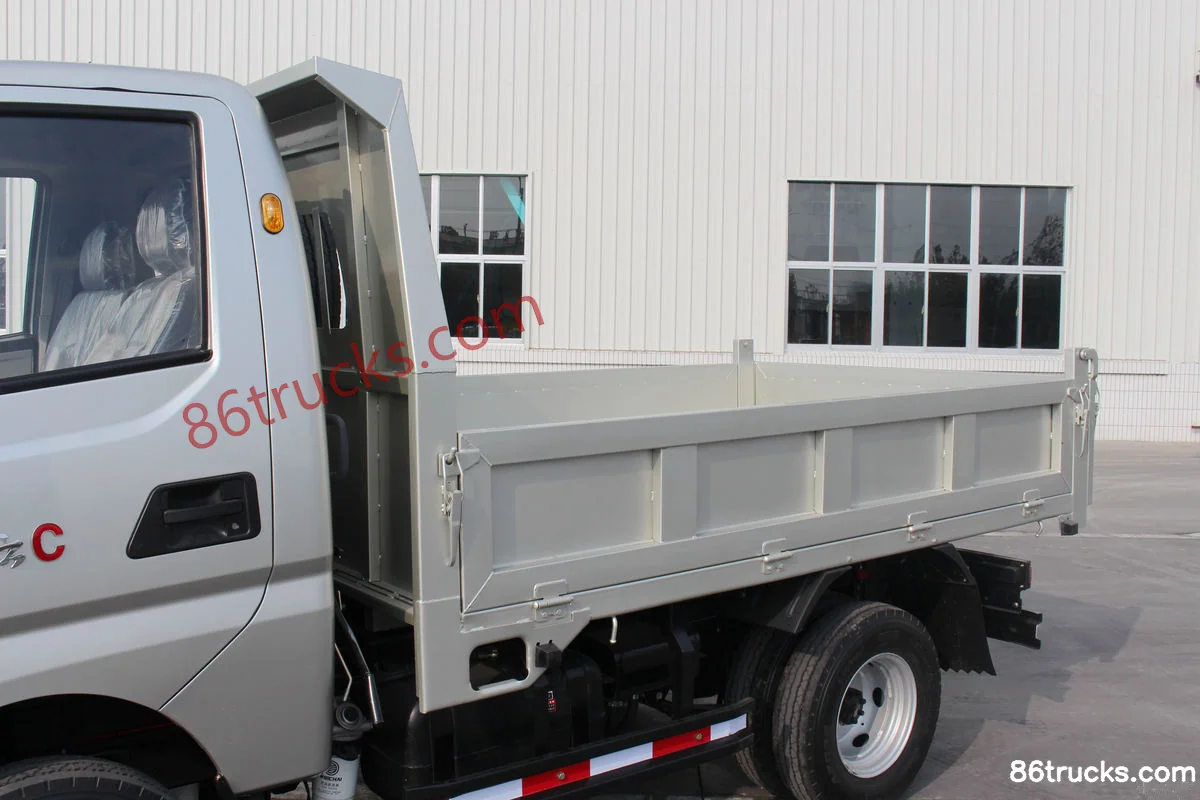

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Body (1) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Body (2) | 86Trucks Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck?

Key specs of Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck: Drive: 4x2; Horsepower: 90 hp; Emission: China V; Fuel: Diesel; Transmission: Mengwo. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck suited for?

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck differ from other variants in the same series?

Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck belongs to Shifeng Fengyun Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shifeng Fengyun C 90 hp 4X2(6 wheels) 2.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
