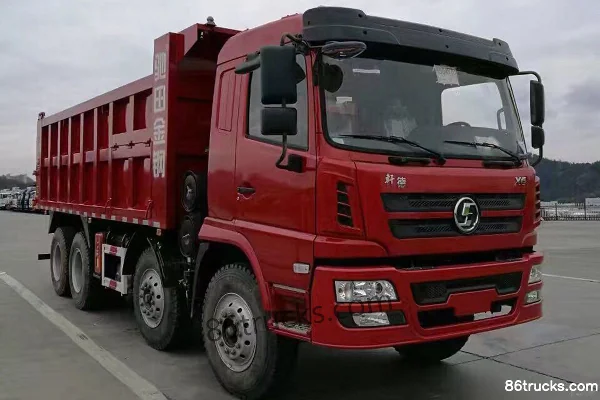

SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 14.765ton
Wheelbase:: 1800+2550+1300mm
Tire Size:: 10.00R20
Rated payload: 16.04ton
Drive 8X4 (12 wheels)
Horsepower 270
Cargo box type: Dump type

Overview

The SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck is a Heavy truck featuring 16.04t payload, 31t GVW, Dump type cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a YuchaiYC6A270-50 engine, 270 hp, China V emissions and Fast Gear transmission.

China V 270 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3310GP5
Drive type: 8X4
Wheelbase: 1800+2550+1300mm
engine: YuchaiYC6A270-50
transmission: Fast Gear10JSD120B
Rear Axle Ratio: 5.571
Cab length: 8.7m
Cab width: 2.4m
Cab height: 3.1m
Front track width: 1900/1900mm
rear track: 1767/1767mm
Curb Weight: 14.765ton
Rated payload: 16.04ton
GVWR: 31ton
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Approach angle: 23°
departure angle: 21°
Remarks: Optional STR11TS+STR11TS(5.262) rear axle, front axle 153B+153B; optional STR11TS+STR11TS(5.262) rear axle, front axle 153B+153B
Version: Standard Load Edition
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A270-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.52L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Max torque: 1100N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear10JSD120B
Transmission Brand: Fast Gear
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.95m
Cargo box width: 2.2m
Cargo box height: 1.4m
Cab parameters
Cab: TJG201
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 270L
Chassis Specs
Front axle allowable load: 6500/6500kg
Frame Dimensions: 280/8+4 double-layermm
rear axle description: 153SDL+153SDL
rear axle allowable load: 18000 (tandem axle group)kg
Axle ratio: 5.571
Leaf spring count: 9/9/9,9/9/10,9/9/12,9/9/13
Tire
Tire Size: 10.00R20
Number of tires: 12pcs
Control configuration
ABS:
Exterior features
Aluminum air tank:

Photos

0 photos

FAQ

What emission standard does SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck?

Key specs of SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck: Drive: 8x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck suited for?

SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck differ from other variants in the same series?

SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck belongs to SHACMAN Xuande X6 Heavy-Duty Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Commercial Vehicle Xuande X6 Standard Load Edition 270 hp 8X4(12 wheels) 5.95m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
