SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh

Export reference
From $95,250
MSRP ¥68.58M CNY
Rated payload:: 12.22ton
Wheelbase:: 1950+3300+1350mm
Cargo box type:: Rear dump type
Model code (announced):: SX3317VF336BEV1
Cab length:: 9.73m
GVWR:: 31ton
Drive 8X4 (12 wheels)
Battery Brand: CATL
Motor 1 Brand: Fast Gear
Curb Weight: 18.65ton

Overview

The SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh is a Heavy truck featuring CATL battery/range, Fast Gear motor, 8X4 (12 wheels) drive and 12.22t payload.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): SX3317VF336BEV1
Drive type: 8X4
Wheelbase: 1950+3300+1350mm
Cab length: 9.73m
Cab width: 2.55m
Cab height: 3.5m
Curb Weight: 18.65ton
Rated payload: 12.22ton
GVWR: 31ton
Max. speed: 89km/h
Origin: Xi'an, Shaanxi
tonnage class: Heavy truck
Energy Type: Electric
electric motor
Motor 1 Brand: Fast Gear
Motor 1 Model: TZ368XSSF-SZF602
Motor Type: Permanent magnet synchronous motor
total rated power: 286kW
Peak power: 450kW
total peak torque: 1500N·m
total rated torque: 750N·m
Motor 1 Peak Power: 450kW
Battery/Charging
Battery Brand: CATL
Battery type: Lithium Iron Phosphate Battery
Battery capacity: 600.92kWh
Cargo box parameters
Cargo box type: Rear dump type
Cargo box length: 6m
Cargo box width: 2.35m
Cargo box height: 1.5m
Cab parameters
Cab: Mid-length flat roof flat floor cab
seating capacity: 2Personnel
Seat rows: Sleeper cab
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 18000 (tandem axle group)kg
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs
Control configuration
ABS:
interior configuration
Multifunction steering wheel:
AC control type: Automatic
Power Windows:
Power Mirrors:
Reverse Camera:
Remote key:
Electronic Central Lock:
Multimedia features
Center Console Color Screen:
GPS/Beidou driving recorder:
lighting configuration
daytime running lights:
Service brake
Brake Type: Air brake
Parking brake: Spring brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

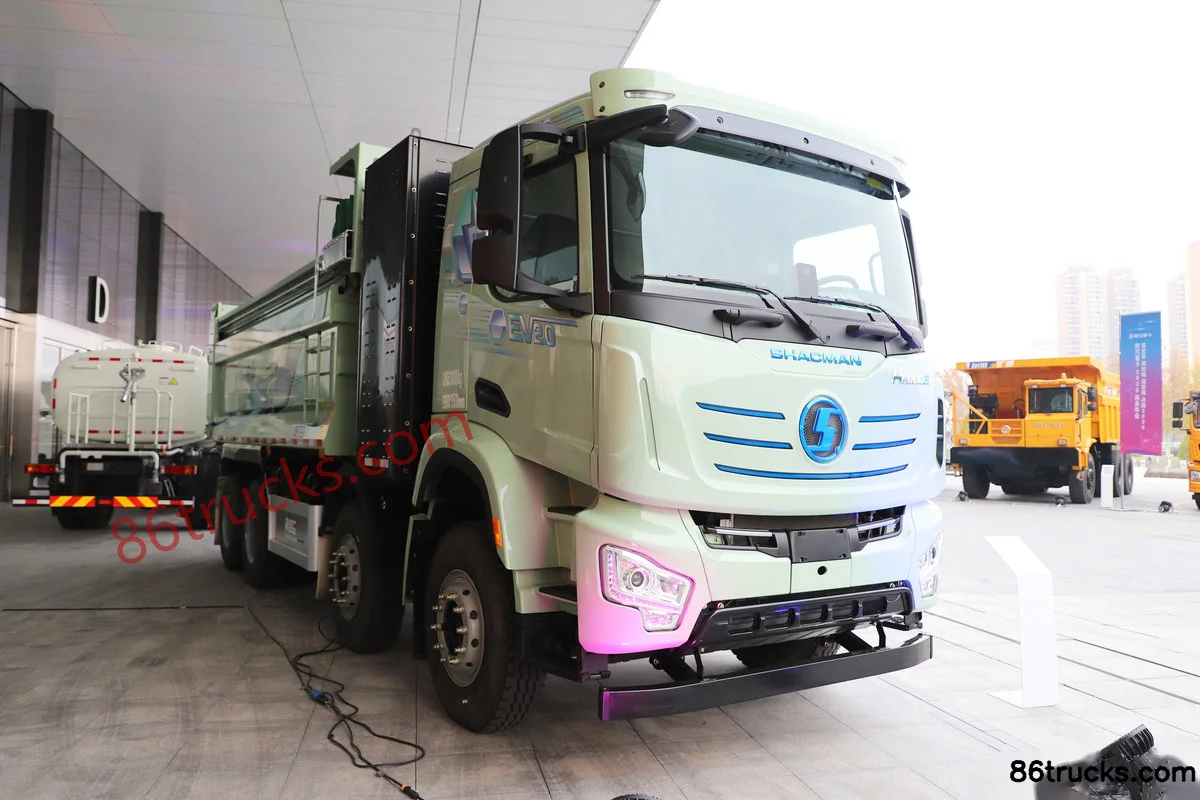

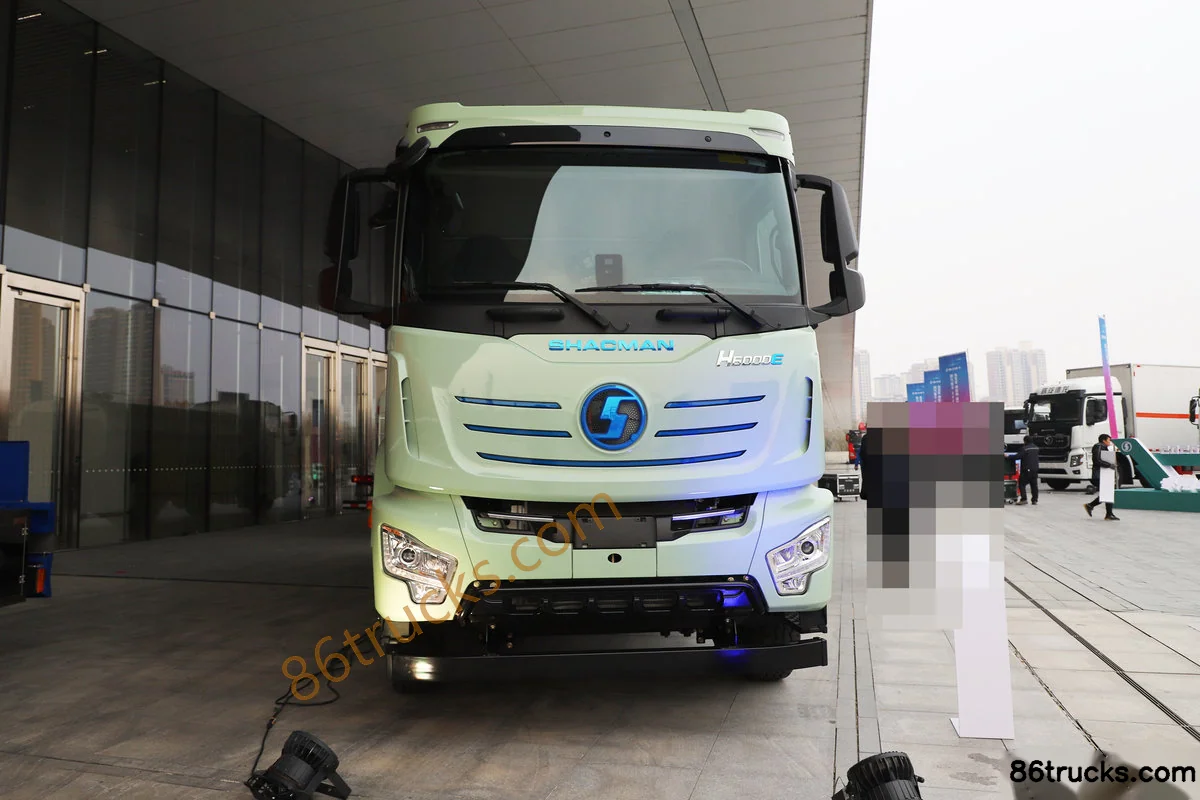

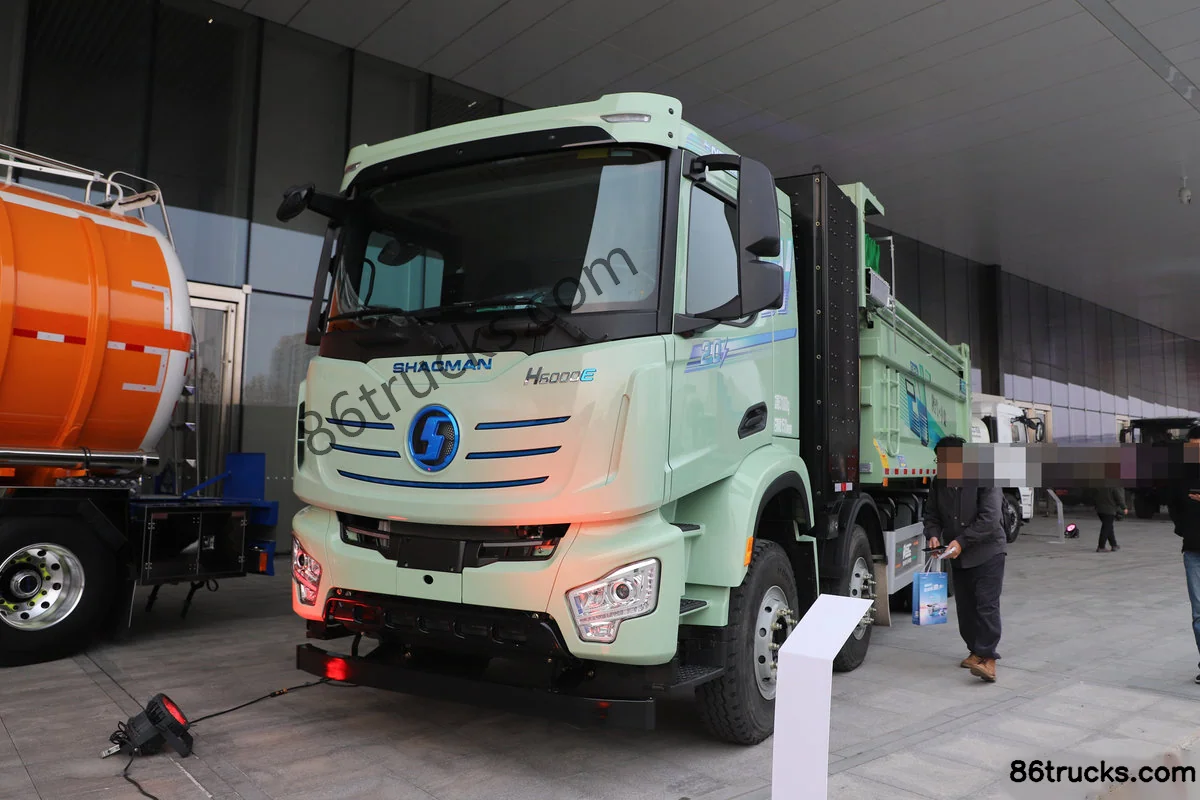

Exterior3

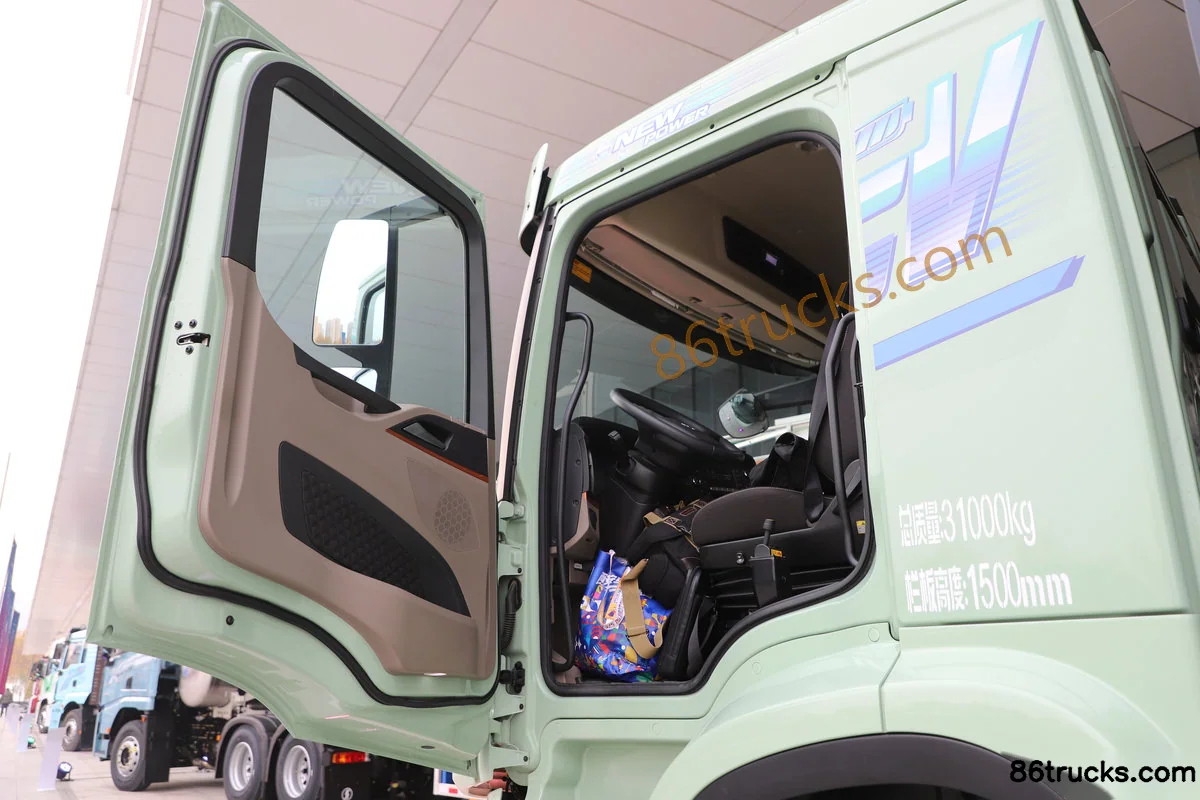

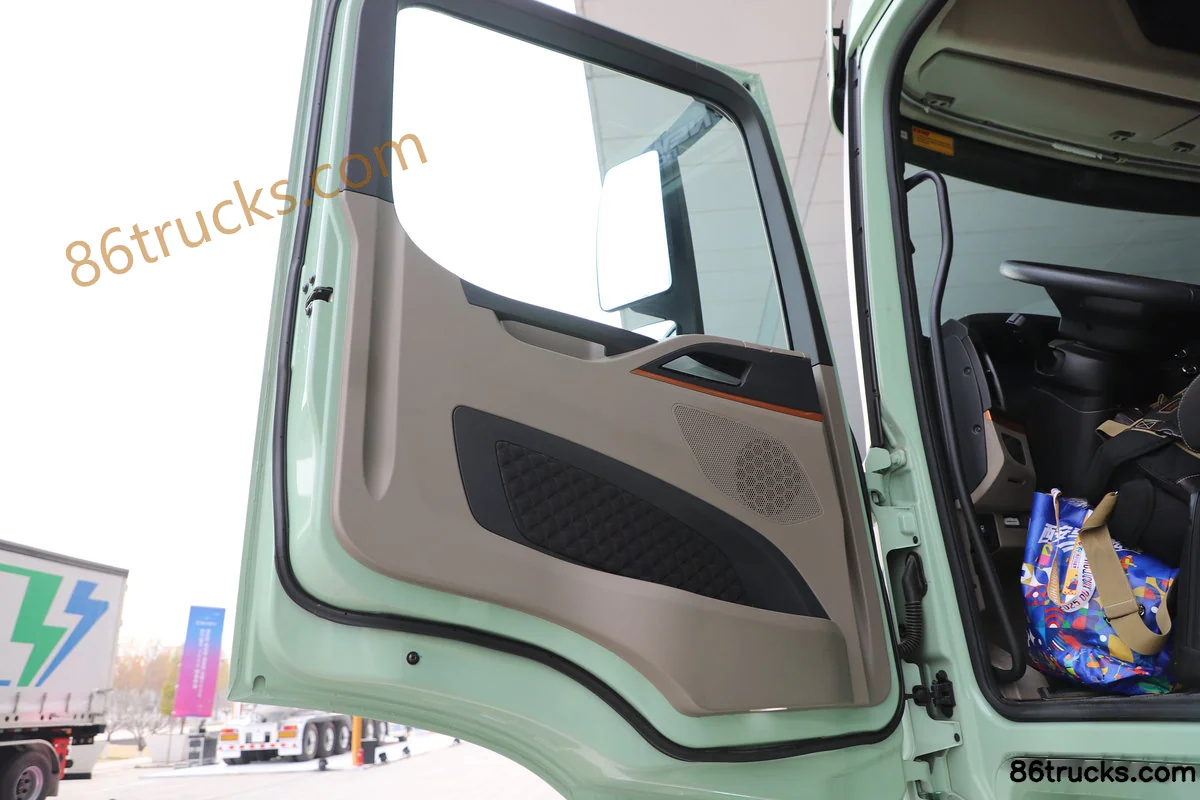

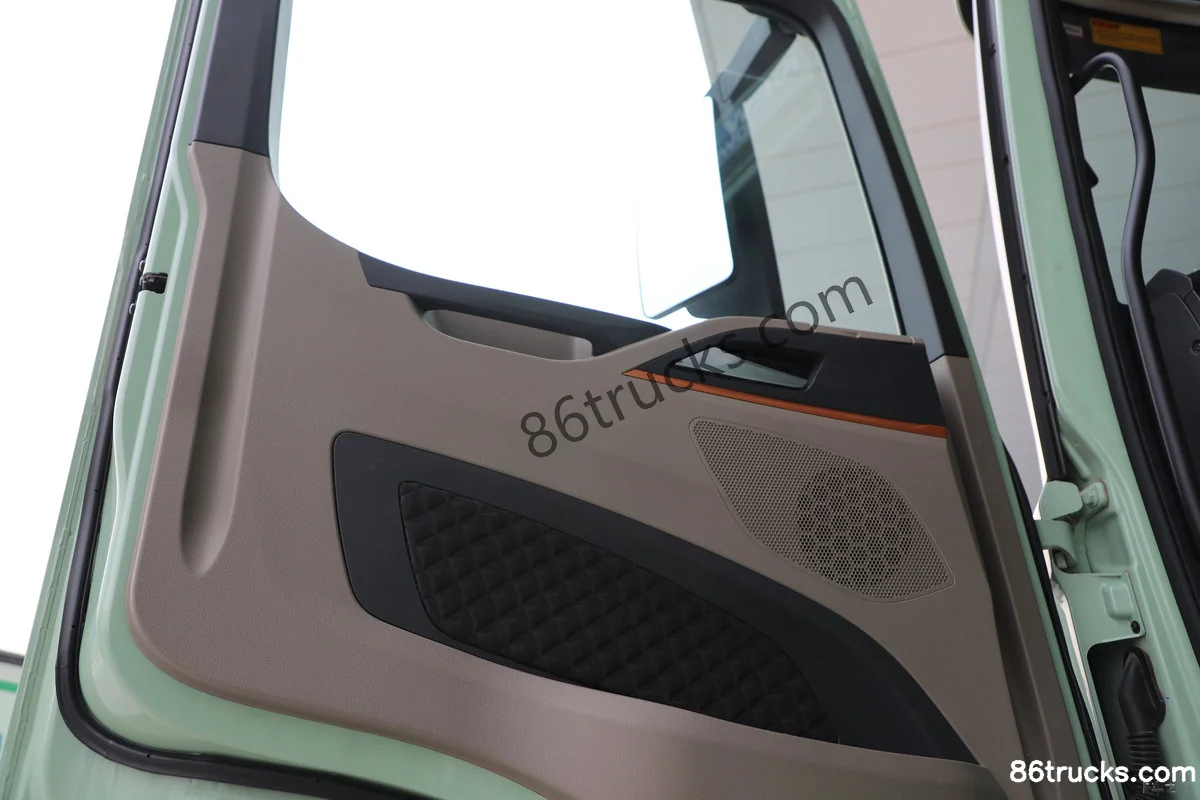

Cab3

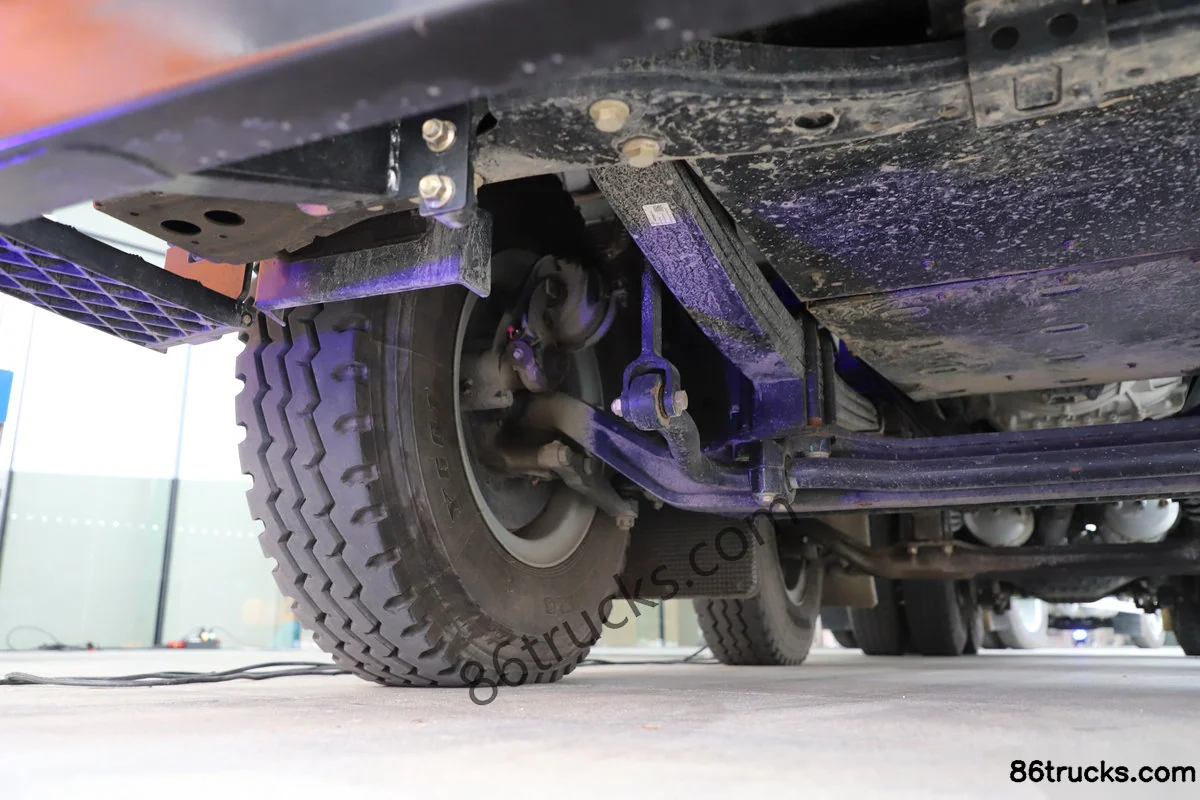

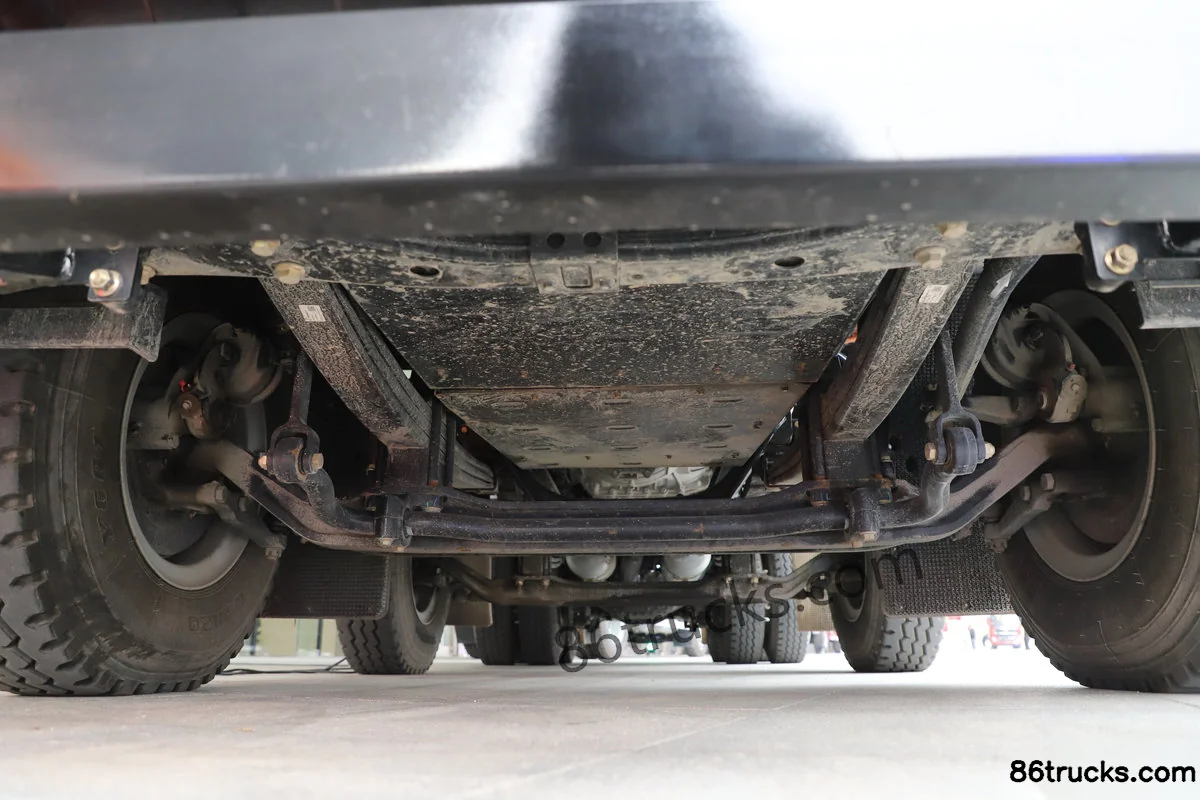

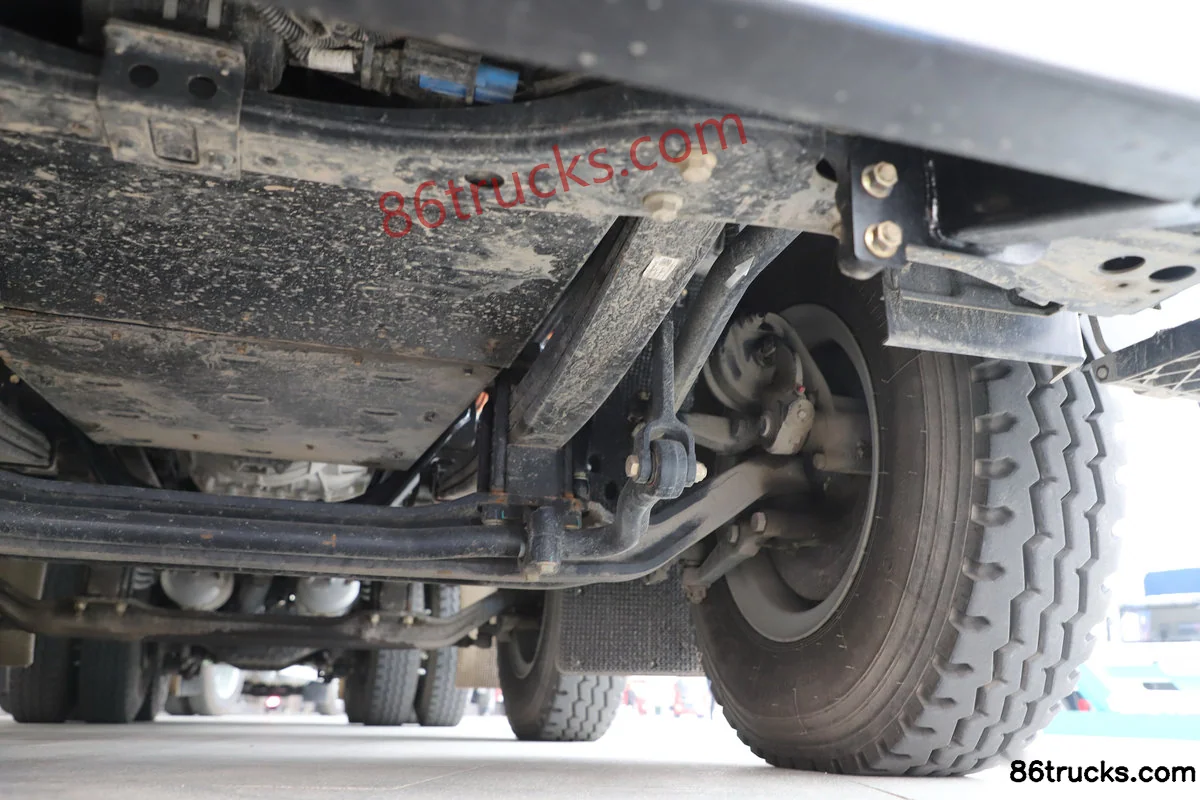

Chassis3

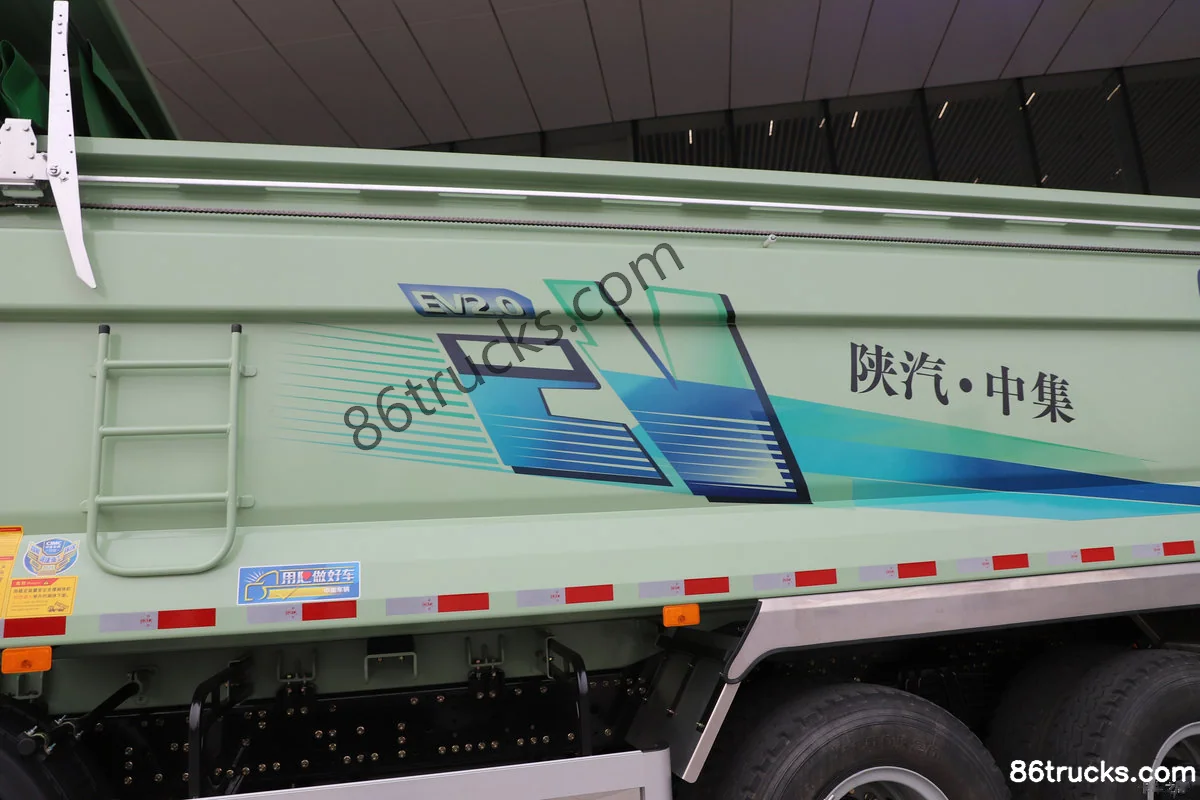

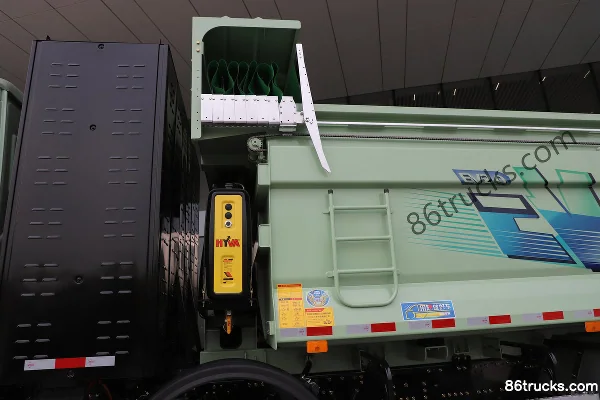

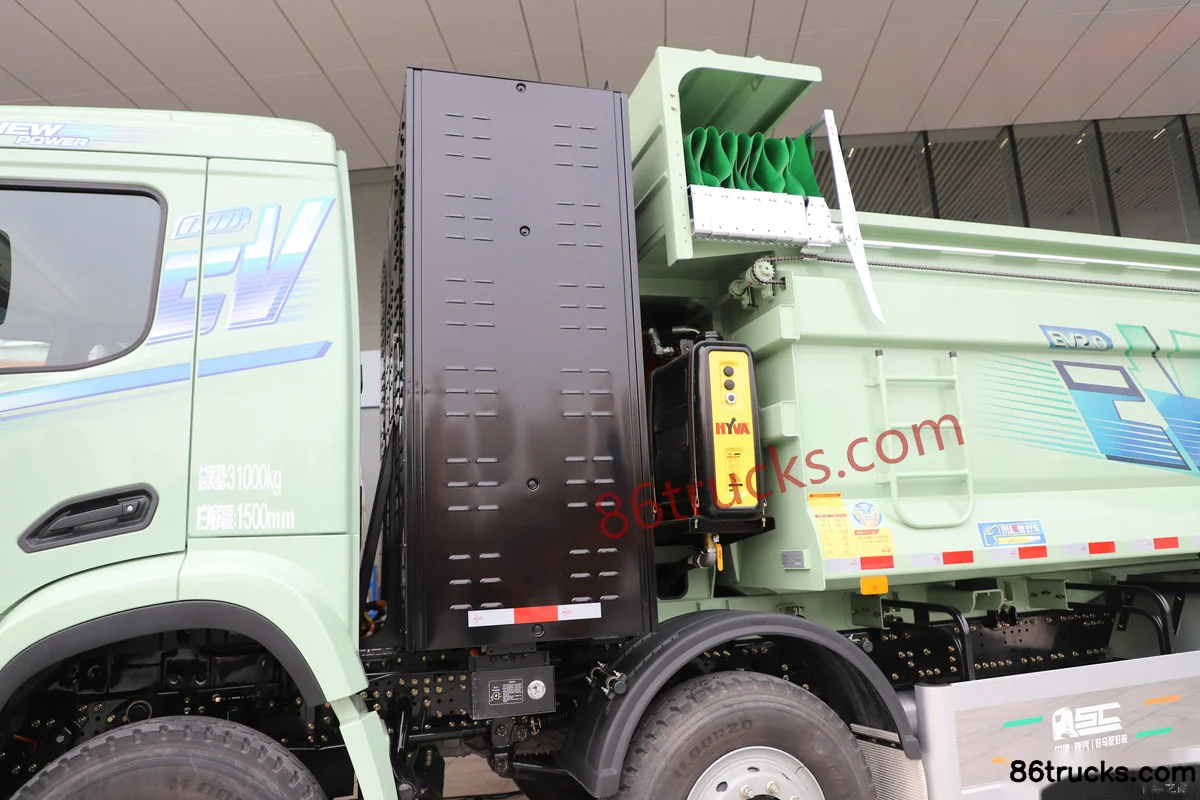

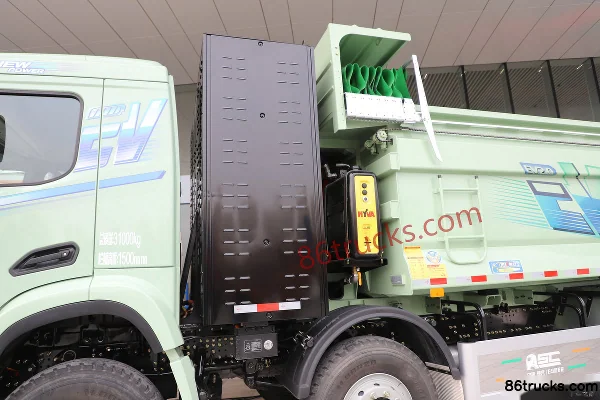

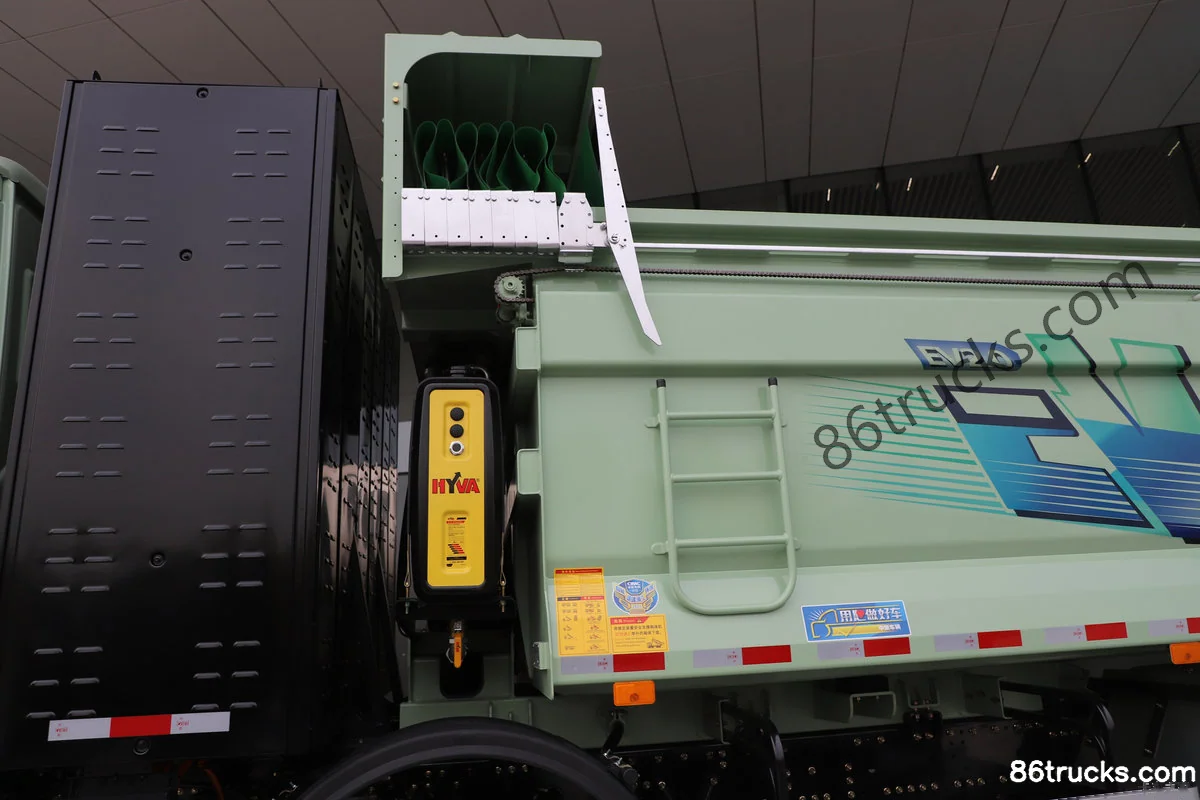

Body3

12 photos

FAQ

What is the export price of SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh, and what does it include?

SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh export reference is about From $95,250; MSRP is ¥68.58M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What are the key specs of SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh?

Key specs of SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh suited for?

SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh is a electric dump truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh differ from other variants in the same series?

SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh belongs to SHACMAN Delong H6000E (electric dump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong H6000E Urban Standard Edition 8X4(12 wheels) 6m Electric Dump Truck CATL 600.92kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
