Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck

Export reference
From $51,667
MSRP ¥37.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 12.11ton
Wheelbase:: 3825+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20 18PR,12.00R20 16PR
Rated payload: 12.76ton
Drive 6X4 (10 wheels)
Horsepower 340
Cargo box type: Dump type

Overview

The Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck is a Heavy truck featuring 12.76t payload, 25t GVW, Dump type cargo body and 6X4 (10 wheels) drive. On the powertrain side, it comes with a SinotrukD10.34-50 engine, 340 hp, China V emissions and Sinotruk transmission.

China V 340 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5253ZLJN3841E1NB
Drive type: 6X4
Wheelbase: 3825+1350mm
engine: SinotrukD10.34-50
transmission: SinotrukHW10
Rear Axle Ratio: 4.8
Cab length: 8.46m
Cab width: 2.496m
Cab height: 3.5m
Front track width: 2022mm
rear track: 1830/1830mm
Curb Weight: 12.11ton
Rated payload: 12.76ton
GVWR: 25ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 14°
departure angle: 26°
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukD10.34-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China V
Max output power: 249kW
Max hp: 340Horsepower
Max torque: 1490N·m
Max torque speed: 1200-1500rpm
Rated speed: 1900rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail
Transmission Parameters
Transmission Model: SinotrukHW10
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.6m
Cargo box width: 2.3m
Cargo box height: 1.2m
Chassis Specs
Front axle allowable load: 7000kg
rear axle description: Steyr ST16
rear axle allowable load: 18000 (twin axle)kg
Axle ratio: 4.8
Leaf spring count: 10/12,10/-
Tire
Tire Size: 11.00-20,11.00R20,12.00-20 18PR,12.00R20 16PR
Number of tires: 10pcs
Control configuration
ABS:

Photos

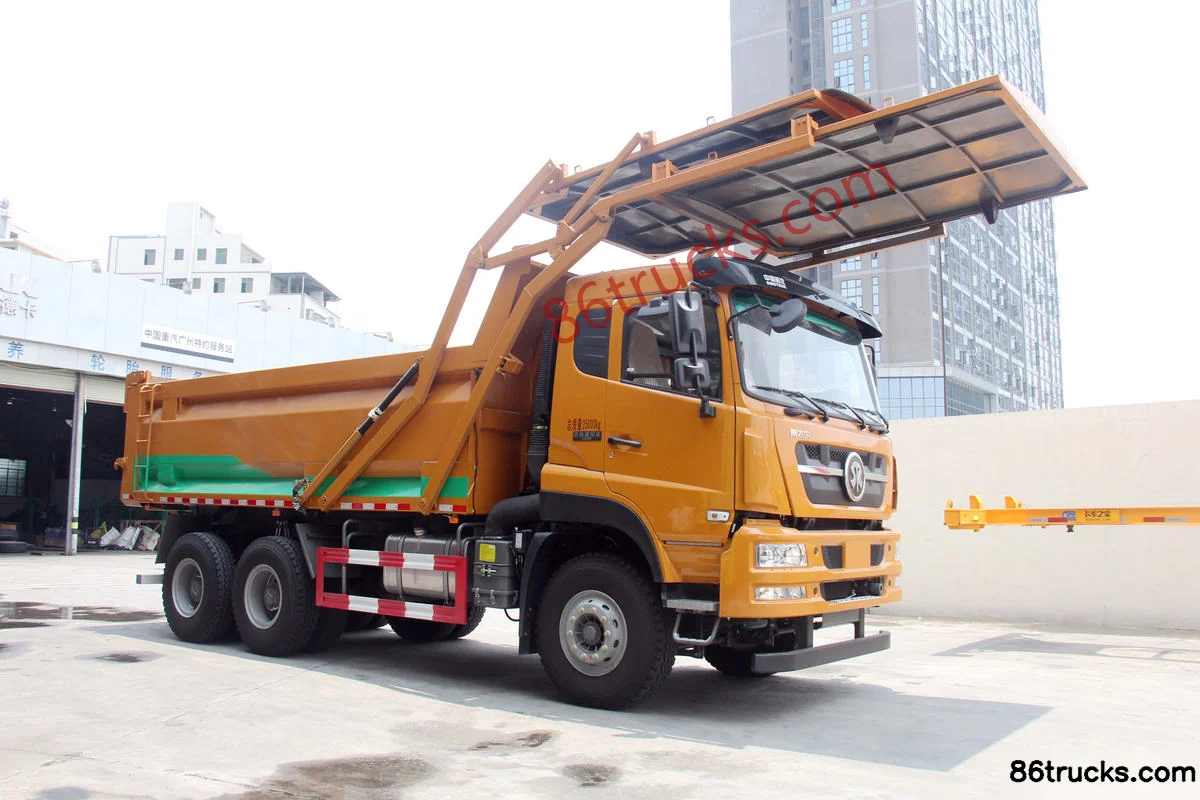

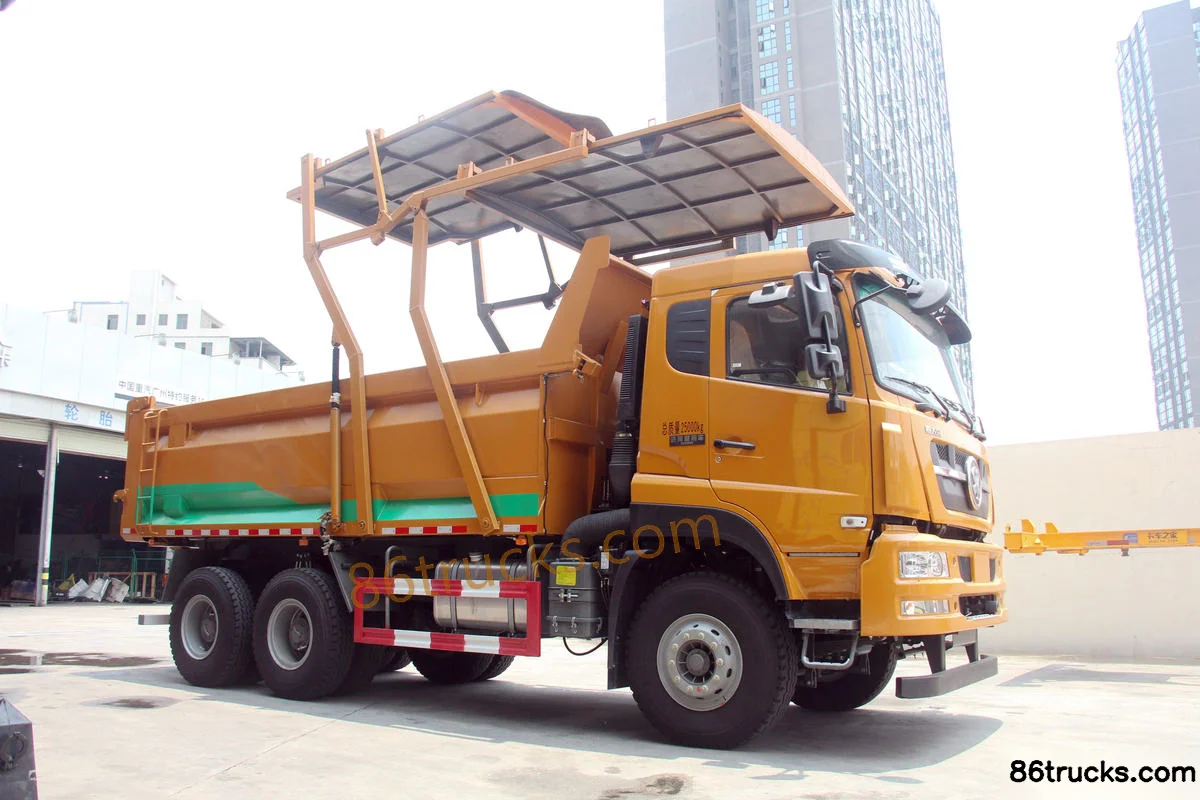

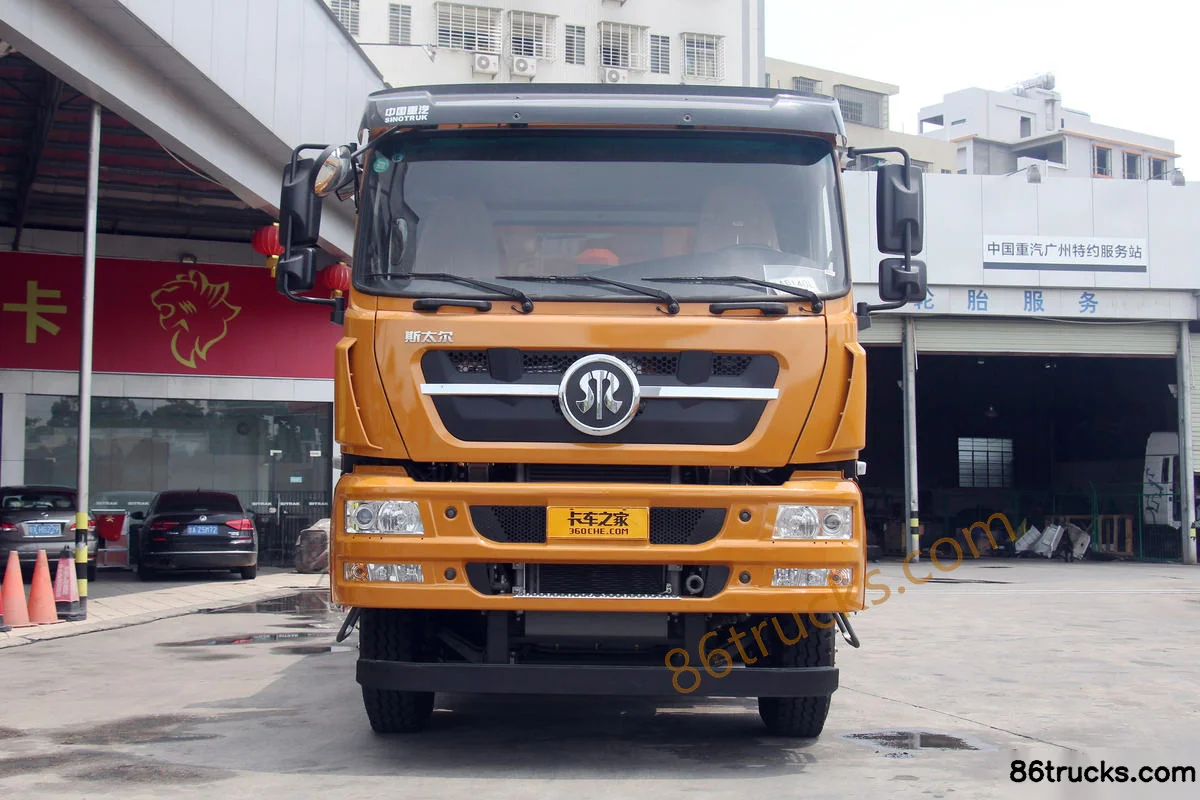

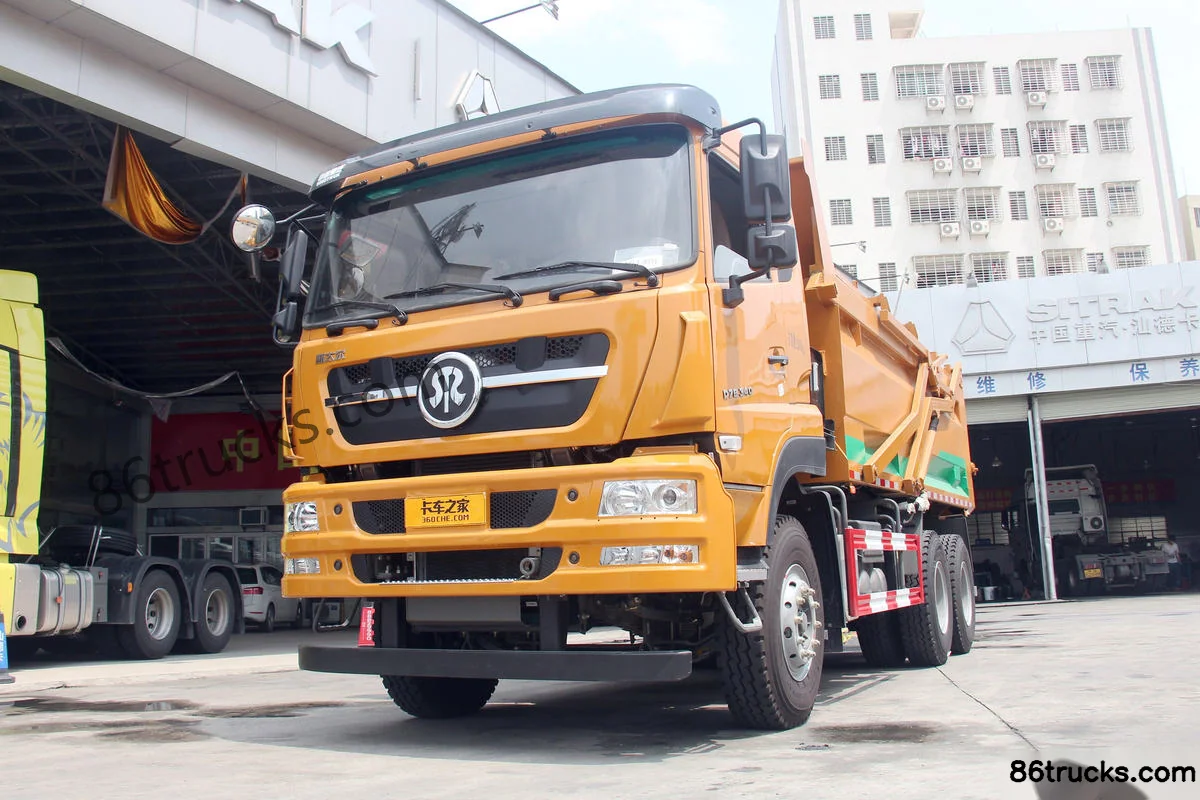

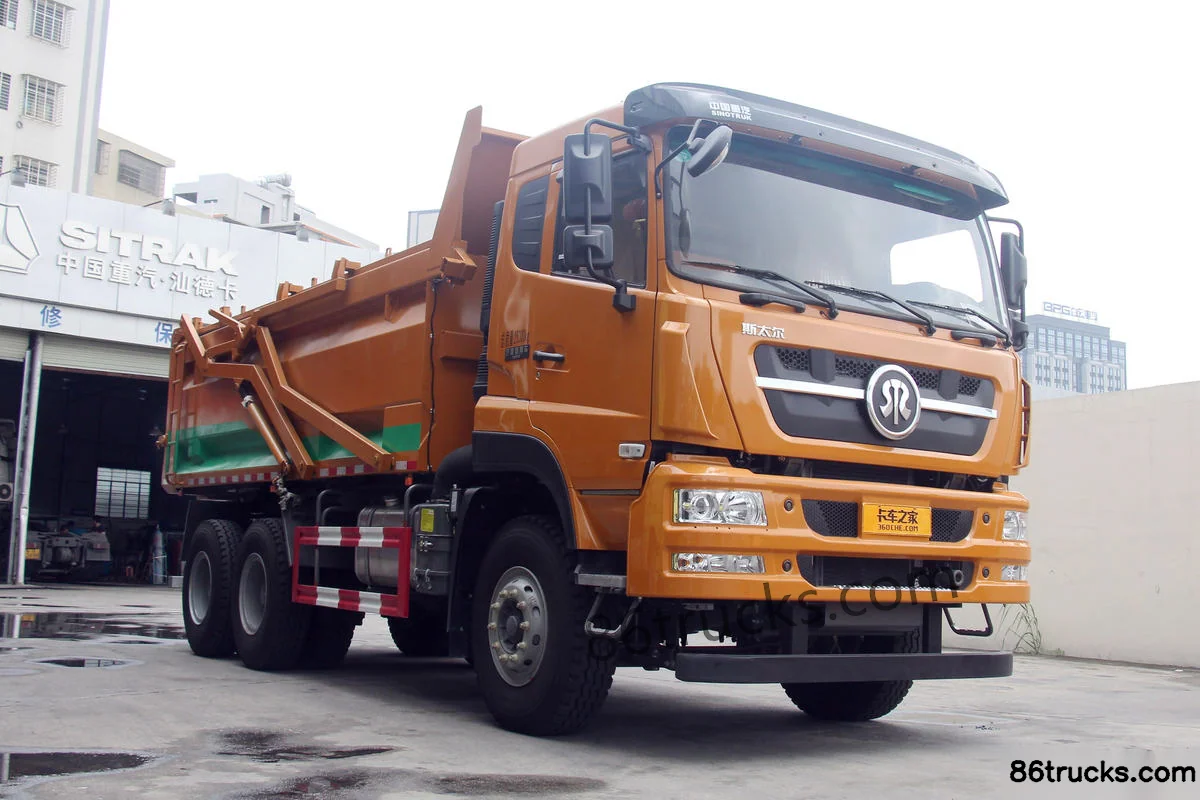

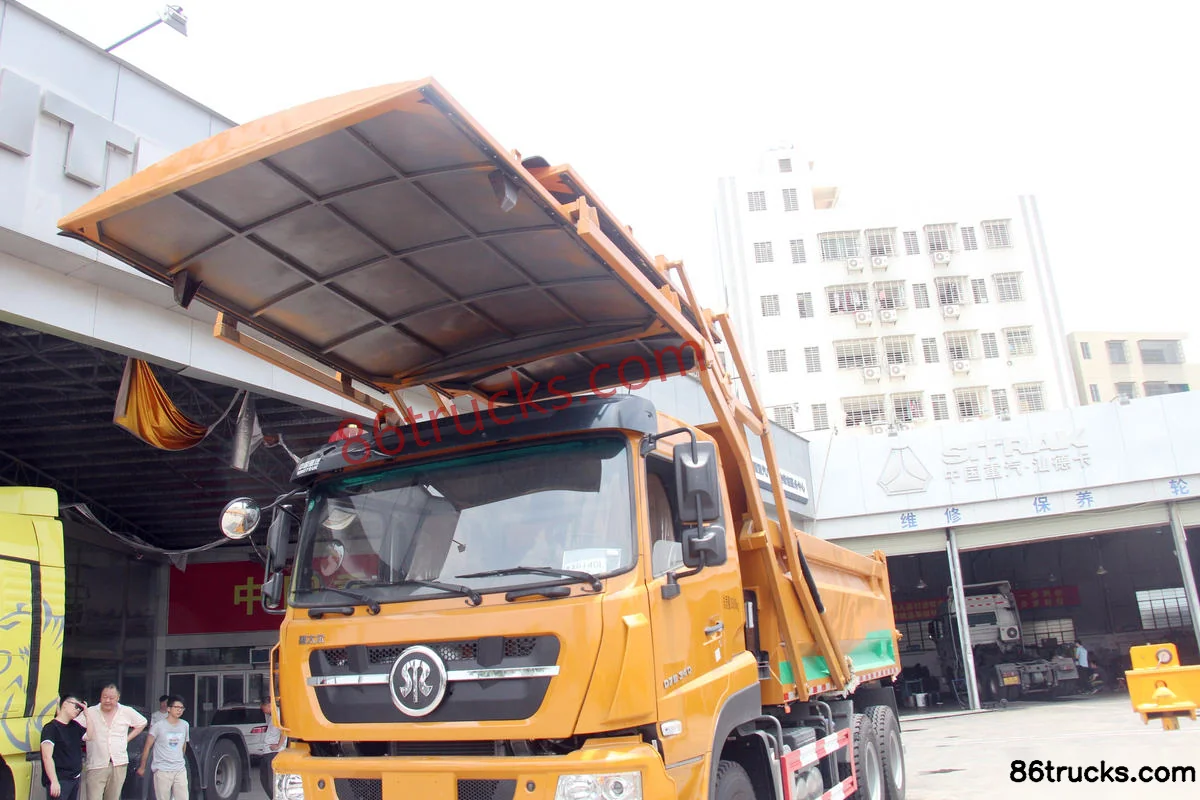

Exterior3

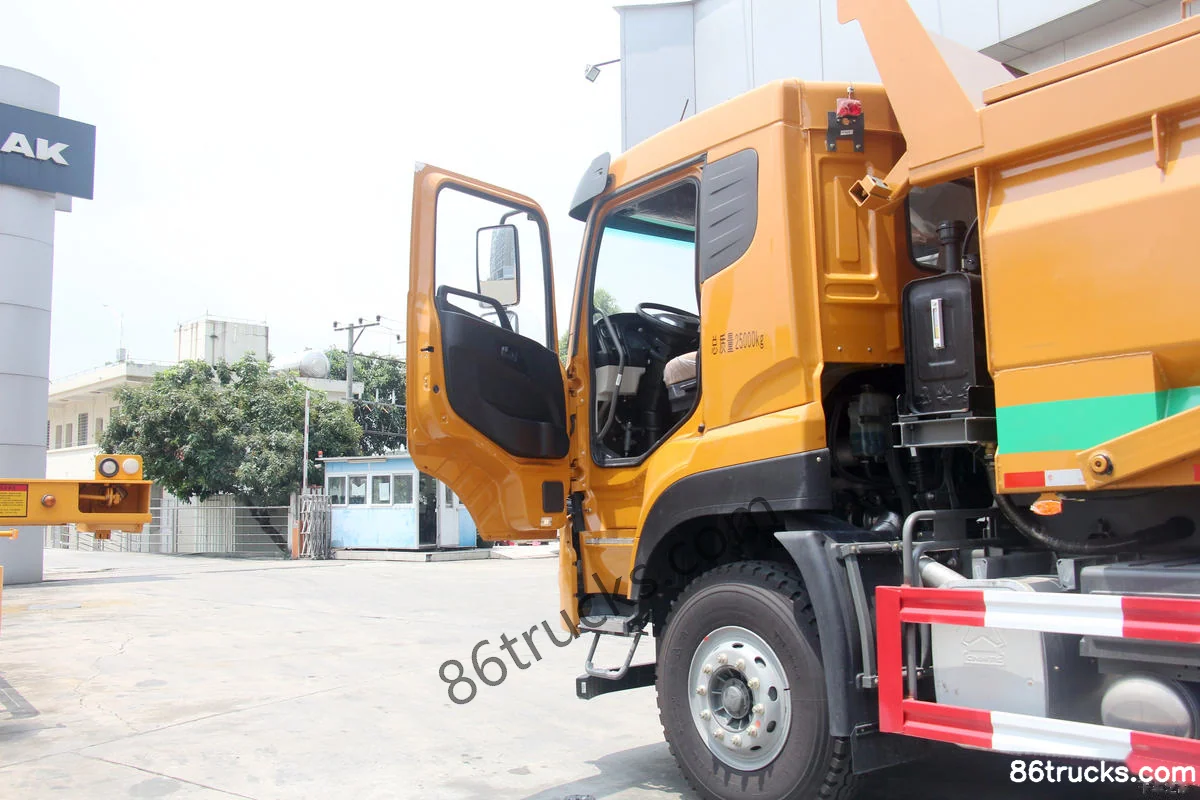

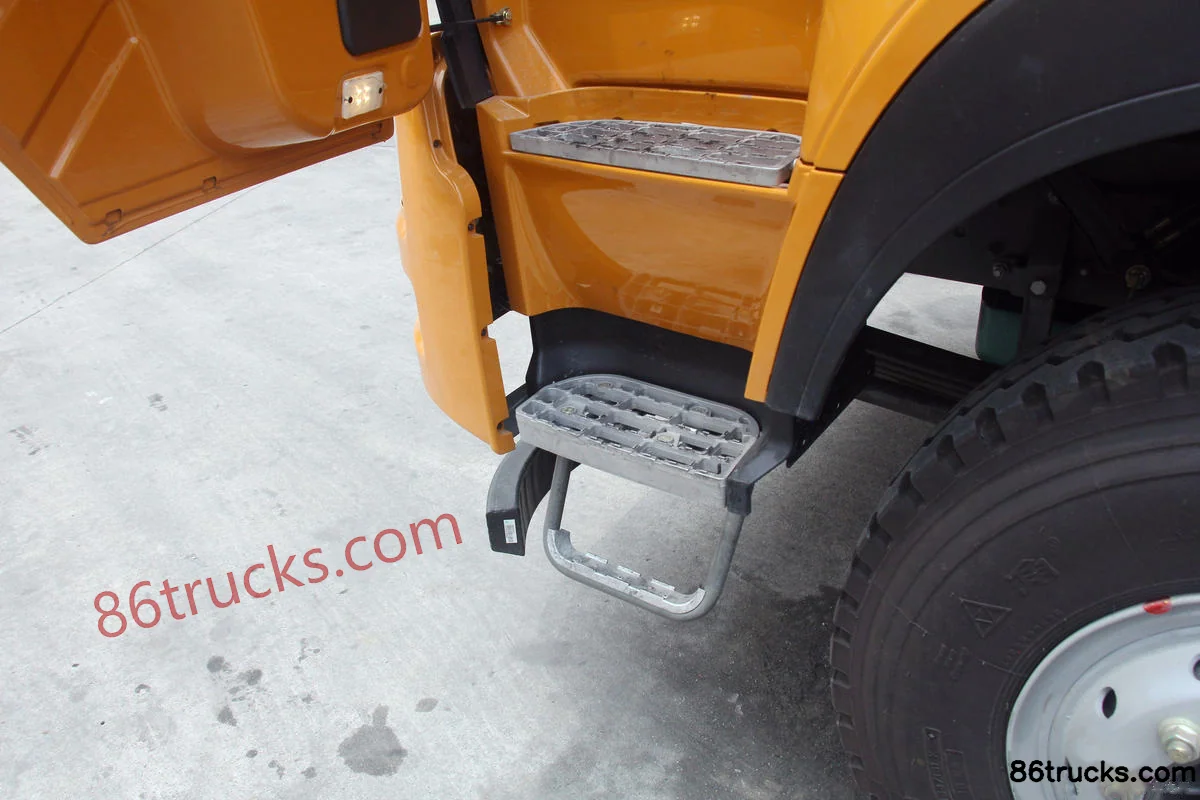

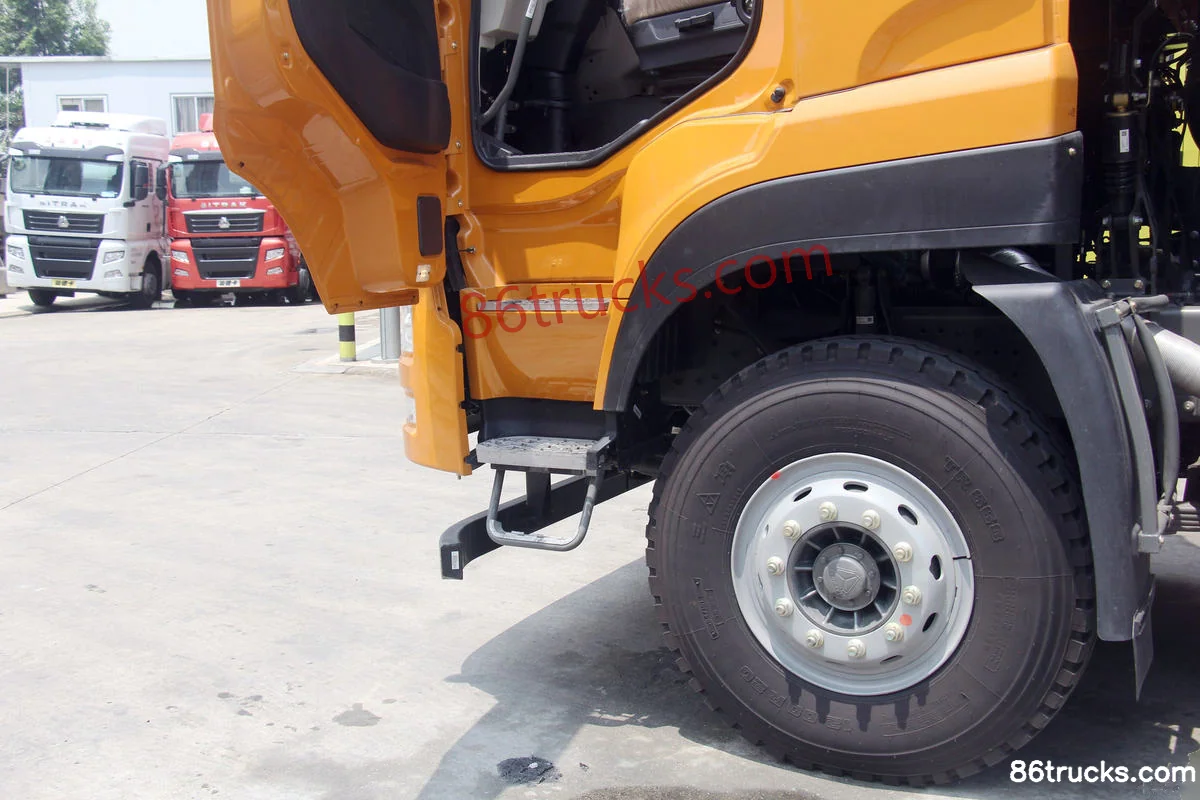

Cab3

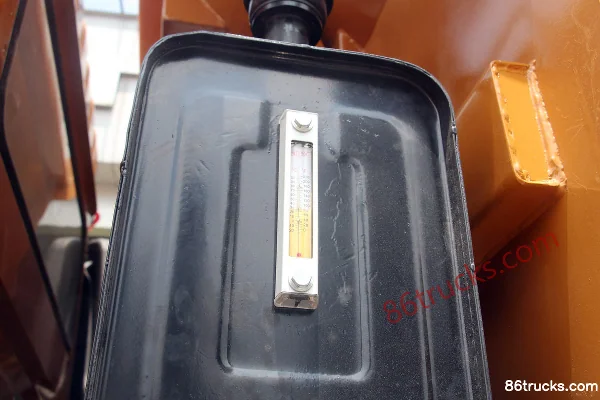

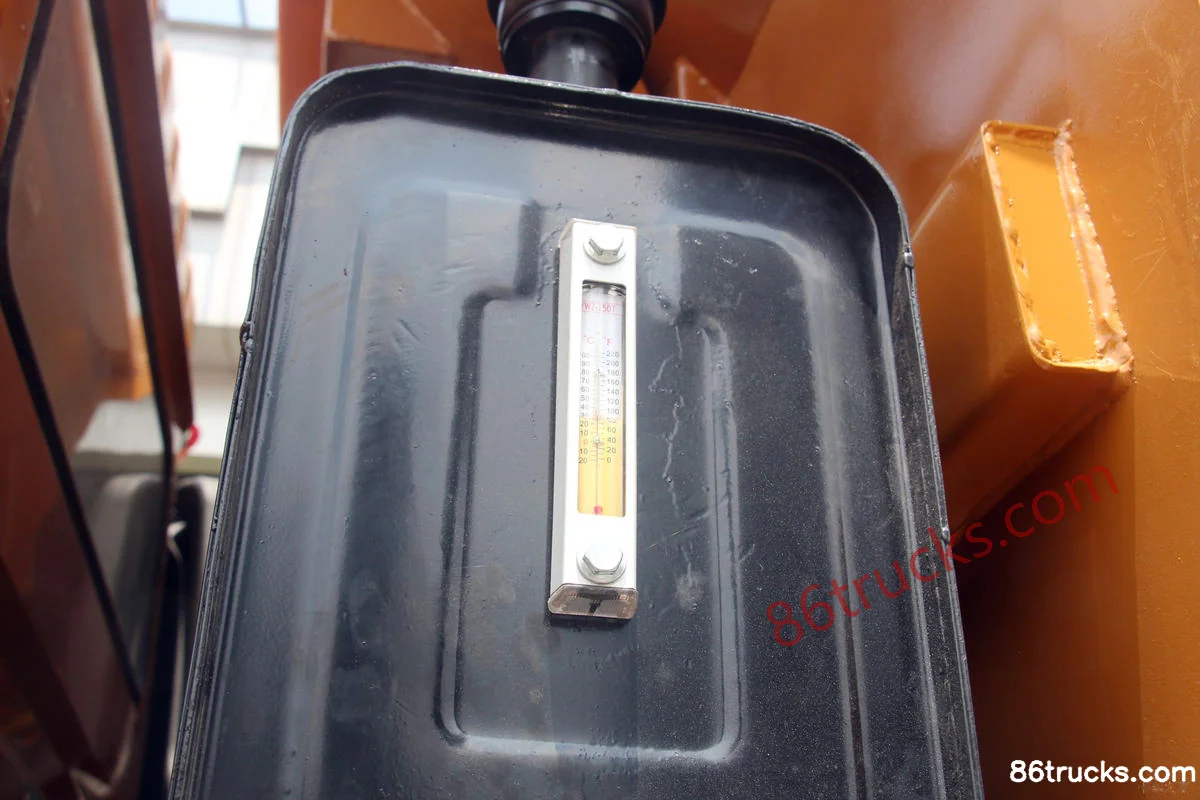

Chassis3

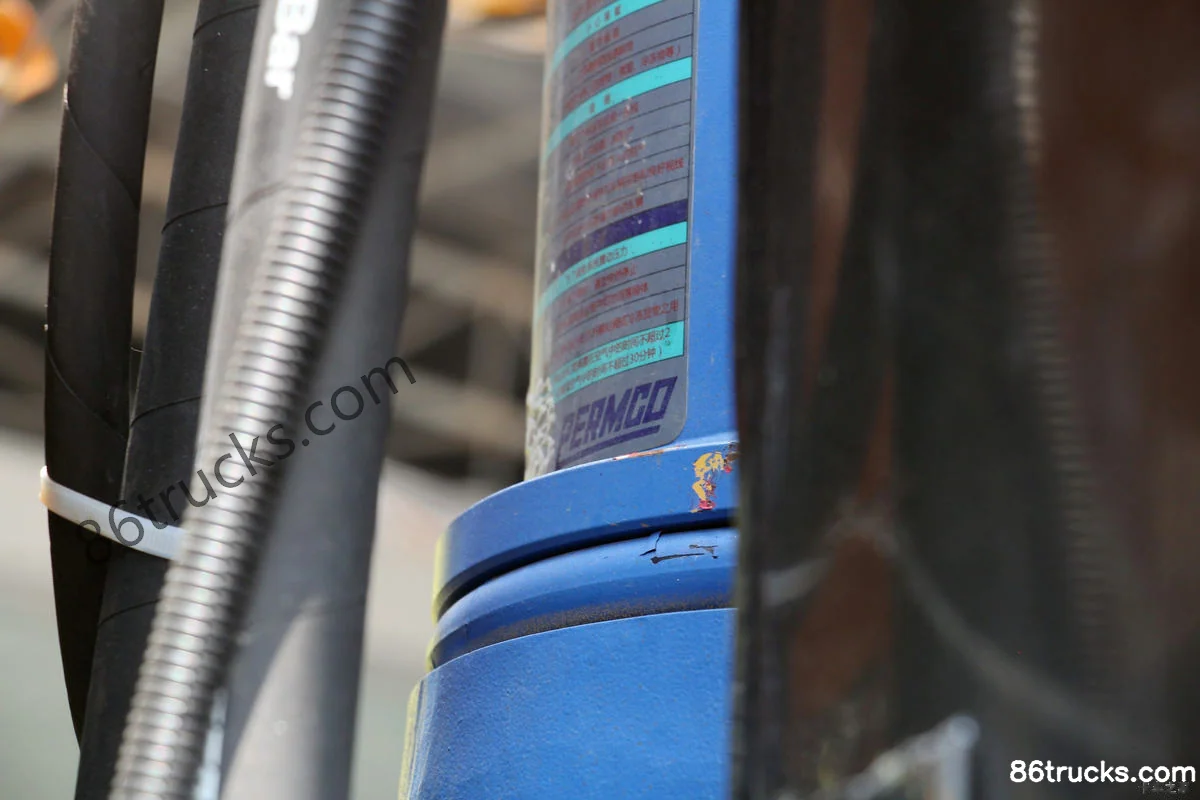

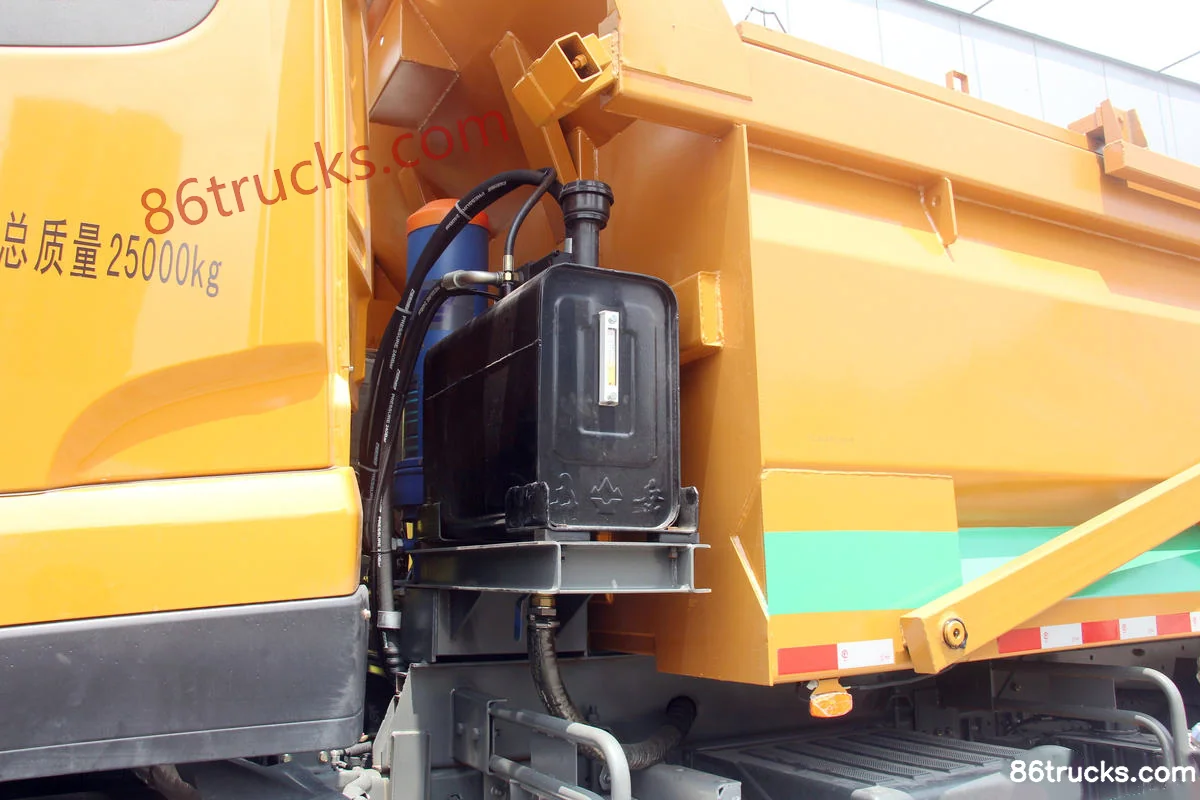

Body3

12 photos

FAQ

What is the export price of Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck, and what does it include?

Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck export reference is about From $51,667; MSRP is ¥37.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck?

Key specs of Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck: Drive: 6x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck suited for?

Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck differ from other variants in the same series?

Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck belongs to Sinotruk D7B Quasi-heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Steyr D7B Heavy Truck 340hp 6X4(10 wheels) 5.6m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
