Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck

Export reference
From $43,250
MSRP ¥31.14M CNY
Horsepower: 340
Emission: China V
Fuel: Diesel
Engine: SinotrukMAN7L
Transmission: Sinotruk
Curb Weight:: 11.09ton
seating capacity: 2Personnel
Rated payload: 19.715ton
Drive 8X2 (10 wheels)
Cargo box type: Van body

Overview

The Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck is a Heavy-duty cargo trucks featuring 9.6m cargo length, Van body cargo body, 2Personnel volume and 19.715t payload. Its segment focus covers Daily industrial goods transport, agricultural and sideline products transport and cold chain transport, matching those duty cycles. On the powertrain side, it comes with a SinotrukMAN7L engine, 340 hp, 8X2 (10 wheels) drive and China V emissions.

China V 340 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ5318XXYKM0EK0
Type: enclosed cargo truck
Drive type: 8X2
Wheelbase: 1800+4600+1350mm
Box length class: 9.6m
engine: SinotrukMC07.34-50
transmission: SinotrukHW13710C
Rear Axle Ratio: 4.44
Cab length: 11.95m
Cab width: 2.545m
Cab height: 3.98m
Front track width: 2020/2020mm
rear track: 1860/1860mm
Curb Weight: 11.09ton
Rated payload: 19.715ton
GVWR: 31ton
Max. speed: 95km/h
Origin: Yong'an, Fujian
tonnage class: Heavy-duty cargo trucks
Approach angle: 18.5°
departure angle: 11°
market segment: Daily industrial goods transport, agricultural and sideline products transport, cold chain transport, logistics distribution, LTL transport, daily bulk cargo
Remarks: Front axle shock absorber; optional: HW13710CL, HW19712 series, ZF5S-111GP transmission; ratios 4.875, 5.143, 4.11; 295/80R22.5 tires; front parabolic spring; 600L aluminum alloy fuel tank
Front/rear suspension: 1.32/2.925m
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukMC07.34-50
Engine info: SinotrukMAN7L
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 6.87L
Emission standard: China V
Max output power: 248kW
Max hp: 340Horsepower
Max torque: 1250N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW13710C
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Cargo box type: Van body
Cargo box length: 9.6m
Cargo box width: 2.45m
Cargo box height: 2.6m
*Cargo box interior width: 2.4500000476837
Cab parameters
Cab: D15V full-floating
Cab suspension: Four-point air suspension
seating capacity: 2Personnel
Seat rows: Sleeper cab
Driver seat type: air suspension seat
Chassis Specs
Front axle description: H153 dual
Front axle allowable load: 6600/6450kg
Frame Dimensions: 280mm
rear axle description: Lifting axle +153
rear axle allowable load: 6950/11000kg
Axle ratio: 4.44
Leaf spring count: 10/10/6+-/10+9
Tire
Tire Size: 12R22.5
Number of tires: 10pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:

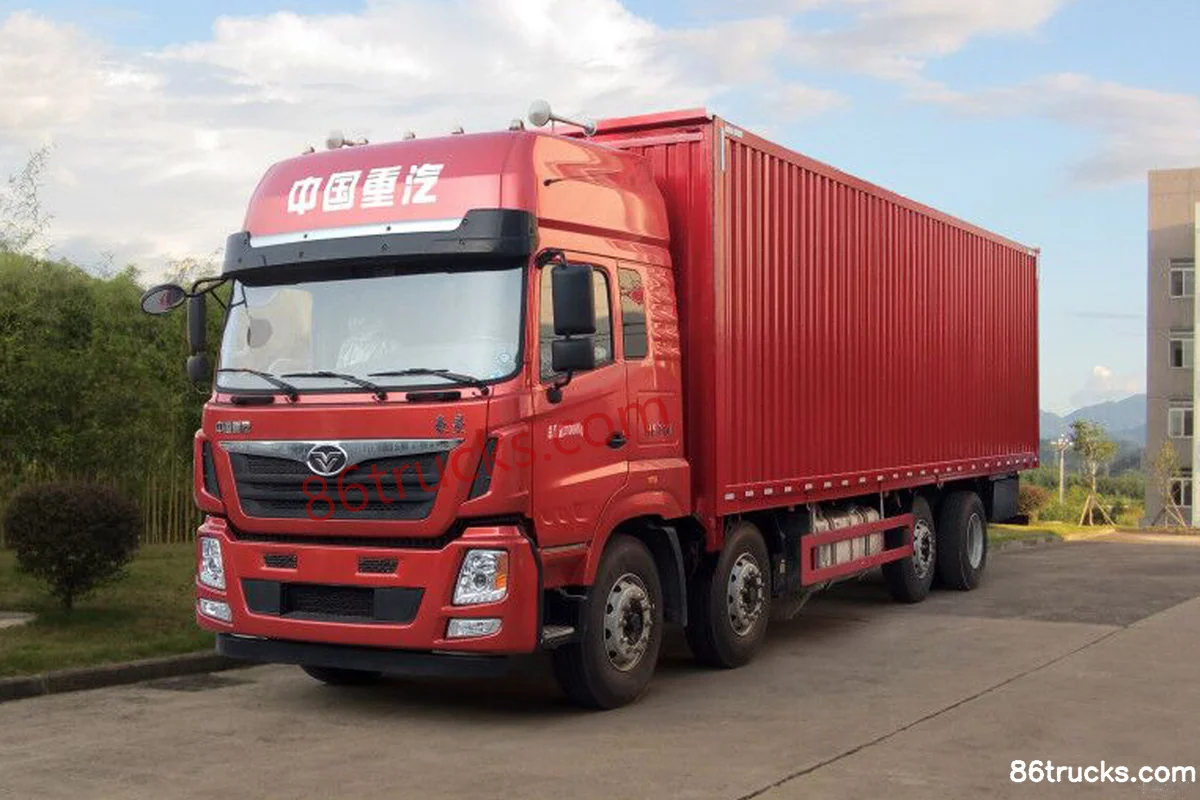

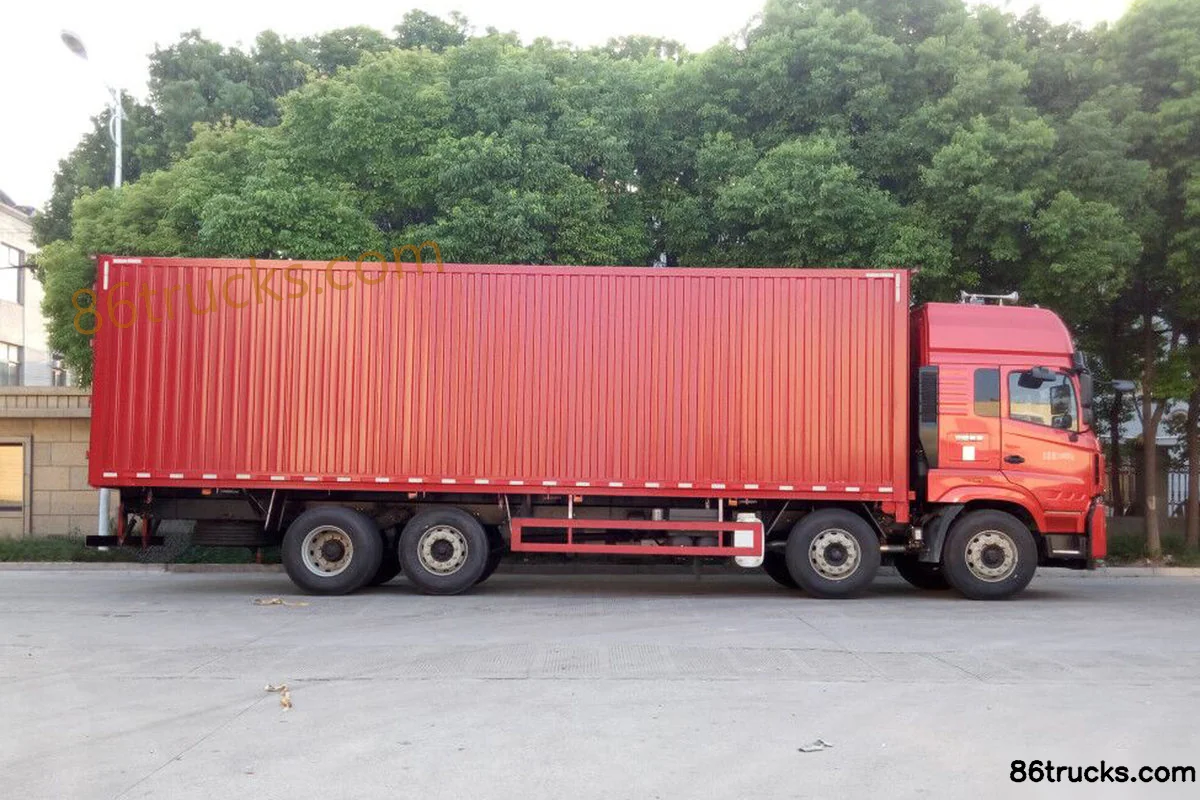

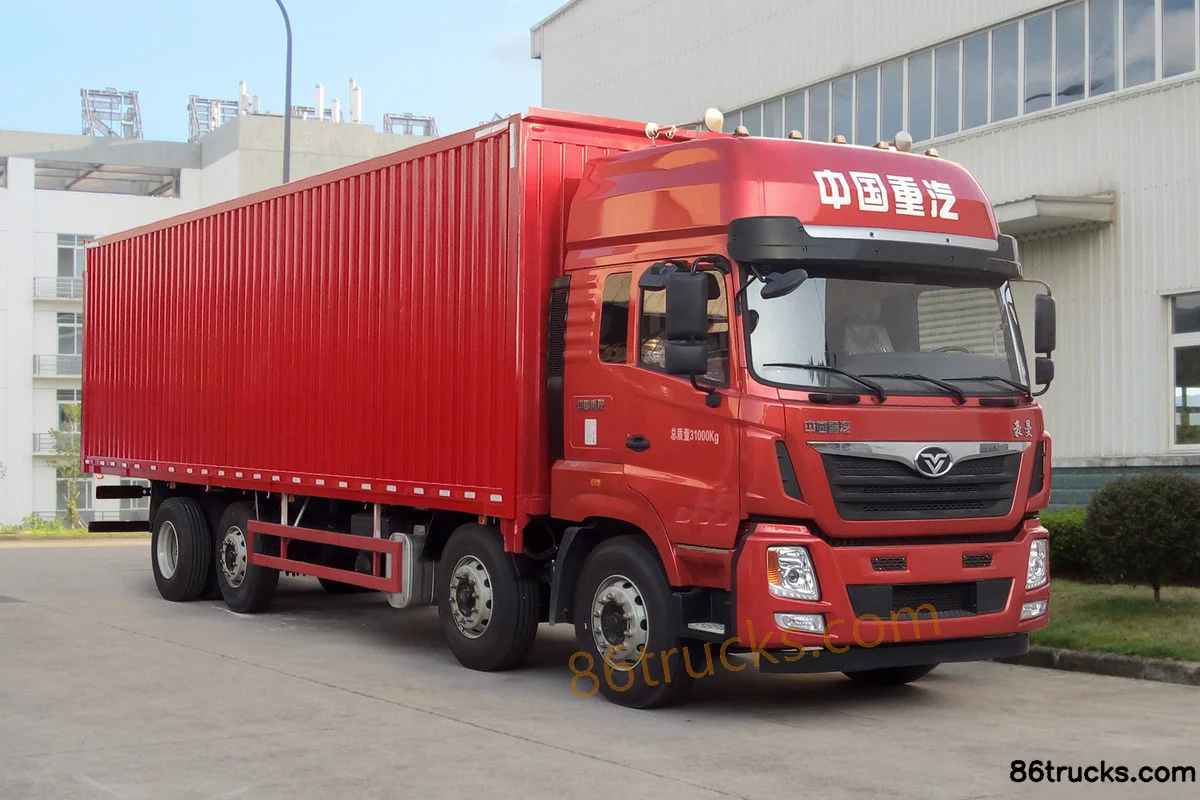

Photos

Exterior3

3 photos

FAQ

What is the export price of Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck, and what does it include?

Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck export reference is about From $43,250; MSRP is ¥31.14M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck?

Key specs of Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck: Drive: 8x2; Horsepower: 340 hp; Emission: China V; Fuel: Diesel; Engine: SinotrukMAN7L; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck suited for?

Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck differ from other variants in the same series?

Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck belongs to Sinotruk H5 near-heavy truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO MANH5 heavy truck 340 hp 8X2(10 wheels) 9.6m van cargo truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
