Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis)

Export reference
MSRP N/A
Emission: China V (Beijing)
Fuel: Diesel
Drive: 8X4 (12 wheels)
Wheelbase:: 2100+4300+1350mm
Model code (announced):: BJ5449THB-XD
Pumping displacement:: 200m³/h
Curb Weight: 43.87ton
Water tank capacity: 400L
Horsepower 430
Max output power: 316kW

Overview

The Loxa Heavy Machinery Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) is a concrete pump truck featuring 43.87ton GVW, 400L tank capacity, 430 hp and 316kW power. On the powertrain side, it comes with 8X4 (12 wheels) drive, China V (Beijing) emissions and Diesel fuel.

China V (Beijing) 430 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): BJ5449THB-XD
Pumping displacement: 200m³/h
Drive type: 8X4
Wheelbase: 2100+4300+1350mm
Overall Dimensions: L×W×H: 14.08×2.53×4m
Max. travel speed: 80km/h
Curb Weight: 43.87ton
Body Parameters
Water tank capacity: 400L
Chassis Specs
Axle Count: 4
Chassis Series: AumanGTL
Chassis Model: BJ5449THB-AA
rear axle description: Rear: 13t AnkaiMercedes-Benz
clutch: Φ430
Engine parameters
Injection System: Common Rail
Engine Model: FotonISGe5-430
fuel type: Diesel
Displacement: 11.8L
Emission standard: China V (Beijing)
Max output power: 316kW
Max hp: 430Horsepower
Rated speed: 1900rpm
Pumping system
Delivery cylinder: bore × stroke: 260×2100mm
Oil pressure: 32Mpa
Delivery pipe diameter: 125mm
Boom Outriggers
Boom Vertical Height: 57.1m
Boom Horizontal Length: 52.1m
Boom Vertical Depth: 41.2m
Boom Section Count: 6RZ
Min unfolded length: 11.5m
Turntable Rotation Angle: 360°
Boom Section 1 - Length: 11620mm
first arm section angle: 90°
Boom Section 2 - Length: 9325mm
Boom Section 2 - Angle: 180°
Boom Section 3 - Length: 8885mm
Boom Section 3 - Angle: 180°
4th arm section length: 11345mm
Boom Section 4 - Angle: 240°
Boom Section 5 - Length: 7465mm
Boom Section 5 - Angle: 220°
Boom Section 6 - Length: 4460mm
Boom Section 6 - Angle: 105°
Transmission Parameters
Number of gears: 9Gear
Transmission Model: Fast Gear9JSD220TA
Tire
Tire Size: Front: 385/65R22.5 Rear: 315/80R22.5

Photos

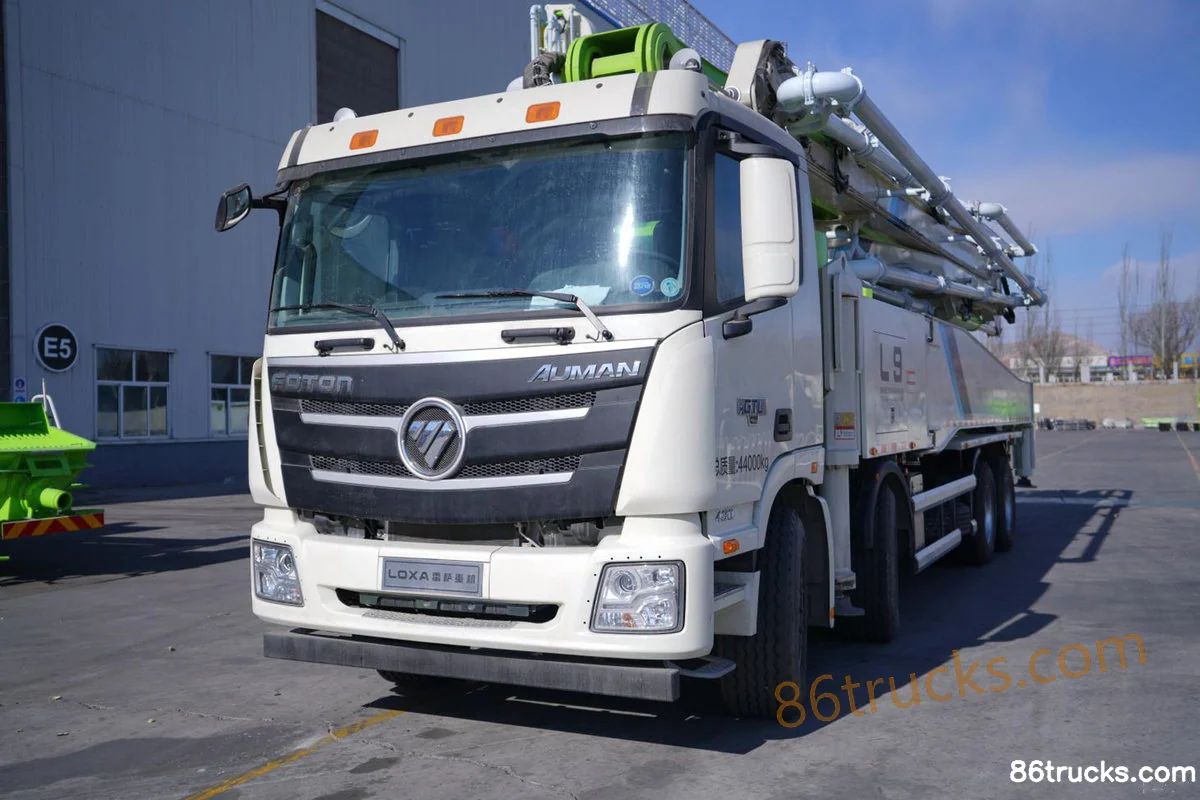

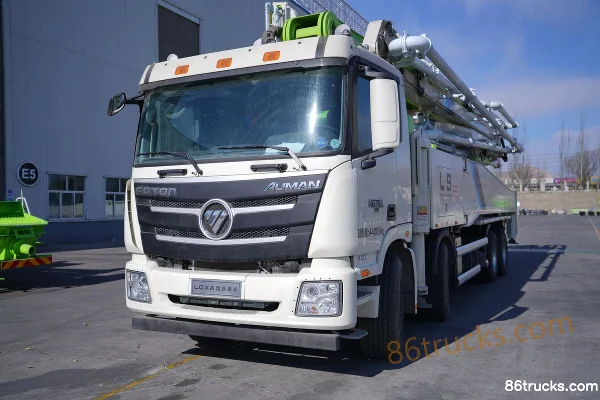

Exterior1

1 photos

FAQ

What emission standard does Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) use, and can it enter my country?

This model is listed as China V (Beijing). Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis)?

Key specs of Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis): Drive: 8x4; Horsepower: 430 hp; Emission: China V (Beijing); Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) suited for?

Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) is a concrete pump truck model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) differ from other variants in the same series?

Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis) belongs to Loxa Heavy Machinery Loxa (concrete pump truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton LESA L9 430 hp 8X4(12 wheels) 58m concrete pump truck (Auman GTL chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
