FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Curb Weight:: 2.72ton
Wheelbase:: 3100mm
Tire Size:: 6.50R16 10PR,7.00R16LT 10PR
Model code (announced):: CA3040K7L2E5-3
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 84
Cargo box type: Rear-dump body

Overview

The FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Xichai4DW93-84E5 engine, 84 hp, China V emissions and 5-speed transmission.

China V 84 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): CA3040K7L2E5-3
Drive type: 4X2
Wheelbase: 3100mm
engine: Xichai4DW93-84E5
transmission: 5-speed
Cab length: 5.555m
Cab width: 1.99m
Cab height: 2.17m
Front track width: 1470mm
rear track: 1490mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Qujing, Yunnan
tonnage class: Light Truck
Approach angle: 20°
departure angle: 17°
Energy Type: Diesel
Engine parameters
Engine Brand: Xichai
Engine Model: Xichai4DW93-84E5
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 2.54L
Emission standard: China V
Max output power: 64kW
Max hp: 84Horsepower
Max torque: 220N·m
Max torque speed: 1900-2100rpm
Rated speed: 3000rpm
Engine Type: 4-cylinder inline, direct injection, turbocharged & intercooled, electronic common rail
Transmission Parameters
Transmission Model: 5-speed
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.73m
Cargo box width: 1.9m
Cargo box height: 0.4m
Chassis Specs
Front axle allowable load: 1800kg
rear axle allowable load: 2695kg
Leaf spring count: 9/10+5,3/7+6
Tire
Tire Size: 6.50R16 10PR,7.00R16LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

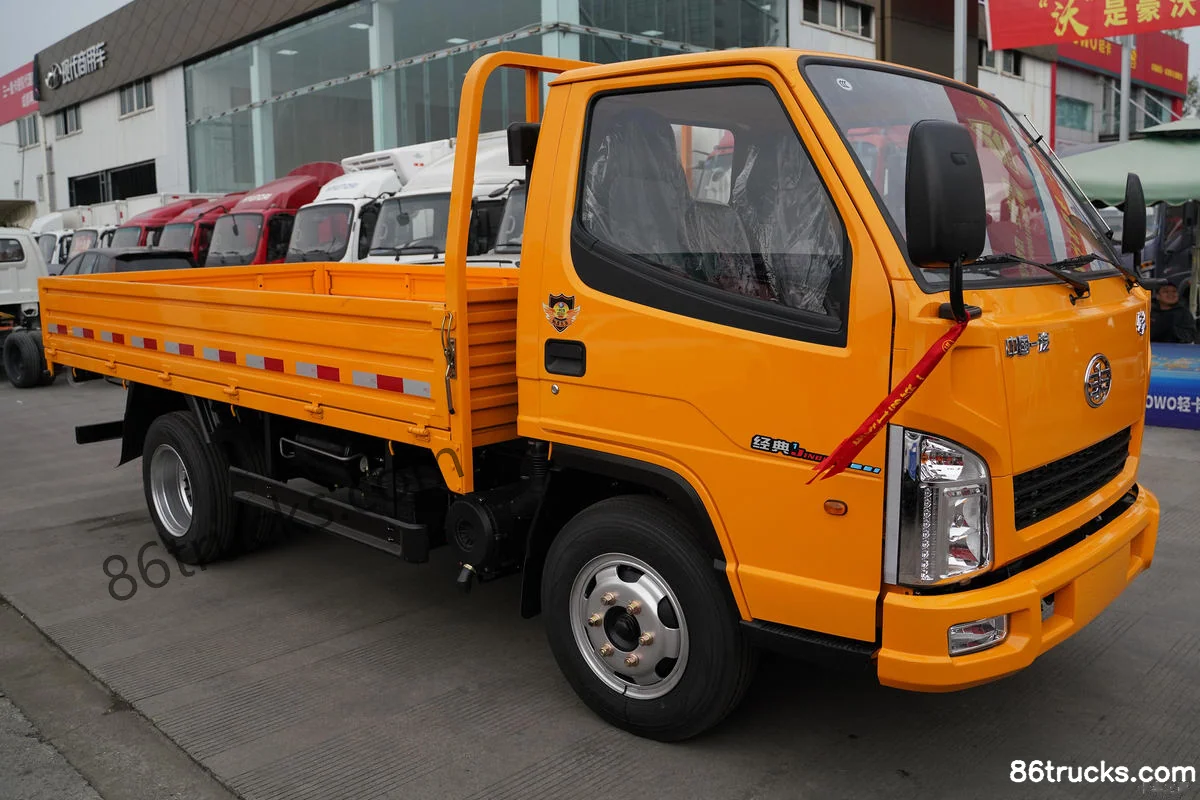

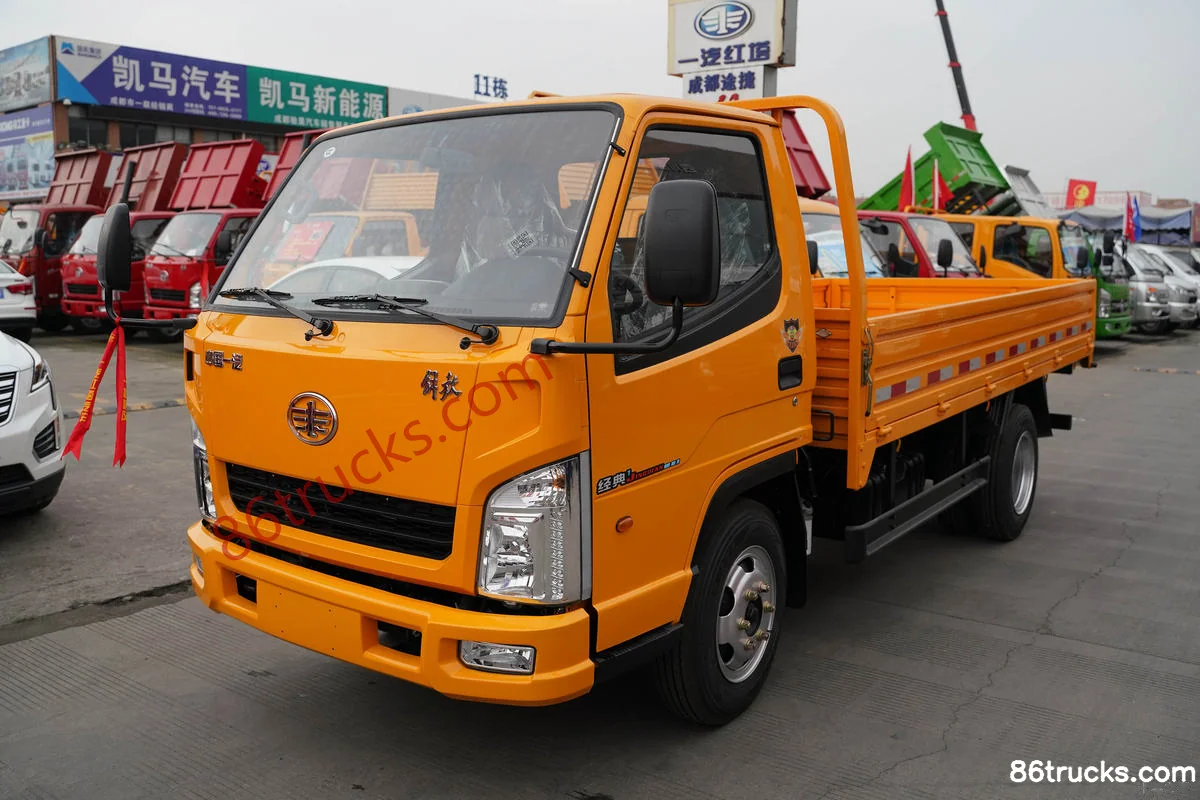

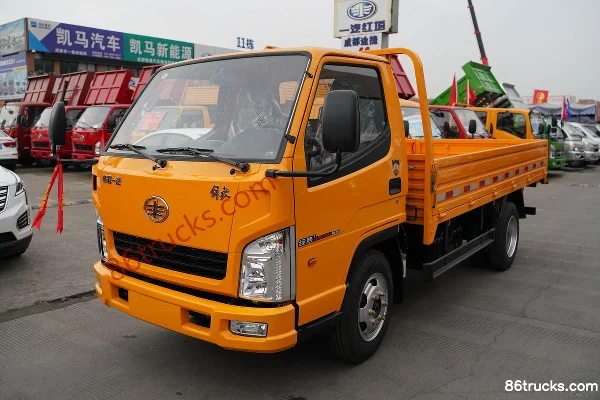

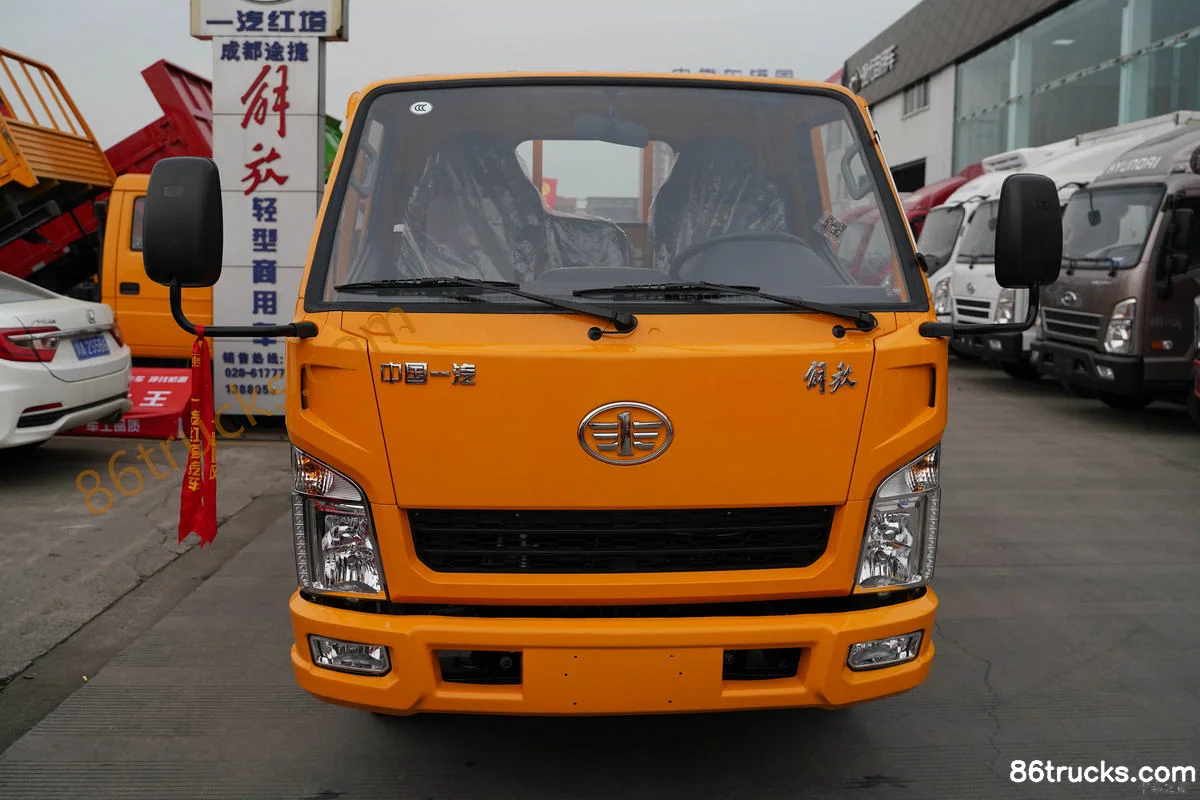

Exterior3

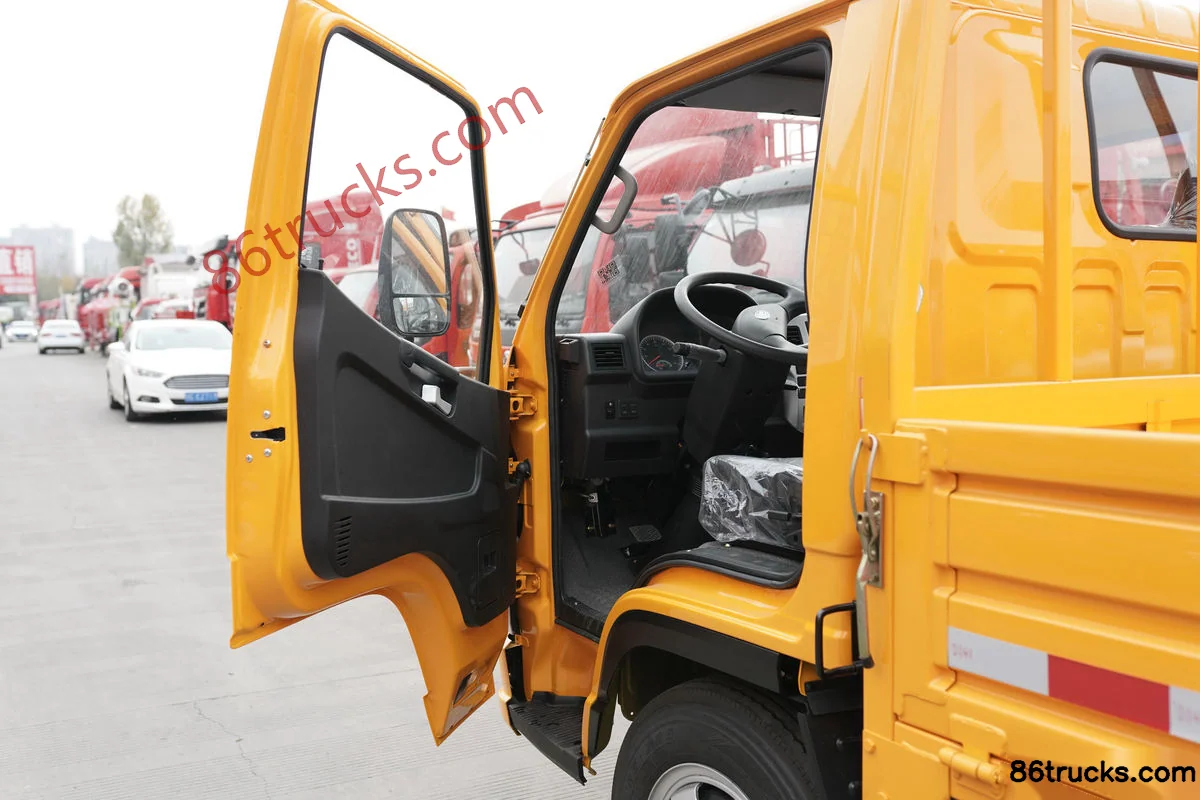

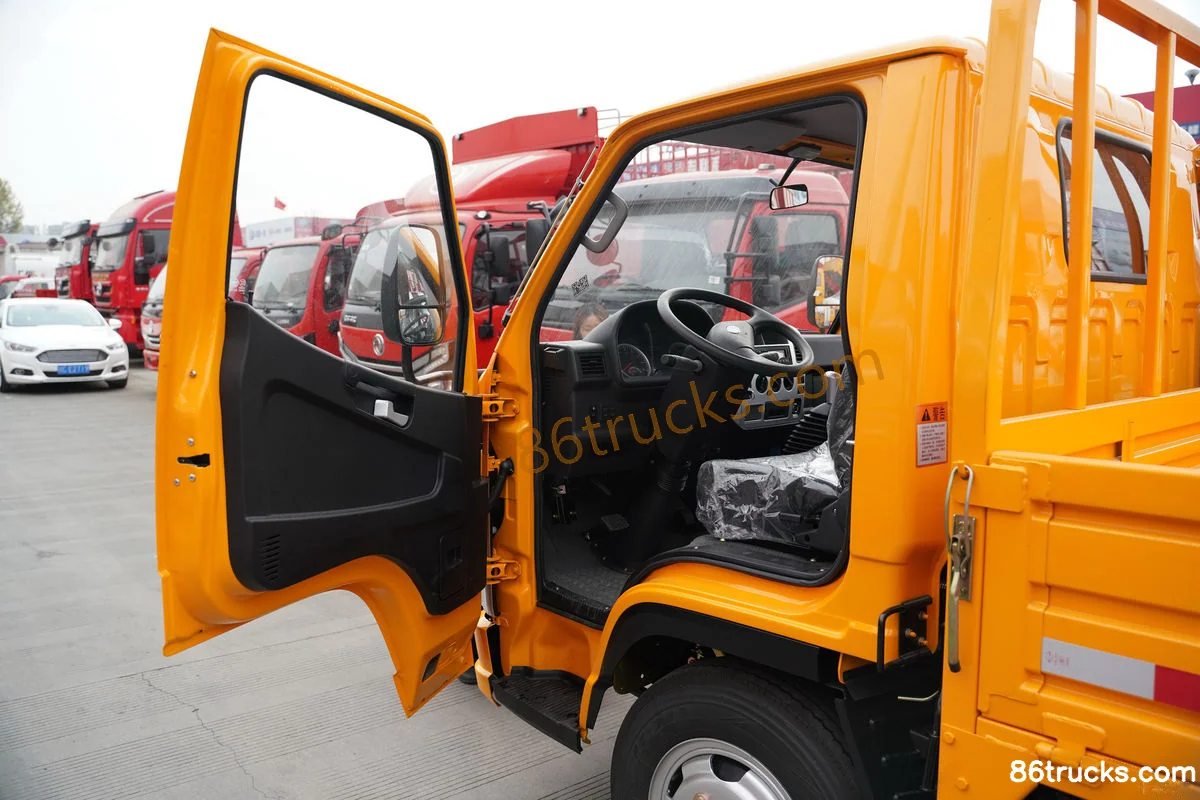

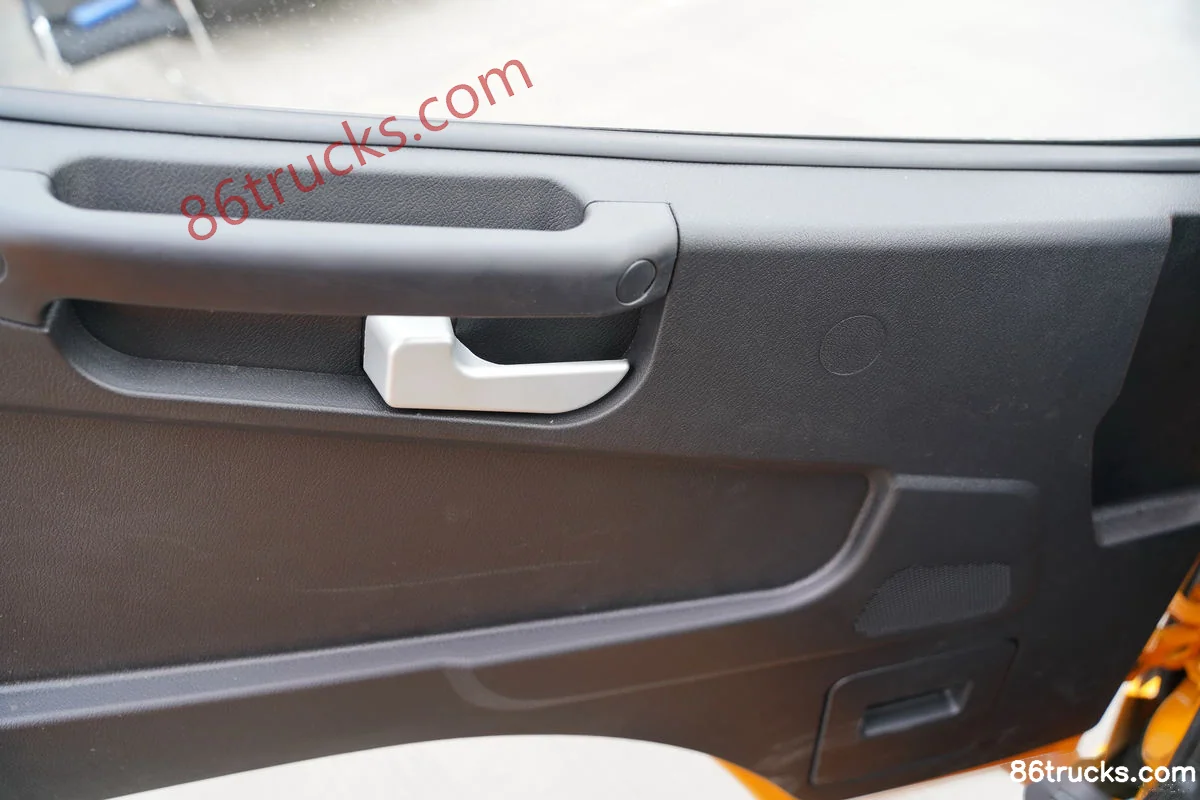

Cab3

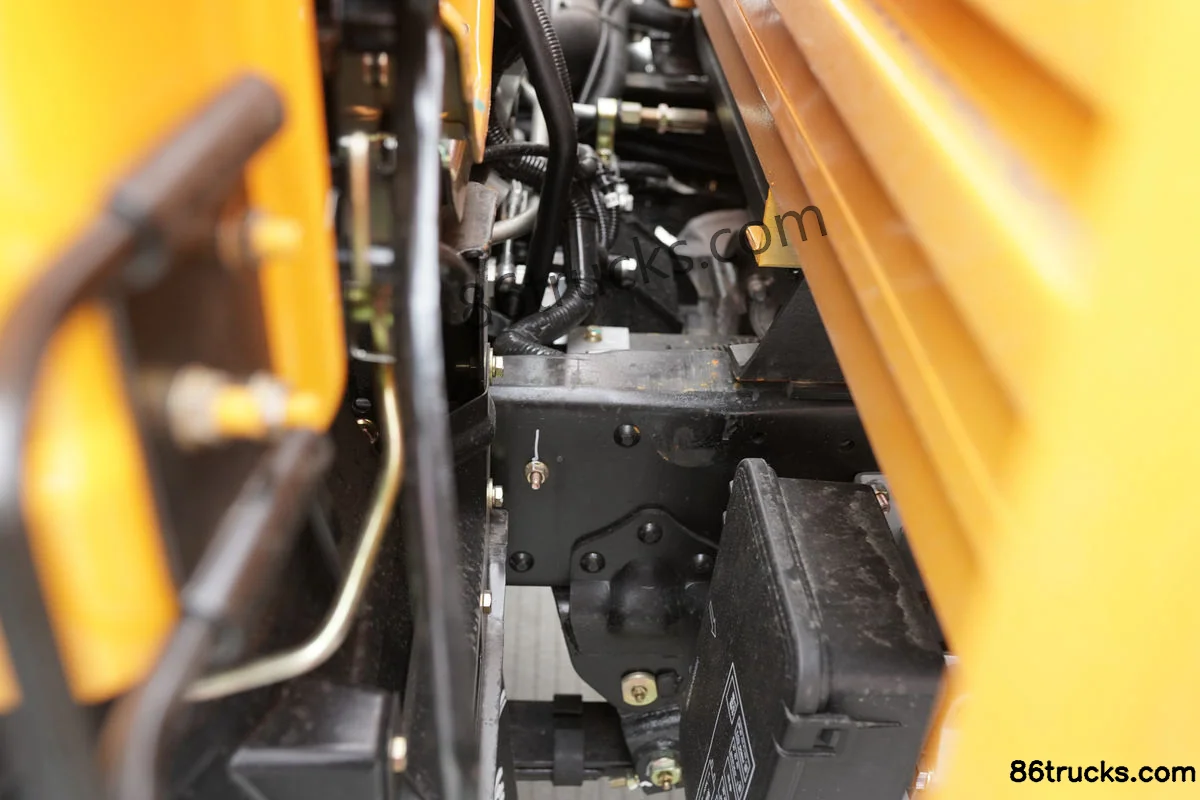

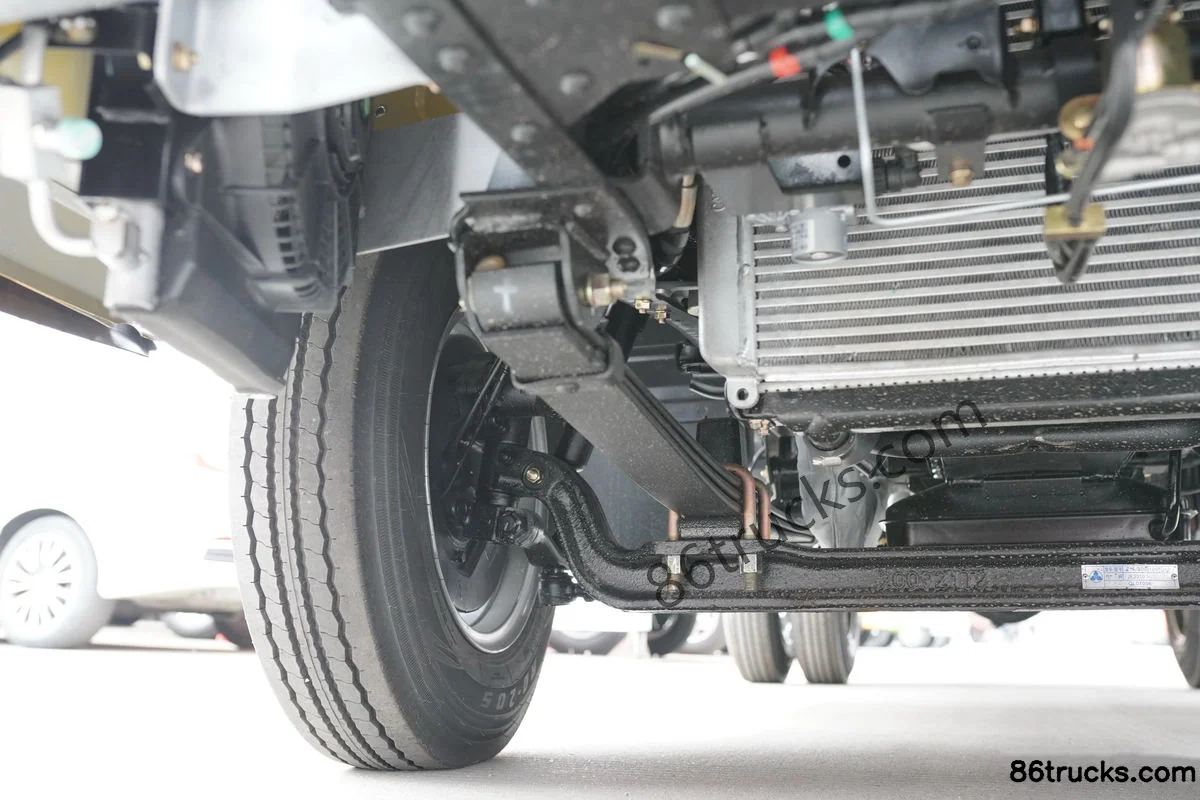

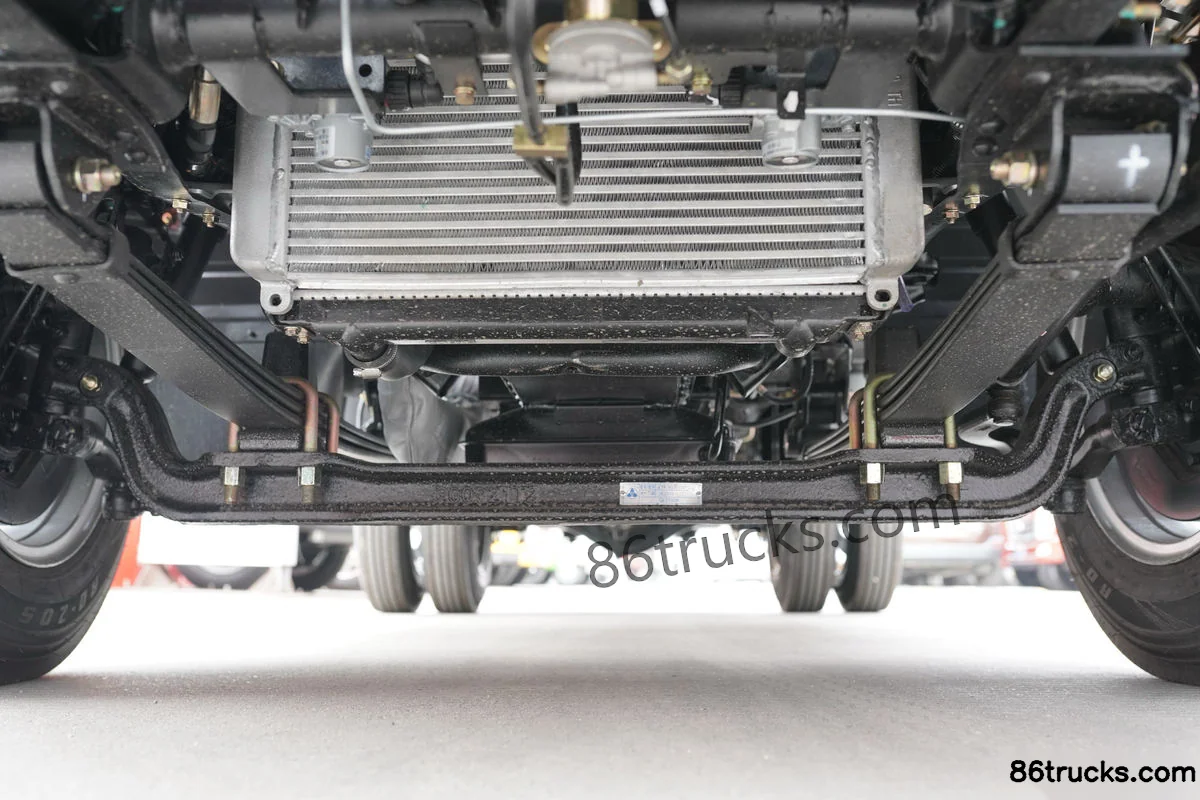

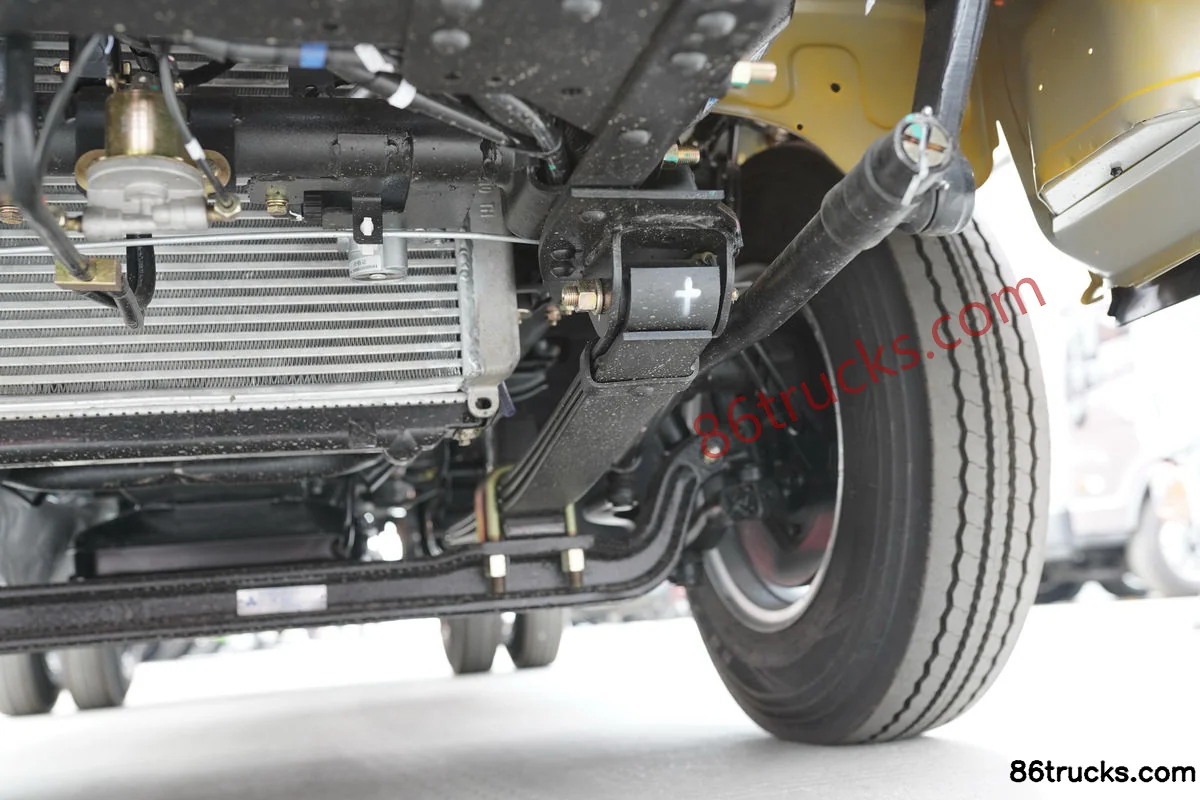

Chassis3

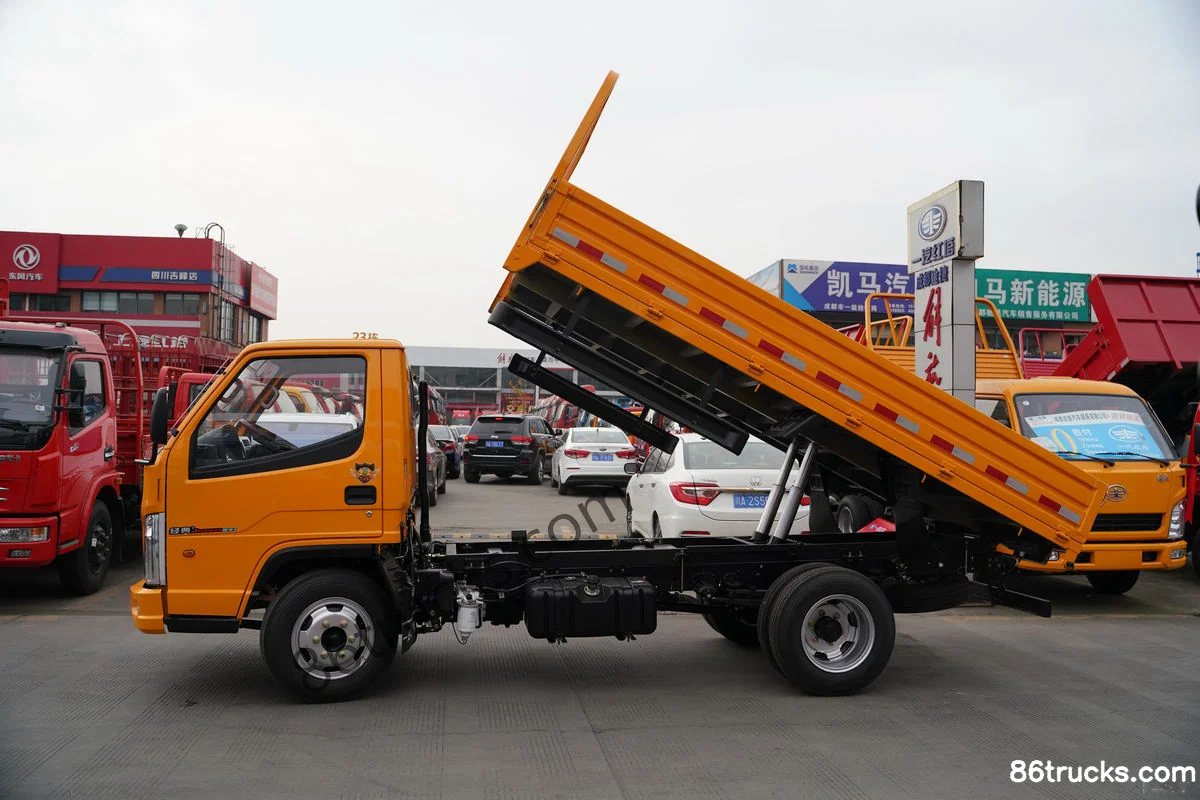

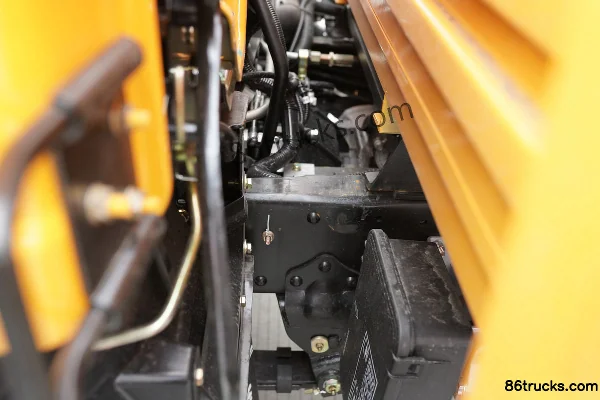

Body3

12 photos

FAQ

What emission standard does FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck?

Key specs of FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck: Drive: 4x2; Horsepower: 84 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck suited for?

FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck differ from other variants in the same series?

FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck belongs to FAW Hongta FAW Jiefang Classic 1 Series Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Hongta FAW Jiefang Classic 1 Series 84hp 4X2(6 wheels) 3.73m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
