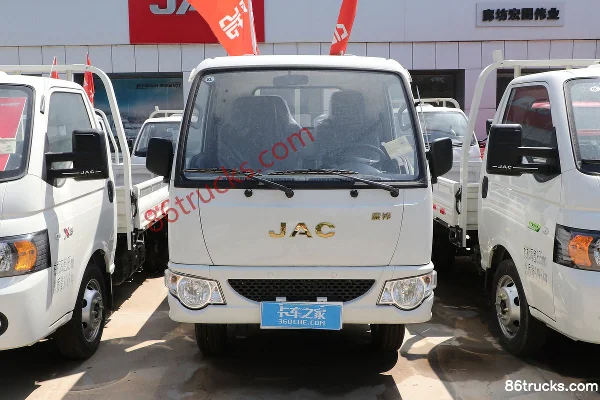

JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI)

Export reference
From $10,111
MSRP ¥7.28M CNY
Horsepower: 95
Emission: China VI
Fuel: Diesel
Engine: Quanchai2.3L
Transmission: Isuzu
Curb Weight:: 2.425ton
seating capacity: 2Personnel
Rated payload: 1.495ton
Drive 4X2 (6 wheels)
Cargo box type: Stake type

Overview

The JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) is a mini truck featuring 3.64m cargo length, Stake type cargo body, 2Personnel volume and 1.495t payload. On the powertrain side, it comes with a Quanchai2.3L engine, 95 hp, 4X2 (6 wheels) drive and China VI emissions.

China VI 95 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): HFC5040CCYPW5K2B4S
Type: stake truck
Drive type: 4X2
Wheelbase: 2850mm
Box length class: 3.6m
engine: QuanchaiQ23-95E60
transmission: IsuzuMSB-5M
Rear Axle Ratio: 4.875
Cab length: 5.377m
Cab width: 1.81m
Cab height: 2.45m
Front track width: 1296mm
rear track: 1310mm
Curb Weight: 2.425ton
Rated payload: 1.495ton
GVWR: 4.05ton
Max. speed: 100km/h
Origin: Hefei, Anhui
tonnage class: mini truck
Approach angle: 24°
departure angle: 31°
Front/rear suspension: 0.96/1.567m
Energy Type: Diesel
Engine parameters
Engine Brand: Quanchai
Engine Model: QuanchaiQ23-95E60
Engine info: Quanchai2.3L
Number of cylinders: 4cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 2.3L
Emission standard: China VI
Max output power: 70kW
Max hp: 95Horsepower
Max torque: 240N·m
Max torque speed: 2000rpm
Rated speed: 3000rpm
Engine Oil Change Interval: 20000 km
Transmission Parameters
Transmission Model: IsuzuMSB-5M
Transmission Brand: Isuzu
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Cargo box type: Stake type
Cargo box length: 3.64m
Cargo box width: 1.61m
*Cargo box interior width: 1.6100000143051
Cab parameters
seating capacity: 2Personnel
Seat rows: Single Row
fuel tank
Fuel tank material: Iron
Fuel tank capacity: 65L
Chassis Specs
Front axle description: 1.5T axle tube
Front axle allowable load: 1650kg
rear axle description: 2.5T
rear axle allowable load: 2400kg
Axle ratio: 4.875
Leaf spring count: 4/5
Tire
Tire Size: 185R15LT 8PR
Number of tires: 6pcs
Control configuration
ABS:
Power steering:
clutch booster:
Load-sensing proportioning valve (SABS):
automatic slack adjuster:
interior configuration
Steering Wheel Material: Plastic
steering wheel adjustment: Manual
AC control type: Manual
Power interface:
Seat material: Fabric
Exterior features
Air deflector:
Wiper type: Frameless wiper blade
Service brake
Engine brake: none
Brake Type: Hydraulic brake
Parking brake: parking brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type
Multimedia features
External audio input (AUX/USB/iPod etc.):
Radio:
standard instrument cluster:
lighting configuration
Headlight brand: Danyang Jincheng
Front fog lamp:
Halogen Headlights:
maintenance service
Vehicle Warranty Period: Max 3 Years or 500,000 km
24-hour service hotline: 4008009933
Rescue service: 24 hours

Photos

0 photos

FAQ

What is the export price of JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI), and what does it include?

JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) export reference is about From $10,111; MSRP is ¥7.28M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI)?

Key specs of JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI): Drive: 4x2; Horsepower: 95 hp; Emission: China VI; Fuel: Diesel; Engine: Quanchai2.3L; Transmission: Isuzu. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) suited for?

JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) is a Cargo Trucks model for box, bulk or regional distribution. Choose by body type, wheelbase and power; mention cargo type and market in your quote.

How does JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) differ from other variants in the same series?

JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI) belongs to JACX1 Mini Truck (Cargo Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export JAC Kaida X1 95 hp 4X2(6 wheels) 3.64m single-row stake truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
