Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis)

Export reference
MSRP N/A
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 14.765ton
Wheelbase:: 1800+2750+1700mm
Tire Size:: 11.00R20
Rated payload: 16.04ton
Drive 8X2 (10 wheels)
Horsepower 240
Cargo box type: Dump type

Overview

The Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) is a Heavy truck featuring 16.04t payload, 31t GVW, Dump type cargo body and 8X2 (10 wheels) drive. On the powertrain side, it comes with 240 hp, China III / Euro III emissions, Sinotruk transmission and Diesel fuel.

China III / Euro III 240 Diesel 8X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): ZZ3318KM0DK0
Drive type: 8X2
Wheelbase: 1800+2750+1700mm
transmission: SinotrukHW12710C
Cab length: 9.36m
Cab width: 2.495m
Cab height: 3.45m
Front track width: 2020/2020mm
rear track: 2020/1860mm
Curb Weight: 14.765ton
Rated payload: 16.04ton
GVWR: 31ton
Origin: Fujian Haixi
tonnage class: Heavy truck
Approach angle: 18.5°
departure angle: 21°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6A240-33
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.255L
Emission standard: China III / Euro III
Max output power: 177kW
Max hp: 240Horsepower
Max torque: 900N·m
Max torque speed: 1400-1600rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke, electronically controlled direct injection
Transmission Parameters
Transmission Model: SinotrukHW12710C
Transmission Brand: Sinotruk
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 6.5m
Cargo box width: 2.3m
Cargo box height: 1.29m
fuel tank
Fuel tank capacity: 380L
Chassis Specs
rear axle description: EQ153/457
rear axle allowable load: 11000kg
Leaf spring count: 12/12/3+-/12+9
Tire
Tire Size: 11.00R20
Number of tires: 10pcs

Photos

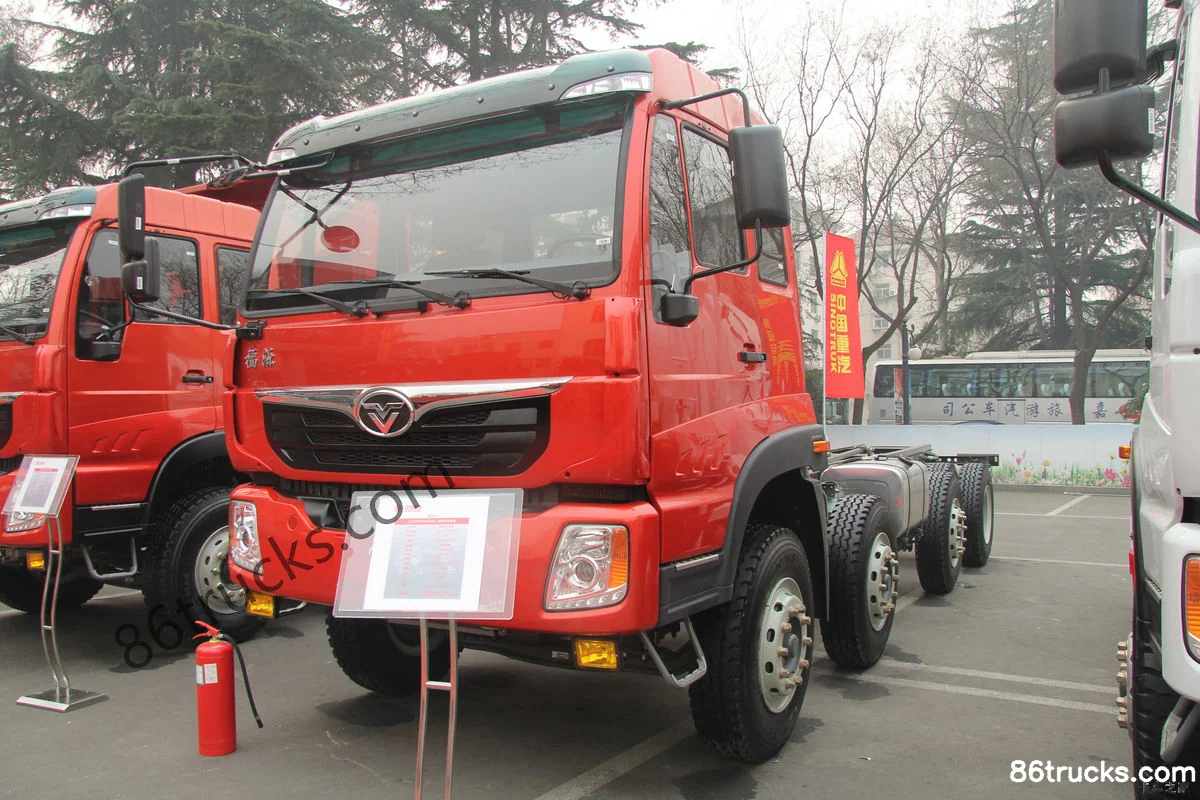

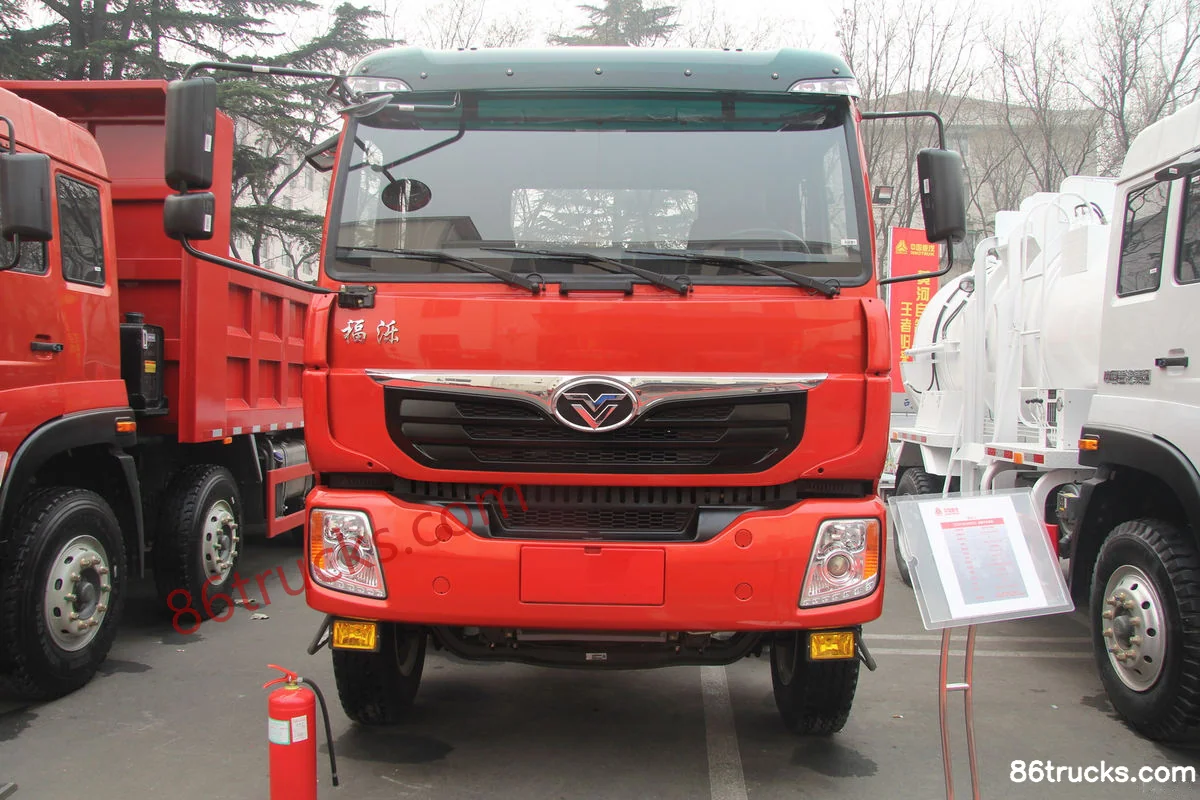

Exterior3

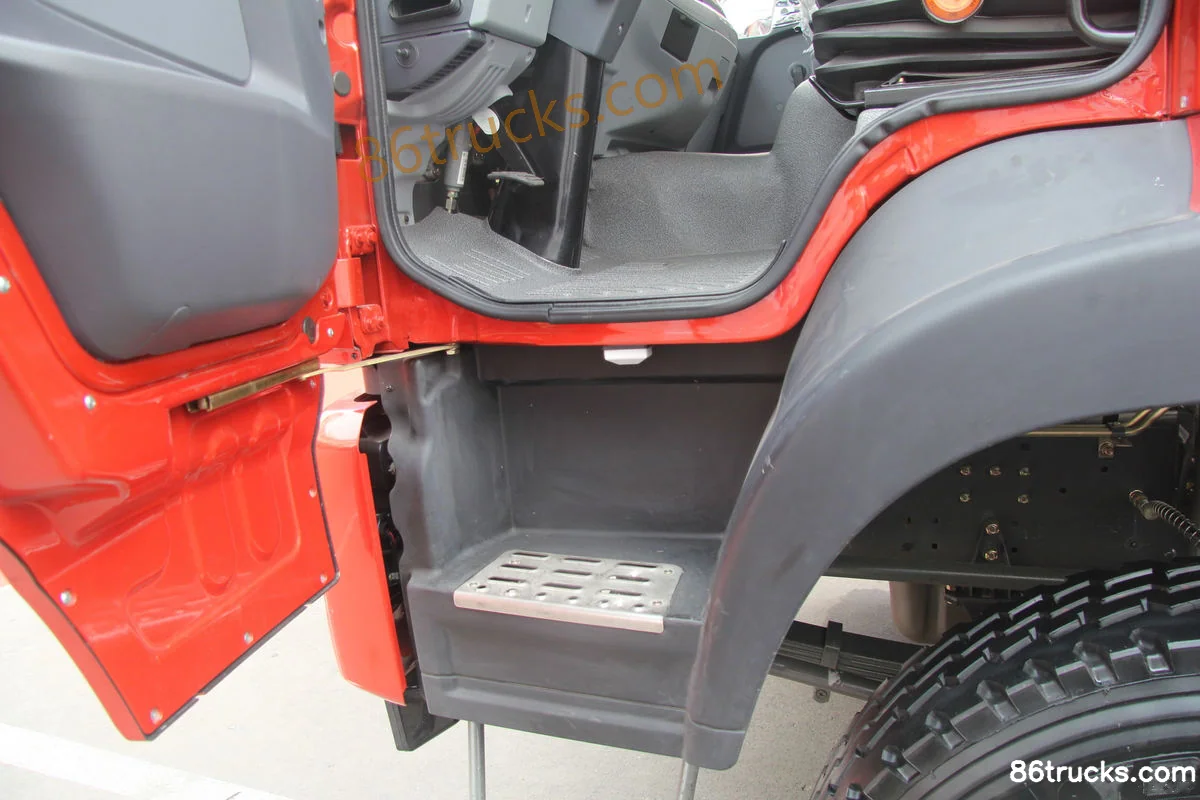

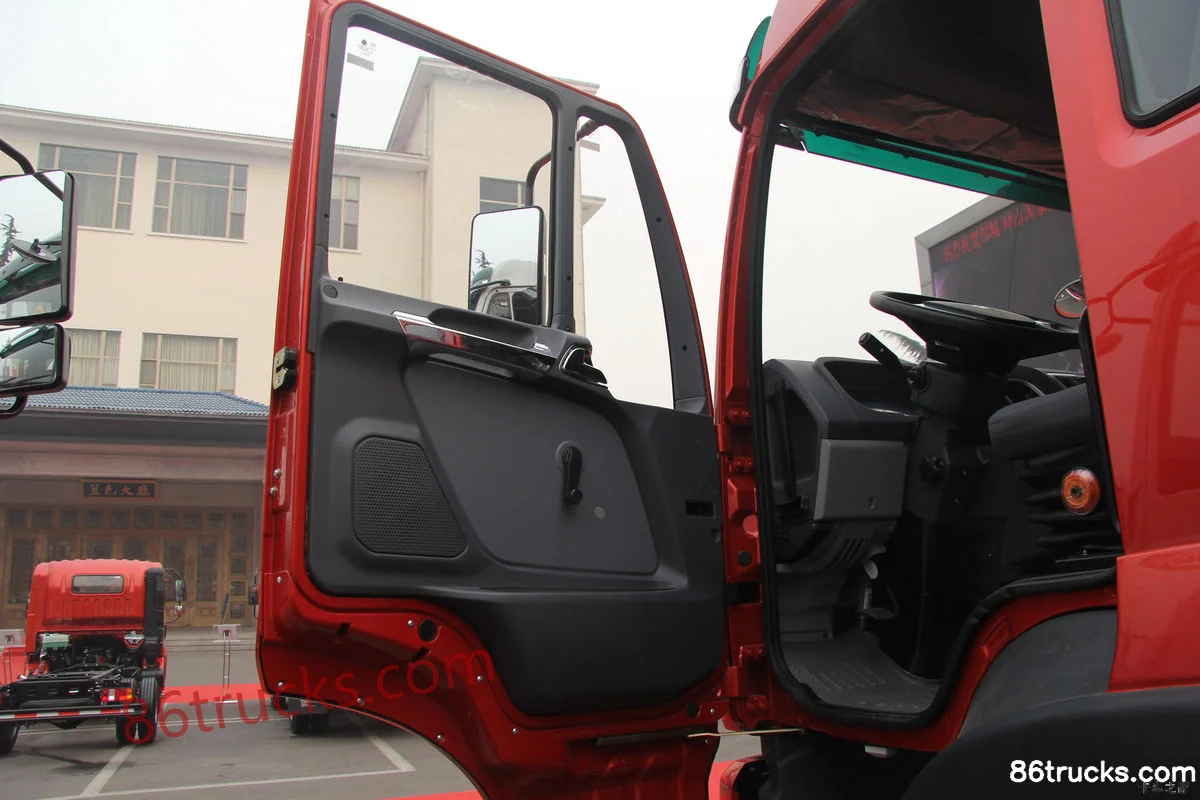

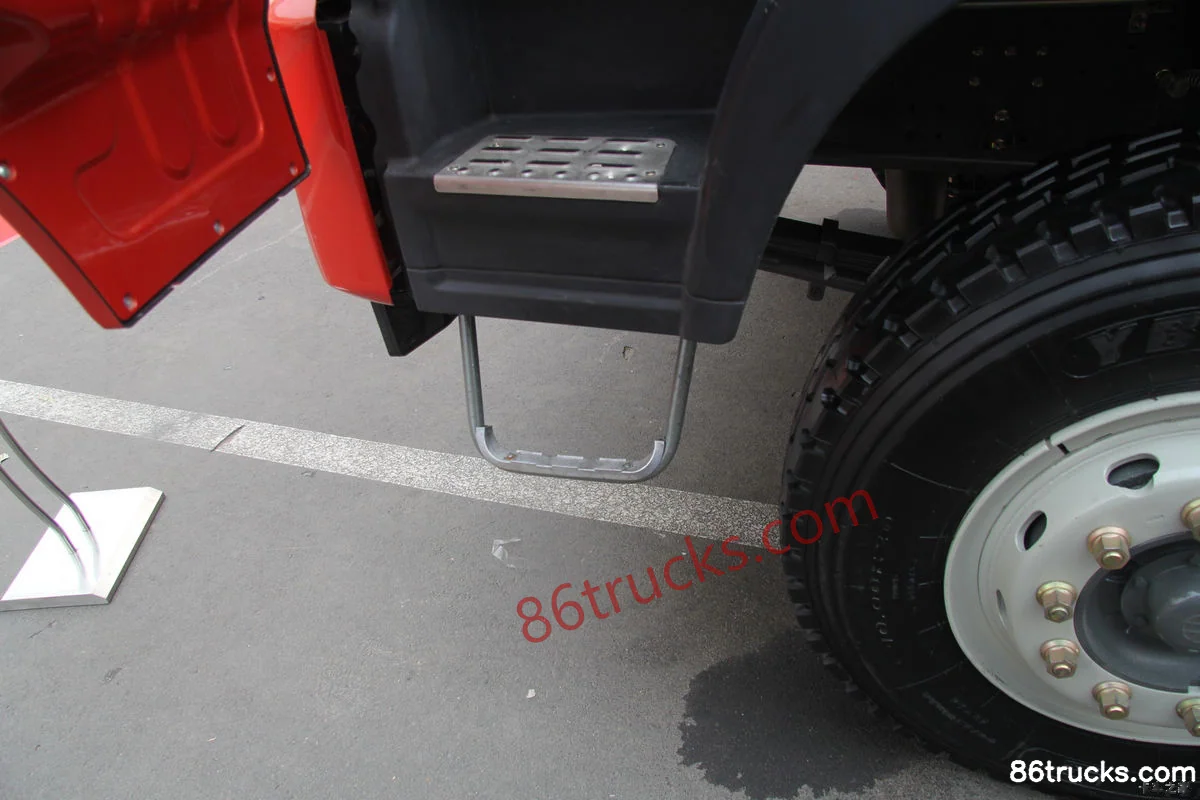

Cab3

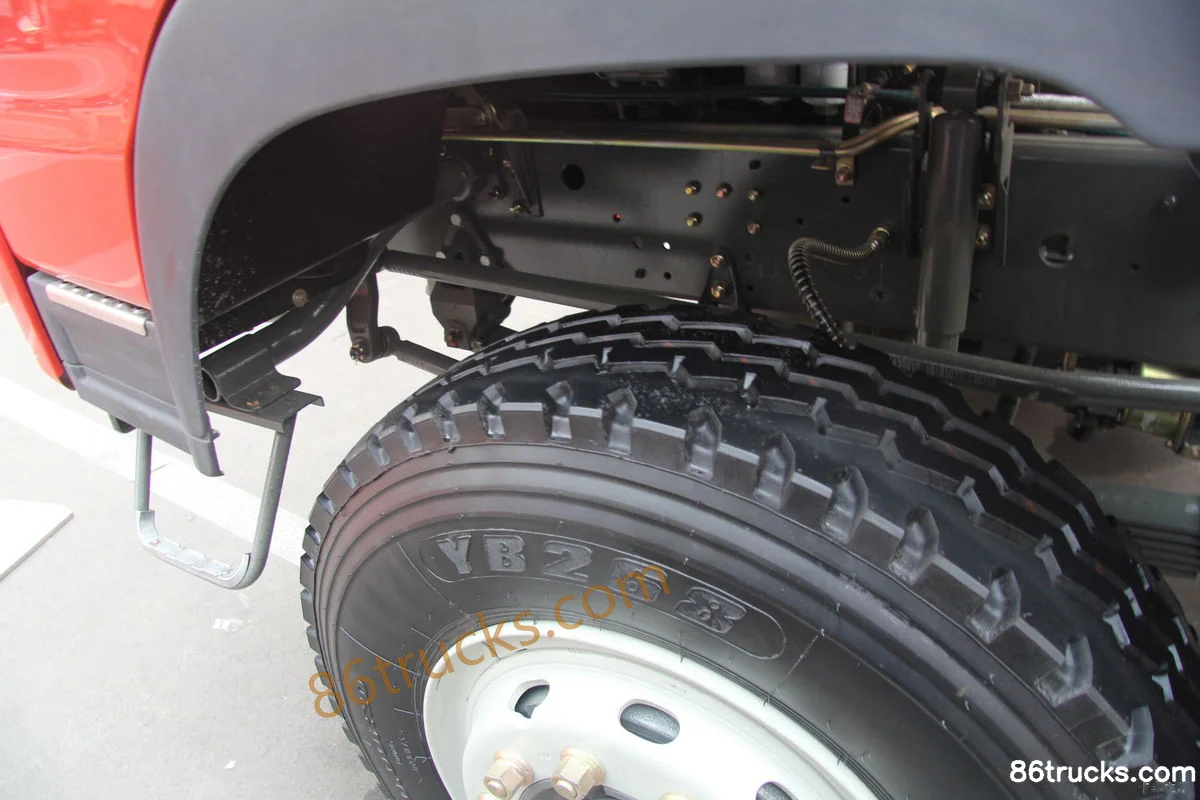

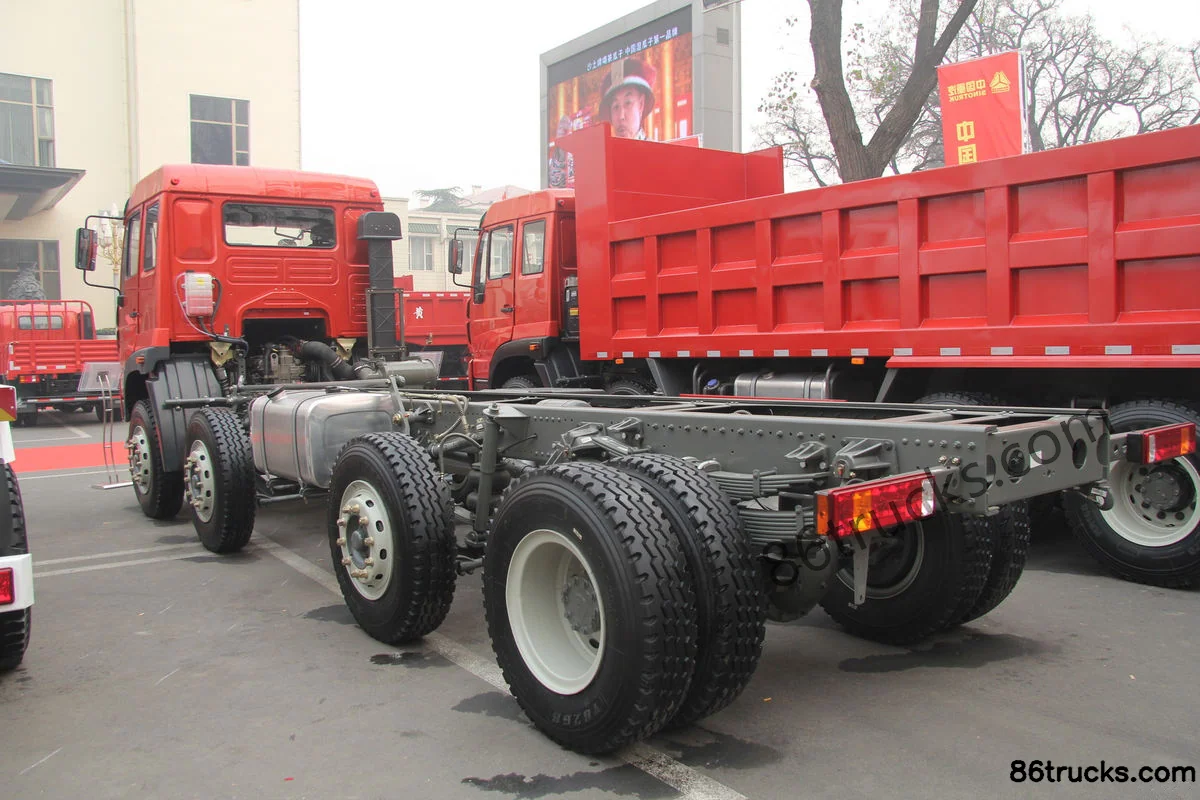

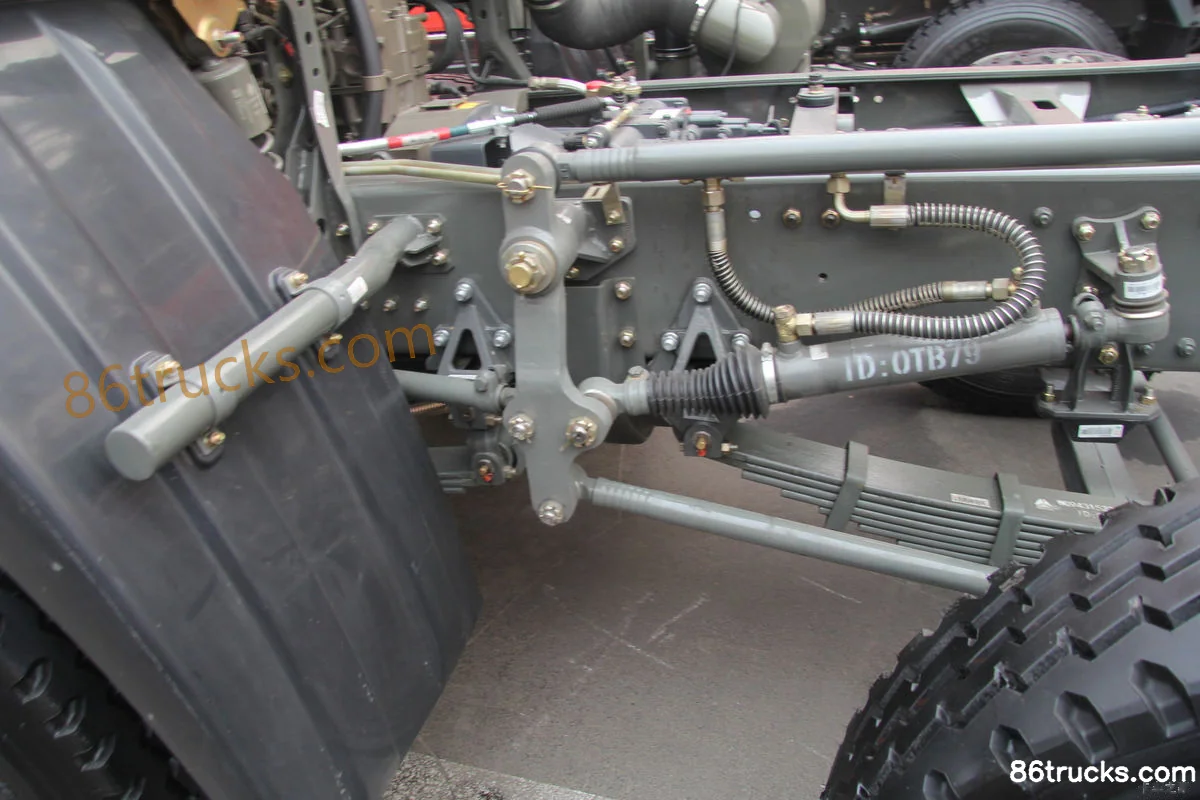

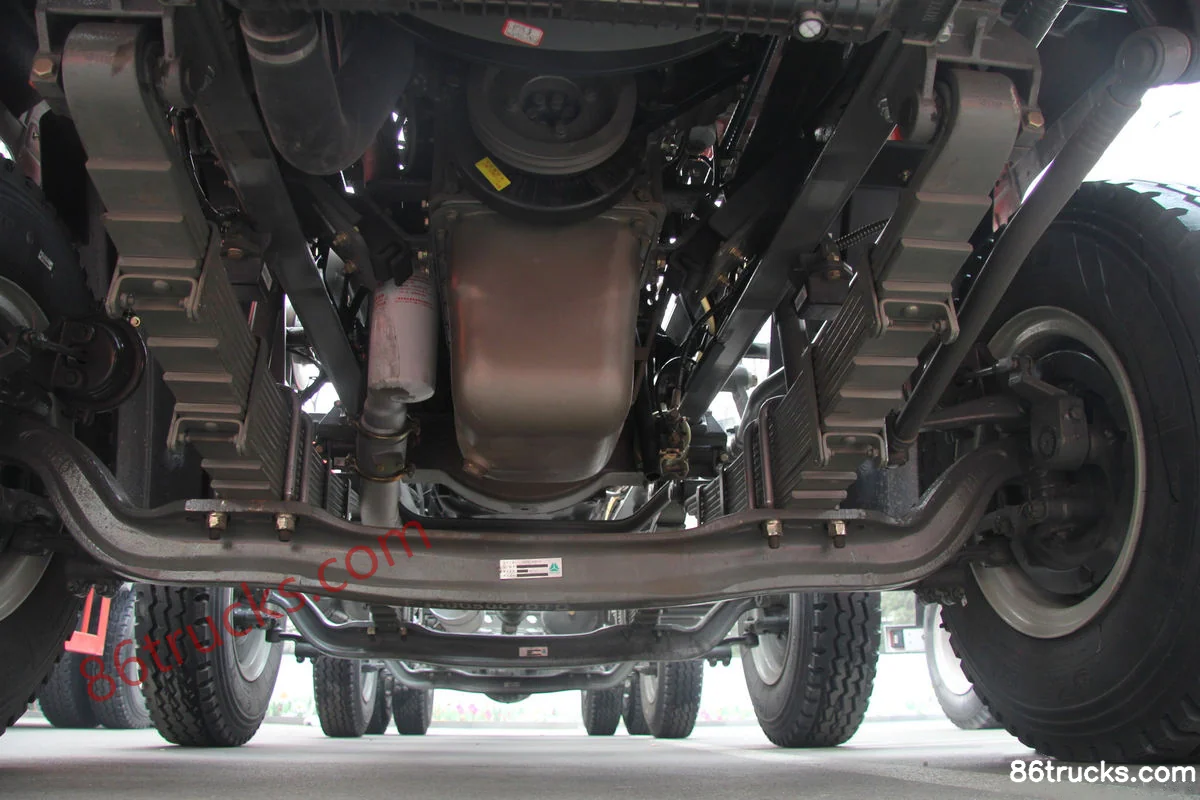

Chassis3

9 photos

FAQ

What emission standard does Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis)?

Key specs of Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis): Drive: 8x2; Horsepower: 240 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) suited for?

Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) differ from other variants in the same series?

Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis) belongs to Sinotruk Fulou H5 Quasi-Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Fulong H5 Heavy Truck 240 hp 8X2(10 wheels) 6.5m Dump Truck (Chassis)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
