FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh

Export reference
MSRP N/A
Tire Size:: 12.00R20 18PR
Cab dimensions:: 10.55×2.55×2.995m
Truck Type:: concrete mixer truck
Front/rear track width:: Front track: 2020/2020mm; Rear track: 1878/1878mm
Vehicle origin:: Qingdao, Changchun
Max. speed:: 89km/h
Rated payload: 14.57ton
Drive 8X4 (12 wheels)
Curb Weight: 16.3ton
Wheelbase: 2000+3400+1350mm

Overview

The FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh is a concrete mixer truck featuring 14.57t payload, 16.3ton GVW, 8X4 (12 wheels) drive and 10.55×2.55×2.995m cab.

8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.55×2.55×2.995m
Truck Type: concrete mixer truck
Drive type: 8X4
Wheelbase: 2000+3400+1350mm
Front/rear track width: Front track: 2020/2020mm; Rear track: 1878/1878mm
Vehicle origin: Qingdao, Changchun
Curb Weight: 16.3ton
Rated payload: 14.57ton
Max. speed: 89km/h
Front/rear suspension: 1.5/2.3m
electric motor
Motor 1 Brand: FAW Jiefang
Motor 1 Model: CAM400PT51
Motor Type: Permanent magnet synchronous motor
Peak power: 360kW
Body Parameters
Mixing drum capacity: 6.67m³
Vehicle certification code: CA5310GJBP66L4T4FCEV
Body Brand: FAW Jiefang
Chassis Specs
Chassis Series: FAW JiefangJ6P
Front axle description: Axle F7N-2050 front axle
Frame Dimensions: 300×80×(8+5)mm
rear axle description: Axle ф300 cast iron wheel reduction axle
Axle ratio: 5.921
Transmission Parameters
Number of gears: 6Gear
Transmission Model: Fast Gear 6E240
Tire
Tire Size: 12.00R20 18PR
Number of tires: 12pcs

Photos

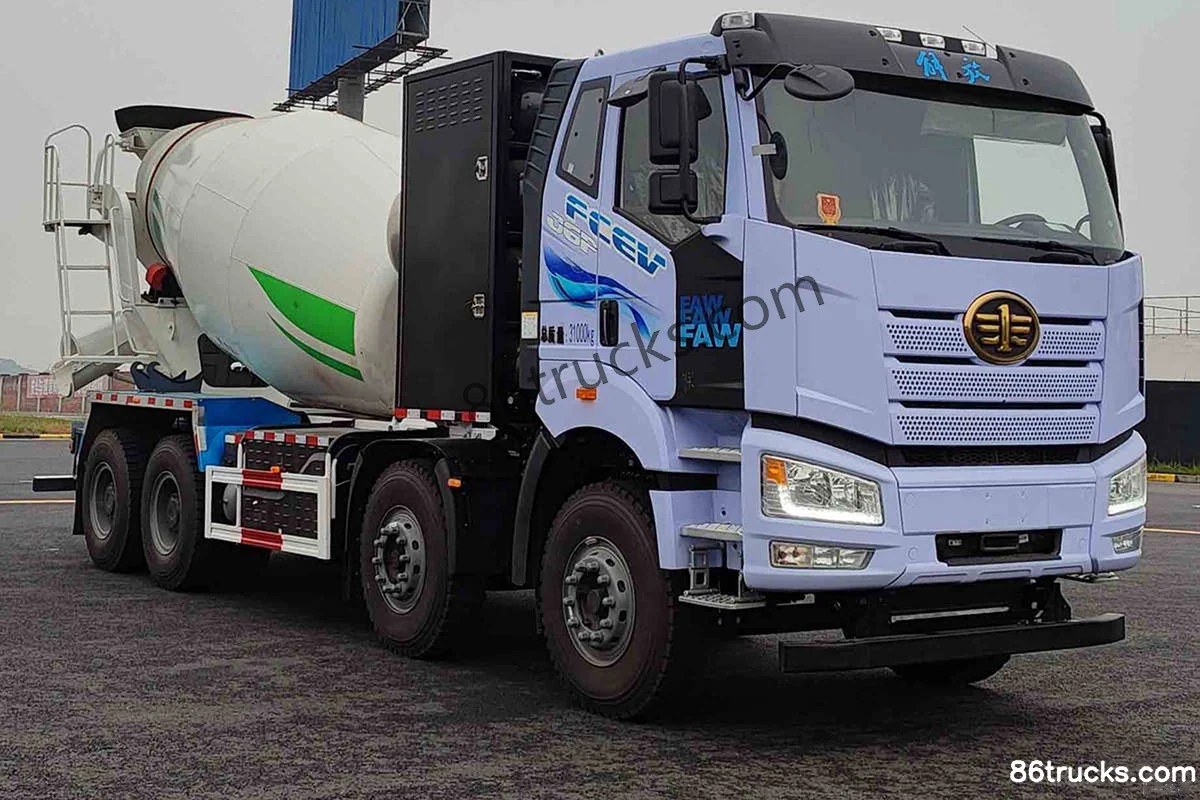

Exterior1

1 photos

FAQ

What are the key specs of FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh?

Key specs of FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh: Drive: 8x4. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh suited for?

FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh differ from other variants in the same series?

FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh belongs to FAW Jiefang J6P Heavy Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang J6P 8X4(12 wheels) 6.67m³ Fuel Cell Concrete Mixer Truck CATL 140.95kWh?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
