Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck

Export reference
MSRP N/A
Emission: China IV
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 7.615ton
Wheelbase:: 4400mm
Tire Size:: 9.00-20, 9.00R20 (with spare tire)

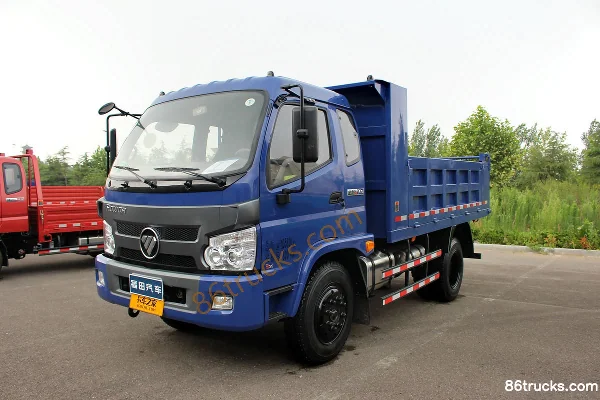

Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck exterior
Rated payload: 7.99ton
Drive 4X2 (6 wheels)
Horsepower 122
Cargo box type: Dump type

Overview

The Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck is a Light Truck featuring 7.99t payload, 15.8t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YangchaiYZ4DB2-40 engine, 122 hp, China IV emissions and Sinotruk transmission.

China IV 122 Diesel 4X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): BJ3165DJPFG-2
Drive type: 4X2
Wheelbase: 4400mm
engine: YangchaiYZ4DB2-40
transmission: SinotrukHW50508
Rear Axle Ratio: 5.857
Cab length: 8.14m
Cab width: 2.35m
Cab height: 2.65m
Front track width: 1775mm
rear track: 1675mm
Curb Weight: 7.615ton
Rated payload: 7.99ton
GVWR: 15.8ton
Origin: Shandong Zhucheng
tonnage class: Light Truck
Approach angle: 28°
departure angle: 15°
Remarks: A/C Optional
Energy Type: Diesel
Engine parameters
Engine Brand: Yangchai
Engine Model: YZ4DB2-40
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.087L
Emission standard: China IV
Max output power: 90kW
Max hp: 122Horsepower
Max torque: 400N·m
Max torque speed: 1500rpm
Rated speed: 2400rpm
Engine Type: Inline, water-cooled, 4-stroke, turbocharged with intercooler
Transmission Parameters
Transmission Model: SinotrukHW50508
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 5.75m
Cargo box width: 2.2m
Cargo box height: 0.6m
Body Parameters
Lifting type: Three-cylinder side tipper.
Chassis Specs
Front axle allowable load: 5800kg
rear axle description: 1098Z-X
rear axle allowable load: 10000kg
Axle ratio: 5.857
Leaf spring count: 10/12+9
Cab parameters
Sunroof: Manual sunroof
Tire
Tire Size: 9.00-20, 9.00R20 (with spare tire)
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
Power Windows:
Multimedia features
GPS/Beidou driving recorder:
Service brake
Parking brake: Spring brake

Photos

0 photos

FAQ

What emission standard does Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck use, and can it enter my country?

This model is listed as China IV. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck?

Key specs of Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck: Drive: 4x2; Horsepower: 122 hp; Emission: China IV; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck suited for?

Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck differ from other variants in the same series?

Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck belongs to Foton King Light Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Foton KingKong 122hp 4X2(6 wheels) 5.75m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
