Shantui Excavator JCM913D Crawler Excavator

Export reference
MSRP N/A
Model:: JCM913D
Engine Model:: crawler excavator
Tonnage:: 13ton
Bucket capacity:: 0.55cubic meter
Arm Length:: 2500mm
Machine dimensions:: 7.718×2.5×2.674mm
Operating weight: 12.8ton
Bucket type: backhoe
Fuel Tank Capacity: 238L
Product power: Conventional Power

Overview

The SUNWARD Shantui Excavator JCM913D Crawler Excavator is a excavator featuring 12.8ton GVW, backhoe bucket capacity, 238L tank capacity and Conventional Power power. On the powertrain side, it comes with a crawler excavator engine.

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model: JCM913D
Engine Model: crawler excavator
Product power: Conventional Power
Bucket type: backhoe
Tonnage: 13ton
Operating weight: 12.8ton
Bucket capacity: 0.55cubic meter
Arm Length: 2500mm
Machine dimensions: 7.718×2.5×2.674mm
Track shoe width: 500mm
Track gauge: 2000mm
Counterweight ground clearance: 912mm
Min ground clearance: 425cm
Rear Overhang Radius: 2318mm
hydraulic system
Max flow of main pump: 2×108L/min
travel hydraulic circuit: 31.9Mpa
Swing Hydraulic Circuit: 25.5Mpa
performance specs
Travel speed: 3.61/5.59km/h
Bucket digging force: 73.5kN
Arm Digging Force: 60.8kN
Oil capacity
Fuel Tank Capacity: 238L
coolant: 20L
hydraulic oil tank: 120L
Engine Oil Capacity: 15L
Operating Range
Max digging depth: 5537mm
Max digging height: 8495mm
Max unloading height: 6065mm
Max vertical digging depth: 4907mm
Engine parameters
Engine Model: CumminsCummins B3.9-c(Tier2)
Max output power: 86kW

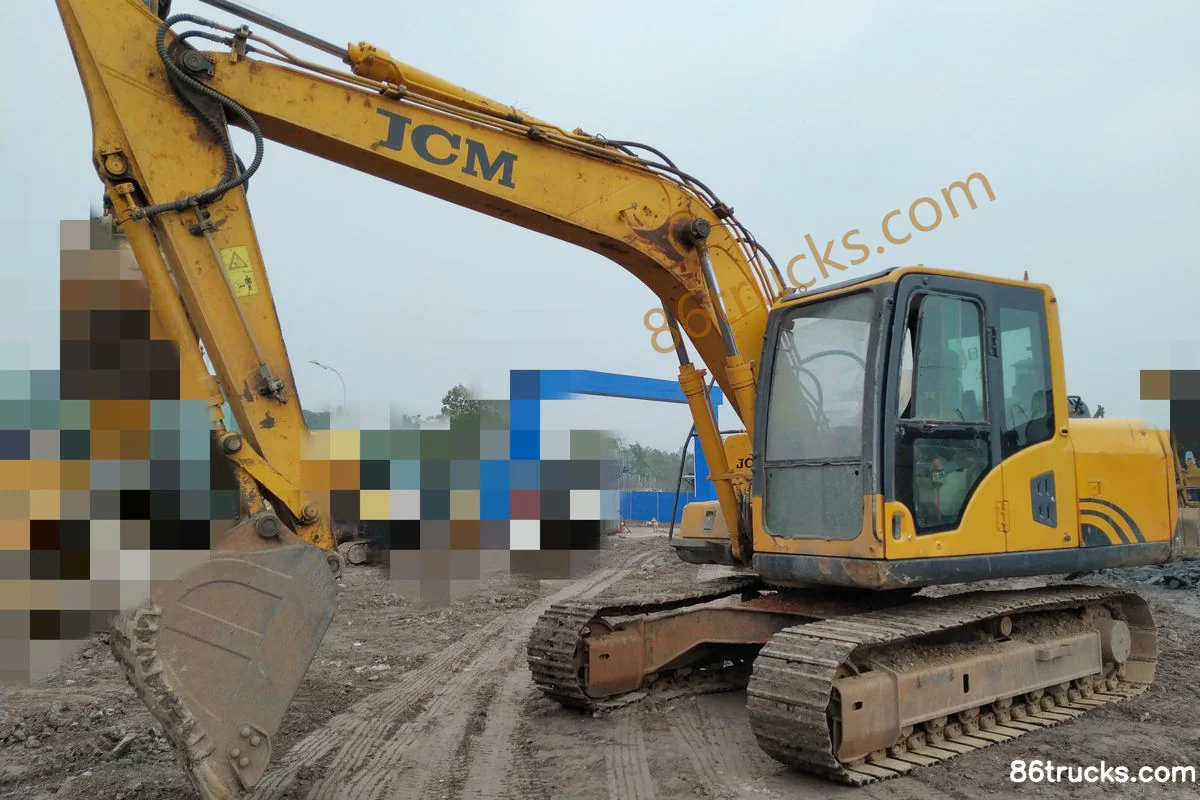

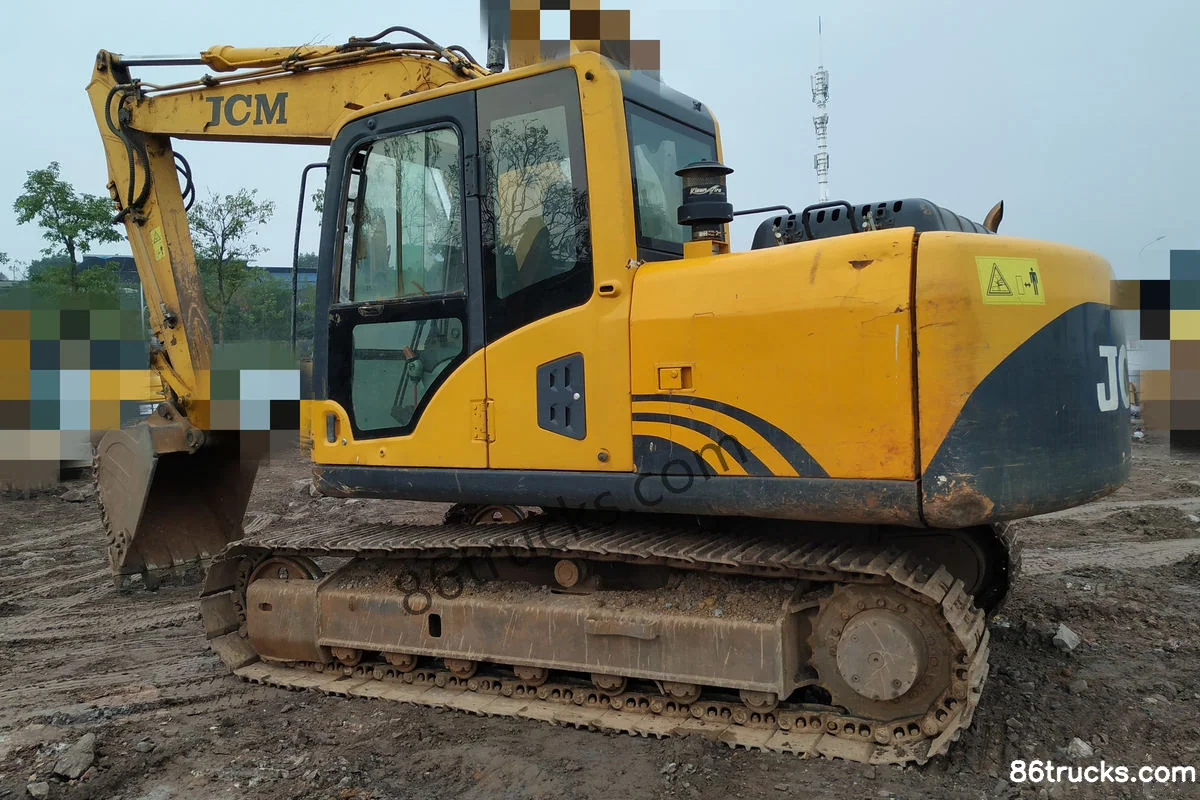

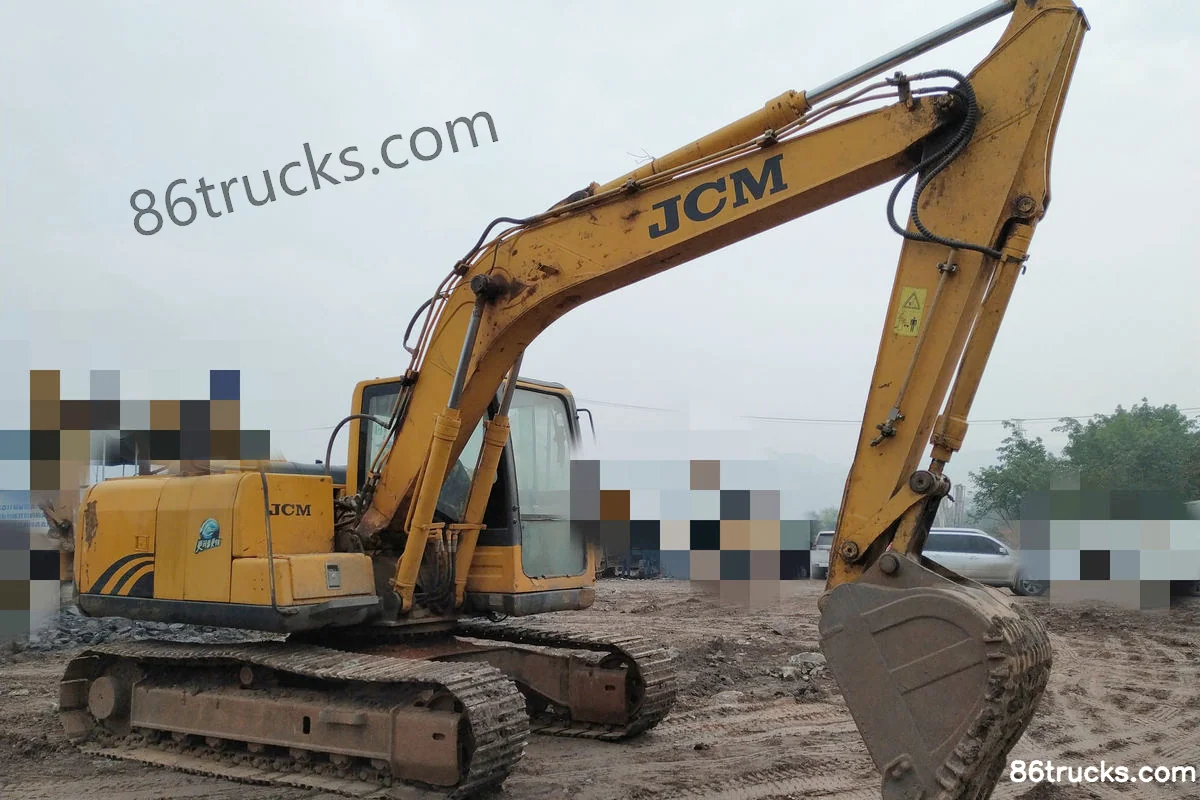

Photos

Exterior3

3 photos

FAQ

What transport jobs is Shantui Excavator JCM913D Crawler Excavator suited for?

Shantui Excavator JCM913D Crawler Excavator is a excavator model; configuration should match the job. State the application, emission and LHD/RHD needs in your quote.

How does Shantui Excavator JCM913D Crawler Excavator differ from other variants in the same series?

Shantui Excavator JCM913D Crawler Excavator belongs to SUNWARD crawler excavator (excavator). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Shantui Excavator JCM913D Crawler Excavator?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Shantui Excavator JCM913D Crawler Excavator?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
