Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.63ton
Wheelbase:: 1800+3025+1400mm
Tire Size:: 11.00R20
Cab dimensions:: 9.8×2.5×3.96m
Truck Type:: Concrete mixer truck
Rated payload: 17.24ton
Drive 8X4 (12 wheels)
Horsepower 340
Emission China V

Overview

The Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) is a concrete mixer truck featuring 17.24t payload, 13.63ton GVW, 8X4 (12 wheels) drive and SitrakG5 cab. On the powertrain side, it comes with 340 hp, China V emissions and Diesel fuel.

China V 340 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 9.8×2.5×3.96m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Yuanjiang, Hunan
Front/rear track width: Front: 2035/2035mm; Rear: 1850/1850
Wheelbase: 1800+3025+1400mm
Curb Weight: 13.63ton
Rated payload: 17.24ton
Max. speed: 82km/h
Front/rear suspension: 1.43/2.17m
Body Parameters
Mixing drum capacity: 7.9m³
Vehicle certification code: ZLJ5312GJBKE
Body Brand: ZOOMLION
Engine parameters
Engine Model: WeichaiWP8.340E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China V
Max output power: 250kW
Max hp: 340Horsepower
Rated speed: 2100rpm
Engine Type: High-pressure common rail+EGR
Chassis Specs
Chassis Series: G5
Chassis Model: ZZ1316N306GE1
Leaf spring count: 11/11/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: SinotrukHW15710L
Cab parameters
Cab: SitrakG5
Tire
Tire Size: 11.00R20
Number of tires: 12pcs

Photos

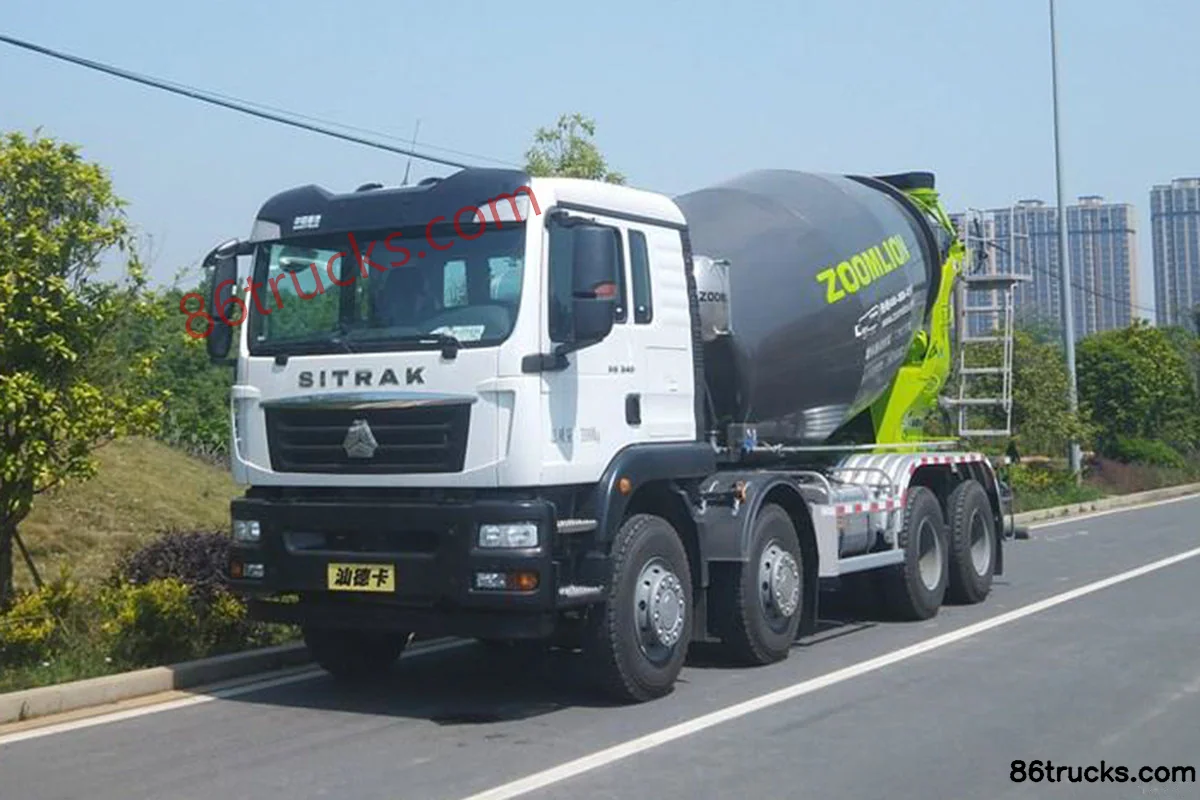

Exterior1

1 photos

FAQ

What emission standard does Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion)?

Key specs of Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion): Drive: 8x4; Horsepower: 340 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) suited for?

Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) differ from other variants in the same series?

Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion) belongs to ZOOMLION Sitrak Chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk Sitrak G5 340 hp 8X4(12 wheels) 7.9 m³ concrete mixer truck (Zoomlion)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
