ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine

Export reference
MSRP N/A
Intake type:: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load:: ≤195g/kW.h
noise at 1m:: 116dB
Suitable Range: 6-9m luxury coach, city bus, etc.
Engine Model: CY4102-N5K
Engine Series: CY4102-N Natural Gas Series

Overview

The ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine is a parts product with fit for 6-9m luxury coach, city bus, etc. and spec CY4102-N5K.

China V 143 Natural gas (LNG/CNG)

Model Specs

Legend: ● Standard ○ Optional - N/A

Engine parameters
Engine Series: CY4102-N Natural Gas Series
Engine manufacturer: Dongfeng Chaoyang Chaochai Power Co., Ltd.
Suitable Range: 6-9m luxury coach, city bus, etc.
Intake type: Turbocharged Air-to-Air Intercooling
Min. fuel consumption at full load: ≤195g/kW.h
Engine net weight: 340kg
Engine Dimensions: 820x650x830mm
noise at 1m: 116dB
Compression ratio: 10:1
Bore × Stroke: 102x118mm
Valves per cylinder: 2pcs
firing order: 1-3-4-2
Engine Brand: Chaochai
Engine Model: CY4102-N5K
Number of cylinders: 4cylinder
fuel type: Natural gas (LNG/CNG)
Cylinder arrangement: Inline
Displacement: 3.856L
Emission standard: China V
Max output power: 105kW
Max hp: 143Horsepower
Max torque: 460N·m
Max torque speed: 1400-1800rpm
Rated speed: 2800rpm
Engine Type: Inline 4-cylinder, water-cooled, 4-stroke, turbocharged with intercooler, CNG, LNG single fuel

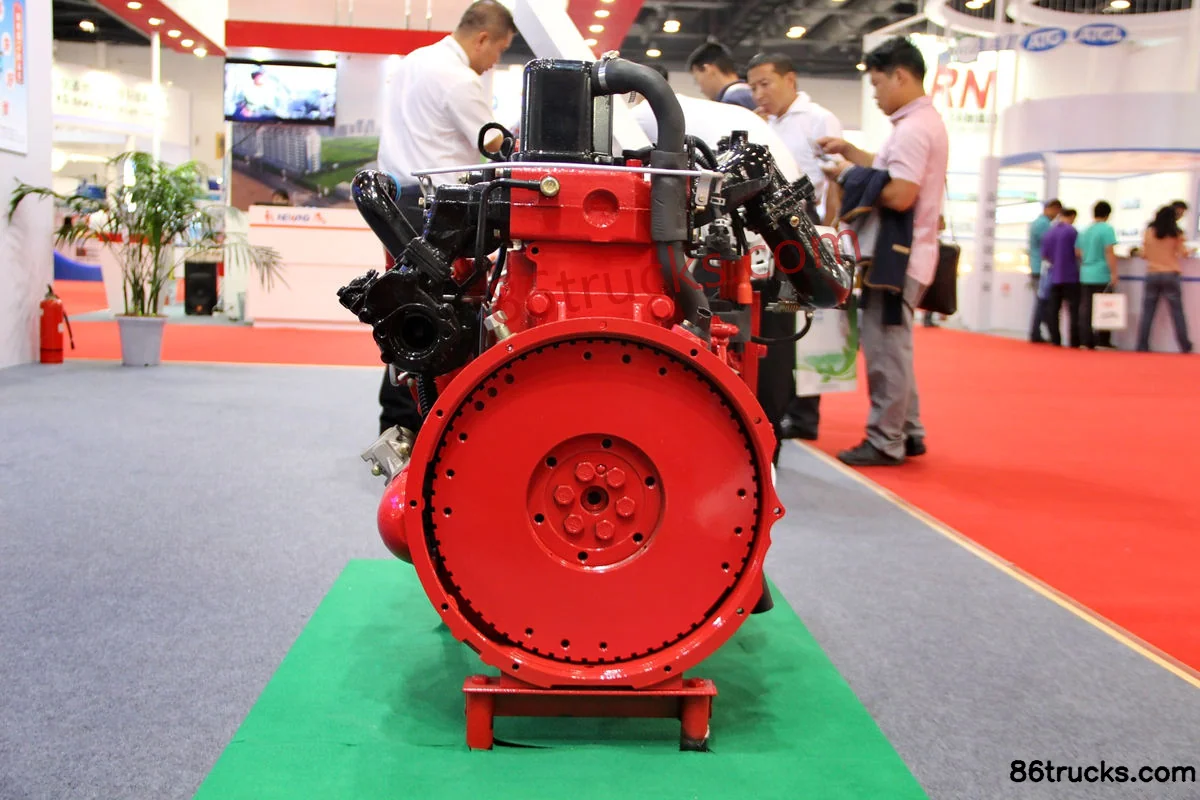

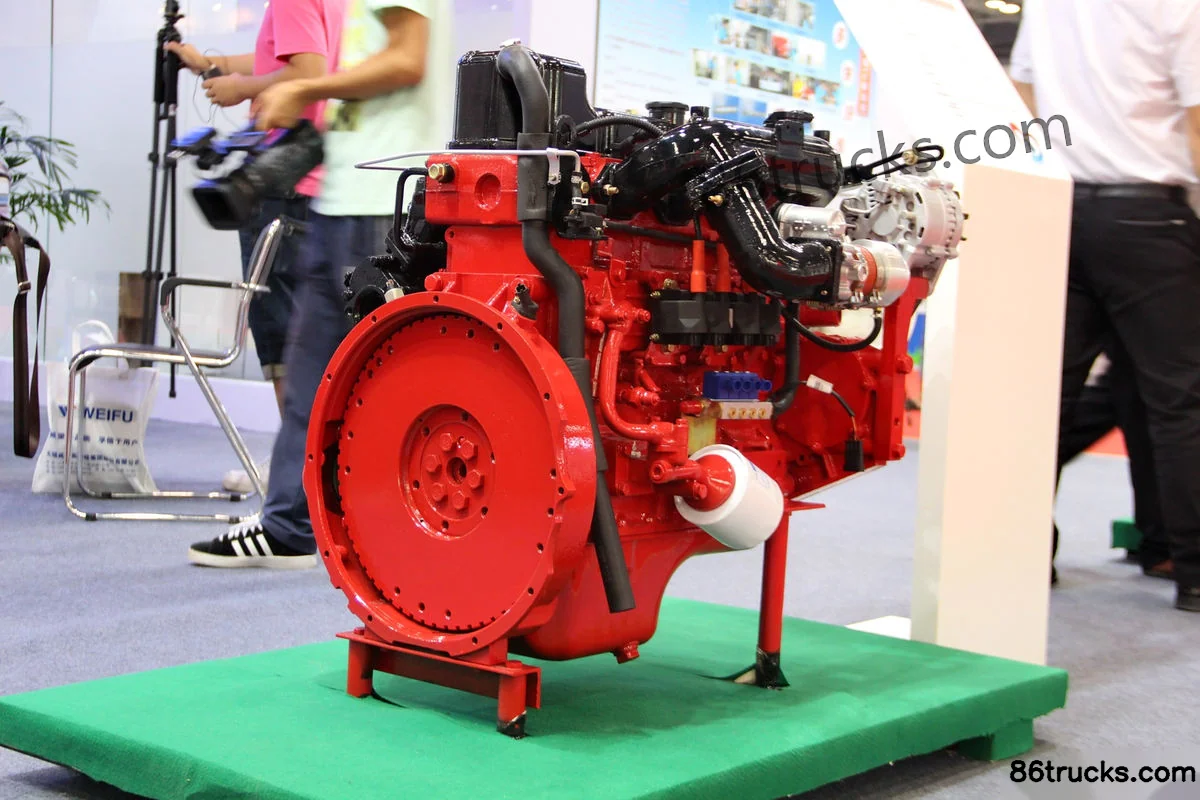

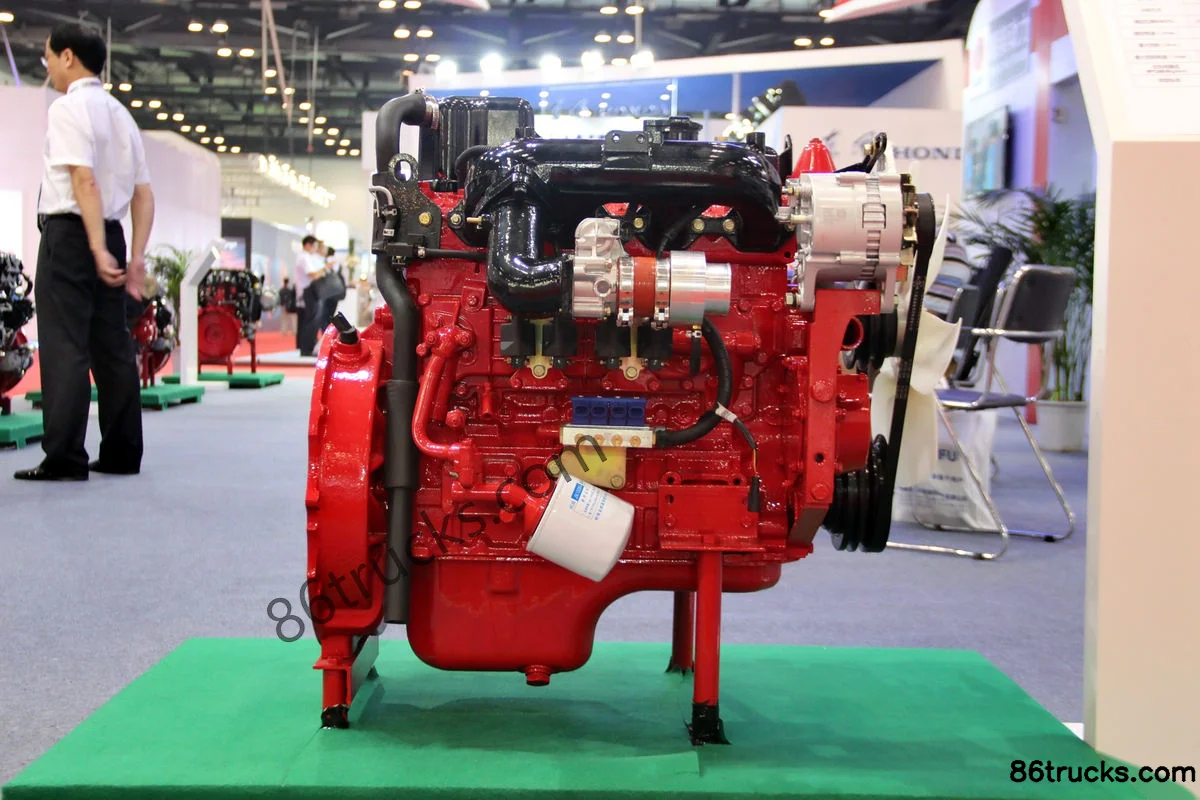

Photos

Exterior3

3 photos

FAQ

What emission standard does ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine?

Key specs of ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine: Horsepower: 143 hp; Emission: China V; Fuel: Natural gas (LNG/CNG). See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine suited for?

Match ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine differ from other variants in the same series?

ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine belongs to Chaochai CY4102-N Natural Gas Series (engine). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export ChaochaiCY4102-N5K 143hp 3.86L China V Natural Gas Engine?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
