Jindong JDS545 5-speed manual transmission

Export reference
MSRP N/A
Features:: 1. JDS545 and JDS540T have basically same structure; five forward gears, one reverse; difference: JDS545 has longer housing and stronger gears. 2. 1st/reverse sliding sleeve; 2nd/3rd, 4th/5th lock-pin synchronizer. 3. Remote or direct shift control. 4. With front and rear auxiliary boxes; manual or pneumatic auxiliary box. 5. Optional parking brake and PTO.
Max input torque:: 430N·m
1st gear ratio:: 7.311

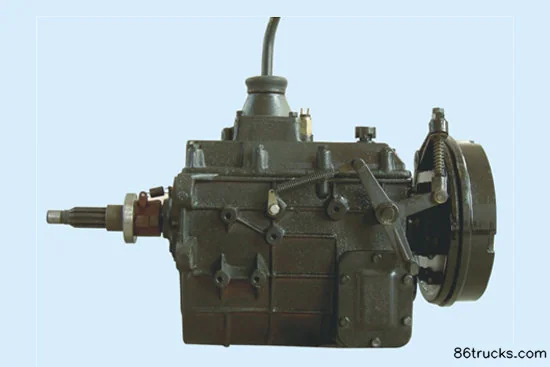

Jindong JDS545 5-speed manual transmission exterior
Transmission Model: JDS545
Transmission Brand: Jindong
Matching Range: OEM partners: Foton: Knight 4560, Knight 3800. Dongfeng: Dongfeng (26 seats and below). NAVECO: Yuejin Pioneer series. Shenyang Jinbei: Jinbei Nuclear Power; Engines: YC4F115, CY4102-C3C, YC2115ZQ, CA4102ZQ, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102, YC4D120-21, YC4E135-21, YC4108Q

Overview

The Jindong JDS545 5-speed manual transmission is a parts product with spec JDS545.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: Jindong
Transmission series: 5-speed series
Matching Range: OEM partners: Foton: Knight 4560, Knight 3800. Dongfeng: Dongfeng (26 seats and below). NAVECO: Yuejin Pioneer series. Shenyang Jinbei: Jinbei Nuclear Power; Engines: YC4F115, CY4102-C3C, YC2115ZQ, CA4102ZQ, CA4DX23-110, YC4110ZQ, YZ4DB1-30, YC4108, CA4102, YC4D120-21, YC4E135-21, YC4108Q
Features: 1. JDS545 and JDS540T have basically same structure; five forward gears, one reverse; difference: JDS545 has longer housing and stronger gears. 2. 1st/reverse sliding sleeve; 2nd/3rd, 4th/5th lock-pin synchronizer. 3. Remote or direct shift control. 4. With front and rear auxiliary boxes; manual or pneumatic auxiliary box. 5. Optional parking brake and PTO.
Max input torque: 430N·m
1st gear ratio: 7.311
Main box center distance: 121.125mm
2nd gear ratio: 4.312
3rd gear ratio: 2.45
4th gear ratio: 1.534
5th gear ratio:
Reverse Gear 1 Ratio: 7.66
Transmission weight: 125kg
Transmission oil capacity: 5.5L
Control type: Available with remote control and direct control
Number of gears: 5Gear
shift type: Manual
Transmission Model: JDS545
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:

Photos

0 photos

FAQ

What transport jobs is Jindong JDS545 5-speed manual transmission suited for?

Match Jindong JDS545 5-speed manual transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Jindong JDS545 5-speed manual transmission differ from other variants in the same series?

Jindong JDS545 5-speed manual transmission belongs to Jindong 5-speed series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Jindong JDS545 5-speed manual transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Jindong JDS545 5-speed manual transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
