CA10TAX160
EXW
Export quote
FAW Jiefang CA10TA(X) Series transmission

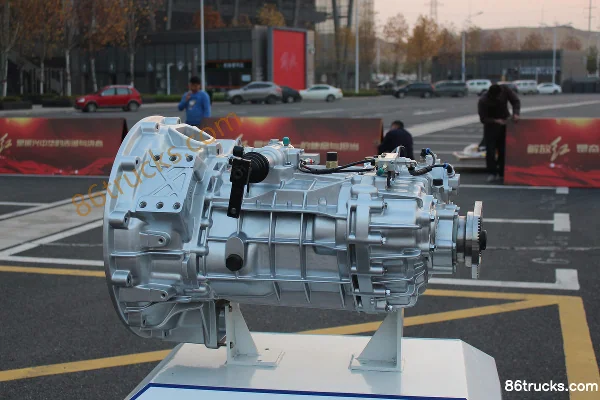

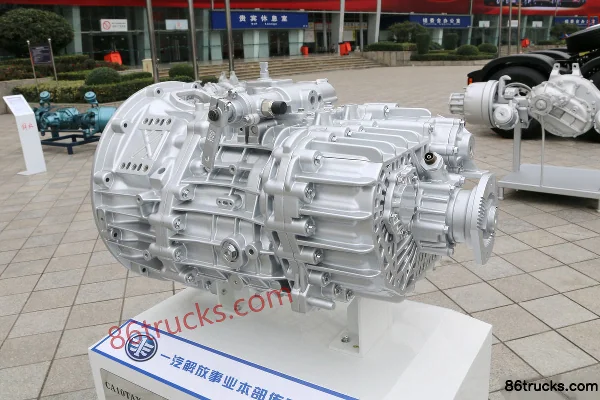

Main model photos
12 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| CA10TAX160 | — | ||
| FAW Jiefang CA10TAX190M5 10-Speed Manual Transmission | — | ||
| FAW Jiefang CA10TAX130M5 10-Speed Manual Transmission | — | ||
| FAW Jiefang CA10TAX160M5 10-Speed Manual Transmission | — | ||
| FAW Jiefang CA10TA190M5 10-Speed Manual Transmission | — |
FAW Jiefang CA10TAX190M5 10-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA10TAX130M5 10-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA10TAX160M5 10-Speed Manual Transmission
EXW
Export quote
FAW Jiefang CA10TA190M5 10-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA10TA(X) series
Features: FAW has developed a 10-speed transmission with a parallel hydraulic retarder to meet the driving safety needs of users on special road conditions such as high speed, heavy load, slopes, and mountain roads. It provides auxiliary braking function, reduces the frequency of service brake use, shortens braking distance, and improves overall vehicle safety. / FAW Group's twin-countershaft full-synchronizer transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 10 forward gears and 2 reverse gears. Full synchronizer design for smooth, reliable shifting. / FAW Group's twin-countershaft full-aluminum housing transmission developed over two years for the domestic heavy truck market. Features 10 forward gears and 2 reverse gears, incorporating global twin-countershaft advantages with optimizations for the Chinese market—fuel-efficient and durable. / Twin countershaft, main & auxiliary box structure, auxiliary box with synchronizer / FAW Group's twin-countershaft transmission developed over two years for the domestic heavy truck market. Features 10 forward gears and 2 reverse gears, incorporating global twin-countershaft advantages with optimizations for the Chinese market—fuel-efficient and durable.
Matching Range: Suitable for matching 260-350 hp various highway cargo trucks, input torque range 1300-1900 Nm, engineering dump trucks, highway tractor trucks, fire trucks and other special vehicles. / Suitable for FAW Jiefang J6L tractor trucks, cargo trucks, and special-purpose vehicles (cold chain, green channel, LTL express, etc.), widely adapted to current road conditions and transport situations in China. / Suitable for matching 280-350 hp, input torque range 1300-1900 Nm, various highway cargo trucks, engineering dump trucks, highway tractor trucks, fire trucks and other special vehicles. / Suitable for matching 240-350 hp, input torque range 1300-1900 Nm, various highway cargo trucks, engineering dump trucks, highway tractor trucks, fire trucks and other special vehicles.
Max input torque: 1900 / 1300 / 1600N·m
1st gear ratio: 10.957 / 14.734 / 10.976
Main box center distance: 148.18 / 110mm
2nd gear ratio: 8.18 / 11 / 8.125
synchronizer: Yes (Auxiliary box synchronizer, main box sliding gear sleeve) / Yes (Full synchronizer for main and auxiliary boxes) / Yes
3rd gear ratio: 6.073 / 8.166 / 6.032
4th gear ratio: 4.464 / 6.003 / 4.437
5th gear ratio: 3.319 / 4.464 / 3.297
Auxiliary box center distance: 156 / 165 / 130 / 148.18mm
6th gear ratio: 2.455 / 3.301 / 2.474
7th gear ratio: 1.833 / 2.464 / 1.831
8th gear ratio: 1.361 / 1.83 / 1.36
Reverse Gear 1 Ratio: 11.227 / 15.098 / 11.152
Transmission weight: 455 / 159 / 245 / 254 / 369 / 342kg
9th gear ratio: 1 / 1.345
Transmission oil capacity: 17/17.5 (with PTO) / 11.5 / 15/15.5 (PTO) / 13/13.5 (with PTO)L
10-speed gear ratio: 0.744 / 1 / 0.743
Reverse Gear 2 Ratio: 2.515 / 3.382
Control type: direct control, remote single/double lever control
Number of gears: 10Gear
shift type: Manual
Transmission Model: CA10TAX160 / CA10TAX190M5 / CA10TAX130M5 / CA10TAX160M5 / CA10TA190M5 / CA10TA160M5 / CA10TA130M5 / CA10TAX130M1 / CA10TA190M3 / CA10TAX160M3 / CA10TA160M3 / CA10TAX190M3 / CA10TAX160M / CA10TA160M / CA10TAX130M / CA10TA130M / CA10TAX190M overdrive / CA10TA190M
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2 / 1pcs
FAQ
What kind of truck is FAW Jiefang FAW Jiefang CA10TA(X) Series transmission?
FAW Jiefang FAW Jiefang CA10TA(X) Series is an export-oriented transmission lineup with about 19 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does FAW Jiefang CA10TA(X) Series transmission include?
FAW Jiefang CA10TA(X) Series transmission currently lists about 19 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for FAW Jiefang CA10TA(X) Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
