FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission

Export reference
MSRP N/A
Features:: FAW Group's twin-countershaft full-synchronizer transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 10 forward gears and 2 reverse gears. Full synchronizer design for smooth, reliable shifting.
Max input torque:: 1300N·m
1st gear ratio:: 10.976
FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission exterior
View more photos (3)
Transmission Model: CA10TAX130M1
Transmission Brand: FAW Jiefang
Matching Range: Suitable for FAW Jiefang J6L tractor trucks, cargo trucks, and special-purpose vehicles (cold chain, green channel, LTL express, etc.), widely adapted to current road conditions and transport situations in China.

Overview

The FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission is a parts product with spec CA10TAX130M1.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Transmission Parameters
Transmission Brand: FAW Jiefang
Transmission series: CA10TA(X) series
Matching Range: Suitable for FAW Jiefang J6L tractor trucks, cargo trucks, and special-purpose vehicles (cold chain, green channel, LTL express, etc.), widely adapted to current road conditions and transport situations in China.
Features: FAW Group's twin-countershaft full-synchronizer transmission for the medium truck market. Main box manual, auxiliary box pneumatic; 10 forward gears and 2 reverse gears. Full synchronizer design for smooth, reliable shifting.
Max input torque: 1300N·m
1st gear ratio: 10.976
synchronizer: Yes (Full synchronizer for main and auxiliary boxes)
Main box center distance: 110mm
2nd gear ratio: 8.125
3rd gear ratio: 6.032
4th gear ratio: 4.437
5th gear ratio: 3.297
Auxiliary box center distance: 130mm
6th gear ratio: 2.474
7th gear ratio: 1.831
8th gear ratio: 1.36
Reverse Gear 1 Ratio: 11.152
Transmission weight: 159kg
Transmission oil capacity: 11.5L
9th gear ratio:
10-speed gear ratio: 0.743
Number of gears: 10Gear
Transmission Model: CA10TAX130M1
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears:

Photos

Exterior3

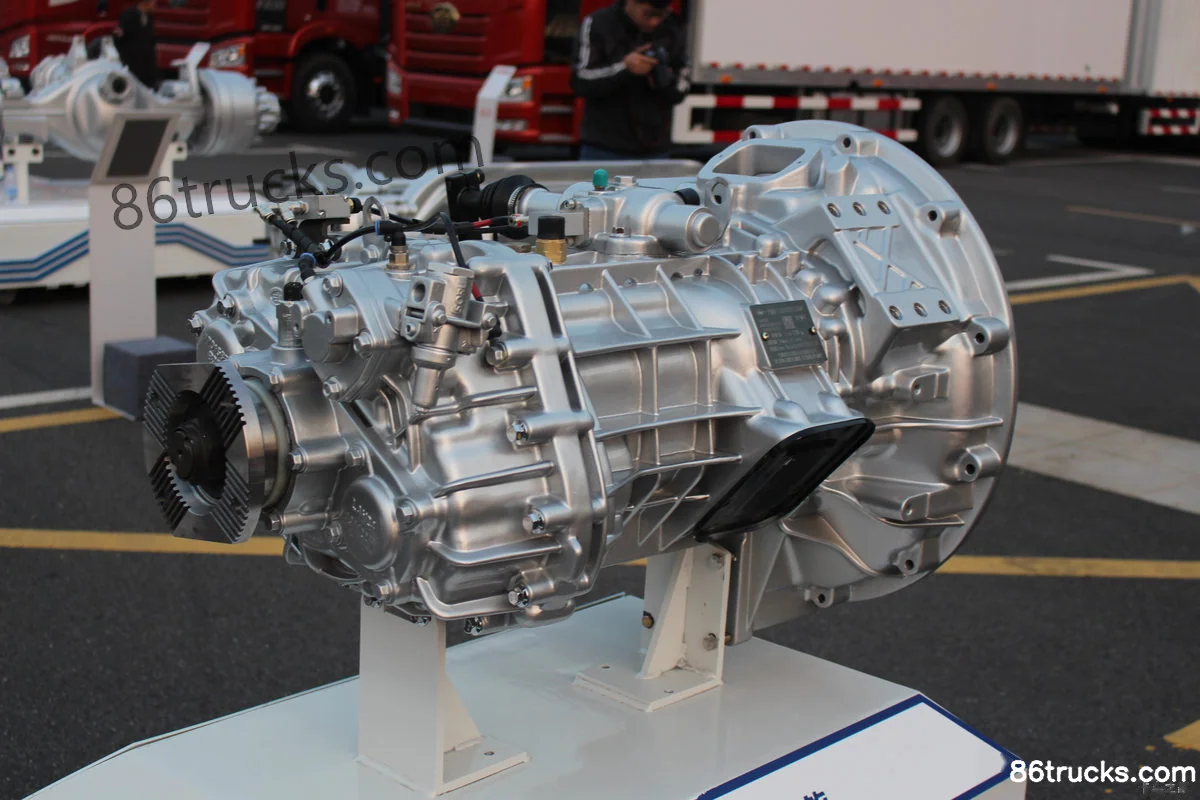

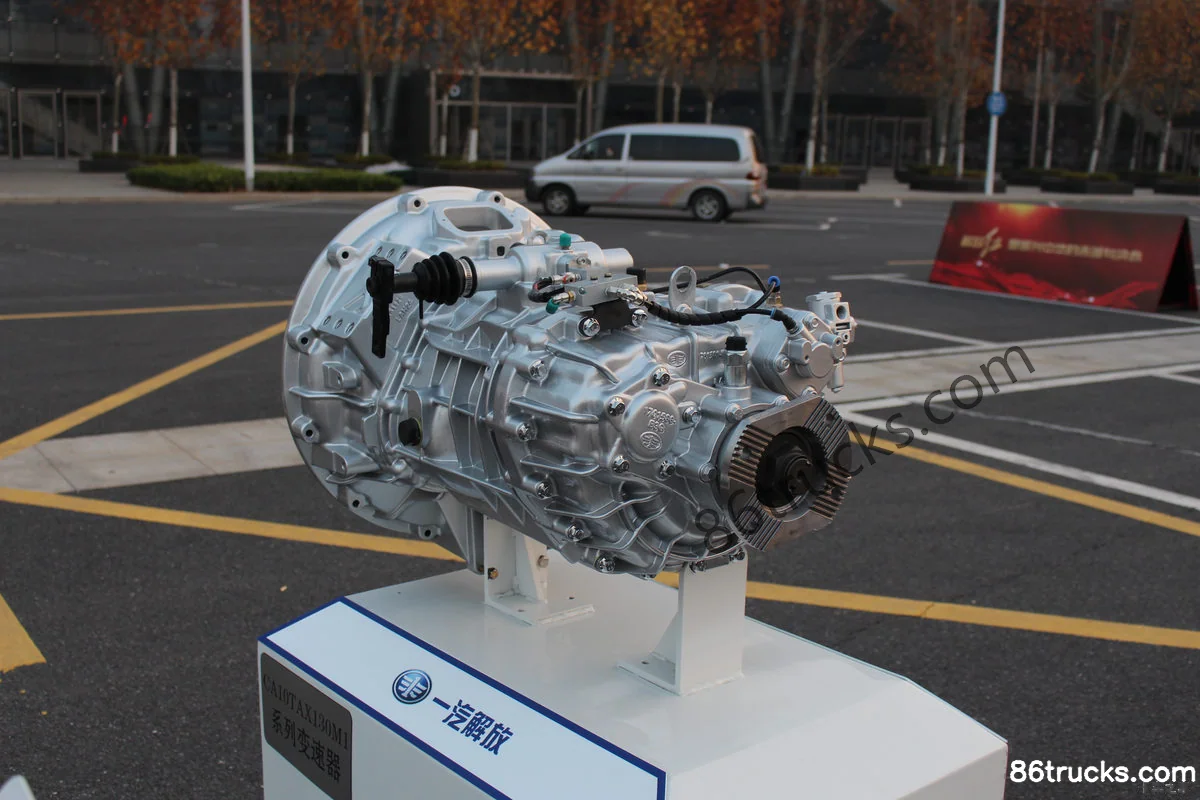

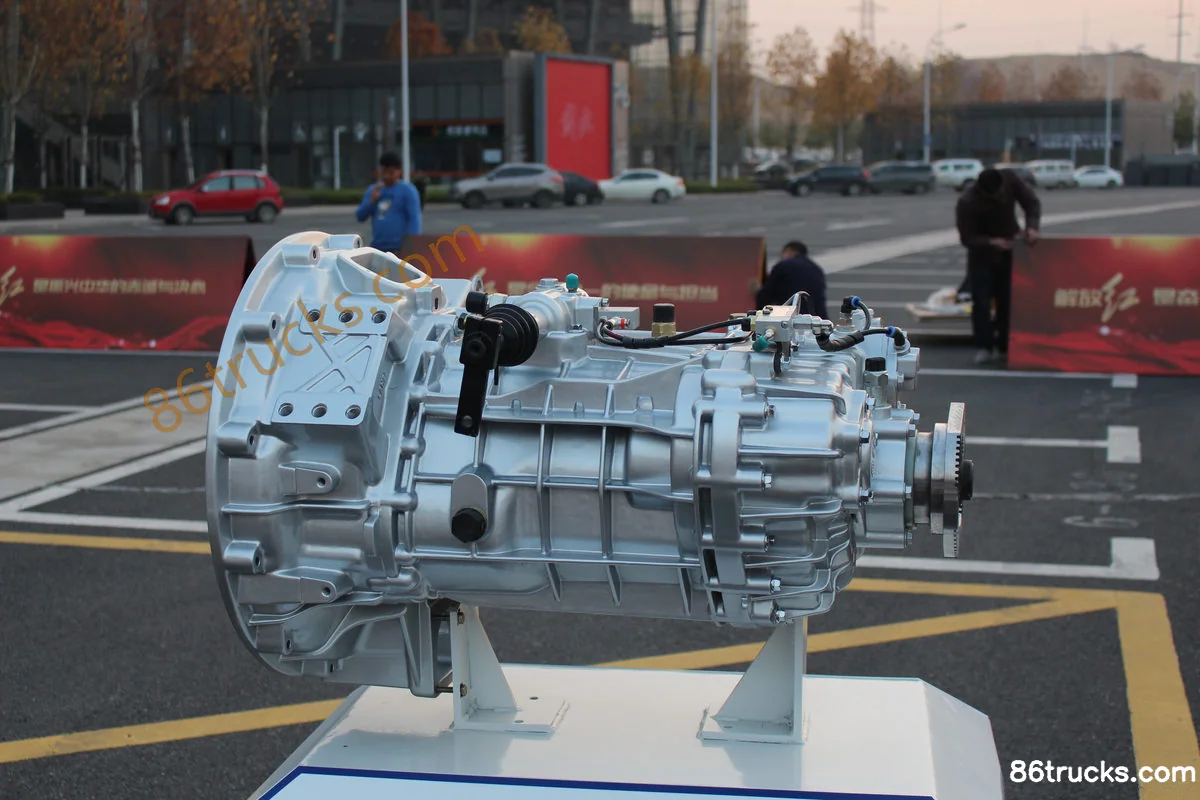

FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission Exterior (1) | 86Trucks FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission Exterior (2) | 86Trucks FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission suited for?

Match FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission differ from other variants in the same series?

FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission belongs to FAW Jiefang CA10TA(X) Series (transmission). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang CA10TAX130M1 Overdrive 10-Speed Manual Transmission?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
