Sinotruk HW70506TC 6-speed Manual Transmission
EXW
Export quote
Sinotruk HW6-Speed Series transmission

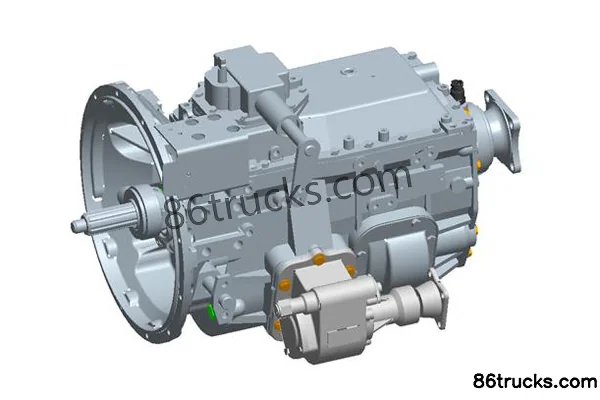

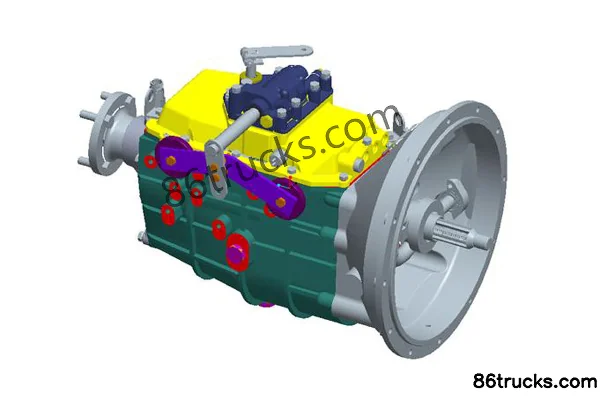

Main model photos
6 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk HW70506TC 6-speed Manual Transmission | — | ||
| Sinotruk HW70506T 6-speed Manual Transmission | — | ||
| Sinotruk HW12706TC 6-speed manual transmission | — | ||
| Sinotruk HW95506TC(2) 6-Speed Manual Transmission | — | ||
| Sinotruk HW95506TC(1) 6-Speed Manual Transmission | — |
Sinotruk HW70506T 6-speed Manual Transmission
EXW
Export quote
Sinotruk HW12706TC 6-speed manual transmission
EXW
Export quote
Sinotruk HW95506TC(2) 6-Speed Manual Transmission
EXW
Export quote
Sinotruk HW95506TC(1) 6-Speed Manual Transmission
EXW
Export quote
Series Specs
Transmission Parameters
Transmission Brand: Sinotruk
Transmission series: HW6 series
Matching Range: Highway & construction vehicles with matched torque 500-700 Nm / Suitable for matching input torque 1200 Nm-1300 Nm highway vehicles, engineering vehicles. / Suitable for matching input torque 700-900 Nm highway vehicles, engineering vehicles. / Suitable for matching input torque 450 Nm highway vehicles and light passenger vehicles. / Suitable for matching input torque 430-600 Nm highway vehicles, engineering vehicles. / Suitable for matching input torque 380-450 Nm highway vehicles and light passenger vehicles. / For large buses with 300-420 hp
Features: Single countershaft, full synchronizer; multiple shift configurations, left-side dual-rod shift / Single countershaft, full synchronizer / 1. 3-6 gears with synchronizer. 2. Optional shift booster. 3. Can be equipped with eddy current retarder.
Max input torque: 700 / 540 / 1300 / 900 / 830 / 450 / 520 / 480 / 1200N·m
1st gear ratio: 6.54 / 7.85 / 7.66 / 8.02 / 7.03 / 6.32 / 6.72 / 7.67 / 6.47 / 9.2
Main box center distance: 165mm
synchronizer: Yes
2nd gear ratio: 3.78 / 4.54 / 4.33 / 4.51 / 3.96 / 3.91 / 4.03 / 4.6 / 4.01 / 5.2
3rd gear ratio: 2.17 / 3.14 / 2.58 / 2.63 / 2.31 / 2.26 / 2.3 / 2.32 / 3.1
4th gear ratio: 1.43 / 2.09 / 1.65 / 1.53 / 1.51 / 1.83 / 1.39 / 1.44 / 1.98
5th gear ratio: 1 / 1.49 / 1.36 / 1.28 / 1.34
6th gear ratio: 0.81 / 1 / 0.85 / 0.82 / 0.79 / 0.74 / 0.8
Reverse Gear 1 Ratio: 6.53 / 7.84 / 7.26 / 8.03 / 7.04 / 5.87 / 6.12 / 6.99 / 6.01 / 8.72
Transmission weight: 187 / 290 / 256 / 130 / 170 / 120kg
Transmission oil capacity: 8 / 12 / 8.8 / 5.2 / 7.5 / 5.5L
Control type: Single-lever control / Various control configurations: left-hand or right-hand dual-lever control / dual-lever, single-lever and other control methods
Number of gears: 6 / 5Gear
shift type: Manual
Transmission Model: HW70506TC / Sinotruk HW70506T / HW12706TC / HW95506TC(2) / HW95506TC(1) / HW95506T / HW50506TC / HW65506TC / HW65506T / HW48506TC / HW95706T / HW12706T
shift method: Manual
Number of Reverse Gears:
FAQ
What kind of truck is Sinotruk Sinotruk HW6-Speed Series transmission?
Sinotruk Sinotruk HW6-Speed Series is an export-oriented transmission lineup with about 12 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is transmission typically used for?
For transmission, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Sinotruk HW6-Speed Series transmission include?
Sinotruk HW6-Speed Series transmission currently lists about 12 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk HW6-Speed Series transmission?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
