Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck

Export reference
MSRP N/A
Emission: China V
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 8.58ton
Wheelbase:: 1300/1650mm
Tire Size:: 10.00-20 18PR
Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck exterior
View more photos (12)
Rated payload: 15.79ton
Drive 6X2 (8 wheels)
Horsepower 220
Cargo box type: square box

Overview

The Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck is a Heavy truck featuring 15.79t payload, 24.5t GVW, Rear-dump body cargo body and 6X2 (8 wheels) drive. On the powertrain side, it comes with a YuchaiYC6JA220-50 engine, 220 hp, China V emissions and Fast Gear transmission.

China V 220 Diesel 6X2

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): DYQ3242D5CC
Drive type: 6X2
Wheelbase: 1300/1650mm
engine: YuchaiYC6JA220-50
transmission: Fast Gear 10-Speed
Rear Axle Ratio: 5.833
Cab length: 7.5m
Cab width: 2.35m
Cab height: 2.85m
Front track width: 1775/1775mm
rear track: 1700mm
Curb Weight: 8.58ton
Rated payload: 15.79ton
GVWR: 24.5ton
Origin: Shiyan, Hubei
tonnage class: Heavy truck
Approach angle: 22°
departure angle: 27°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYC6JA220-50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 6.87L
Emission standard: China V
Max output power: 162kW
Max hp: 220Horsepower
Max torque: 860N·m
Max torque speed: 1200-1800rpm
Rated speed: 2300rpm
Engine Type: Vertical, inline, water-cooled, four-stroke
Transmission Parameters
Transmission Model: Fast Gear 10-Speed Transmission
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: square box
Cargo box type: Rear-dump body
Cargo box length: 4.8m
Cargo box width: 2.25m
Cargo box height: 1.5m
Chassis Specs
Front axle allowable load: 6500/6500kg
rear axle allowable load: 11500kg
Axle ratio: 5.833
Leaf spring count: 8/8/10+8
Tire
Tire Size: 10.00-20 18PR
Number of tires: 8pcs
Control configuration
ABS:

Photos

Exterior3

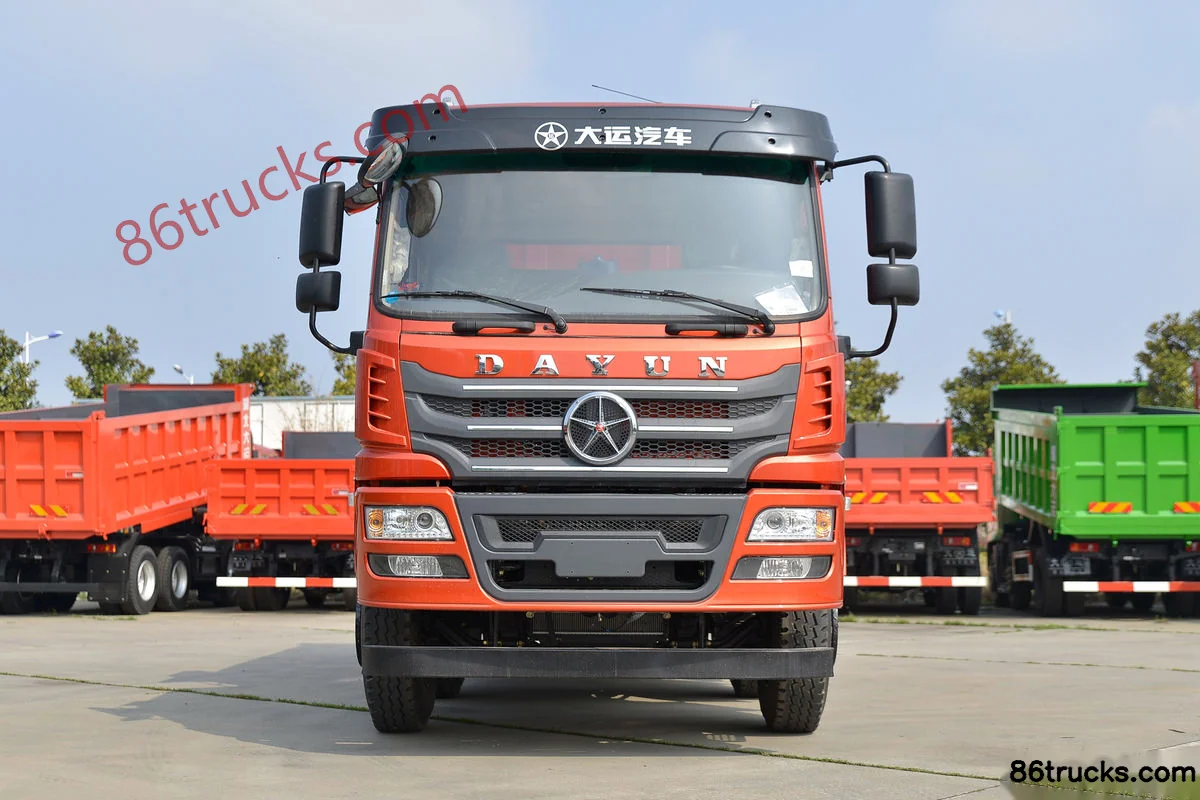

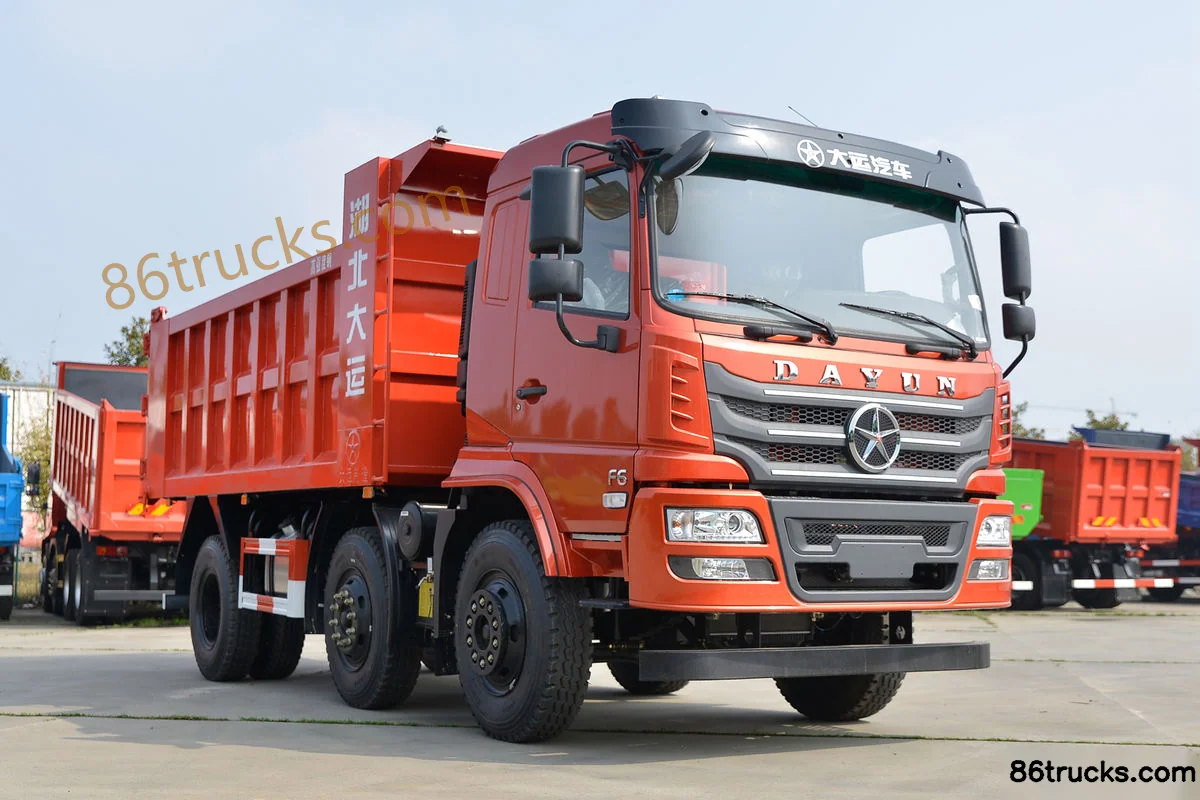

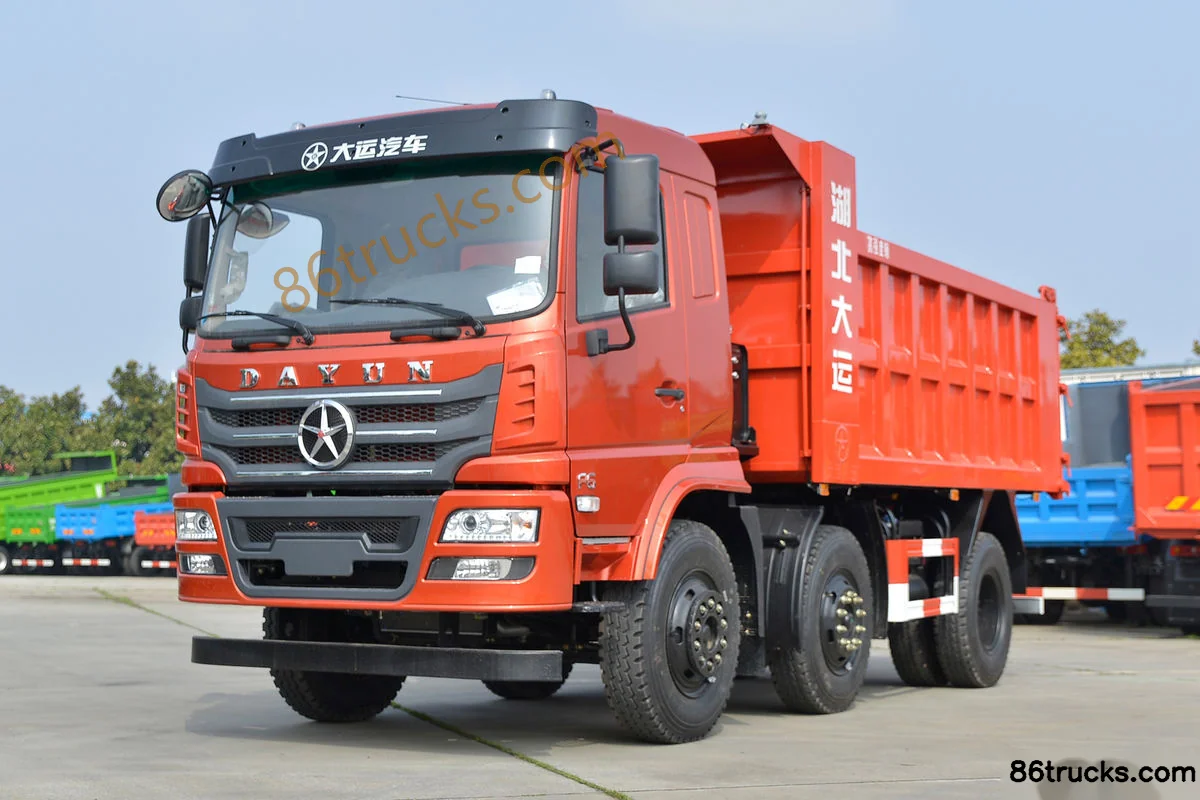

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Exterior (1) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Exterior (2) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Exterior (3) | 86Trucks

Cab3

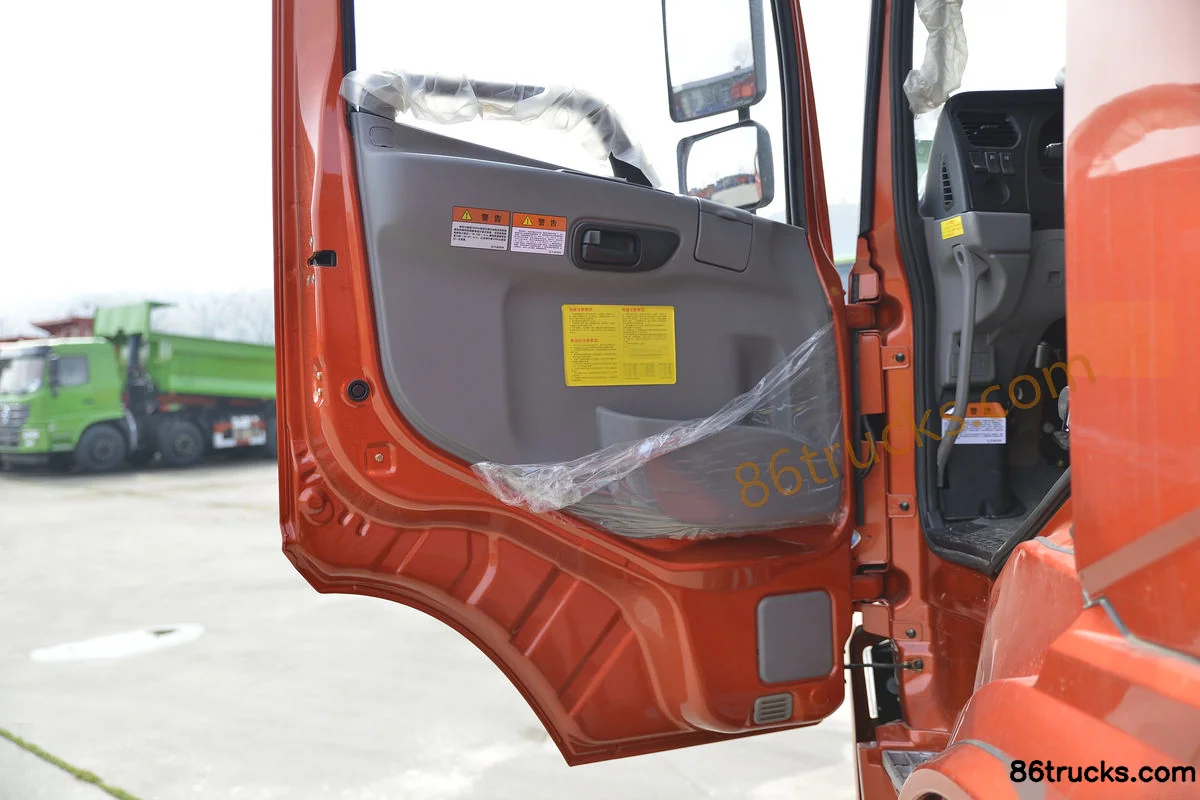

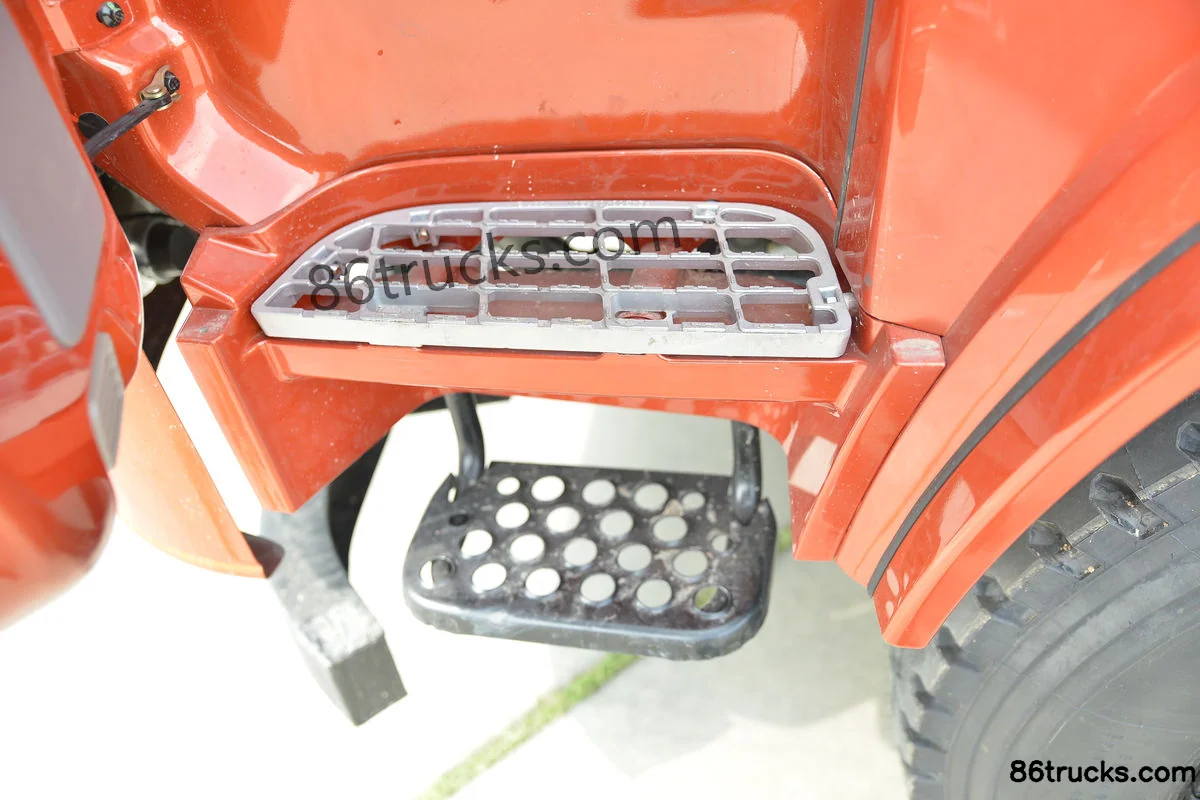

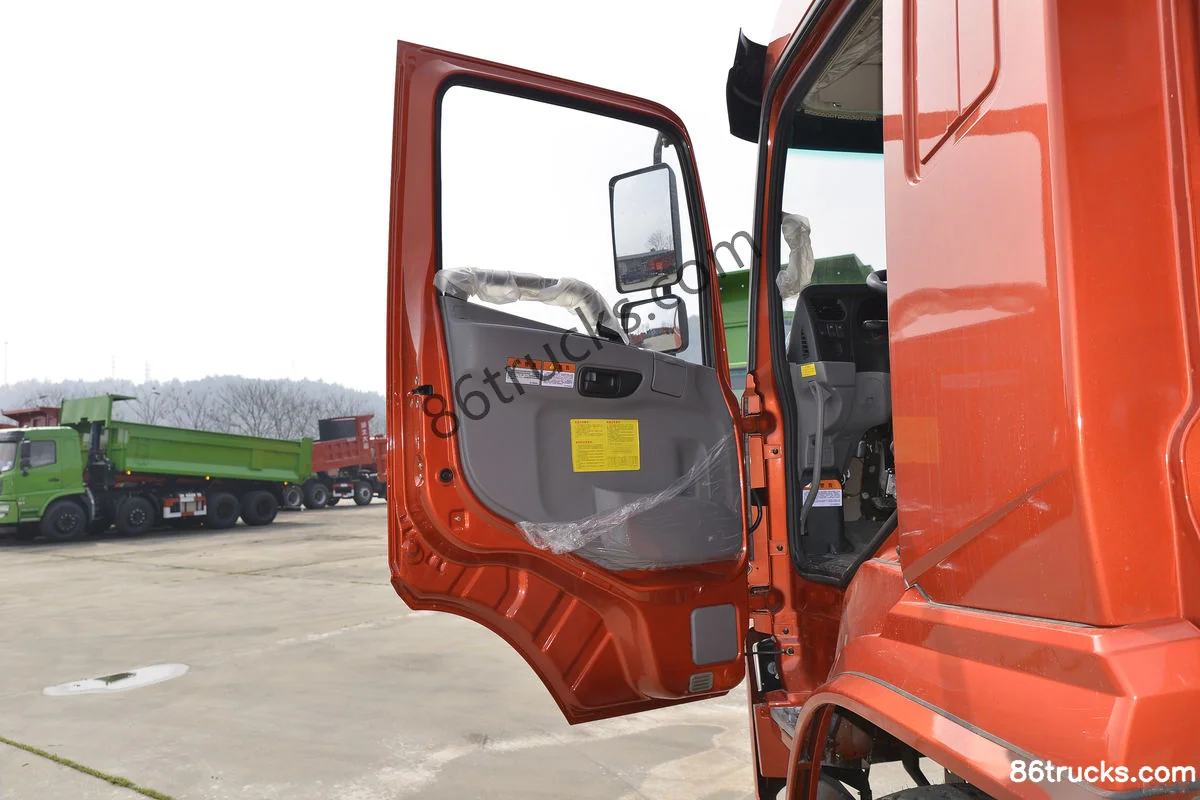

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Cab (1) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Cab (2) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Cab (3) | 86Trucks

Chassis3

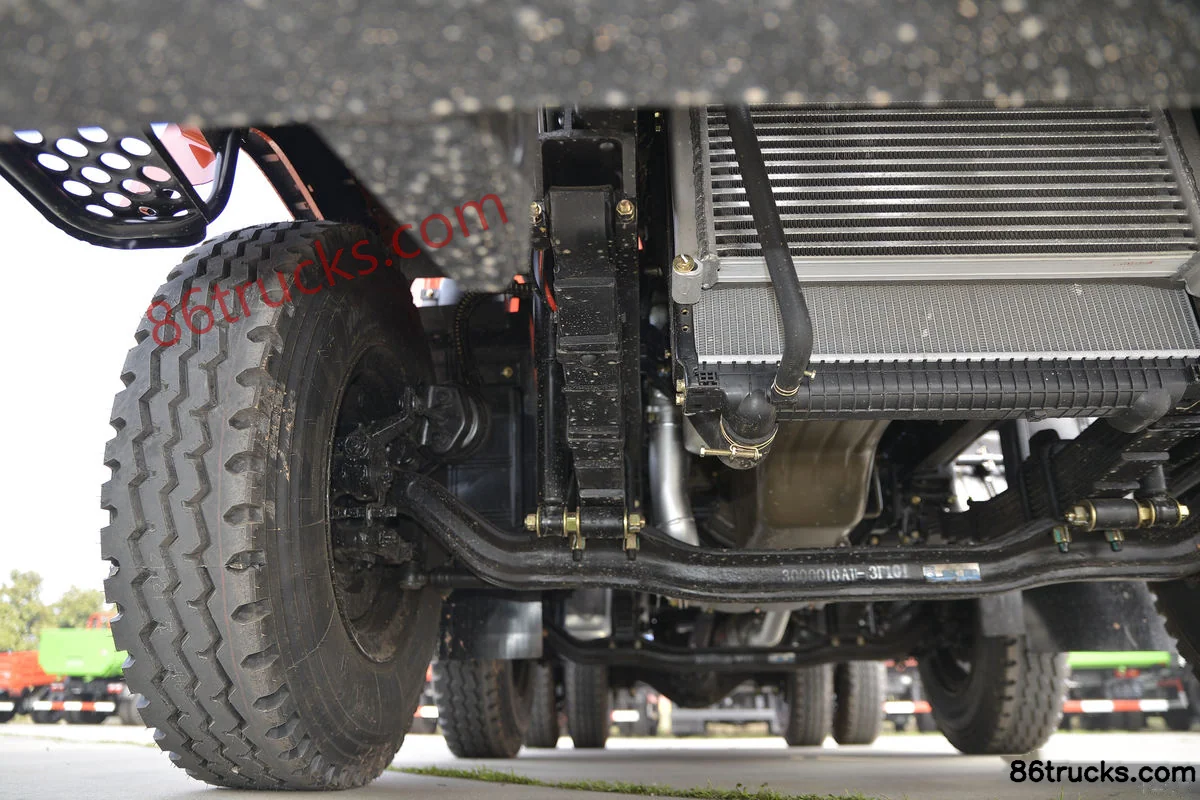

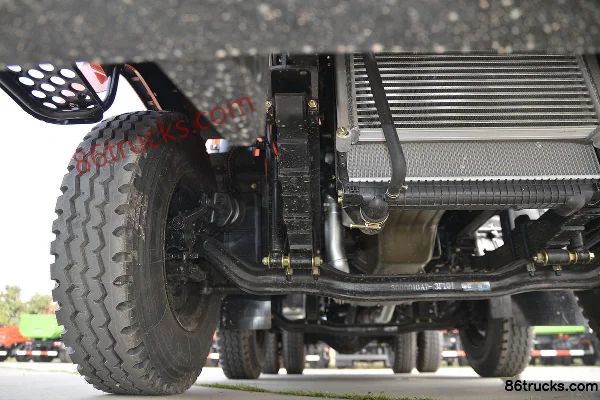

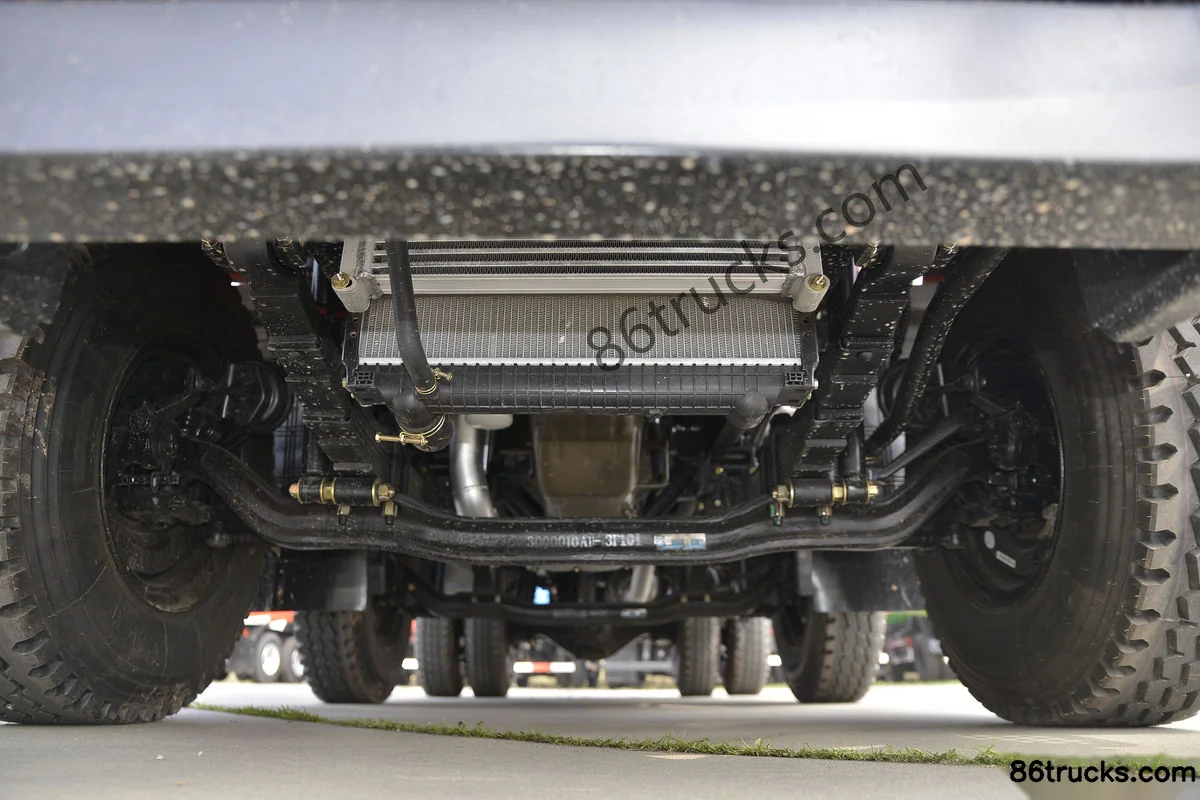

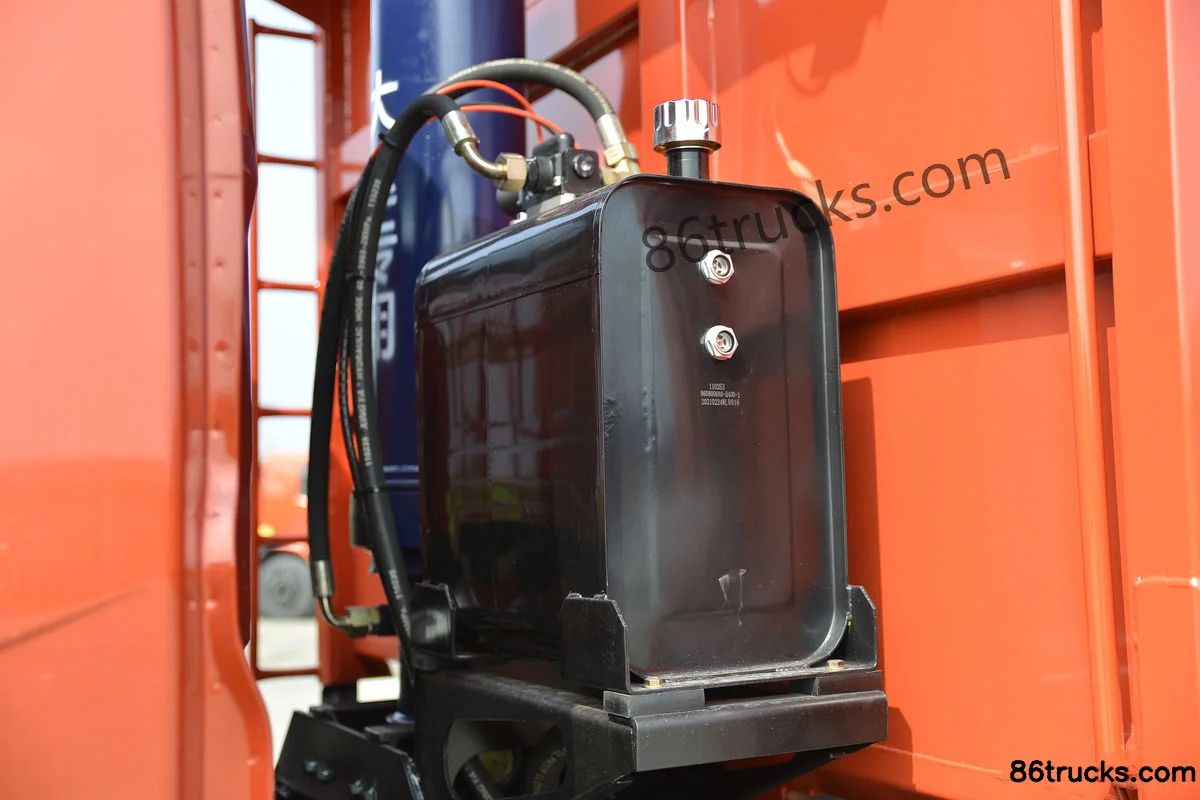

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Chassis (1) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Chassis (2) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Chassis (3) | 86Trucks

Body3

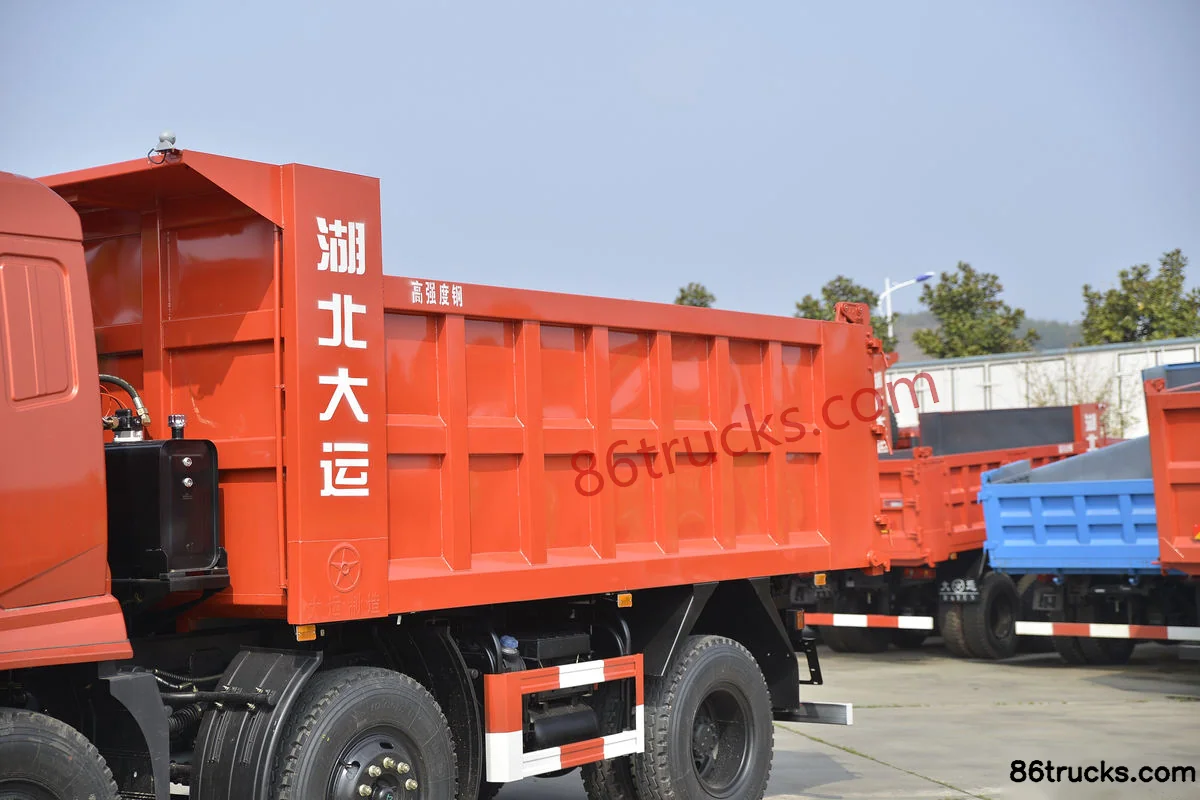

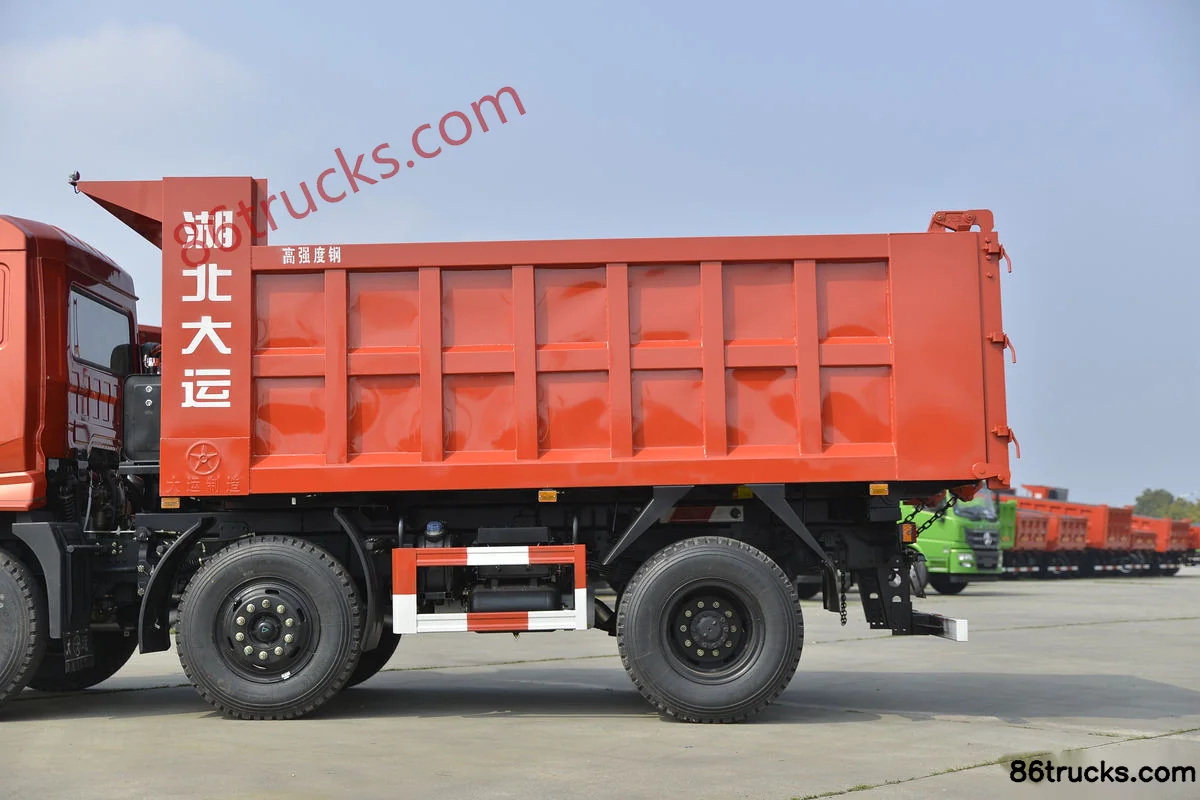

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Body (1) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Body (2) | 86Trucks Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck Body (3) | 86Trucks

12 photos

FAQ

What emission standard does Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck?

Key specs of Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck: Drive: 6x2; Horsepower: 220 hp; Emission: China V; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck suited for?

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck differ from other variants in the same series?

Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck belongs to DayunF6 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun F6 Heavy Truck 220 hp 6X2(8 wheels) 4.8 m dump truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
