Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck

Export reference
From $10,000
MSRP ¥7.2M CNY
Emission: China V
Fuel: Diesel
Transmission: Xingrui
Curb Weight:: 2.72ton
Wheelbase:: 3180mm
Tire Size:: 6.00R15LT 10PR
Rated payload: 1.645ton
Drive 4X2 (6 wheels)
Horsepower 102
Cargo box type: Rear-dump body

Overview

The Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck is a Light Truck featuring 1.645t payload, 4.495t GVW, Rear-dump body cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD19TCIE1 engine, 102 hp, China V emissions and Xingrui transmission.

China V 102 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): KMC3043HD318D5
Drive type: 4X2
Wheelbase: 3180mm
engine: Yunnei PowerD19TCIE1
transmission: Xingrui LC5T32
Rear Axle Ratio: 5.125
Cab length: 5.995m
Cab width: 1.95m
Cab height: 2.06m
Front track width: 1500mm
rear track: 1375mm
Curb Weight: 2.72ton
Rated payload: 1.645ton
GVWR: 4.495ton
Origin: Shouguang, Shandong
tonnage class: Light Truck
Approach angle: 19°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD19TCIE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 1.91L
Emission standard: China V
Max output power: 75kW
Max hp: 102Horsepower
Max torque: 250N·m
Max torque speed: 1600-2600rpm
Rated speed: 3600rpm
Engine Type: 4-cylinder inline, 16-valve, DOHC, turbocharged intercooled, high-pressure common rail fuel injection
Transmission Parameters
Transmission Model: Xingrui LC5T32
Transmission Brand: Xingrui
Forward gears: 5Gear
Number of Reverse Gears:
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 3.95m
Cargo box width: 1.86m
Cargo box height: 0.4/0.6m
Chassis Specs
Front axle allowable load: 1600kg
rear axle description: 130CQDSM
rear axle allowable load: 2895kg
Axle ratio: 5.125
Leaf spring count: 3/5+3,3/6+4,7/9+5
Tire
Tire Size: 6.00R15LT 10PR
Number of tires: 6pcs
Control configuration
ABS:

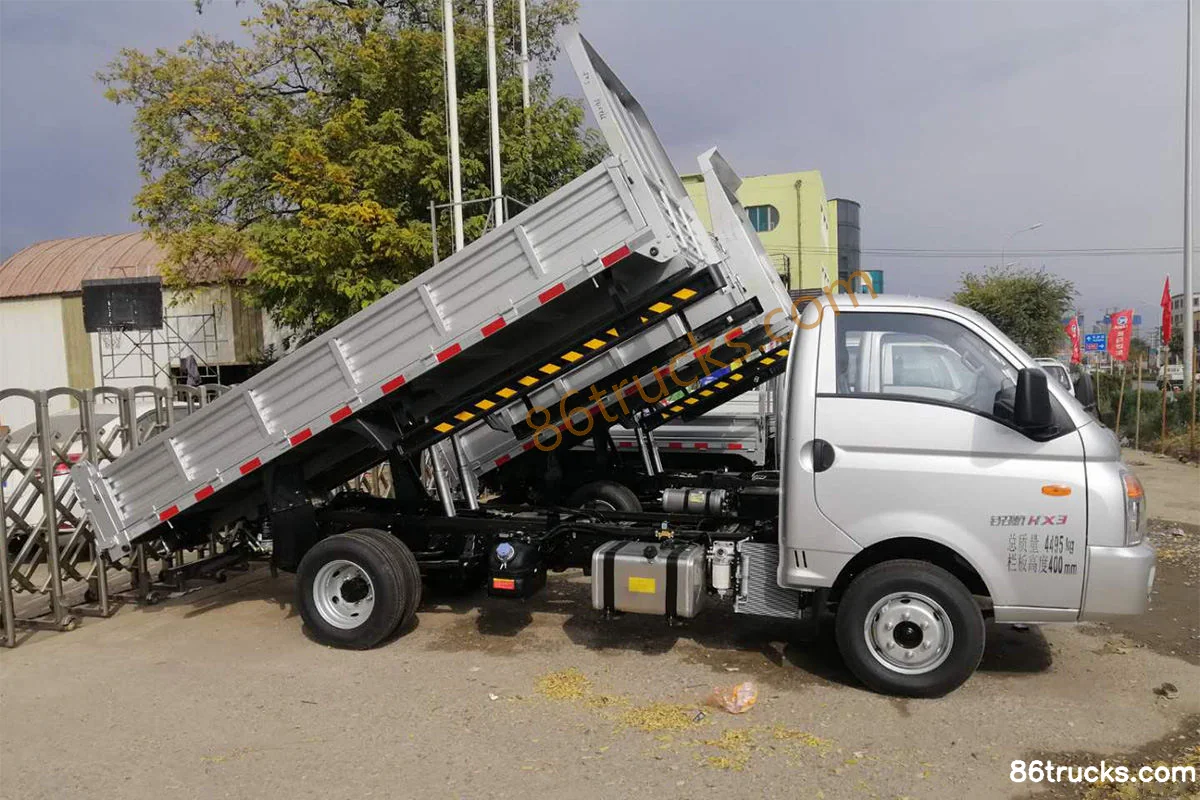

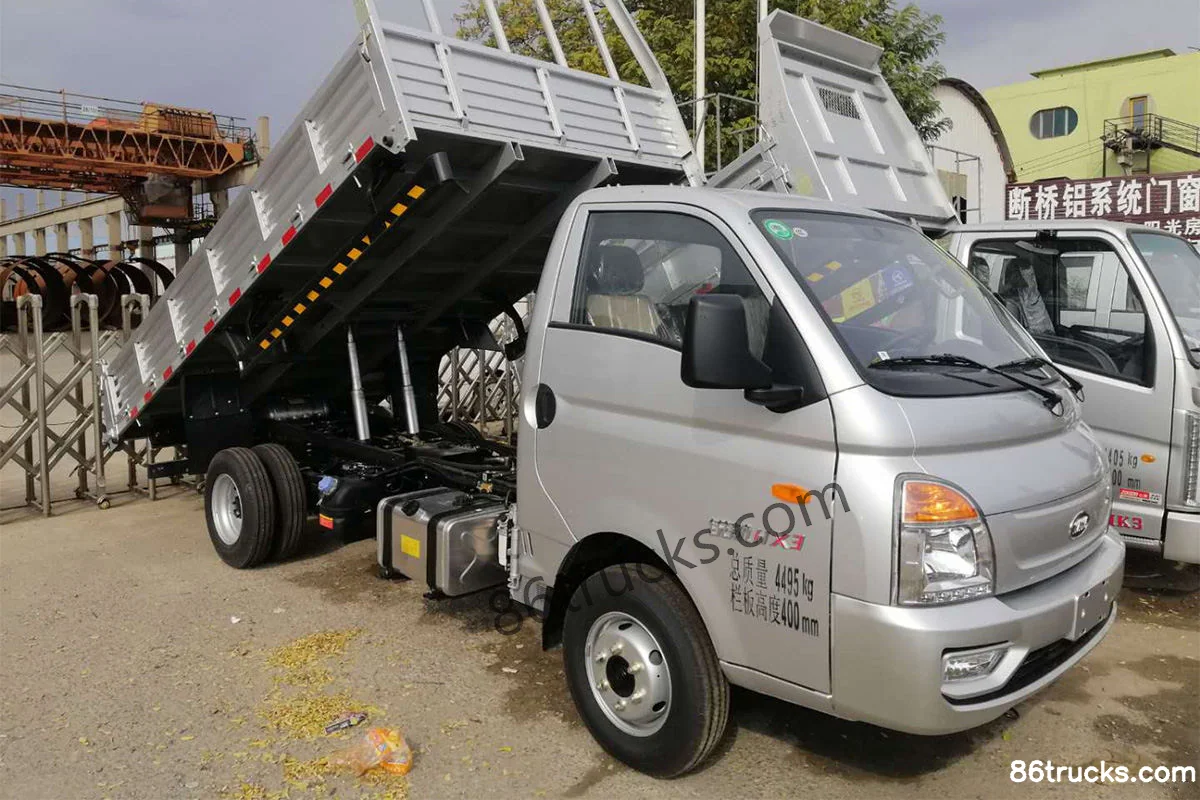

Photos

Exterior2

2 photos

FAQ

What is the export price of Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck, and what does it include?

Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck export reference is about From $10,000; MSRP is ¥7.2M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck?

Key specs of Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck: Drive: 4x2; Horsepower: 102 hp; Emission: China V; Fuel: Diesel; Transmission: Xingrui. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck suited for?

Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck differ from other variants in the same series?

Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck belongs to Kama Ruihang HX3 Mini Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Kama Ruihang HX3 102 hp 4X2(6 wheels) 3.95m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
