Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 4.73ton
Wheelbase:: 3360mm
Tire Size:: 7.50R16LT 14PR
Cab dimensions:: 6.45×2.07×2.9m
Truck Type:: Concrete mixer truck
Rated payload: 3.415ton
Drive 4X2 (6 wheels)
Horsepower 116
Emission China V

Overview

The Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck is a concrete mixer truck featuring 3.415t payload, 4.73ton GVW, 4X2 (6 wheels) drive and Wide body D3 single row cab. On the powertrain side, it comes with 116 hp, China V emissions and Diesel fuel.

China V 116 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 6.45×2.07×2.9m
Truck Type: Concrete mixer truck
Drive type: 4X2
Vehicle origin: Suizhou, Hubei
Wheelbase: 3360mm
Front/rear track width: Front track: 1530mm; Rear track: 1510mm
Curb Weight: 4.73ton
Rated payload: 3.415ton
Max. speed: 95km/h
Front/rear suspension: 1.12/1.95m
Body Parameters
Mixing drum capacity: 1.5m³
Vehicle certification code: YZR5080GJBFD
Body Brand: Feidi

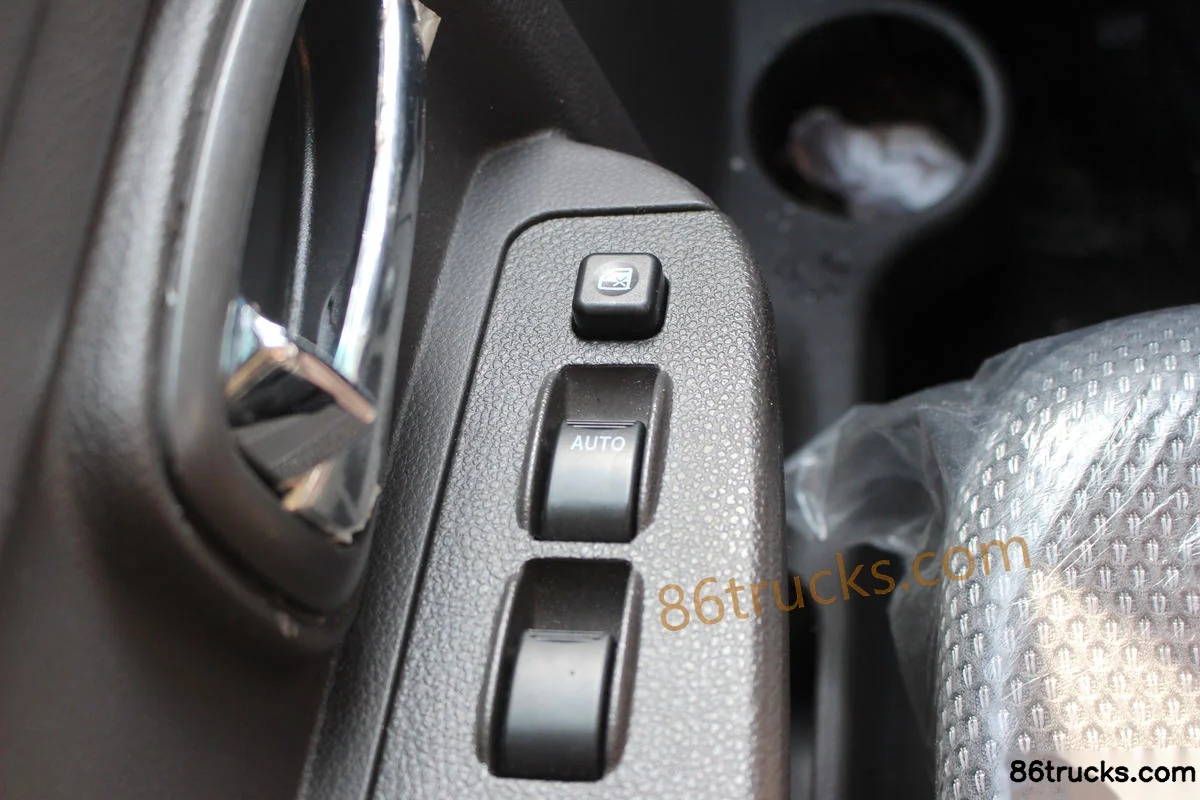

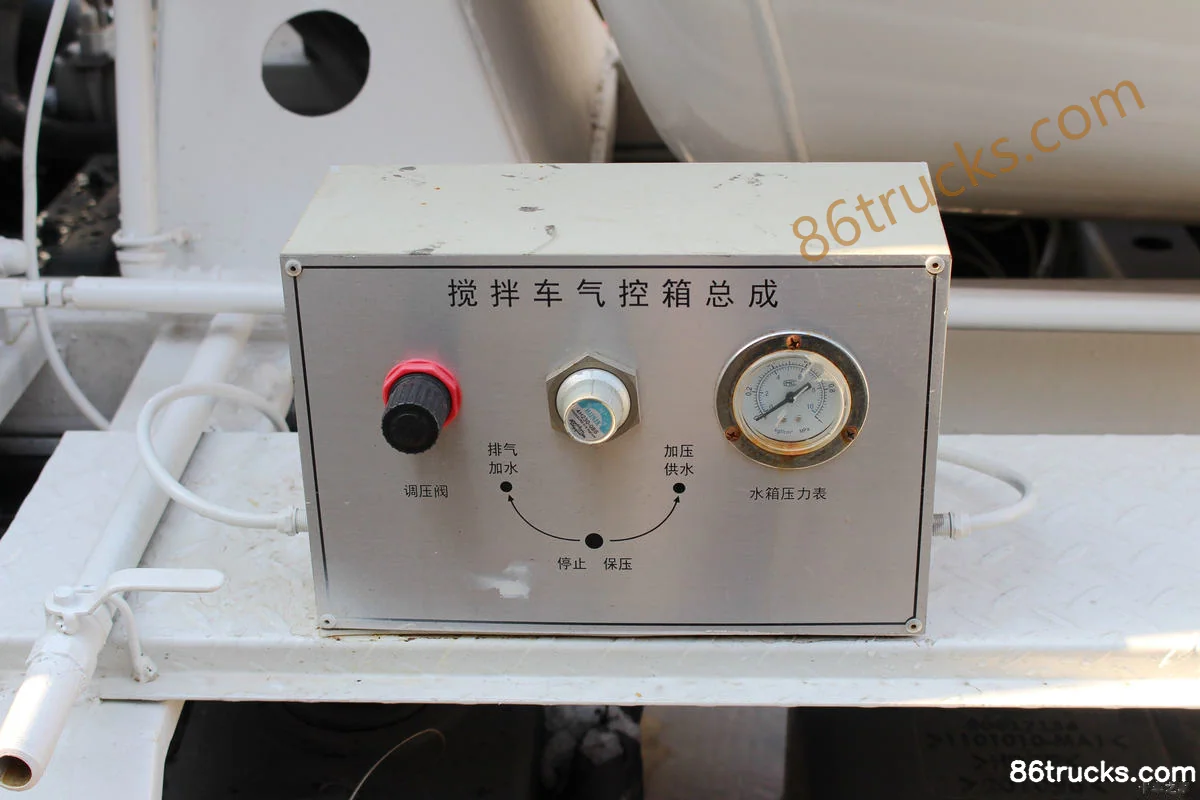

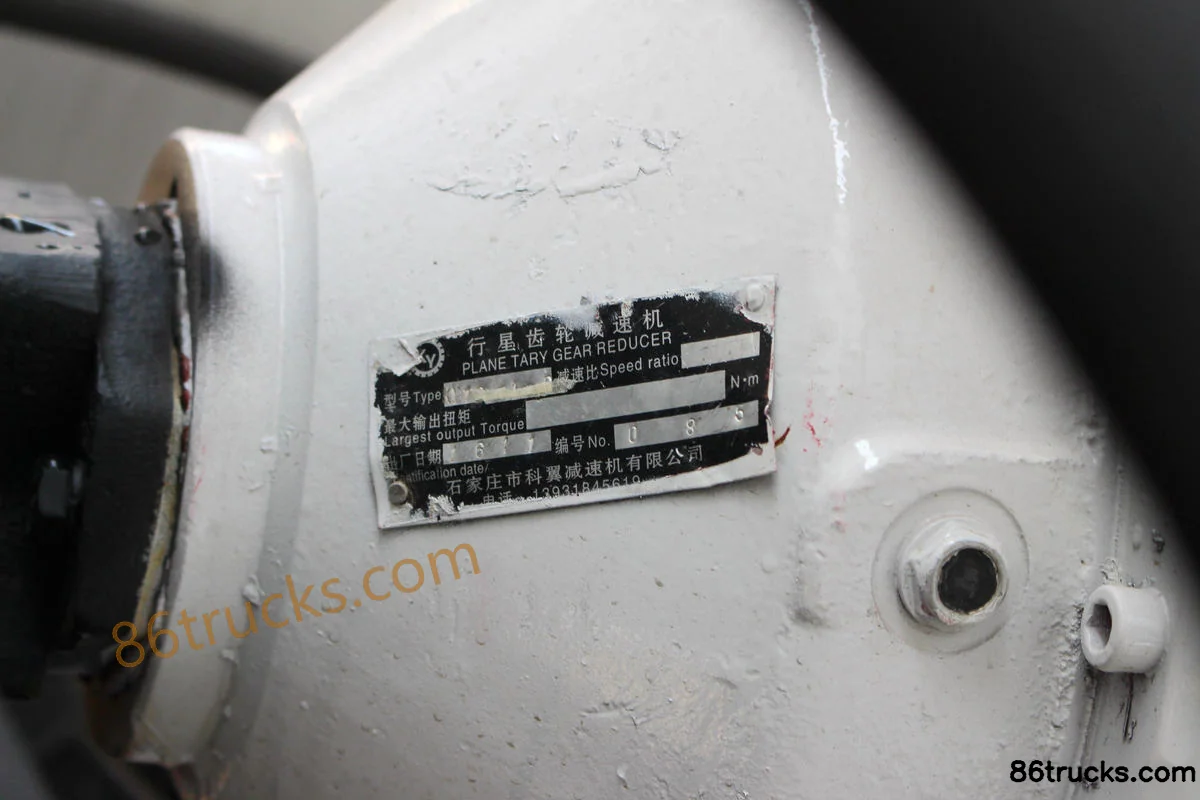

Others: Spring brake, power steering, with ABS, urea tank, power windows, with FARIZON throttle; superstructure: tank made of Q345 low-alloy steel, Keyi reducer, high-torque motor, Hengrui pump, Xinxiang radiator, with pressure supply and water supply device, volume 3 cubic meters.
Engine parameters
Engine Model: Yunnei PowerYN33CRE1
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3.298L
Emission standard: China V
Max output power: 85kW
Max hp: 116Horsepower
Rated speed: 3200rpm
Engine Type: 4-cylinder inline, 8-valve, turbocharged intercooled, high-pressure common rail fuel injection
Chassis Specs
Chassis Series: Aochi D Series
Chassis Model: FD1081W17K5
Frame Dimensions: 200 double-layer frame 6+4mm
rear axle description: 7-ton rear axle
Leaf spring count: 7/7+6
Transmission Parameters
Number of gears: 5Gear
Transmission Model: WLY 5-speed with auxiliary
Cab parameters

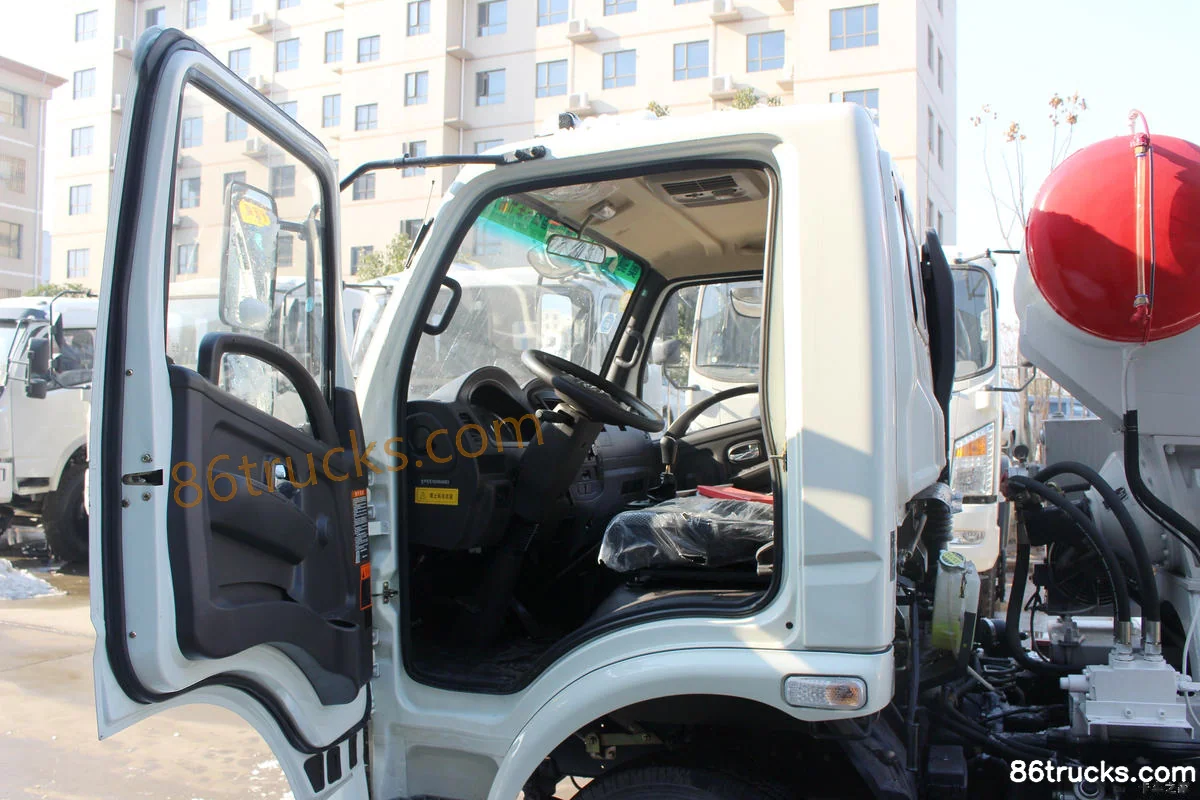

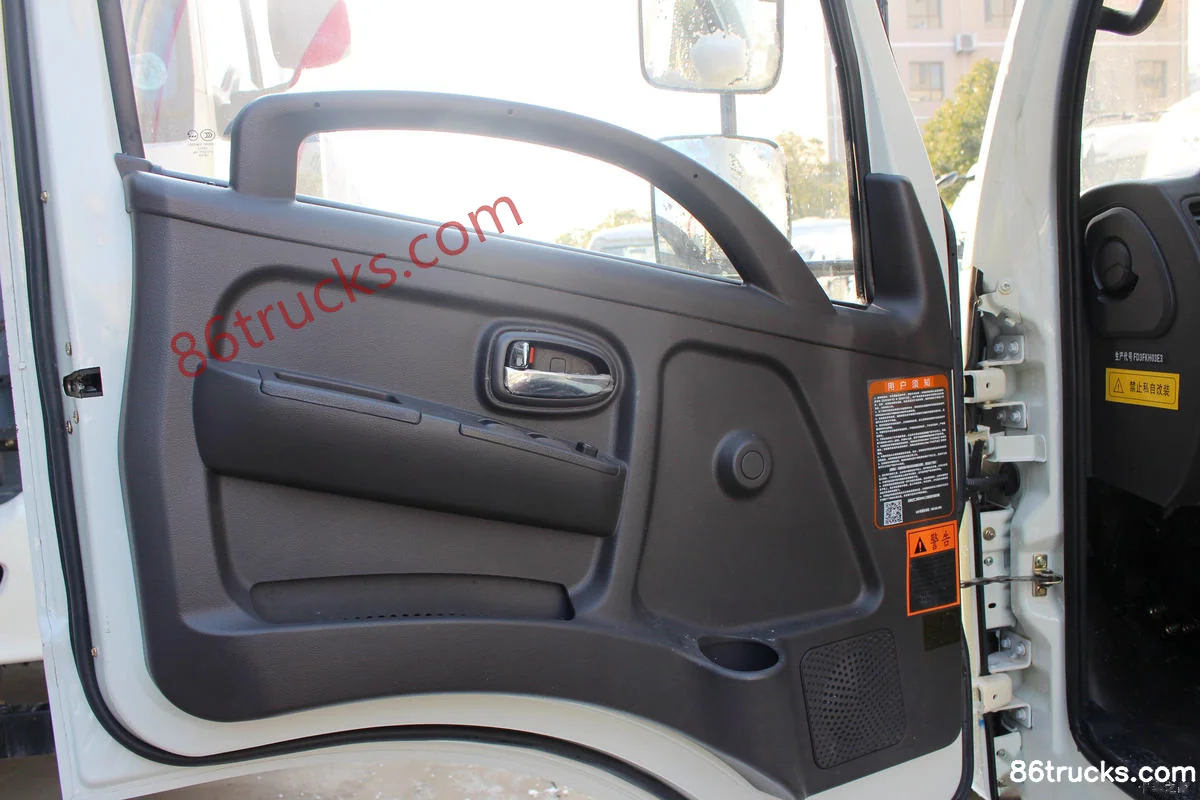

Cab: Wide body D3 single row
Tire

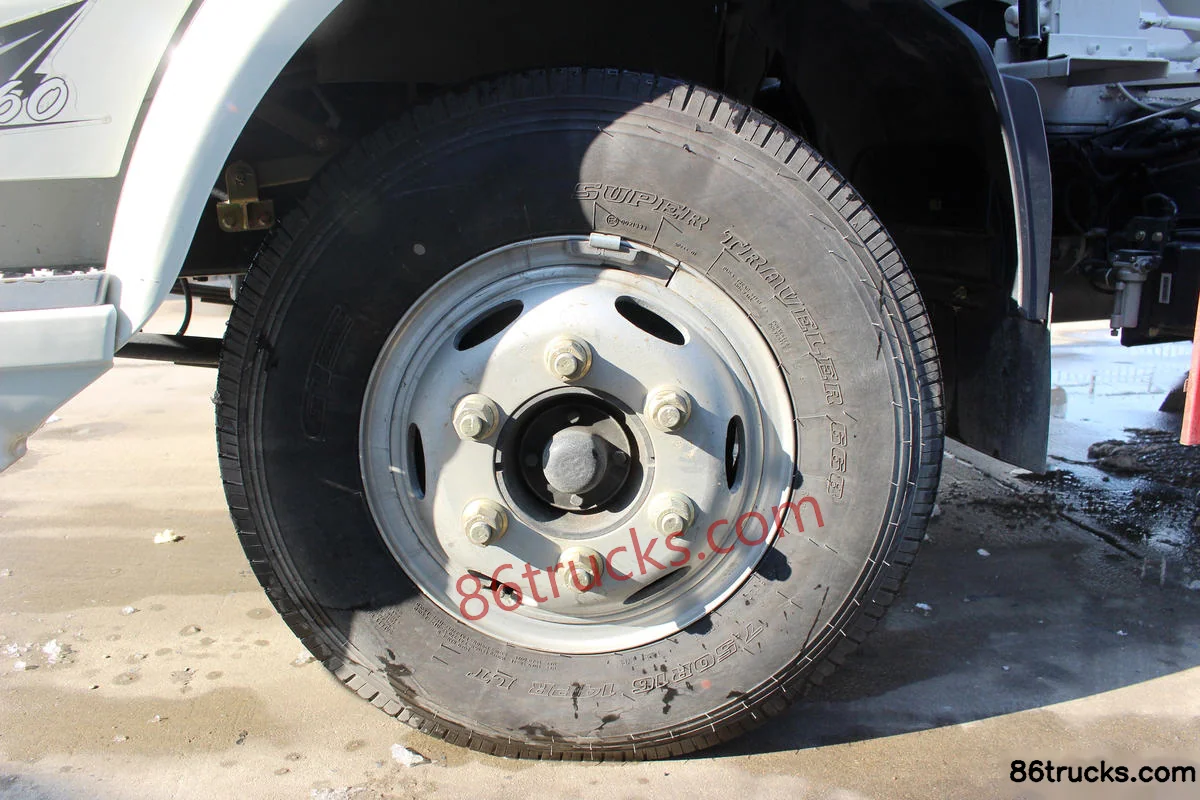

Tire Size: 7.50R16LT 14PR
Number of tires: 6pcs

Photos

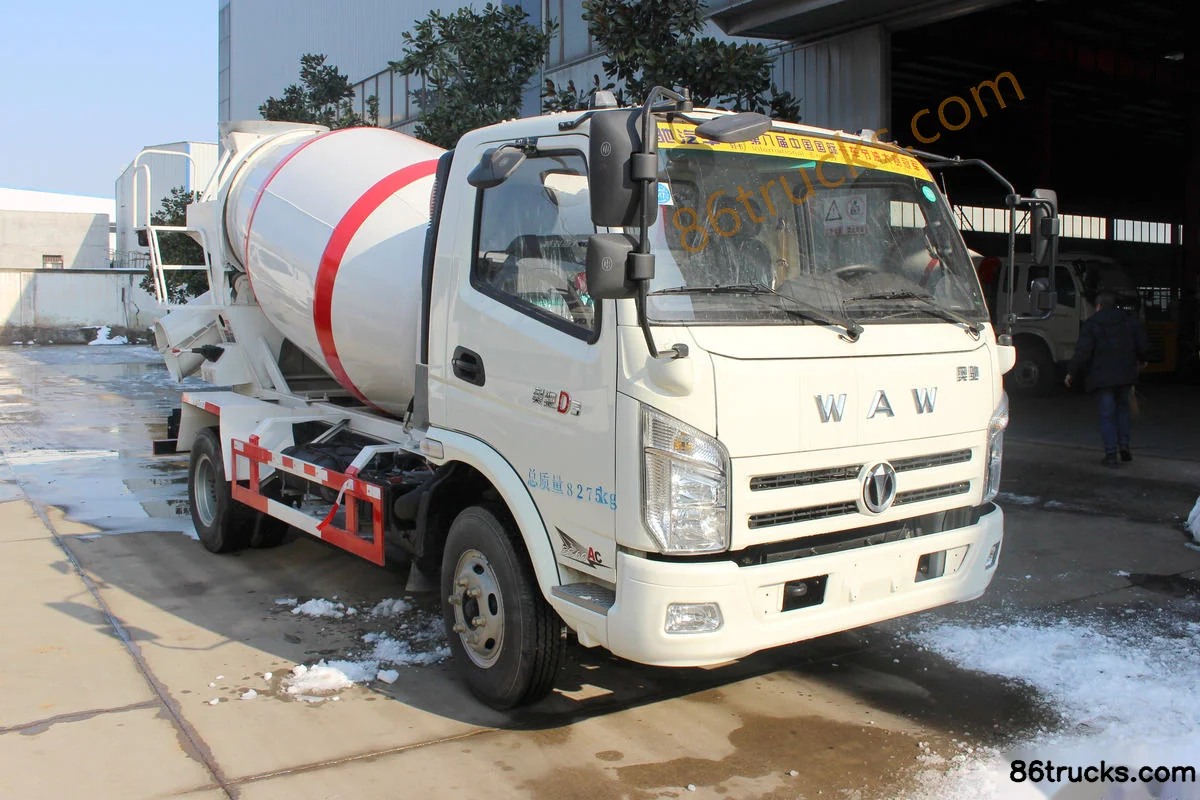

Exterior3

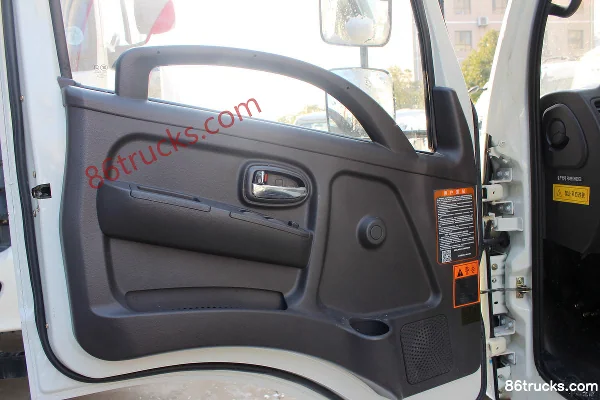

Cab3

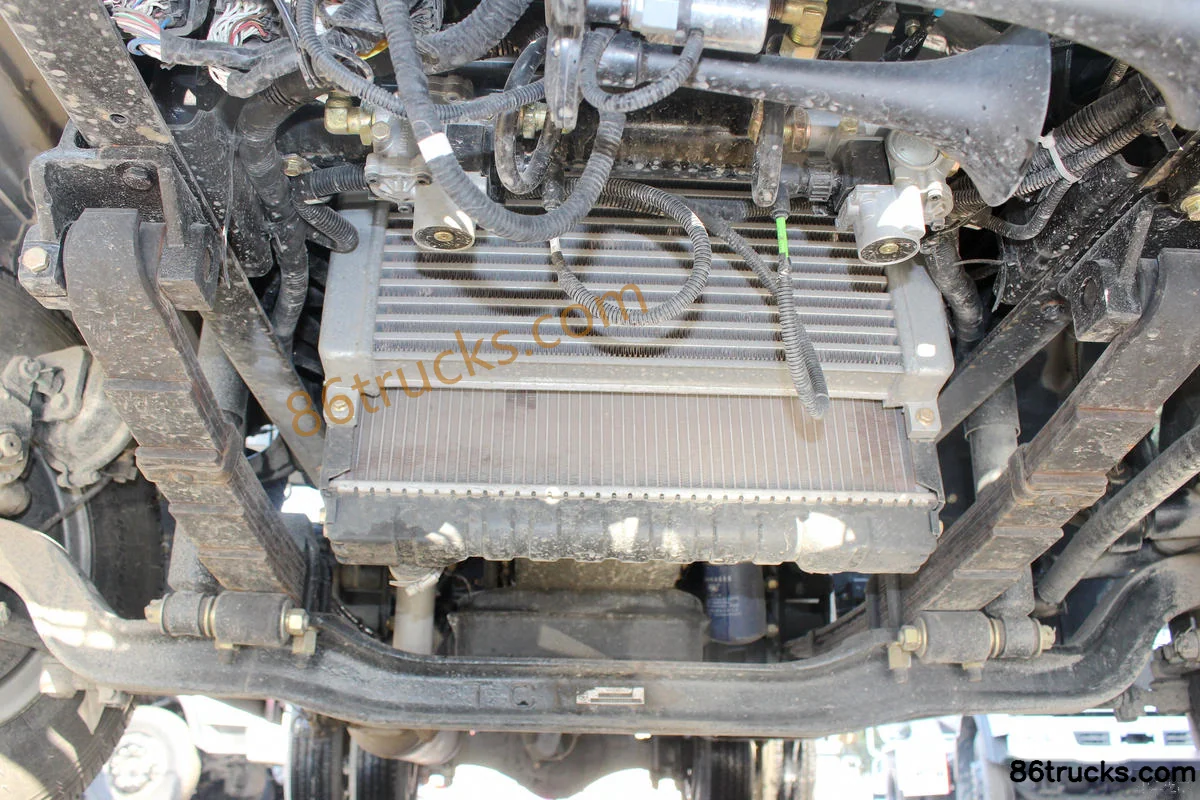

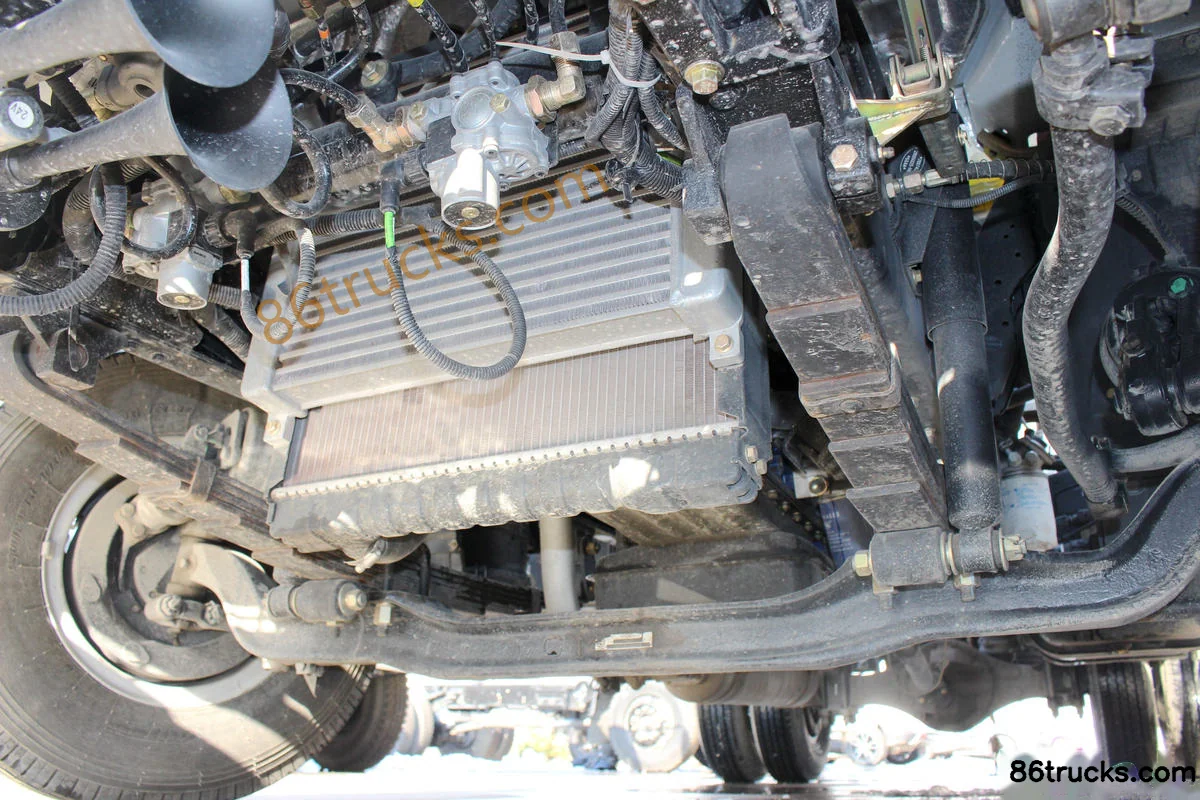

Chassis3

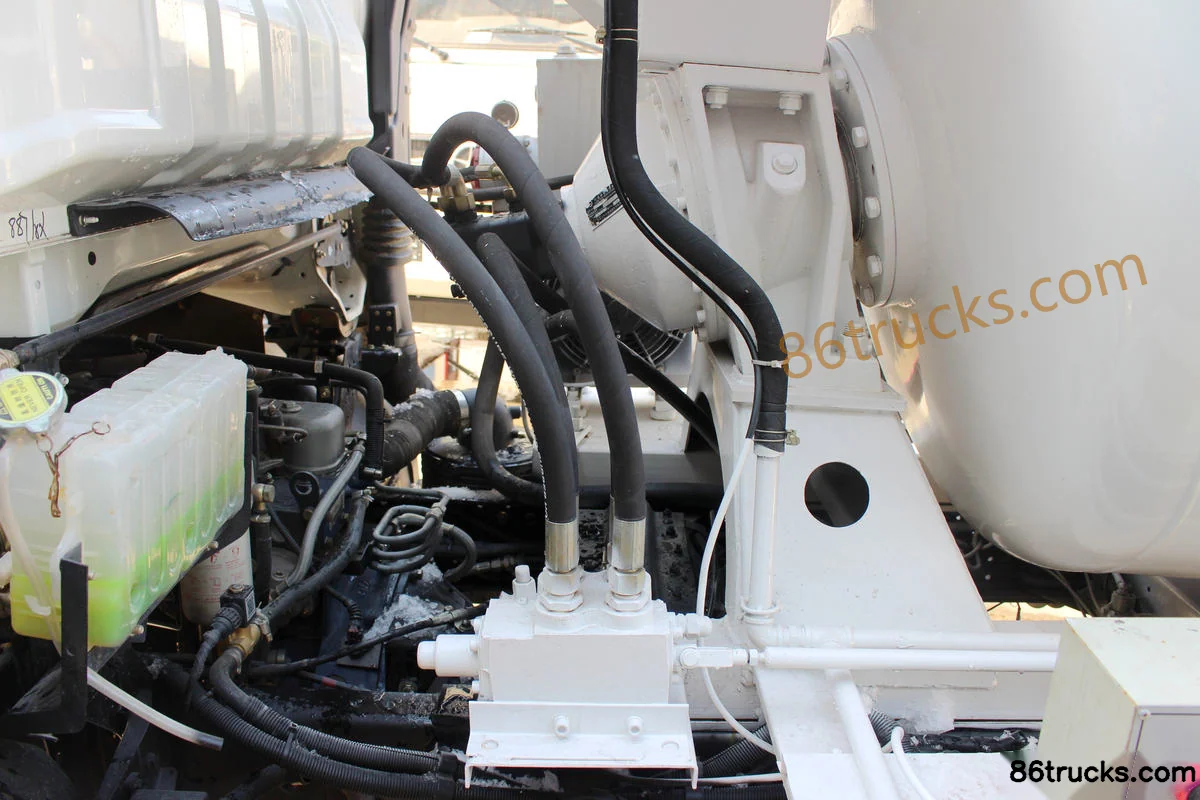

Body3

12 photos

FAQ

What emission standard does Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck?

Key specs of Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck: Drive: 4x2; Horsepower: 116 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck suited for?

Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck differ from other variants in the same series?

Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck belongs to Aochi D Series Light Truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Feidi D3 Series 116hp 4X2(6 wheels) 1.5m³ Concrete Mixer Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
