Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck

Export reference
From $15,542
MSRP ¥11.19M CNY
Emission: China VI
Fuel: Diesel
Transmission: WLY
Curb Weight:: 4.75ton
Wheelbase:: 3300mm
Tire Size:: 8.25R16LT 16PR
Rated payload: 4.155ton
Drive 4X2 (6 wheels)
Horsepower 158
Cargo box type: Dump type

Overview

The Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck is a Light Truck featuring 4.155t payload, 9.1t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a Yunnei PowerD30TCIF3 engine, 158 hp, China VI emissions and WLY transmission.

China VI 158 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DYQ3098D6AC
Drive type: 4X2
Wheelbase: 3300mm
engine: Yunnei PowerD30TCIF3
transmission: WLYWLY10H46
Rear Axle Ratio: 5.833
Cab length: 6.1m
Cab width: 2.25m
Cab height: 2.7m
Front track width: 1755mm
rear track: 1645mm
Curb Weight: 4.75ton
Rated payload: 4.155ton
GVWR: 9.1ton
Origin: Chengdu, Sichuan
tonnage class: Light Truck
Approach angle: 17°
departure angle: 17°
Version: Composite type
Energy Type: Diesel
Engine parameters
Engine Brand: Yunnei Power
Engine Model: Yunnei PowerD30TCIF3
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 3L
Emission standard: China VI
Max output power: 116kW
Max hp: 158Horsepower
Max torque: 400N·m
Max torque speed: 1100-2800rpm
Rated speed: 2800rpm
Transmission Parameters
Transmission Model: WLYWLY10H46
Transmission Brand: WLY
shift method: Manual
Forward gears: 5Gear
Number of Reverse Gears:
Housing Material: aluminum housing
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 3.75m
Cargo box width: 2.05m
Cargo box height: 0.8m
Body Parameters
Lifting type: Front lift cylinder, mid dual lift cylinders
Cab parameters
Cab: Day cab standard roof
Cab width: 1880mm
seating capacity: 2Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 120L
Chassis Specs
Front axle description: 2.3t standard axle
Front axle allowable load: 3300kg
Frame Dimensions: 800×232×(7+4)mm
rear axle description: 7t shortened axle
rear axle allowable load: 5800kg
Axle ratio: 5.833
Leaf spring count: 9/10+8
Tire
Tire Size: 8.25R16LT 16PR
Number of tires: 6pcs
Control configuration
ABS:
interior configuration
AC control type: Manual
Power Windows:
Reverse Radar:
Remote key:
Electronic Central Lock:
Multimedia features
GPS/Beidou driving recorder:
External audio input (AUX/USB/iPod etc.):
Service brake
Front wheel brake: Drum Type
Rear Wheel Brake: Drum Type

Photos

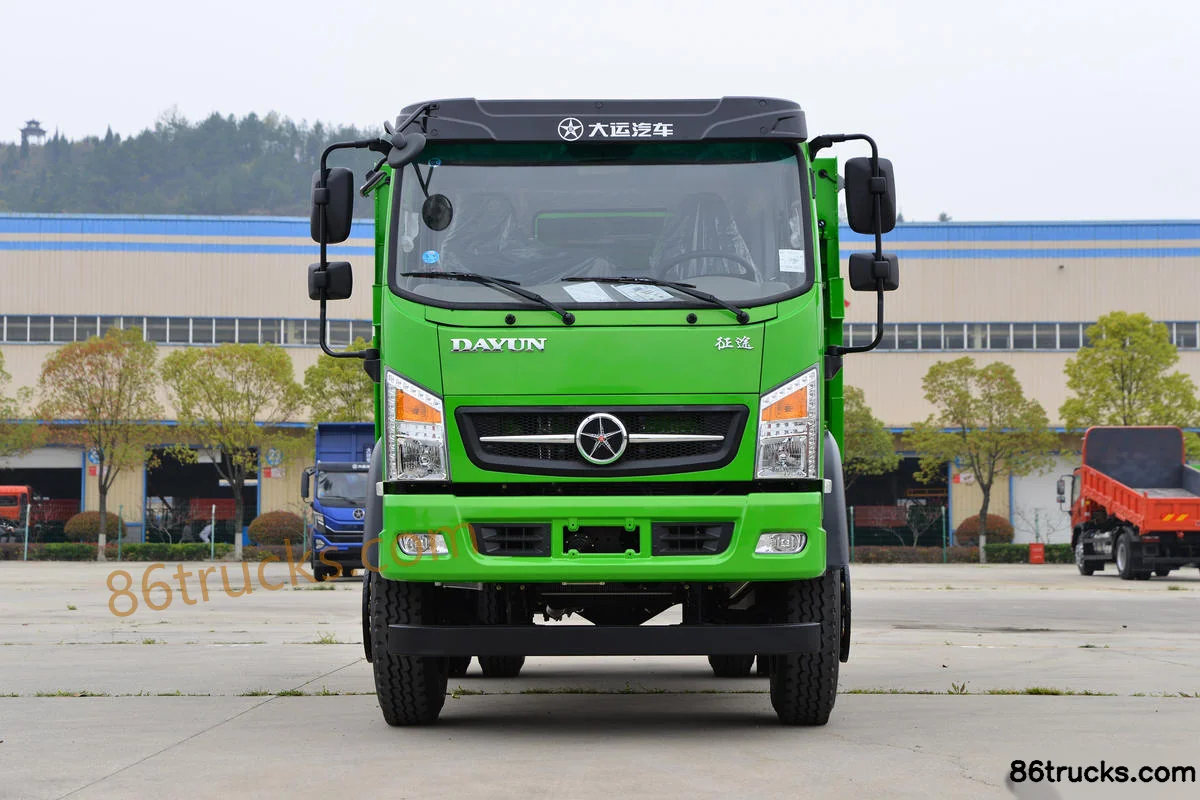

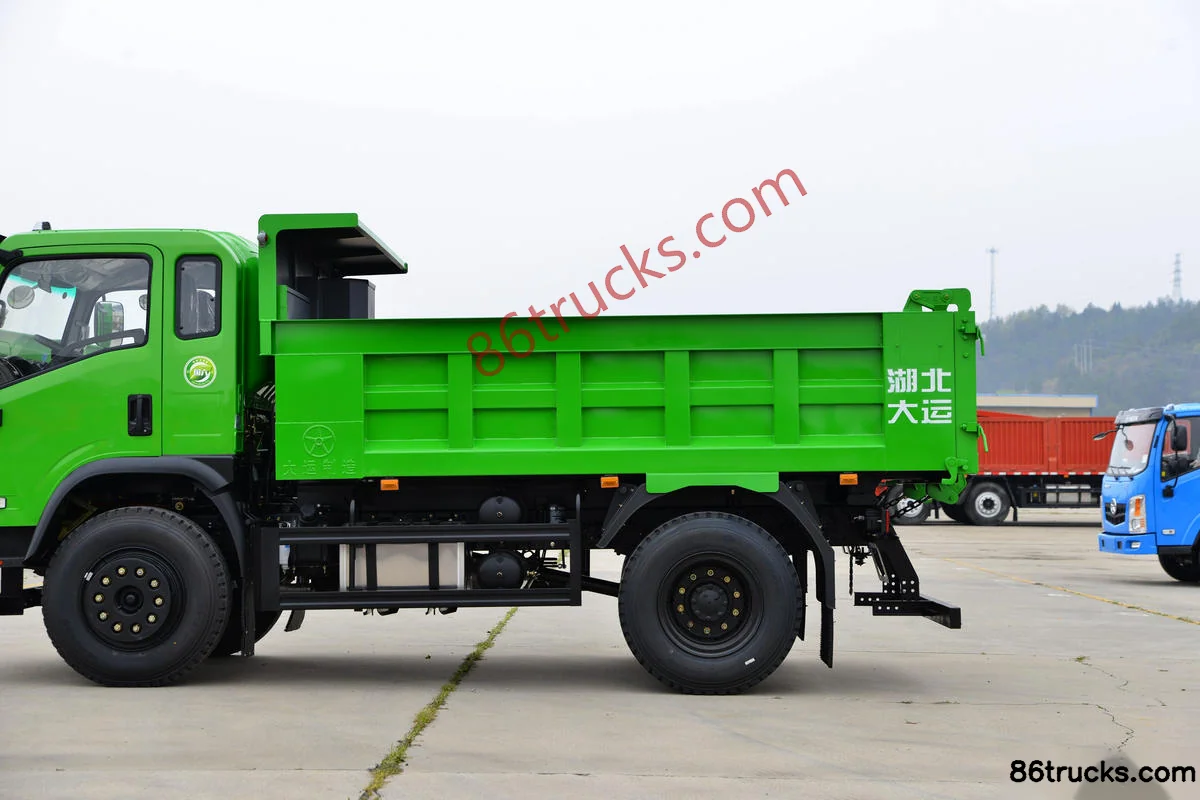

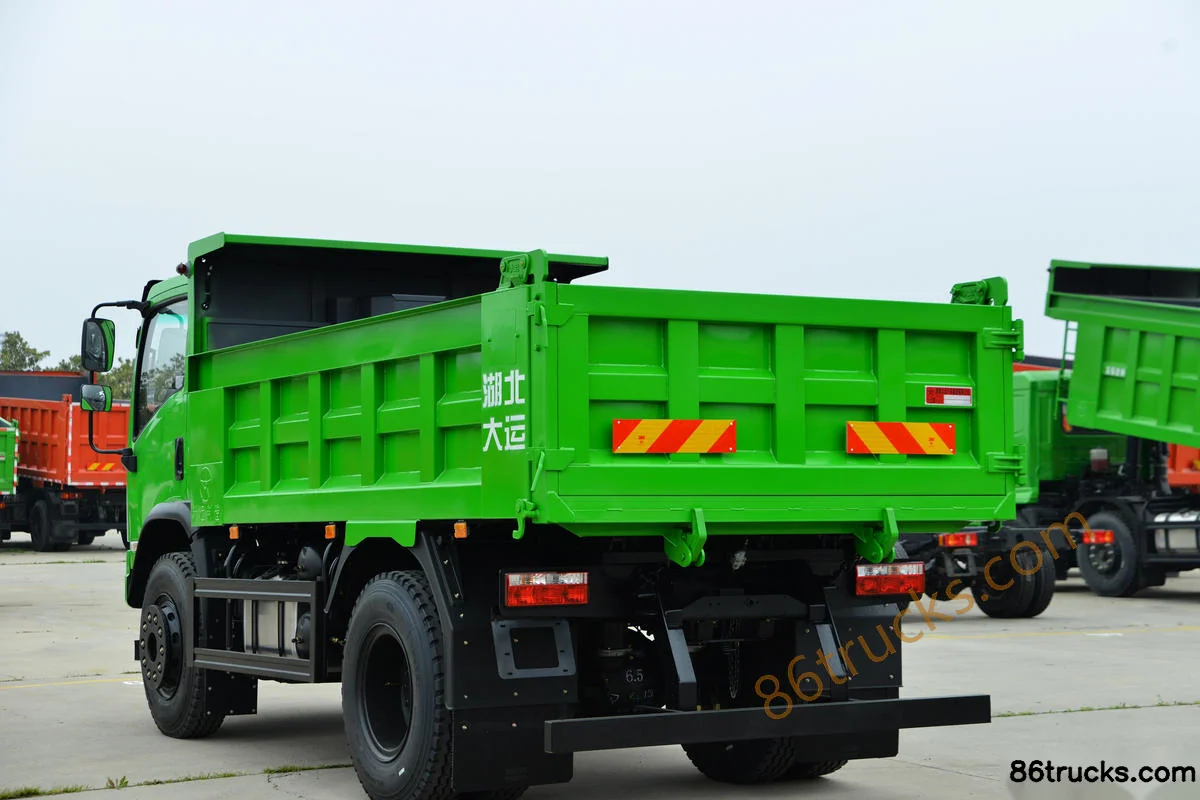

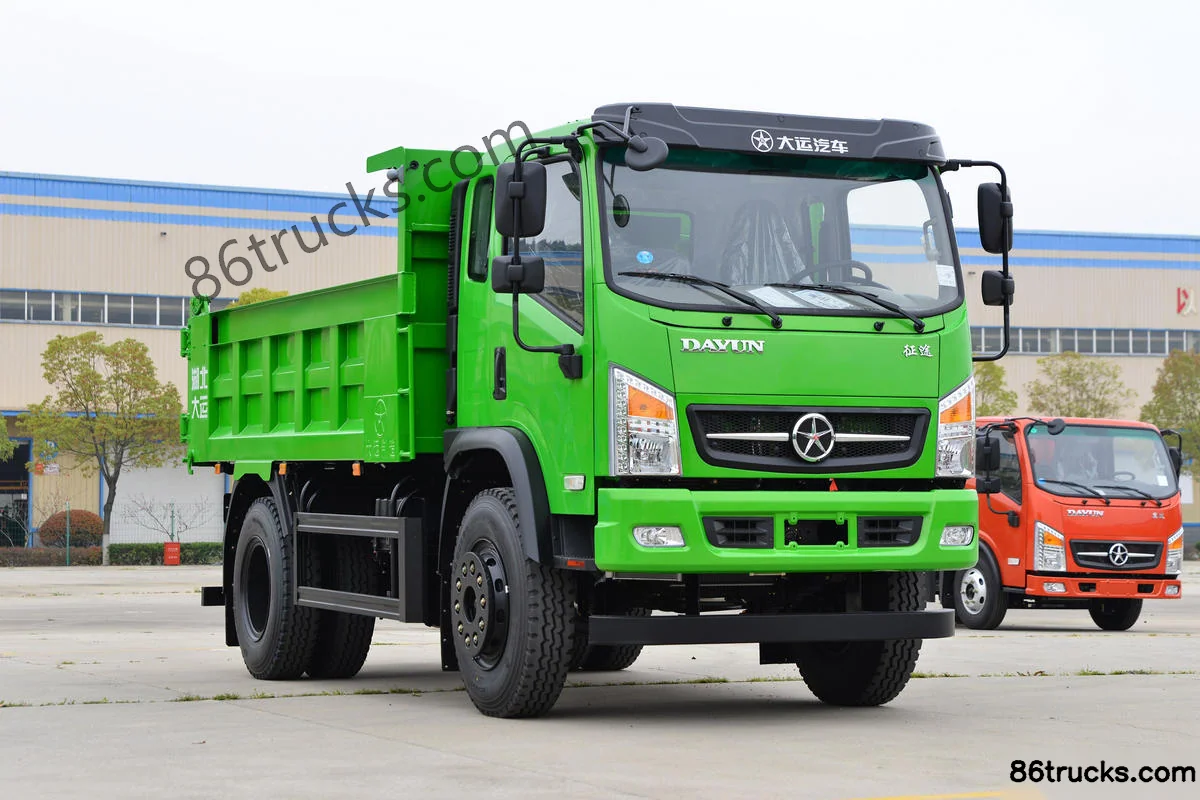

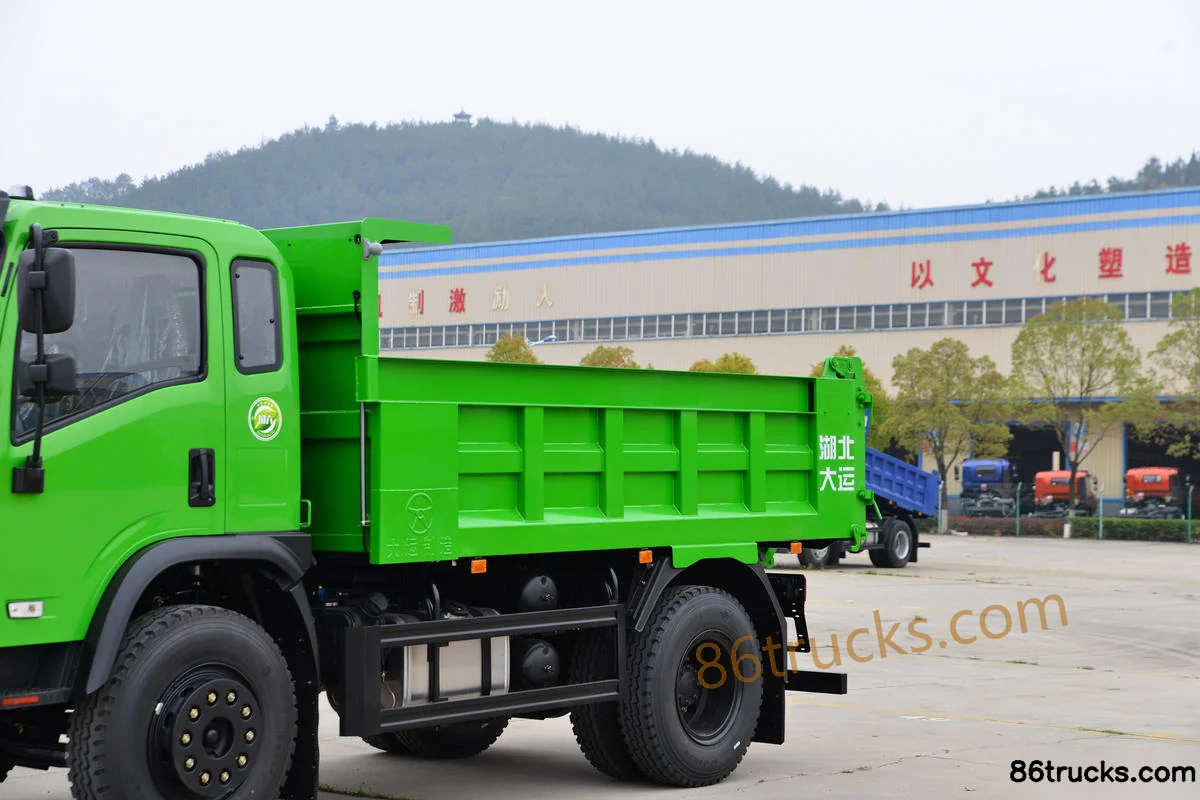

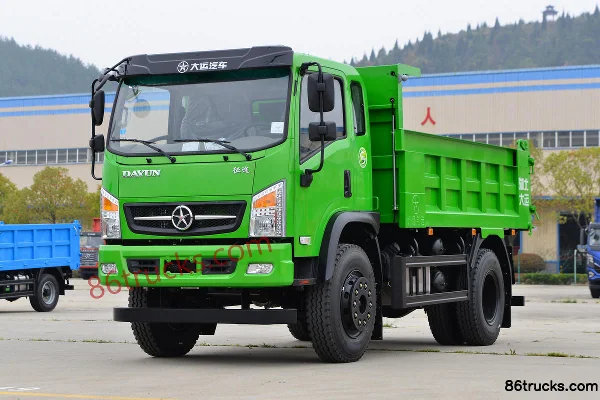

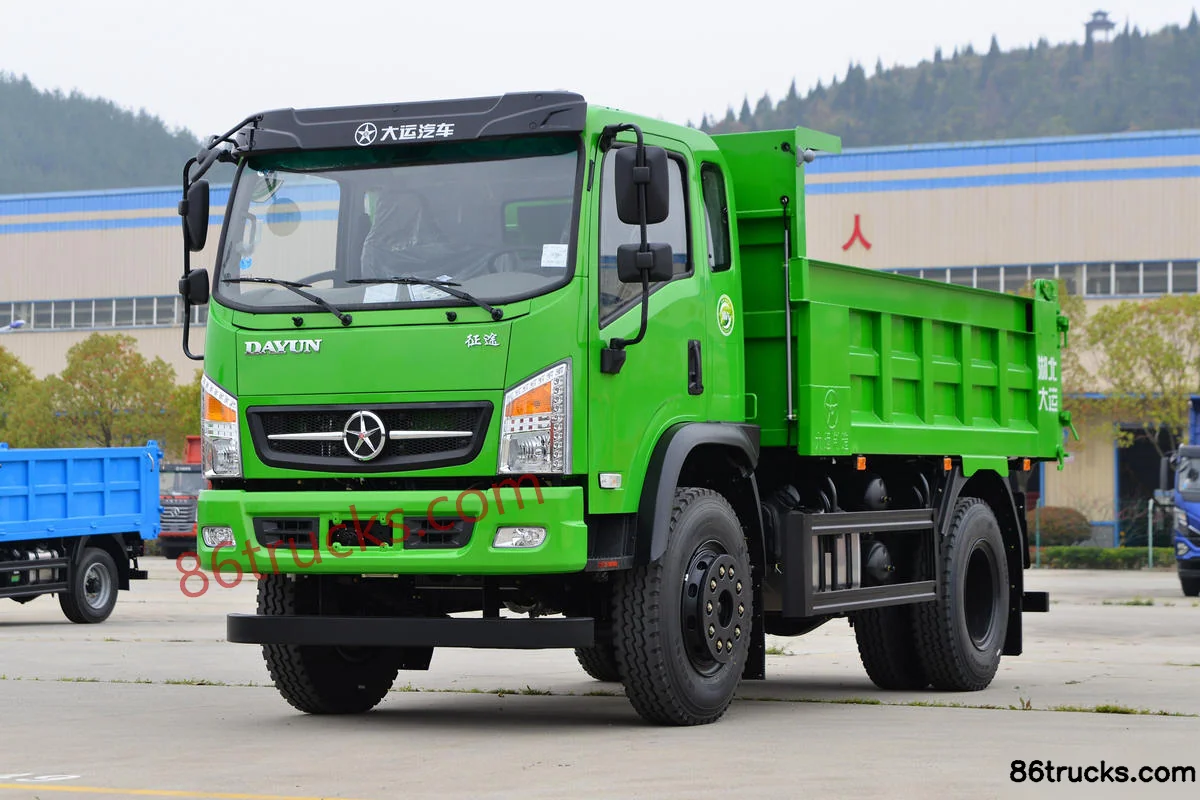

Exterior3

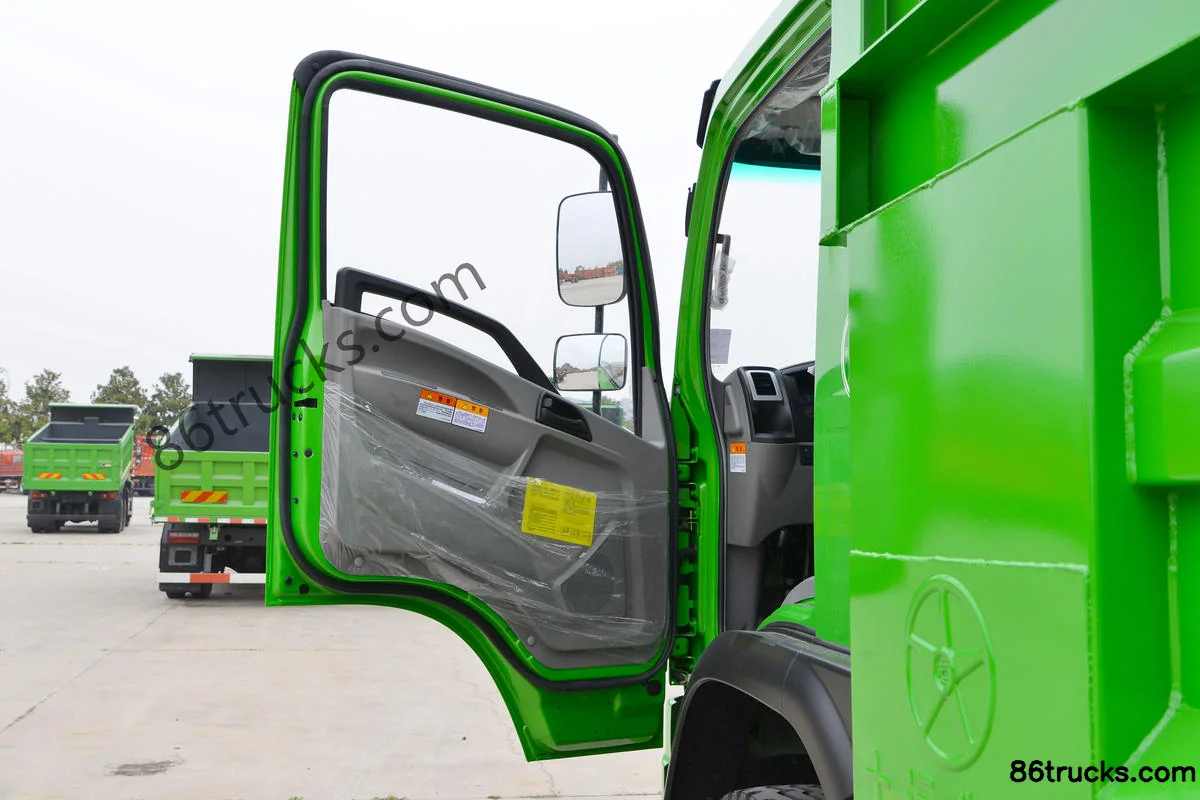

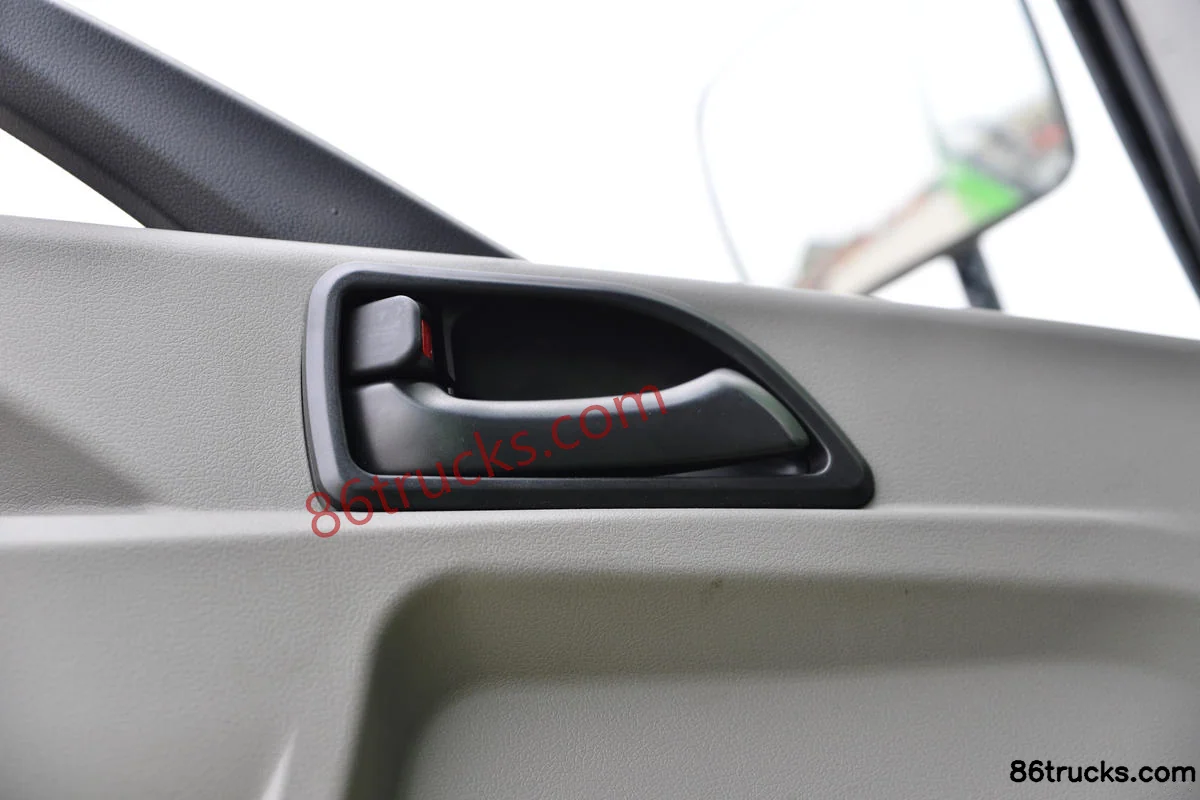

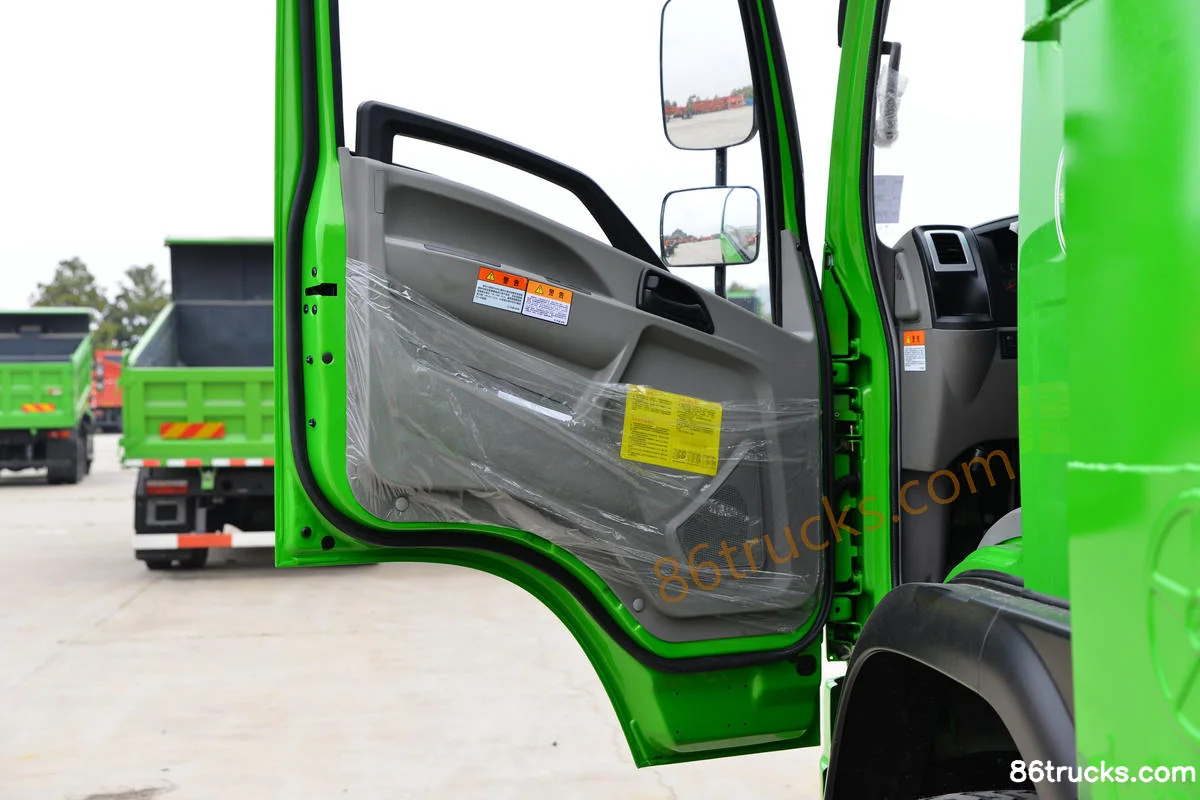

Cab3

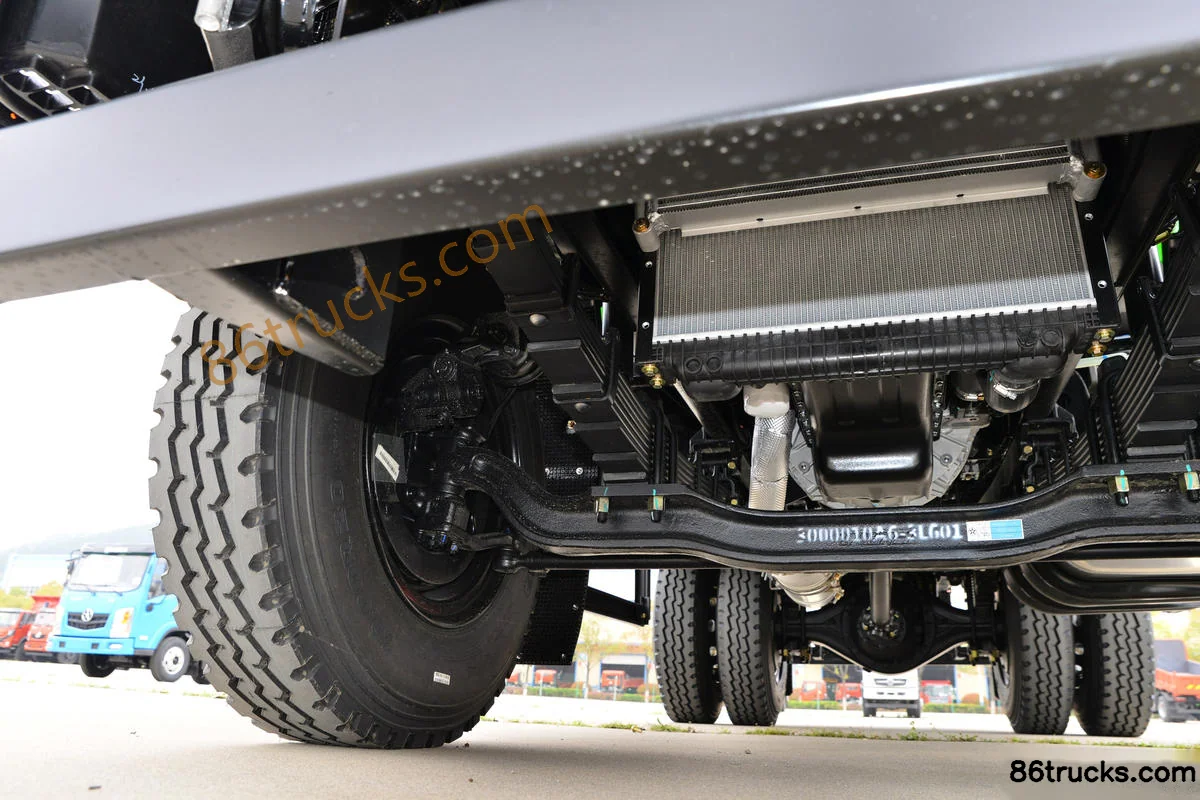

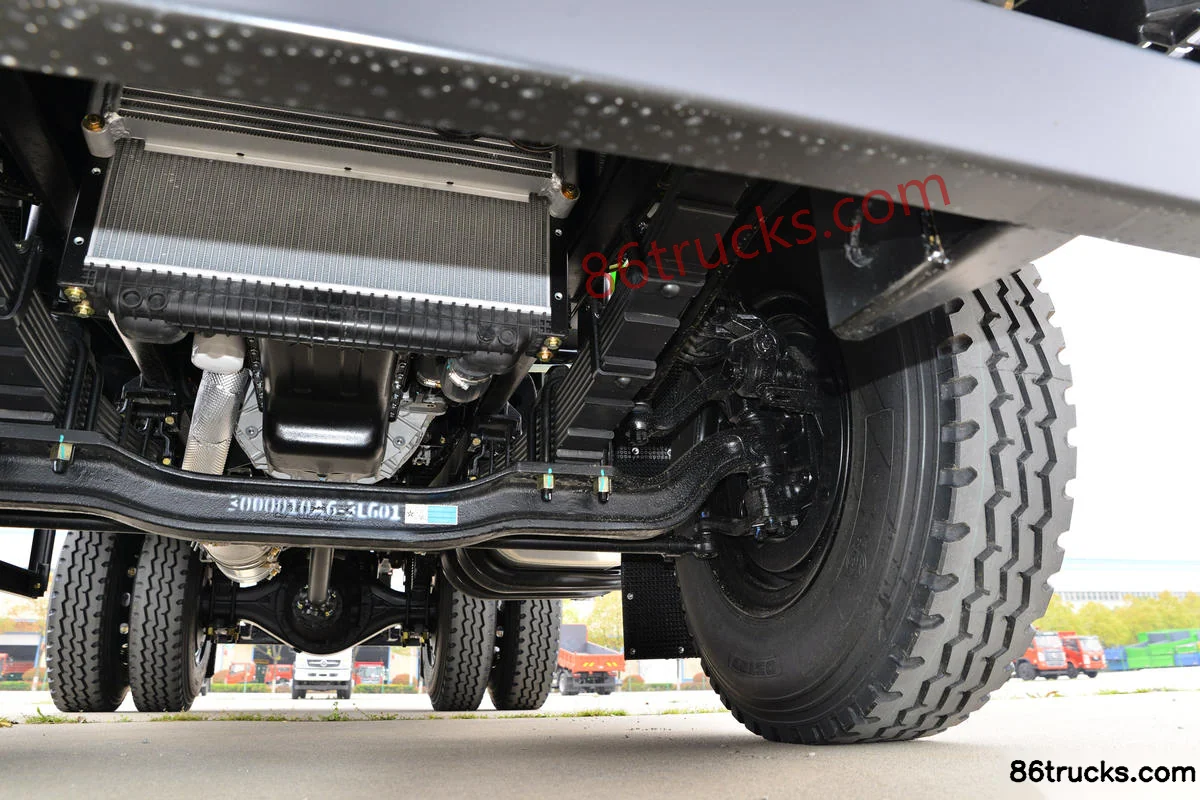

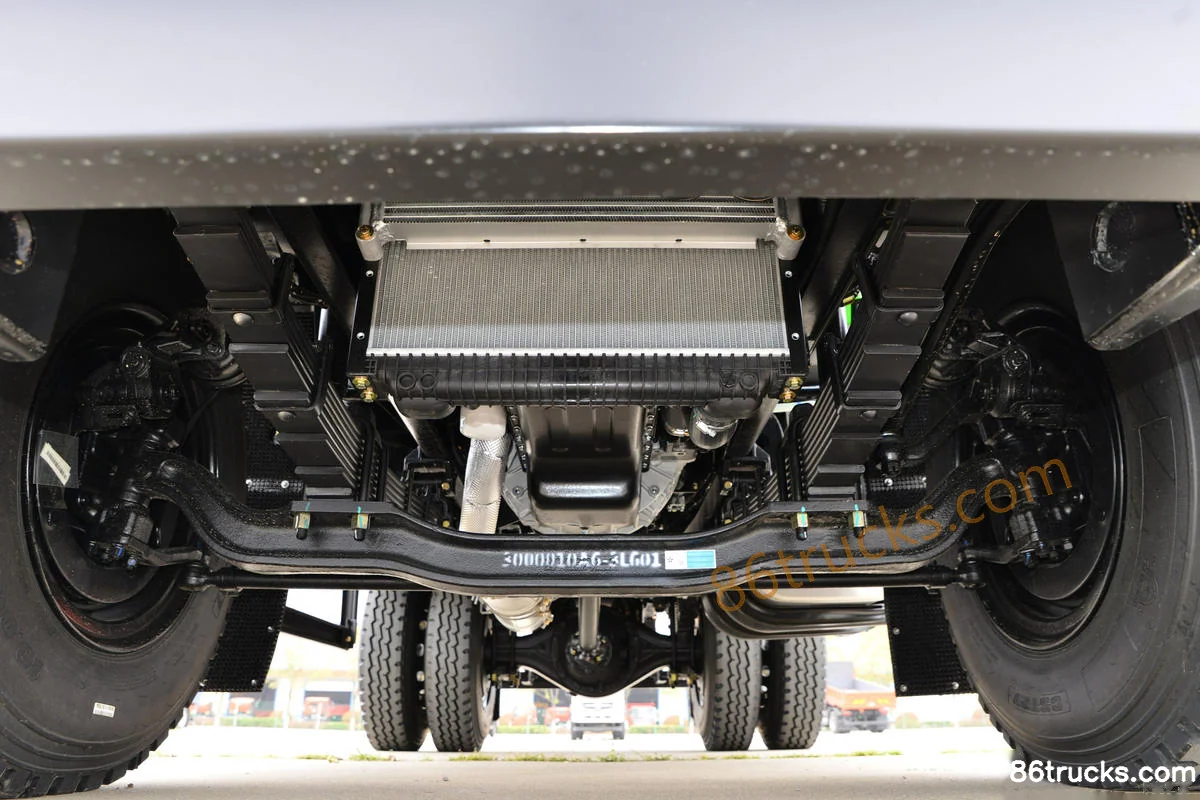

Chassis3

Body3

12 photos

FAQ

What is the export price of Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck, and what does it include?

Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck export reference is about From $15,542; MSRP is ¥11.19M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck?

Key specs of Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck: Drive: 4x2; Horsepower: 158 hp; Emission: China VI; Fuel: Diesel; Transmission: WLY. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck suited for?

Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck differ from other variants in the same series?

Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck belongs to Dayun Zhengtu light-duty truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dayun Zhengtu Composite Type 158hp 4X2(6 wheels) 3.75m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
