SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand)

Export reference
From $38,139
MSRP ¥27.46M CNY
Fuel: Diesel
Curb Weight:: 12.36ton
Wheelbase:: 3150+1400mm
Tire Size:: 295/80R22.5 18PR
Cab dimensions:: 8.32×2.5×3.8m
Truck Type:: concrete mixer truck
Rated payload: 12.51ton
Drive 6X4 (10 wheels)
Horsepower 270
Emission China V

Overview

The SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck featuring 12.51t payload, 12.36ton GVW, 6X4 (10 wheels) drive and 8.32×2.5×3.8m cab. On the powertrain side, it comes with 270 hp, China V emissions and Diesel fuel.

China V 270 Diesel 6X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 8.32×2.5×3.8m
Truck Type: concrete mixer truck
Drive type: 6X4
Vehicle origin: Jiangmen, Guangdong
Front/rear track width: Front: 2036mm; Rear: 1860/1860
Wheelbase: 3150+1400mm
Curb Weight: 12.36ton
Rated payload: 12.51ton
Max. speed: 80km/h
Front/rear suspension: 1.485/2.285m
Body Parameters
Mixing drum capacity: 5.7m³
Vehicle certification code: ZJV5251GJBJMSX
Body Brand: CIMC brand
Engine parameters
Engine Model: WeichaiWP7.270E51
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.47L
Emission standard: China V
Max output power: 199kW
Max hp: 270Horsepower
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, electronic high-pressure common rail, SCR
Chassis Specs
Chassis Series: Delong New M3000
Chassis Model: SX5250GJBMB4
Frame Dimensions: 850×270(8+4)mm
rear axle description: MAN 11.5T single reduction
Axle ratio: 5.286
Leaf spring count: 3/5
Transmission Parameters
Number of gears: 8Gear
Transmission Model: Fast Gear8JS118
Tire
Tire Size: 295/80R22.5 18PR
Number of tires: 10pcs

Photos

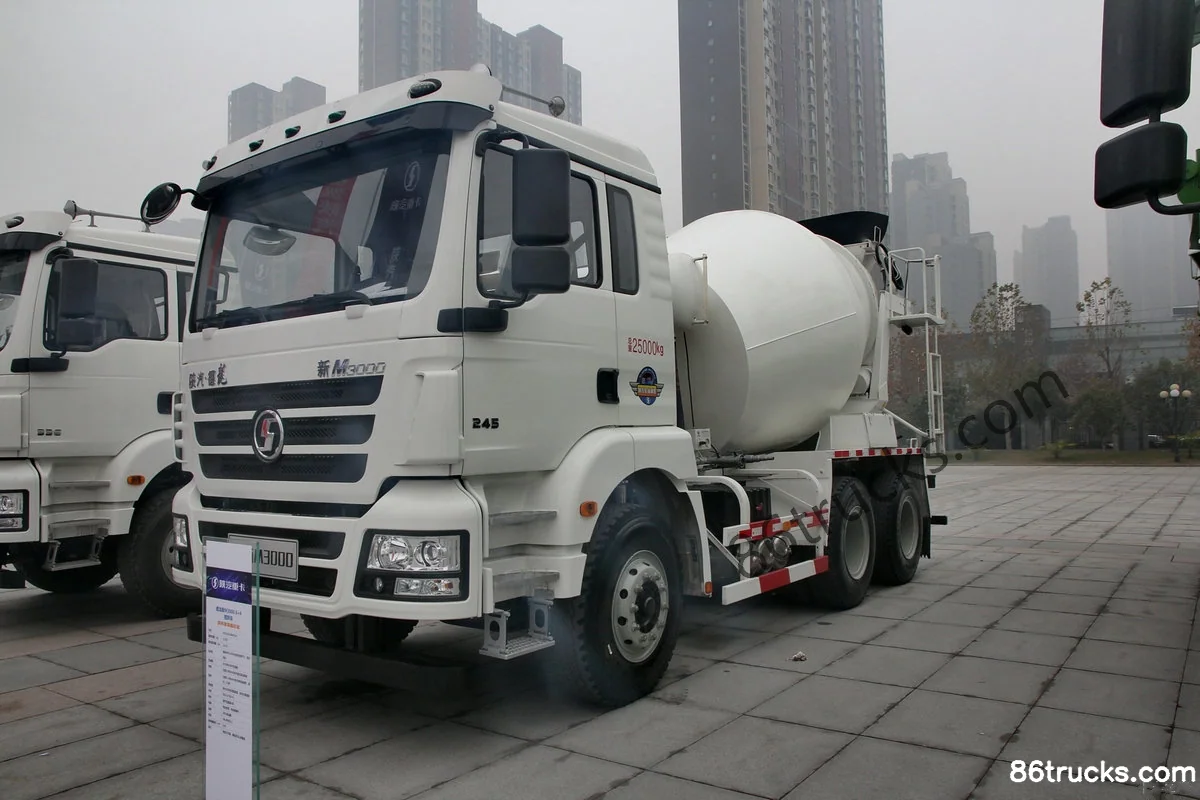

Exterior1

1 photos

FAQ

What is the export price of SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand), and what does it include?

SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) export reference is about From $38,139; MSRP is ¥27.46M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) use, and can it enter my country?

This model is listed as China V. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand)?

Key specs of SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand): Drive: 6x4; Horsepower: 270 hp; Emission: China V; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) suited for?

SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) differ from other variants in the same series?

SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand) belongs to CIMC SHACMAN chassis (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export SHACMAN Delong New M3000 270 hp 6X4(10 wheels) 5.7m³ Concrete Mixer Truck (CIMC Brand)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
