Sinotruk VPD075QB steering axle

Export reference
MSRP N/A
Application Scope:: For highway vehicles such as heavy-duty cargo trucks and tractor trucks, and off-road vehicles such as heavy-duty dump trucks and concrete mixer trucks.
Brake:: Disc
curb weight:: 425kg
Sinotruk VPD075QB steering axle exterior
View more photos (3)
Axle Model: VPD075QB
Brake size: 22.5 inch
Axle Type: Steering axle

Overview

The Sinotruk VPD075QB steering axle is a parts product with spec VPD075QB and 22.5 inch size.

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Axle Model: VPD075QB
Axle Type: Steering axle
Application Scope: For highway vehicles such as heavy-duty cargo trucks and tractor trucks, and off-road vehicles such as heavy-duty dump trucks and concrete mixer trucks.
Rated axle load: 7500ton
Brake: Disc
curb weight: 425kg
Brake size: 22.5 inch
Wheel Bolts: Φ335mm
Remarks: Leaf spring seat center distance: 850-900mm; Kingpin inclination 7.5°, Camber angle 0.5°

Photos

Exterior3

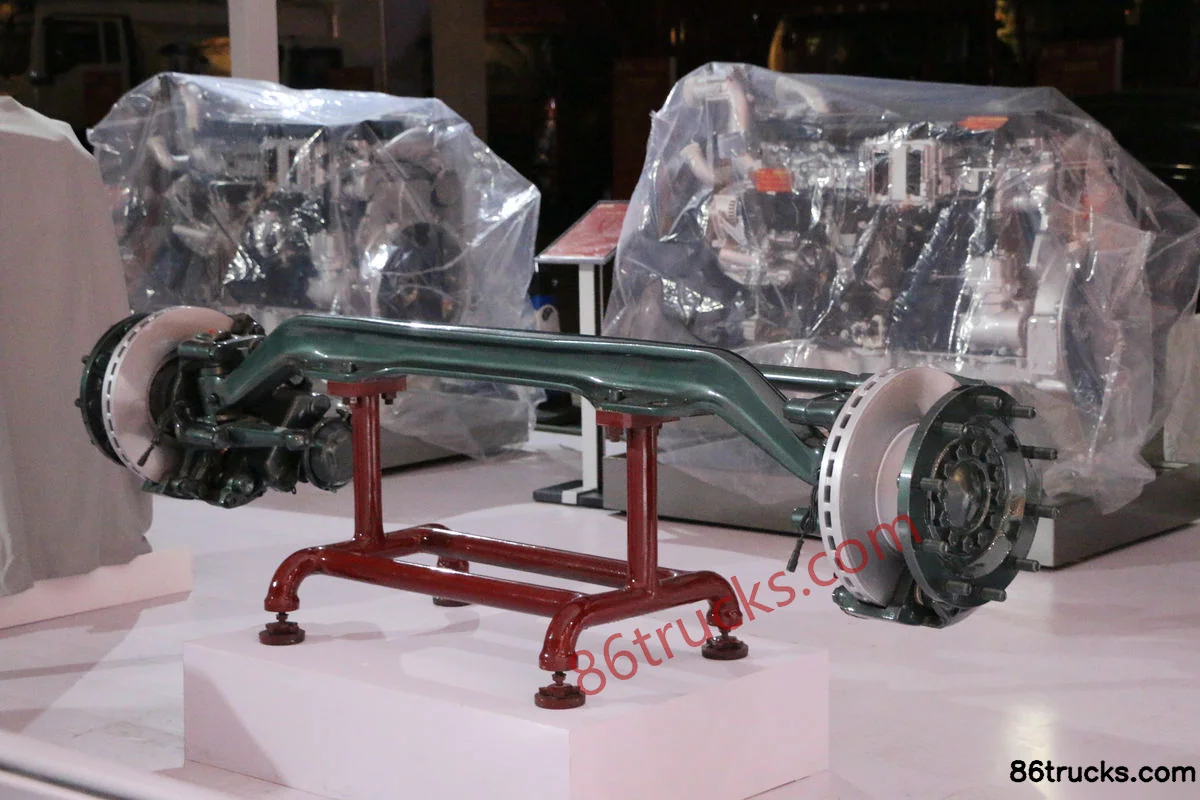

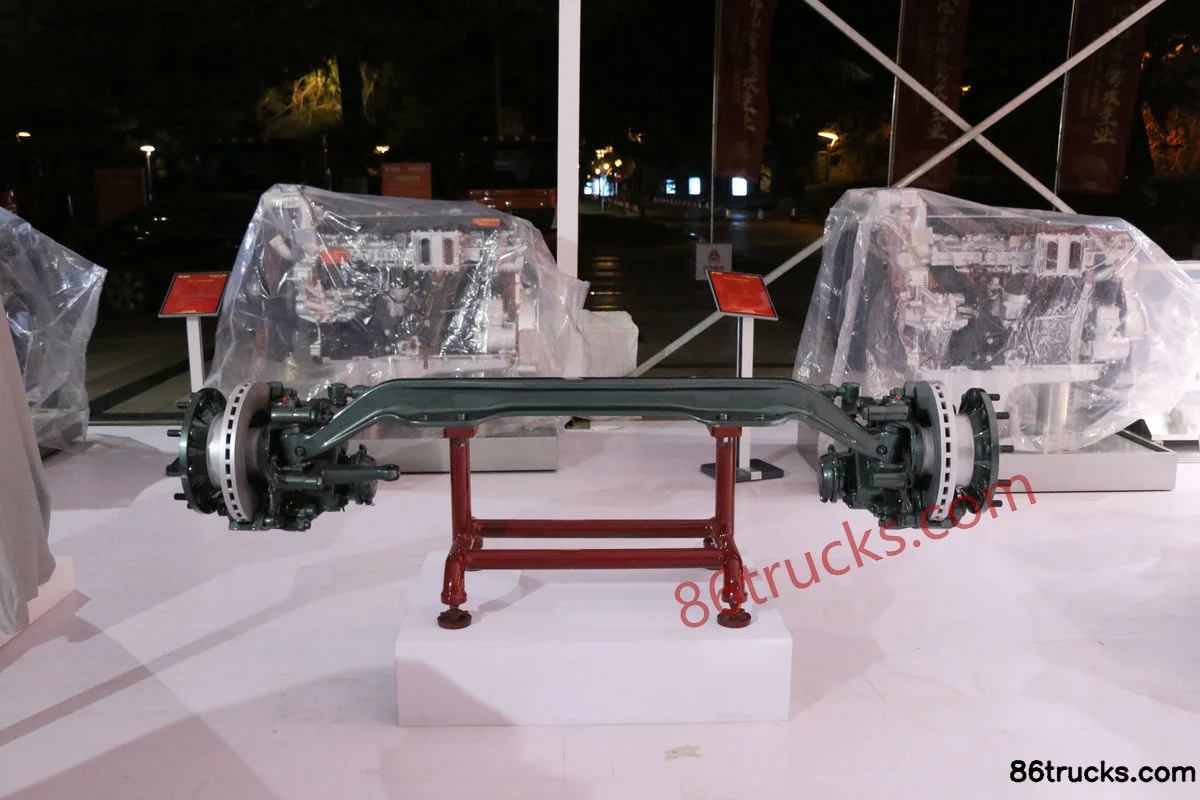

Sinotruk VPD075QB steering axle Exterior (1) | 86Trucks Sinotruk VPD075QB steering axle Exterior (2) | 86Trucks Sinotruk VPD075QB steering axle Exterior (3) | 86Trucks

3 photos

FAQ

What transport jobs is Sinotruk VPD075QB steering axle suited for?

Match Sinotruk VPD075QB steering axle to your job using drive, horsepower and emission on this page. Include use case, destination and quantity in your quote request.

How does Sinotruk VPD075QB steering axle differ from other variants in the same series?

Sinotruk VPD075QB steering axle belongs to Sinotruk Steering Axle (axle). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk VPD075QB steering axle?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk VPD075QB steering axle?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
