Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck

Export reference
From $60,139
MSRP ¥43.3M CNY
Emission: China III / Euro III
Fuel: Diesel
Transmission: Sinotruk
Curb Weight:: 15.5ton
Wheelbase:: 1950+4625+1350mm
Tire Size:: 11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR
Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck exterior
View more photos (6)
Rated payload: 15.37ton
Drive 8X4 (12 wheels)
Horsepower 375
Cargo box type: Rear-dump body

Overview

The Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck is a Heavy truck featuring 15.37t payload, 31t GVW, Rear-dump body cargo body and 8X4 (12 wheels) drive. On the powertrain side, it comes with a SinotrukWD615.96E engine, 375 hp, China III / Euro III emissions and Sinotruk transmission.

China III / Euro III 375 Diesel 8X4

Model Specs

Legend: ● Standard　○ Optional　- N/A

Basic Info
Model code (announced): ZZ3317N4667N1
Drive type: 8X4
Wheelbase: 1950+4625+1350mm
engine: SinotrukWD615.96E
transmission: SinotrukHW19710
Rear Axle Ratio: 5.45
Cab length: 11.365m
Cab width: 2.496m
Cab height: 3.49m
Front track width: 2022/2022mm
rear track: 1830/1830mm
Curb Weight: 15.5ton
Rated payload: 15.37ton
GVWR: 31ton
Origin: Jinan, Shandong
tonnage class: Heavy truck
Approach angle: 20°
departure angle: 24°
Remarks: The dumping method of this vehicle is rear dump. Vehicle length, body length, and rear overhang parameters correspond one-to-one. Body lengths of 8000mm and 8200mm correspond to a body height of 1000mm; body length of 8500mm corresponds to a body height of 950mm. Rear overhangs of 1900mm and 2000mm correspond to a departure angle of 24°, and rear overhang of 2200mm corresponds to a departure angle of 22°.
Energy Type: Diesel
Engine parameters
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.96E
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 9.726L
Emission standard: China III / Euro III
Max output power: 276kW
Max hp: 375Horsepower
Max torque: 1500N·m
Max torque speed: 1100-1600rpm
Rated speed: 2200rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR
Transmission Parameters
Transmission Model: SinotrukHW19710
Transmission Brand: Sinotruk
shift method: Manual
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Rear-dump body
Cargo box type: Rear-dump body
Cargo box length: 8.5m
Cargo box width: 2.3m
Cargo box height:
fuel tank
Fuel tank capacity: 400L
Chassis Specs
rear axle description: AC16
rear axle allowable load: 17500kg
Axle ratio: 5.45

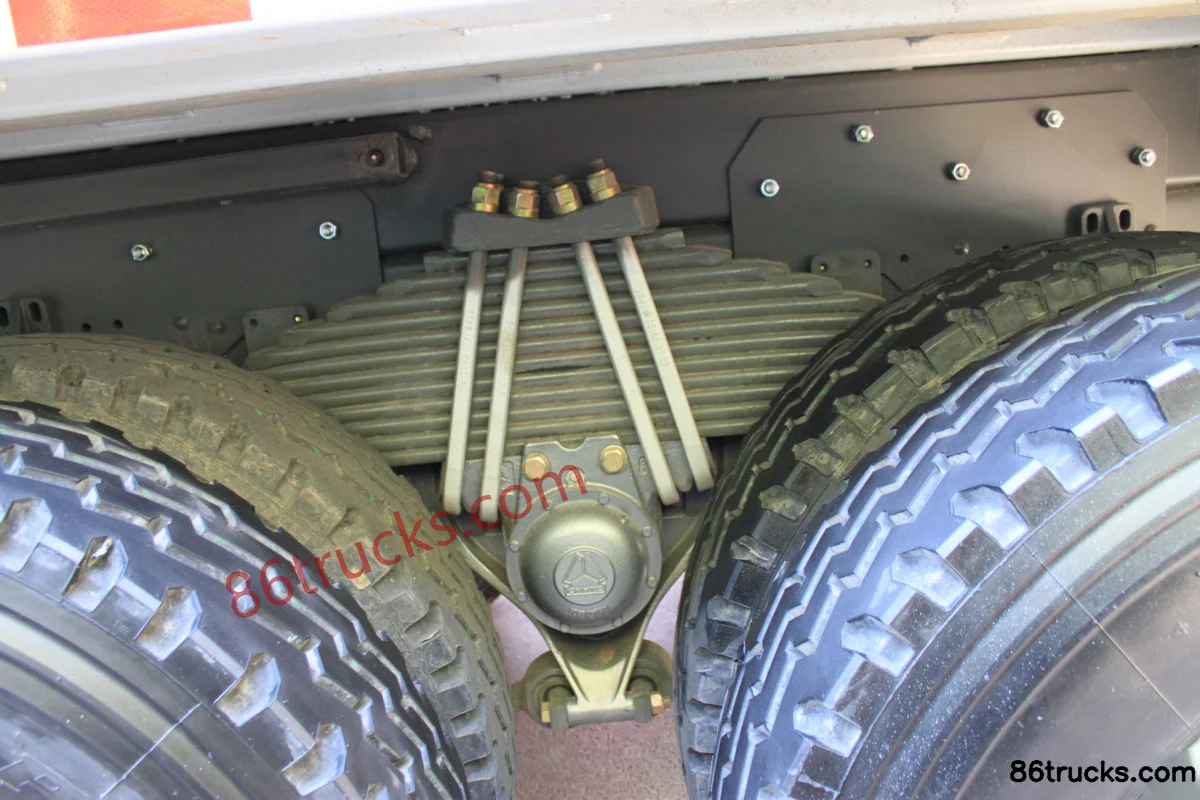

Leaf spring count: 11/11/12
Tire
Tire Size: 11.00-20,11.00R20,12.00-20 18PR,12.00R20 18PR
Number of tires: 12pcs

Photos

Exterior3

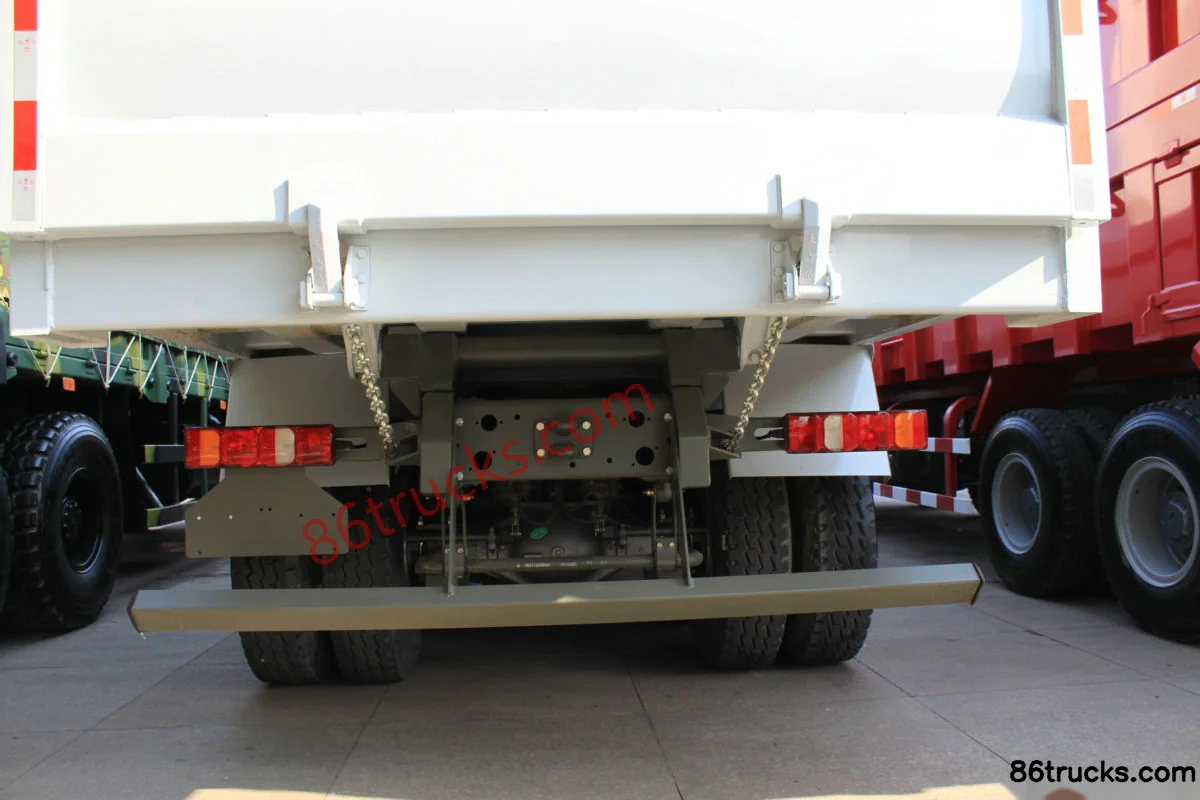

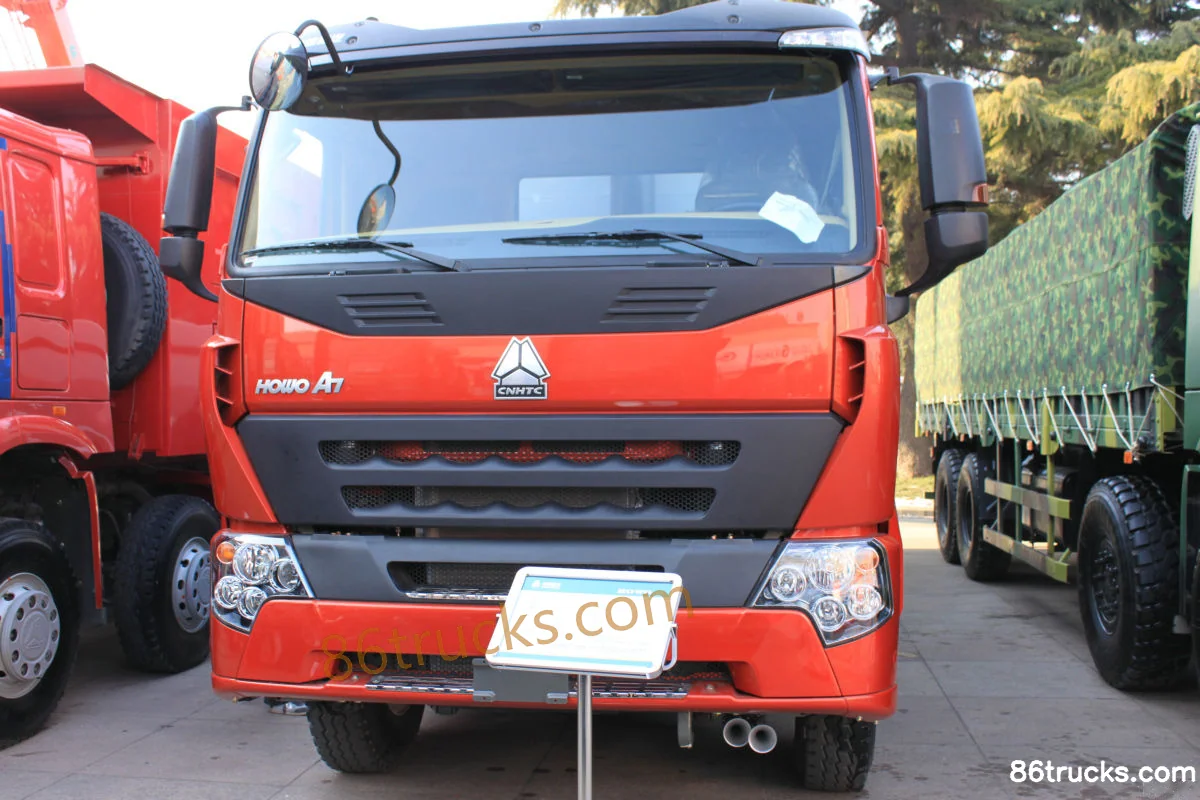

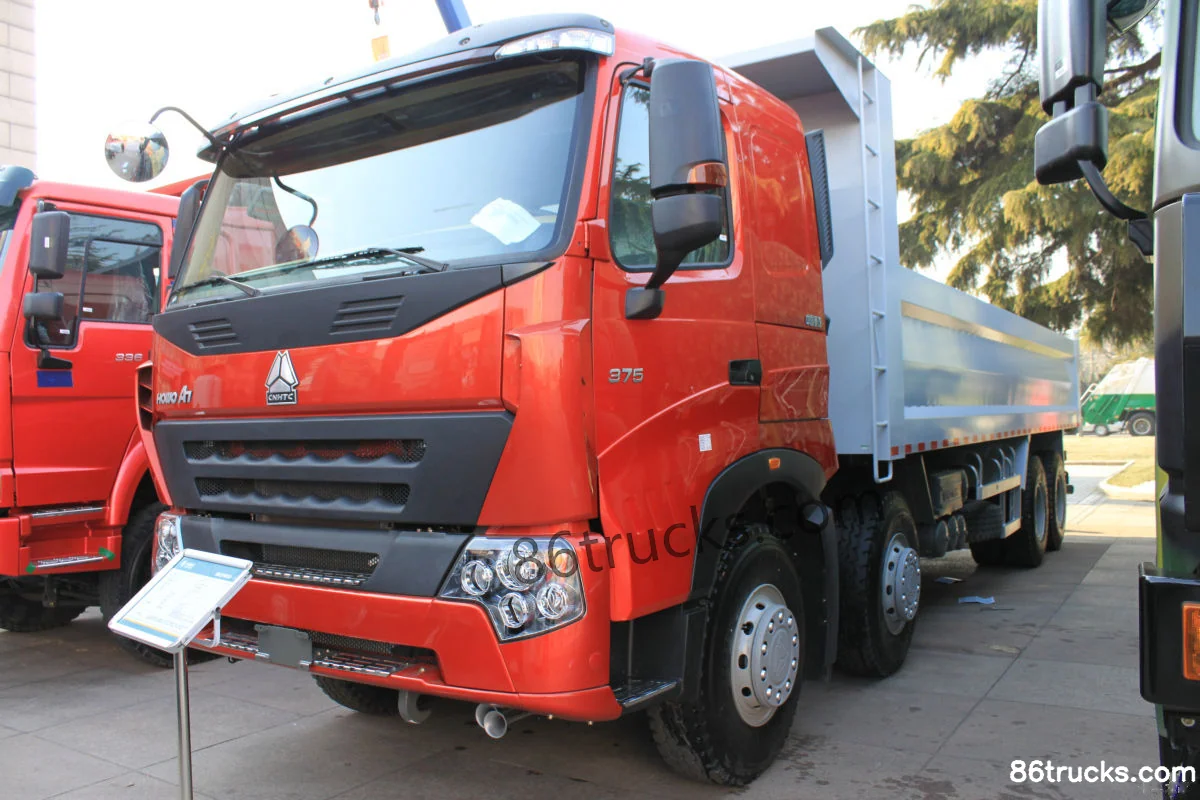

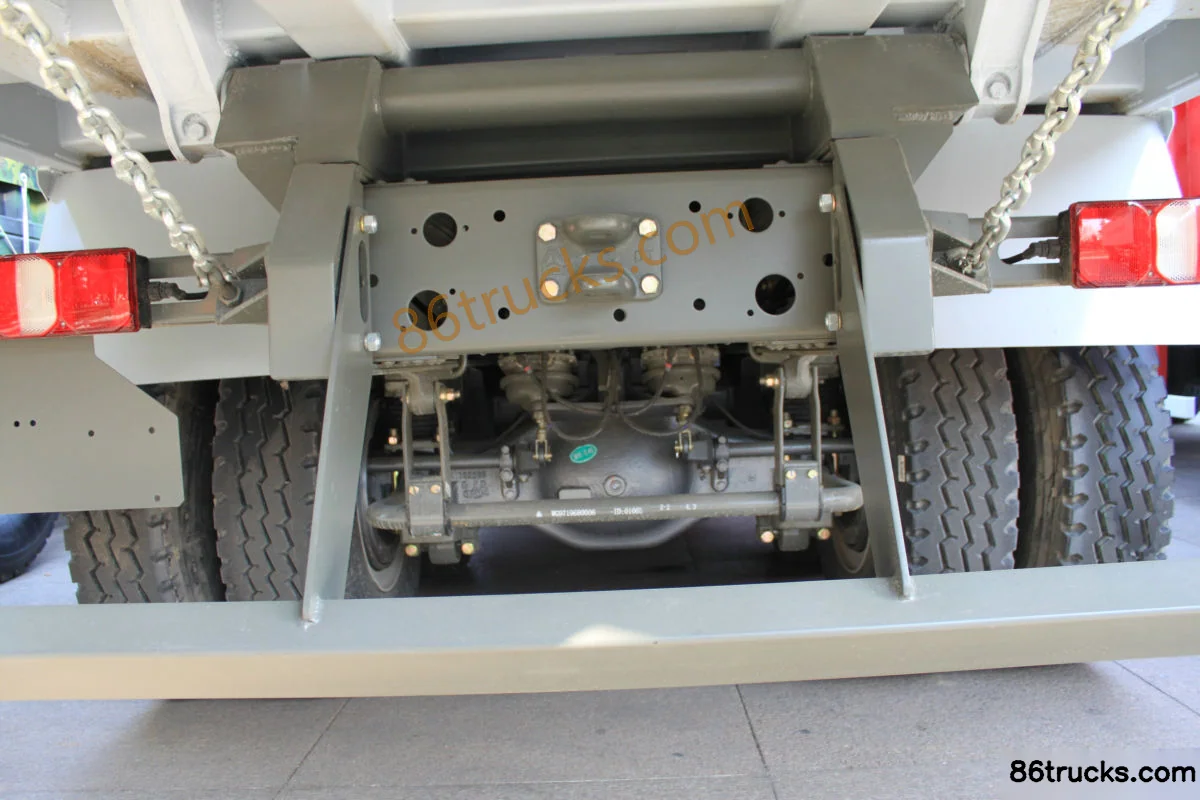

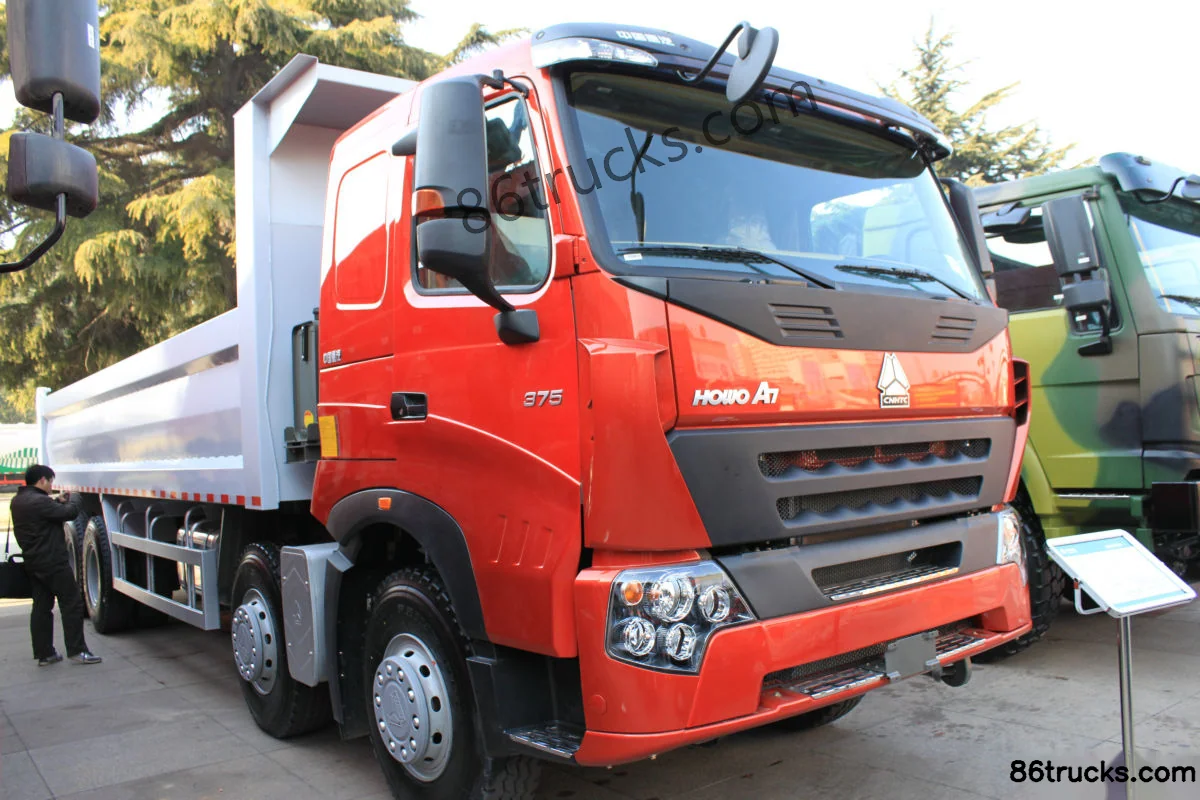

Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Exterior (1) | 86Trucks Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Exterior (2) | 86Trucks Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Exterior (3) | 86Trucks

Cab3

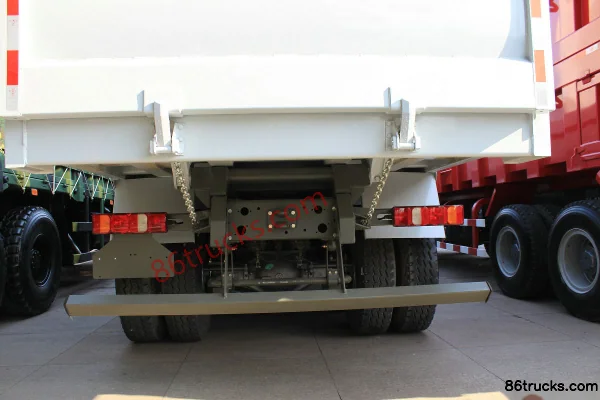

Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Cab (1) | 86Trucks Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Cab (2) | 86Trucks Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck Cab (3) | 86Trucks

6 photos

FAQ

What is the export price of Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck, and what does it include?

Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck export reference is about From $60,139; MSRP is ¥43.3M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck use, and can it enter my country?

This model is listed as China III / Euro III. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck?

Key specs of Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck: Drive: 8x4; Horsepower: 375 hp; Emission: China III / Euro III; Fuel: Diesel; Transmission: Sinotruk. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck suited for?

Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck differ from other variants in the same series?

Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck belongs to Sinotruk HOWO A7 Heavy Truck (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Sinotruk HOWO A7 Series Heavy Truck 375 hp 8X4(12 wheels) 8.5m Dump Truck?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
