FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) Corrosive Liquid Tanker Truck (Chengliwei Brand)
EXW
From $28,431
Export quote
Chengliwei FAW Jiefang Qingdao chassis liquid
Main model photos
88 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang Qingdao Long V 220 hp 6X2(8 wheels) Corrosive Liquid Tanker Truck (Chengliwei Brand) | 6x2 / 220hp / China V | From $28,431 | |
| FAW Jiefang Qingdao HanV 260 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Chengliwei Brand) | 8x2 / 260hp / China V | From $48,333 | |
| FAW Jiefang Qingdao Long V 196 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chengliwei Brand) | 4x2 / 190hp / China V | From $30,556 |

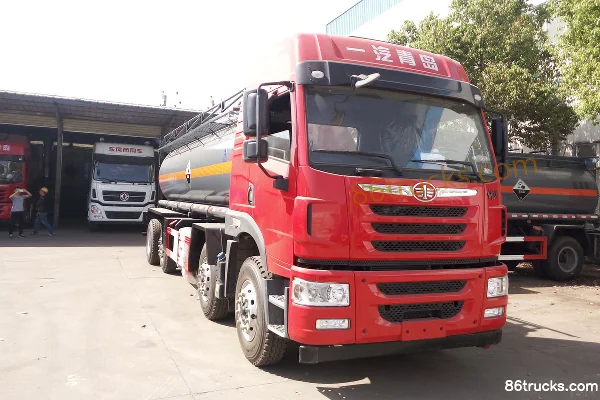

FAW Jiefang Qingdao HanV 260 hp 8X2(10 wheels) Chemical Liquid Transport Truck (Chengliwei Brand)
EXW
From $48,333
Export quote

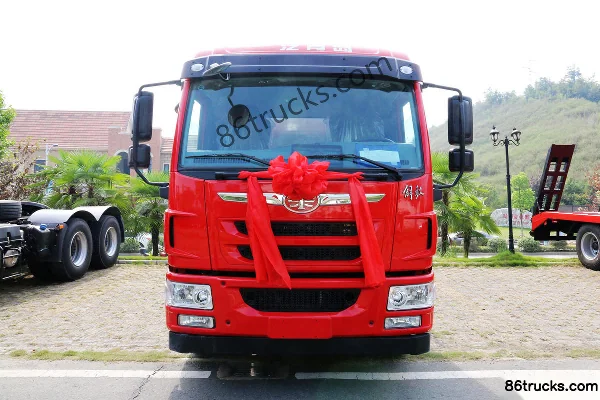

FAW Jiefang Qingdao Long V 196 hp 4X2(6 wheels) Chemical Liquid Transport Truck (Chengliwei Brand)
EXW
From $30,556
Export quote
Series Specs
Basic Info
Cab dimensions: 8.98×2.5×3.45 / 10.94×2.5×3.4 / 7946×2500×3300m
Drive type: 6X2 / 8X2 / 4X2
Truck Type: corrosive liquid tanker truck / chemical liquid transport truck
Vehicle origin: Suizhou, Hubei
Wheelbase: 1900+4700 / 1900+4160+1350 / 4500mm
Front/rear track width: Front: 1914/1914mm; Rear: 1860/1860 / 1964/1964；1960/1847 / Front track 1800mm, rear track 1800
Rated payload: 14.2 / 18.17 / 8.87ton
GVWR: 25 / 31 / 16ton
Max. speed: 80km/h
Front/rear suspension: 1.332/1.748 / 1.375/2.155 / 1.332/2.114m
Body Parameters
Tank Size: 6.5x6.0 / 8.2×Φ1.8m
Tank Volume: 14.2 / 18.1 / 8.8m3
Transport medium: Sodium hypochlorite, liquid caustic soda, hydrochloric acid, sulfuric acid, ammonia water
Medium Density: 1050 / 1047ton/cubic meter
Vehicle certification code: CLW5257GFWC5 / CLW5314GFWC5 / CLW5162GFWC5
Body Brand: Chengliwei
Chassis Specs
Front/rear axle description: 435 stamped-welded axle / 13t rear axle / 6/10T
Chassis Brand: FAW Jiefang Qingdao
Chassis Series: Long V / HanV
Chassis Model: CA1250PK2L5T3BE5A80 / CA1311P1K2L6T10BE5A80 / CA1167PK2BE5A80
Leaf spring count: 12/12/10+9,3/3/4+3,7/7/10+3,3/3/10+3 / 12/12/6+-/10+9,3/3/6+-/10+9,10/10/6+-/10+9 / 7/10+3
Engine parameters
Engine Model: XichaiCA6DLD-22E5 / XichaiCA6DL1-26E5 / ISD190 50
Number of cylinders: 6 / 4cylinder
Displacement: 6.6 / 7.7 / 6.7L
Emission standard: China V
Max output power: 164 / 195 / 144kW
Max hp: 220 / 260 / 190Horsepower
Transmission Parameters
Number of gears: 6 / 9Gear
Transmission Model: FAWCA6TBX085M / 9-speed gearbox / 6-speed
Tire
Tire Size: 295/80R22.5 / 295/80R22.5,315/80R22.5,11.00R20 / Doublestar10R22.5
Number of tires: 8 / 10 / 6pcs
FAQ
What kind of truck is Chengliwei Chengliwei FAW Jiefang Qingdao chassis liquid transport truck?
Chengliwei Chengliwei FAW Jiefang Qingdao chassis is an export-oriented liquid transport truck lineup with about 3 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Chengliwei FAW Jiefang Qingdao chassis liquid?
Chengliwei FAW Jiefang Qingdao chassis liquid export reference is about $28,431 – $48,333. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Chengliwei FAW Jiefang Qingdao chassis liquid cover?
Chengliwei FAW Jiefang Qingdao chassis liquid mainly covers: Drive: 4x2 / 6x2 / 8x2; Horsepower: 190 hp / 220 hp / 260 hp; Emission: China V. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Chengliwei FAW Jiefang Qingdao chassis liquid?
For Chengliwei FAW Jiefang Qingdao chassis liquid: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is liquid transport truck typically used for?
liquid transport truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Chengliwei FAW Jiefang Qingdao chassis liquid include?
Chengliwei FAW Jiefang Qingdao chassis liquid currently lists about 3 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Chengliwei FAW Jiefang Qingdao chassis liquid?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
