Dongfeng H5 270 hp 6X4(10 wheels) Green Sprinkler Truck (Wanglongwei)
EXW
From $29,861
Export quote
Dongfeng H5 Heavy Truck water sprinkler truck
Main model photos
1,993 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng H5 270 hp 6X4(10 wheels) Green Sprinkler Truck (Wanglongwei) | 6x4 / 270hp | From $29,861 | |
| Dongfeng H5 350 hp 6X4(10 wheels) Green Spraying Truck (Wanglongwei) | 6x4 / 350hp | From $36,111 | |
| Dongfeng H5 350 hp 6X4(10 wheels) Green Spraying Truck (Kailifeng) | 6x4 / 350hp | From $36,111 | |
| Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) landscaping sprinkler truck (Haotian Xingyun brand) | 6x4 / 270hp / China VI | ||
| Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) Green Spraying Truck Chassis | 6x4 / 270hp / China VI | From $40,556 |
Dongfeng H5 350 hp 6X4(10 wheels) Green Spraying Truck (Wanglongwei)
EXW
From $36,111
Export quote
Dongfeng H5 350 hp 6X4(10 wheels) Green Spraying Truck (Kailifeng)
EXW
From $36,111
Export quote
Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) landscaping sprinkler truck (Haotian Xingyun brand)
EXW
Export quote

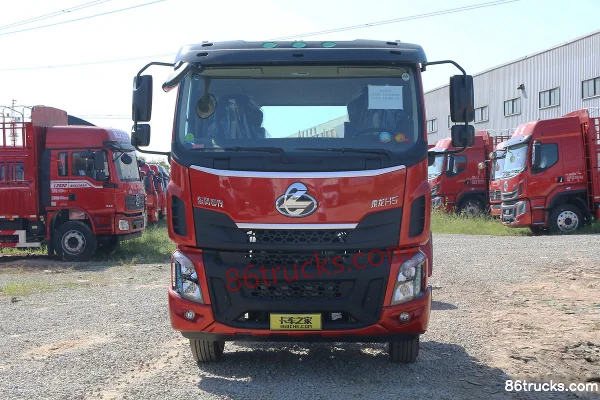

Dongfeng Liuqi Chenglong H5 270 hp 6X4(10 wheels) Green Spraying Truck Chassis
EXW
From $40,556
Export quote
Series Specs
Basic Info
Cab dimensions: 10.36×2.55×3.6 / 9.9×2.5×3.3 / 10.1×2.55×3.6 / 9.57×2.55×3.6m
Drive type: 6X4
Truck Type: landscaping sprinkler truck / Water Sprinkler Truck
Vehicle origin: Suizhou, Hubei
Wheelbase: 4500+1350 / 5850+1350mm
Front track width: 2050mm
rear track: 1860/1860mm
Curb Weight: 10.705 / 10.77 / 10.5 / 10.4ton
Rated payload: 14.165 / 14.035 / 14.37 / 14.47ton
Max. speed: 89km/h
Front/rear suspension: 1.445/3.065 / 1.445/2.605 / 1.445/2.805 / 1.445/3.265 / 1.445/2.275m
Energy Type: Diesel
Engine parameters
Injection System: Common Rail
Engine Model: YCS06270-60 / YCK08350-60 / YuchaiYCS06270-60 / YuchaiYCK08350-60
Number of cylinders: 6cylinder
Displacement: 6.23 / 7.7L
Emission standard: China VI
Max output power: 199 / 257kW
Max hp: 270 / 350Horsepower
Rated speed: 2300 / 2200rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Body Parameters
Tank Dimensions (L×W×H): 6.5×2.3×1.55m
Vehicle certification code: WLW5256GPSLZ / KLF5250GPSL6 / HTX5250GPSLL6
Body Brand: Wanglongwei Brand / Kailifeng / Haotian Xingyun brand
Cargo box parameters
Box volume: 14.9m³
Chassis Specs
Chassis Brand: DongfengLiuqi / Dongfeng
Chassis Series: ChenglongH5
Chassis Model: LZ1256H5DCT
Front axle description: 5.5T
Frame Dimensions: 282(8+4) / 300(8+4) / 300(8+4) partial three-layermm
rear axle description: 2*440
Steering gear: Domestic
Axle ratio: 5.143 / 4.875
Leaf spring count: 11/10
clutch: Φ430
Transmission Parameters
Number of gears: 12 / 10 / 9 / 8Gear
Transmission Model: HW11708STC / 10JSD140T / Fast Gear9JS119T-B / Fast Gear10JSD140T / SinotrukHW11708STC
Cab parameters
Cab: H51S / H53S / H5
Tire
Tire Size: 11.00R20 18PR
Number of tires: 10pcs
FAQ
What kind of truck is Dongfeng Dongfeng H5 Heavy Truck water sprinkler truck?
Dongfeng Dongfeng H5 Heavy Truck is an export-oriented water sprinkler truck lineup with about 7 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Dongfeng H5 Heavy Truck water sprinkler truck?
Dongfeng H5 Heavy Truck water sprinkler truck export reference is about $29,861 – $44,625. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Dongfeng H5 Heavy Truck water sprinkler truck cover?
Dongfeng H5 Heavy Truck water sprinkler truck mainly covers: Drive: 6x4; Horsepower: 270 hp / 350 hp; Emission: China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Dongfeng H5 Heavy Truck water sprinkler truck?
For Dongfeng H5 Heavy Truck water sprinkler truck: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is water sprinkler truck typically used for?
water sprinkler truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does Dongfeng H5 Heavy Truck water sprinkler truck include?
Dongfeng H5 Heavy Truck water sprinkler truck currently lists about 7 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Dongfeng H5 Heavy Truck water sprinkler truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
