Foton R-Series 280 hp 4X2(6 wheels) Fast Gear 8-Speed 7.9m Refrigerated Truck
EXW
From $32,778
Export quote

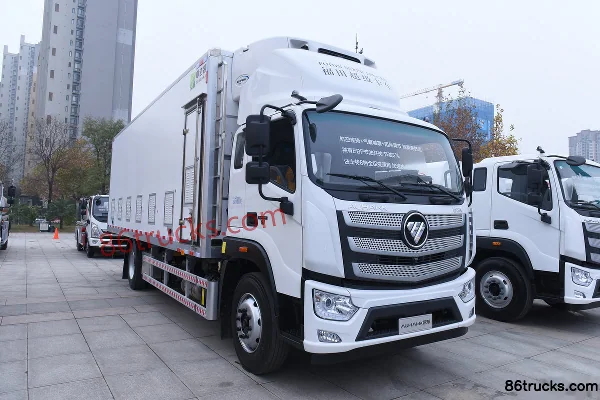

Foton R Series Medium Truck Refrigerated Truck
Main model photos
693 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton R-Series 280 hp 4X2(6 wheels) Fast Gear 8-Speed 7.9m Refrigerated Truck | 4x2 / 280hp / China VI | From $32,778 | |
| Foton R Series 240hp 4X2(6 wheels) 6.6m refrigerated truck | 4x2 / 240hp / China VI | From $30,556 | |
| Foton Auman R Series 270 hp 4X2(6 wheels) 7.6m Refrigerated Truck | 4x2 / 270hp / China VI | From $45,833 | |
| Foton Auhang R Series 240 hp 4X2(6 wheels) 5.3m refrigerated truck | 4x2 / 240hp / China VI | From $27,778 | |
| Foton Auman R-series 240hp 4X2(6 wheels) 6.6m refrigerated truck (WLY 6-speed) | 4x2 / 240hp / China VI | From $44,444 |
Foton R Series 240hp 4X2(6 wheels) 6.6m refrigerated truck
EXW
From $30,556
Export quote
Foton Auman R Series 270 hp 4X2(6 wheels) 7.6m Refrigerated Truck
EXW
From $45,833
Export quote
Foton Auhang R Series 240 hp 4X2(6 wheels) 5.3m refrigerated truck
EXW
From $27,778
Export quote
Foton Auman R-series 240hp 4X2(6 wheels) 6.6m refrigerated truck (WLY 6-speed)
EXW
From $44,444
Export quote
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Foton Auman R-Series 220hp 4X2(6 wheels) 6.6m refrigerated truck (China VI) (high roof) | 4x2 / 220hp / China VI | ||
| Foton Auman R-Series 210hp 4X2(6 wheels) 5.6m refrigerated truck | 4x2 / 210hp / China V | From $30,556 | |
| Foton Auman R Series 210hp 4X2(6 wheels) 7.6m Refrigerated Truck | 4x2 / 210hp / China V | From $51,222 | |
| Foton Ouhang R-Series 185 hp 4X2(6 wheels) 5.4m refrigerated truck | 4x2 / 185hp / China V | From $38,611 | |
| Foton Auman R Series 220 hp 4X2(6 wheels) 7.6 m Refrigerated Truck | 4x2 / 220hp / China VI |
Foton Auman R-Series 220hp 4X2(6 wheels) 6.6m refrigerated truck (China VI) (high roof)
EXW
Export quote
Foton Auman R-Series 210hp 4X2(6 wheels) 5.6m refrigerated truck
EXW
From $30,556
Export quote
Foton Auman R Series 210hp 4X2(6 wheels) 7.6m Refrigerated Truck
EXW
From $51,222
Export quote
Foton Ouhang R-Series 185 hp 4X2(6 wheels) 5.4m refrigerated truck
EXW
From $38,611
Export quote
Foton Auman R Series 220 hp 4X2(6 wheels) 7.6 m Refrigerated Truck
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 10.35×2.6×3.95 / 9×2.6×3.965 / 10.025×2.6×3.95 / 7.7×2.6×3.75 / 8.9×2.6×3.95 / 10.3×2.6×3.95 / 9×2.6×3.95 / 8.425×2.6×3.95 / 7.97×2.6×3.95 / 7.67×2.6×3.95 / 9×2.6×3.75 / 8.425×2.6×3.75 / 7.97×2.6×3.75 / 7.67×2.6×3.75 / 8.9×2.6×3.965 / 9.9×2.6×3.95 / 9.1×2.6×3.95 / 9.1×2.6×3.85 / 8×2.6×3.95 / 8×2.6×3.75 / 7.7×2.6×3.95 / 8.42×2.6×3.5m
Truck Type: Refrigerated Truck
Drive type: 4X2
Wheelbase: 5750 / 5150 / 4200 / 4800 / 4500mm
Vehicle origin: Changsha, Hunan / Shandong Zhucheng / Beijing Changping
Front track width: 1922 / 1955 / 1970 / 1945mm
rear track: 1800 / 1860 / 1830mm
Curb Weight: 7.875 / 9.875 / 8.375 / 9.375 / 9.995 / 8.475ton
Rated payload: 9.995 / 7.995 / 7.93 / 9.475 / 9.495 / 7.875 / 9.395 / 7.495ton
GVWR: 18 / 16ton
Max. speed: 89 / 90km/h
Remarks: Optional 4.875/4.111 ratio, electric cab tilt, LED headlights. / Optional electric cab tilt, 4.875/4.111 ratio, air-suspension driver seat, LED headlights. / Optional 600L aluminum fuel tank, full-floating four-air-bag cab suspension, electric cab tilt, 4.875 ratio, air-suspension driver seat. / Optional 600L aluminum alloy fuel tank, electric cab tilting, 4.875 ratio, air-suspension driver seat. / Optional 450L aluminum fuel tank, full-floating four-airbag cab suspension, electric cab tilting, 4.875 ratio, air-suspension driver seat. / Optional 450L aluminum alloy fuel tank, electric cab tilt, 4.875 ratio, air-suspension driver seat. / Optional full-floating four-air-bag cab suspension, electric cab tilt, 4.875 ratio, air-suspension driver seat. / Optional electric cab tilt, 4.875 ratio, air-suspension driver seat. / Optional 600L aluminum alloy fuel tank, Fast Gear 8JS75TE transmission, electric cab tilting, 4.875/4.111 ratio, parking air conditioner. / Optional Fast Gear 8JS75TE transmission, electric cab tilt, 4.875/4.111 ratio, parking A/C. / Optional 600L aluminum alloy fuel tank, electric hydraulic cab tilting. / Optional (500+100)L aluminum alloy fuel tank, 600L aluminum alloy fuel tank, 4.875/4.111 ratio, electric cab tilt. / Optional aluminum alloy dual-circuit 450L fuel tank, ratios 4.875/4.11/3.909, electric cab tilt, full-floating four-airbag cab suspension. / Optional 600L aluminum alloy fuel tank, 4.875/4.111 ratio, electric cab tilt. / Optional 500L+100L aluminum alloy fuel tank, 600L aluminum alloy fuel tank, 4.875/4.111 ratio, electric cab tilt, full-floating four-airbag. / Optional 500L+100L aluminum alloy fuel tank, 600L aluminum alloy fuel tank, 4.875/4.111 ratio, electric cab tilt. / Optional 450L aluminum alloy fuel tank, air-suspension driver seat, 4.875/4.111 ratio. / Optional 600L aluminum alloy fuel tank, air-suspension driver seat, electric cab lifting, 4.875/4.111 ratio. / Optional 600L aluminum alloy fuel tank, electric cab lifting, 4.875/4.111 ratio. / Optional electric cab lift, 4.875/3.909 ratio.
Front/rear suspension: 1.27/3.18 / 1.27/2.48 / 1.27/3.005 / 1.27/2.23 / 1.27/3.015 / 1.27/2.655 / 1.27/2.58 / 1.27/2.355 / 1.27/2.2 / 1.32/2.53 / 1.27/2.43m
Energy Type: Diesel
Engine parameters
Engine Model: F4.5NS6B280A / F4.5NS6B240A / YuchaiYCS06270-60 / FotonF4.5NS6B240A / FotonF4.5NS6B240 / DongfengB6.2NS6B260 / YuchaiYCS04220-61A / YuchaiYCS04200-68 / YuchaiYCS06300-61 / DongfengB6.2NS6B245 / YuchaiYCS06270-61 / FotonF4.5NS6B220 / FotonF4.5NS6B260 / FotonF4.5NS6B190
Number of cylinders: 4 / 6cylinder
Displacement: 4.5 / 6.23 / 6.2 / 4.295 / 4.16 / 6.442 / 6.234L
Emission standard: China VI
Max output power: 206 / 176 / 199 / 191 / 162 / 147 / 221 / 180 / 181 / 140kW
Max hp: 280 / 240 / 270 / 260 / 220 / 200 / 300 / 245 / 190Horsepower
Max torque: 1050 / 1020 / 850 / 720 / 1200 / 1000 / 820 / 700N·m
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Cargo box parameters
Box volume: 46m³
Cargo box dimensions: 7.9×2.45×2.5 / 6.6×2.435×2.5 / 7.6×2.45×2.5 / 5.3×2.45×2.3 / 6.6×2.45×2.5 / 6×2.45×2.5 / 5.6×2.45×2.5 / 5.3×2.45×2.5 / 6.6×2.45×2.4 / 7.6×2.45×2.4 / 6.8×2.45×2.4 / 5.9×2.45×2.4m
Cargo box width: 2.45 / 2.435m
Cargo box height: 2.5 / 2.3 / 2.4m
Body Parameters
Vehicle certification code: BJ5186XLC-9M / BJ5186XLC-8M / BJ5188XLCKPFN-AF1 / BJ5166XLC-2M / BJ5186XLC-1M / BJ5186XLC-1A / BJ5188XLCKPFK-AD1 / BJ5186XLC-DM1 / BJ5186XLC-DM3 / BJ5186XLC-4K / BJ5186XLC-3M / BJ5166XLC-1A
Body Brand: Foton / Auhang R series
Chassis Specs
Chassis Brand: Foton
Chassis Series: Auhang R series / R Series
Chassis Model: BJ5186XXY-1A / BJ1186VKPFK-1M / BJ5188XXYKPFN-AF1 / BJ1166VKPFD-2M / BJ1188VKPFK-AD1 / BJ1186VKPGK-DM1 / BJ1186VKPFK-4K / BJ1186VKPFD-3M / BJ1166VJPFK-1A
Front axle description: 3.6T / 4.2T
Frame Dimensions: Overall width 940/865, height 234, width 65/75, thickness 6+4 frame / 234-height frame with longitudinal beam section / Overall width 940/865, height 234, width 65/75, thickness 6+4 reinforced frame / 234×75×6mm
rear axle description: 8T / 18T / 9T
Axle ratio: 4.333 / 4.33 / 4.875 / 3.7
Transmission Parameters
Number of gears: 8 / 6 / 9Gear
Transmission Model: 8JS95TE / 8-speed / Fast Gear 8-speed / WLYWLY6GS40 / Fast GearF8JZ105MM / Fast Gear8JSX110TC / Fast Gear8JS85TE / Fast Gear8JS75E / ZFZF9AS1517TO / Fast Gear9JS119TA / Fast Gear8JS95TE / Fast Gear8JS85E / Fast GearF8JZ95MM
Cab parameters
Cab: Sleeper cab / Flat Roof Semi-Sleeper / Sleeper cab with raised roof / Sleeper cab with flat roof
fuel tank
Fuel tank capacity: 300 / 450 / 260L
FAQ
What kind of truck is Foton Foton R Series Medium Truck Refrigerated Truck?
Foton Foton R Series Medium Truck is an export-oriented Refrigerated Truck lineup with about 194 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Foton R Series Medium Truck Refrigerated Truck?
Foton R Series Medium Truck Refrigerated Truck export reference is about $20,833 – $51,222. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Foton R Series Medium Truck Refrigerated Truck cover?
Foton R Series Medium Truck Refrigerated Truck mainly covers: Drive: 4x2; Horsepower: 185 hp / 210 hp / 220 hp / 240 hp / 270 hp / 280 hp; Emission: China V / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Foton R Series Medium Truck Refrigerated Truck?
For Foton R Series Medium Truck Refrigerated Truck: 1) set emission; 2) match body/wheelbase to cargo type; 3) pick drive and horsepower; 4) compare prices, then open a model to quote.
What is Refrigerated Truck typically used for?
Refrigerated Truck covers box, stake or flatbed cargo work from city delivery to regional haul. Filter by body and payload needs.
How many models does Foton R Series Medium Truck Refrigerated Truck include?
Foton R Series Medium Truck Refrigerated Truck currently lists about 194 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Foton R Series Medium Truck Refrigerated Truck?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
