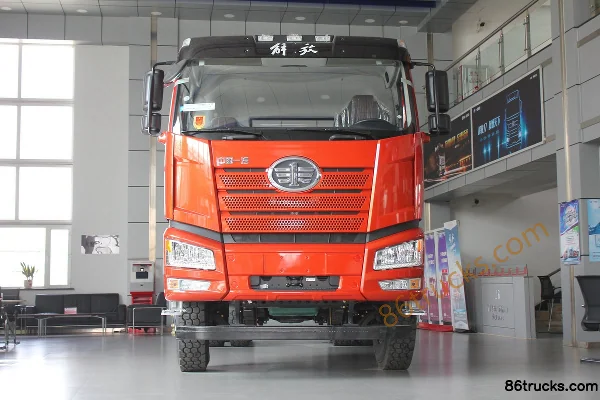

FAW Jiefang J6L 320hp 8X4(12 wheels) Concrete Mixer Truck (Yate Heavy Industry Brand)
EXW
From $51,389
Export quote
Yate Heavy Industry FAW Jiefang Chassis concrete
Main model photos
57 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| FAW Jiefang J6L 320hp 8X4(12 wheels) Concrete Mixer Truck (Yate Heavy Industry Brand) | 8x4 / 320hp / China V | From $51,389 | |
| FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (Ratio 5.571) | 8x4 / 320hp / China V | From $42,583 | |
| FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (9-speed) | 8x4 / 320hp / China V | From $42,222 | |
| FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) | 8x4 / 320hp / China V | From $40,903 | |
| FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (457 rear axle) | 8x4 / 320hp / China V | From $41,917 |
FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (Ratio 5.571)
EXW
From $42,583
Export quote
FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (9-speed)
EXW
From $42,222
Export quote
FAW Jiefang J6L 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand)
EXW
From $40,903
Export quote

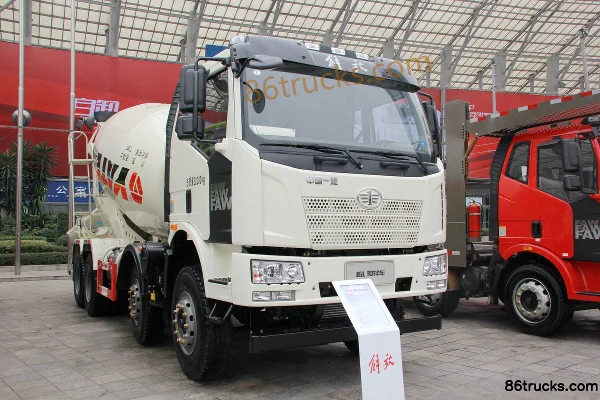

FAW Jiefang J6L Lightweight Edition 320 hp 8X4(12 wheels) 7.9 m³ Concrete Mixer Truck (Yate Heavy Industry brand) (457 rear axle)
EXW
From $41,917
Export quote
Series Specs
Basic Info
Cab dimensions: 10.15×2.495×3.97 / 10.48×2.495×3.998m
Drive type: 8X4 / 6X4
Truck Type: Concrete mixer truck
Vehicle origin: Tangshan, Hebei / Tangshan
Front/rear track width: Front track: 1914mm; Rear track: 1860mm / Front track: 1928/1928mm; Rear track: 1878/1878 / Front track: 2020mm; Rear track: 1878/1878
Wheelbase: 1950+2900+1350 / 4300+1350 / 4800+1350mm
Curb Weight: 13.565 / 15.98ton
Rated payload: 17.305 / 8.825ton
Max. speed: 89 / 79km/h
Front/rear suspension: 1.4/2.55 / 1.47/3.36m
Body Parameters
Mixing drum capacity: 7.9 / 4m³
Vehicle certification code: TZ5310GJBCE8E1 / TZ5250GJBCEEJ6
Body Brand: Yate Heavy Industry Brand
Engine parameters
Engine Model: XichaiCA6DL1-32E5 / XichaiCA6DL3-37E5 / XichaiCA6DL2-35E5
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.7 / 8.6 / 8.57L
Emission standard: China V
Max output power: 238 / 279 / 261kW
Max hp: 320 / 375 / 350Horsepower
Rated speed: 2300 / 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic high-pressure common rail + SCR / BOSCH common rail + SCR, low-mount PTO / Inline, 4-stroke, water-cooled, 4-valve, turbocharged intercooled
Chassis Specs
Chassis Series: FAW JiefangJ6L / FAW JiefangJ6P
Chassis Model: CA5310GJBP62K2T4E5 / CA5250GJBP66K2L2T1E5
Front axle description: 1928 front axle / 2020
Frame Dimensions: 270×75×(7+5) / 300x80x(8+5) / 300×80×(8+8+5)mm
rear axle description: φ290 wheel reduction axle / 457 stamped-welded axle / φ290 wheel reduction axle (auto adjust arm, domestic ABS, 2-hole V-rod) / Φ457 stamped-welded axle (auto slack adjuster, domestic ABS) / Φ300 cast wheel reduction axle
Axle ratio: 5.263 / 5.571 / 5.286
Leaf spring count: 10/10/11,8/8/11,3/3/11 / 8/8/11 / 11/11/10 / 11/12,12/12
clutch: Φ430
Transmission Parameters
Number of gears: 10 / 9 / 12Gear
Transmission Model: FAWCA10TA130M / FAWCA9TB160M / FAWCA12TA160M / FAWCA10TA160M2 / FAWCA12TA160M2
Cab parameters
Cab: J6L full-floating flat roof small half sleeper / 2017 J6P Full-floating Flat Roof Small Half-row
Tire
Tire Size: 10.00R20,10.00-20,11.00R20,11.00-20,12R22.5 / 12R22.5 / 11.00R20 / 12.00R20 16PR
Number of tires: 12 / 10pcs
FAQ
What kind of truck is Yate Heavy Industry Yate Heavy Industry FAW Jiefang Chassis concrete mixer truck?
Yate Heavy Industry Yate Heavy Industry FAW Jiefang Chassis is an export-oriented concrete mixer truck lineup with about 13 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What is the export price range for Yate Heavy Industry FAW Jiefang Chassis concrete?
Yate Heavy Industry FAW Jiefang Chassis concrete export reference is about $40,903 – $51,389. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).
What spec range does Yate Heavy Industry FAW Jiefang Chassis concrete cover?
Yate Heavy Industry FAW Jiefang Chassis concrete mainly covers: Drive: 8x4; Horsepower: 320 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Yate Heavy Industry FAW Jiefang Chassis concrete?
For Yate Heavy Industry FAW Jiefang Chassis concrete: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.
What is concrete mixer truck typically used for?
concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.
How many models does Yate Heavy Industry FAW Jiefang Chassis concrete include?
Yate Heavy Industry FAW Jiefang Chassis concrete currently lists about 13 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Yate Heavy Industry FAW Jiefang Chassis concrete?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
