Dongfeng Commercial Vehicle Tianjin VR 185 hp 4X2(6 wheels) Compressed Garbage Truck (Zhonglian Brand) (China VI)
EXW
Export quote
ZOOMLION Dongfeng Commercial Vehicle chassis
Main model photos
73 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle Tianjin VR 185 hp 4X2(6 wheels) Compressed Garbage Truck (Zhonglian Brand) (China VI) | 4x2 / 185hp / China VI | ||

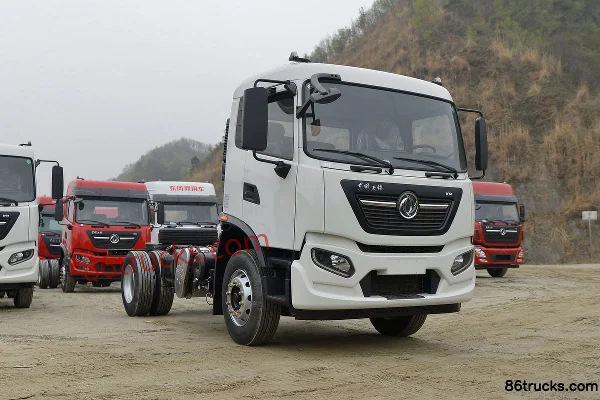

| Dongfeng Commercial Vehicle Tianjin KR 230 hp 4X2(6 wheels) Detachable Container Garbage Truck (Zoomlion Brand) (China VI) | 4x2 / 230hp / China VI |
Inventory
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Dongfeng Commercial Vehicle 153 Series 185 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand) | 4x2 / 185hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianlong 210 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand) | 4x2 / 210hp / China IV | ||
| Dongfeng Commercial Vehicle 153 Series 185 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand) | 4x2 / 185hp / China III / Euro III | ||
| Dongfeng Commercial Vehicle Tianjin 230 hp 6X4(10 wheels) Garbage Truck (Zhonglian Brand) | 6x4 / 230hp / China III / Euro III |
Dongfeng Commercial Vehicle 153 Series 185 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianlong 210 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand)
EXW
Export quote
Dongfeng Commercial Vehicle 153 Series 185 hp 4X2(6 wheels) Garbage Truck (Zhonglian Brand)
EXW
Export quote
Dongfeng Commercial Vehicle Tianjin 230 hp 6X4(10 wheels) Garbage Truck (Zhonglian Brand)
EXW
Export quote
Series Specs
Basic Info
Cab dimensions: 6.91×2.34×3.255 / 7.13×2.5×2.96 / 7.935×2.48×3.1 / 8.67×2.48×3.1 / 6.545×2.49×2.88 / 8.422×2.48×3.42m
Type: Compression-type garbage truck / Interchangeable body garbage truck / Side-loading compression refuse truck
Drive type: 4X2 / 6X4
Wheelbase: 3800 / 4500 / 3950 / 4350+1300mm
Front/rear track width: Front: 1646mm; Rear: 1800 / Front: 1876mm; Rear: 1860 / Front track: 1900, Rear track: 1800 / Front track: 1880, Rear track: 1860 / Front track: 1986mm; Rear track: 1860/1860mm
Rated mass: 1.955 / 10.07 / 2.945 / 6.575 / 5.75 / 8.2ton
GVWR: 18 / 12.5 / 16 / 20.49ton
Front/rear suspension: 1.445/1.51 / 1.4/1.2 / 1.25/2.51 / 1.43/2.74 / 1.25/1.345 / 1.46/1.312m
Energy Type: Diesel
Body Parameters
Special Function Description: Optional TV monitoring system, wireless remote control device, spray dust suppression system, electric motor power system, bin lifting mechanism / This vehicle has 5 configurations: simple type, basic type, optional tipping device, optional bucket lifting device, optional hopper tipping device / Tilt discharge method, simple structure, fast and clean unloading.
Vehicle certification code: ZBH5102ZYSDFE6 / ZBH5180ZXXDFE6 / ZLJ5120ZYSE3 / ZLJ5160ZYSE4 / ZLJ5120ZLJE3 / ZLJ5200ZLJE3
Body Brand: ZOOMLION
Engine parameters
Engine Model: DongfengD4.0NS6B185 / DongfengB6.2NS6B230 / Dongfeng ISBE18530 / Dongfeng ISDe21040 / Dongfeng ISDe23030
Displacement: 4 / 6.2 / 5.9 / 6.7L
Emission standard: China VI / China III / Euro III / China IV
Max output power: 136 / 169 / 155kW
Max hp: 185 / 230 / 210Horsepower
Rated speed: 2400 / 2300 / 2500rpm
Cargo box parameters
Box volume: 10.2 / 12.8 / 11 / 13.6m³
Chassis Specs
Chassis Brand: Dongfeng Commercial Vehicle
Chassis Series: Tianjin VR / Tianjin KR / 153 Series / Dongfeng Tianlong / Dongfeng Tianjin
Chassis Model: DFH1100B3 / DFH1180EX8 / EQ1126KBJ / DFL1160BX4 / DFL1200AX8
Leaf spring count: 11/9+7 / 7/9+6 / 8/10+7 / 8/10+8 / 8/9
Transmission Parameters
Number of gears: 6Gear
Transmission Model: 6-speed transmission
Cab parameters
Cab: Tianjin VR / Tianjin KR
Tire
Tire Size: 8.25R16LT / 275/80R22.5 18PR / 9.00-20 / 10.00-20 / 11.00-2012PR
Number of tires: 6 / 10pcs
FAQ
What kind of truck is ZOOMLION ZOOMLION Dongfeng Commercial Vehicle chassis garbage truck?
ZOOMLION ZOOMLION Dongfeng Commercial Vehicle chassis is an export-oriented garbage truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does ZOOMLION Dongfeng Commercial Vehicle chassis cover?
ZOOMLION Dongfeng Commercial Vehicle chassis mainly covers: Drive: 4x2 / 6x4; Horsepower: 185 hp / 210 hp / 230 hp; Emission: China III / Euro III / China IV / China VI; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in ZOOMLION Dongfeng Commercial Vehicle chassis?
For ZOOMLION Dongfeng Commercial Vehicle chassis: define the job and emission first, compare key drive/power options, then open the matching model for special equipment and quote.
What is garbage truck typically used for?
garbage truck specs vary widely by job. Define the application first, then compare specs here and request a quote.
How many models does ZOOMLION Dongfeng Commercial Vehicle chassis include?
ZOOMLION Dongfeng Commercial Vehicle chassis currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for ZOOMLION Dongfeng Commercial Vehicle chassis?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
