CIMC Tonghua JAC Gallop Chassis concrete mixer truck

Main model photos

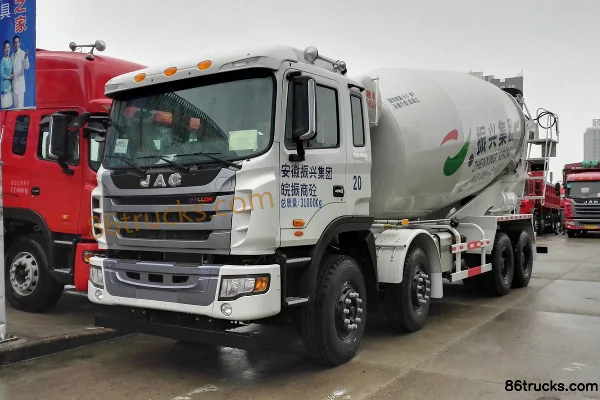

JAC Gallop K3 375 hp 8X4(12 wheels) 5.9m³ Concrete Mixer Truck (Tonghua Brand) Exterior

8 photos

Models

Series Specs

Basic Info
Cab dimensions: 10.05×2.55×4 / 9.94×2.5×3.99 / 11.45×2.5×3.99m
Truck Type: concrete mixer truck
Drive type: 8X4 / 6X4
Vehicle origin: Yangzhou, Jiangsu / Hefei
Wheelbase: 1800+3200+1350 / 4100+1350 / 1800+3500+1350mm
Front/rear track width: Front track: 2080/2080mm; Rear track: 1900/1900 / Front track: 2080mm; Rear track: 1900/1900 / Front track: 2040/2040mm; Rear track: 1900/1900 / Front track: 2040/2040mm; Rear track: 1880/1880
Curb Weight: 13.6 / 15 / 17.9ton
Rated payload: 17.27 / 9.87 / 12.97ton
Max. speed: 85km/h
Front/rear suspension: 1.495/2.205 / 1.495/2.995 / 1.495/3.305m
Body Parameters
Mixing drum capacity: 7.88 / 4.4 / 5.9m³
Vehicle certification code: THT5318GJB13D / THT5258GJB13A / THT5318GJB13A / HFC5311GJBP1K6H35F
Body Brand: Tonghua Brand
Others: 300L fuel tank; engine China V, standard left/right engine guards, front wheel mudguard (anti-spray), front underrun guard, electric windows, electric tilt, tachograph, AC, air suspension seat, onboard power, central door lock / 400L fuel tank; engine comes standard with reliable filter, optional water separator; front wheel rear mudguard, power windows, front underrun protection, power tilt cab, FARIZON rear throttle, air-suspension seat, central door lock standard / 400L fuel tank; air-suspension seat; upper body 8 m³; heavy-duty type; semi-CAN, steel air tank / 300L fuel tank; air suspension seat / 400L iron fuel tank
Engine parameters
Engine Model: YuchaiYC6L280-50 / WeichaiWP10.350E53 / WeichaiWP12.400E50 / WeichaiWP12.375E50
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 8.424 / 9.726 / 11.596L
Emission standard: China V
Max output power: 206 / 257 / 294 / 276kW
Max hp: 280 / 350 / 400 / 375Horsepower
Rated speed: 2200 / 1900rpm
Engine Type: Vertical, Water-cooled, Four-stroke, Inline six-cylinder, Electronically controlled direct injection / Electronic high-pressure common rail + SCR / Inline 6-cylinder, electronically controlled high-pressure common rail + SCR / Inline, water-cooled, six-cylinder, electronically controlled high-pressure common rail + SCR / Inline, water-cooled, six-cylinder, air-to-air intercooled
Chassis Specs
Chassis Series: GallopK3 / GallopA5
Chassis Model: HFC3311P2K3H32S2V / HFC5251GJBP1K4E41S3V / HFC3311P1K6H35S3V
Front axle description: 5T / 9T
Frame Dimensions: 302×80×（8+4） / 322×80×(10+8)mm
rear axle description: 153 / Mercedes-Benz / Anben
Axle ratio: 4.76 / 4.444
Leaf spring count: 9/9/12,4/4/5,3/3/4,9/9/4,3/3/12 / 10/12 / 9/9/12
Transmission Parameters
Number of gears: 10 / 12Gear
Transmission Model: Fast Gear10JSD120 / Fast Gear10JSD160T / Fast Gear12JSD200 / Fast Gear12JSD200T
Cab parameters
Cab: K3X Mid-High Roof / K3W Semi-High Roof / A5W Mid-High Roof / A5X Semi-High Roof
Tire
Tire Size: 11.00R20 / 12.00R20 18PR / 11.00R20，12.00R20 18PR

FAQ

What kind of truck is CIMC Tonghua CIMC Tonghua JAC Gallop Chassis concrete mixer truck?

CIMC Tonghua CIMC Tonghua JAC Gallop Chassis is an export-oriented concrete mixer truck lineup with about 6 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.

What is the export price range for CIMC Tonghua JAC Gallop Chassis concrete mixer truck?

CIMC Tonghua JAC Gallop Chassis concrete mixer truck export reference is about $39,972 – $67,361. The band is estimated from MSRP — higher specs usually cost more — and typically excludes ocean freight and destination charges. Confirm the final price via quote (state FOB/CIF and port).

What spec range does CIMC Tonghua JAC Gallop Chassis concrete mixer truck cover?

CIMC Tonghua JAC Gallop Chassis concrete mixer truck mainly covers: Drive: 6x4 / 8x4; Horsepower: 280 hp / 350 hp / 375 hp / 400 hp; Emission: China V; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.

How do I choose a variant in CIMC Tonghua JAC Gallop Chassis concrete mixer truck?

For CIMC Tonghua JAC Gallop Chassis concrete mixer truck: 1) confirm emission and duty (site/mine); 2) match drive and horsepower; 3) compare price band and photos; 4) open a model for full specs, then quote.

What is concrete mixer truck typically used for?

concrete mixer truck is common for earth, aggregate and mining tipper work. Match drive and power to the duty, and confirm destination emission.

How many models does CIMC Tonghua JAC Gallop Chassis concrete mixer truck include?

CIMC Tonghua JAC Gallop Chassis concrete mixer truck currently lists about 6 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.

How do I request a quote for CIMC Tonghua JAC Gallop Chassis concrete mixer truck?

Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
