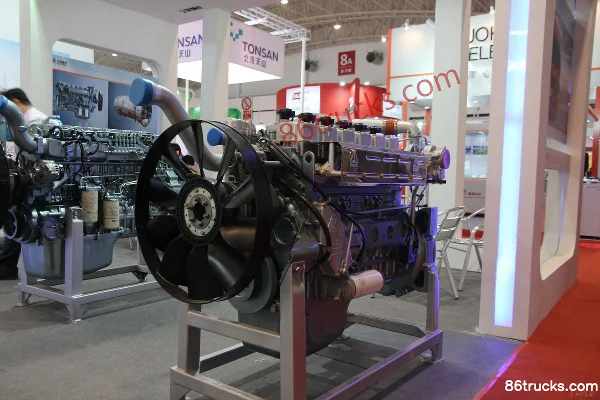

Sinotruk WD615.95NE 336 hp 10L China III Diesel Engine
EXW
Export quote
Sinotruk WD615 series engine
Main model photos
11 photos
Models
On sale
| Model | Drive / HP / Emission | EXW | Export quote |
|---|---|---|---|
| Sinotruk WD615.95NE 336 hp 10L China III Diesel Engine | 336hp / China III / Euro III | ||
| Sinotruk WD615.97NE 300 hp 10L China III Diesel Engine | 300hp / China III / Euro III | ||
| Sinotruk WD615.95C 340 hp 10L China III diesel engine | 340hp / China III / Euro III | ||
| Sinotruk WD615.93C 290 hp 10L China III diesel engine | 290hp / China III / Euro III | ||
| Sinotruk WD615.92C 270 hp 10L China III diesel engine | 270hp / China III / Euro III |
Sinotruk WD615.97NE 300 hp 10L China III Diesel Engine
EXW
Export quote
Sinotruk WD615.95C 340 hp 10L China III diesel engine
EXW
Export quote
Sinotruk WD615.93C 290 hp 10L China III diesel engine
EXW
Export quote
Sinotruk WD615.92C 270 hp 10L China III diesel engine
EXW
Export quote
Series Specs
Engine parameters
Engine Series: WD615 Series
Engine manufacturer: Sinotruk Group Co., Ltd. / Sinotruk
Suitable Range: Heavy-duty cargo trucks, tractor trucks, dump trucks, special-purpose vehicles, large buses, truck cranes, construction machinery, marine and generator sets / For Trucks / Truck engine
Intake type: Turbocharged Intercooled, Cooled EGR / Turbocharged Air-to-Air Intercooling / Turbocharged Intercooled, Water-Cooled / Common Rail
Min. fuel consumption at full load: 189 / ≤192 / 192 / ≤193 / 195 / 190 / ≤191g/kW.h
Engine net weight: 850 / 900kg
noise at 1m: 97 / ≤97 / ≤98dB
Compression ratio: 17.5：1 / 17.5:1 / 17：1 / 17.5：117：1 / 17:1 / 17:01
Bore × Stroke: 126×130 / 120x130mm
Valves per cylinder: 4 / 2pcs
firing order: 1-5-3-6-2-4
Engine Brand: Sinotruk
Engine Model: SinotrukWD615.95NE / SinotrukWD615.97NE / WD615.95C / WD615.93C / WD615.92C / WD615.96 / HW9609013B / HW9511013M / WD615.91 / WD615.90 / WD615.97C / WD615.97E / WD615.99E / WD615.96E / WD615.95E / WD615.93E / WD615.92E / WD615.99 / WD615.96C / WD615.95 / WD615.93 / WD615.92 / WD615.57 / WD615.47 / WD615.69 / WD615.87 / WD615.62
Number of cylinders: 6cylinder
fuel type: Diesel
Cylinder arrangement: Inline
Displacement: 9.726 / 8.821L
Emission standard: China III / Euro III / China II/Euro II
Max output power: 247 / 221 / 249 / 213 / 198 / 276 / 279 / 176 / 162 / 302 / 196 / 273kW
Max hp: 336 / 300 / 340 / 290 / 270 / 375 / 380 / 240 / 220 / 410 / 266 / 370Horsepower
Max torque: 1350 / 1250 / 1490 / 1290 / 1190 / 1500 / 1590 / 1100 / 1340 / 1700 / 1160 / 1650N·m
Max torque speed: 1100-1600 / 1200-1500 / 1500 / 1600rpm
Rated speed: 2200 / 1900 / 2000 / 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump, EGR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail, SCR / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail / Water-cooled, electronic high-pressure common rail / Turbocharged Water-Cooled / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, electronic fuel injection pump / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, high-pressure common rail, CRS / Inline 6-cylinder, water-cooled, 4-stroke, turbocharged intercooled, direct injection
FAQ
What kind of truck is Sinotruk Sinotruk WD615 series engine?
Sinotruk Sinotruk WD615 series is an export-oriented engine lineup with about 27 variants listed here. Filter by drive, horsepower and emission, check reference prices and specs, then shortlist a configuration before requesting a quote.
What spec range does Sinotruk WD615 series engine cover?
Sinotruk WD615 series engine mainly covers: Horsepower: 270 hp / 290 hp / 300 hp / 336 hp / 340 hp; Emission: China III / Euro III; Fuel: Diesel. Fix destination emission first, then pick drive and horsepower. See aggregated specs here, and open a model for full equipment.
How do I choose a variant in Sinotruk WD615 series engine?
For Sinotruk WD615 series engine, choose in order: emission → drive → horsepower/fuel → compare price and photos → open a model to quote. Include port and quantity.
What is engine typically used for?
For engine, use drive, horsepower and emission on this page to shortlist, and state use case plus destination in your quote.
How many models does Sinotruk WD615 series engine include?
Sinotruk WD615 series engine currently lists about 27 models. Browse On sale / Upcoming / Inventory, then open a model for full specs.
How do I request a quote for Sinotruk WD615 series engine?
Shortlist by drive/horsepower, open a model and click Get a quote, or use the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission and FOB/CIF terms.
