Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle)

Export reference
From $25,861
MSRP ¥18.62M CNY
Emission: China VI
Fuel: Diesel
Transmission: Fast Gear
Curb Weight:: 7.29ton
Wheelbase:: 3400mm
Tire Size:: 10.00R20 18PR
Rated payload: 10.515ton
Drive 4X2 (6 wheels)
Horsepower 200
Cargo box type: Dump type

Overview

The Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) is a Medium-duty truck featuring 10.515t payload, 18t GVW, Dump type cargo body and 4X2 (6 wheels) drive. On the powertrain side, it comes with a YuchaiYCS04200-68 engine, 200 hp, China VI emissions and Fast Gear transmission.

China VI 200 Diesel 4X2

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Model code (announced): DFV3181GP6D
Drive type: 4X2
Wheelbase: 3400mm
engine: YuchaiYCS04200-68
transmission: Fast Gear10JS90A-B
Rear Axle Ratio: 5.92
Cab length: 6.18m
Cab width: 2.5m
Cab height: 2.85m
Front track width: 1810mm
rear track: 1800mm
Curb Weight: 7.29ton
Rated payload: 10.515ton
GVWR: 18ton
Origin: Shiyan, Hubei
tonnage class: Medium-duty truck
Approach angle: 19°
departure angle: 15°
Energy Type: Diesel
Engine parameters
Engine Brand: Yuchai
Engine Model: YuchaiYCS04200-68
Number of cylinders: 4cylinder
fuel type: Diesel
Displacement: 4.16L
Emission standard: China VI
Max output power: 147kW
Max hp: 200Horsepower
Max torque: 720N·m
Max torque speed: 1200-1600rpm
Rated speed: 2300rpm
Engine Type: High-pressure common rail + EGR + DOC + DPF + SCR + ASC
Transmission Parameters
Transmission Model: Fast Gear10JS90A-B
Transmission Brand: Fast Gear
Forward gears: 10Gear
Number of Reverse Gears: 2pcs
Cargo box parameters
Unloading Type: Dump type
Cargo box type: Dump type
Cargo box length: 4m
Cargo box width: 2.2m
Cargo box height: 0.8m
Cab parameters
Cab: D1L
Cab width: 2400mm
seating capacity: 3Personnel
fuel tank
Fuel tank material: aluminum alloy
Fuel tank capacity: 200L
Chassis Specs
Front axle description: 5T front axle
Front axle allowable load: 6500kg
Frame Dimensions: 280*80/8+6mm
rear axle description: 13T rear axle
rear axle allowable load: 11500kg
Axle ratio: 5.92
Leaf spring count: 8/10+8
Tire
Tire Size: 10.00R20 18PR
Number of tires: 6pcs
Control configuration
ABS:

Photos

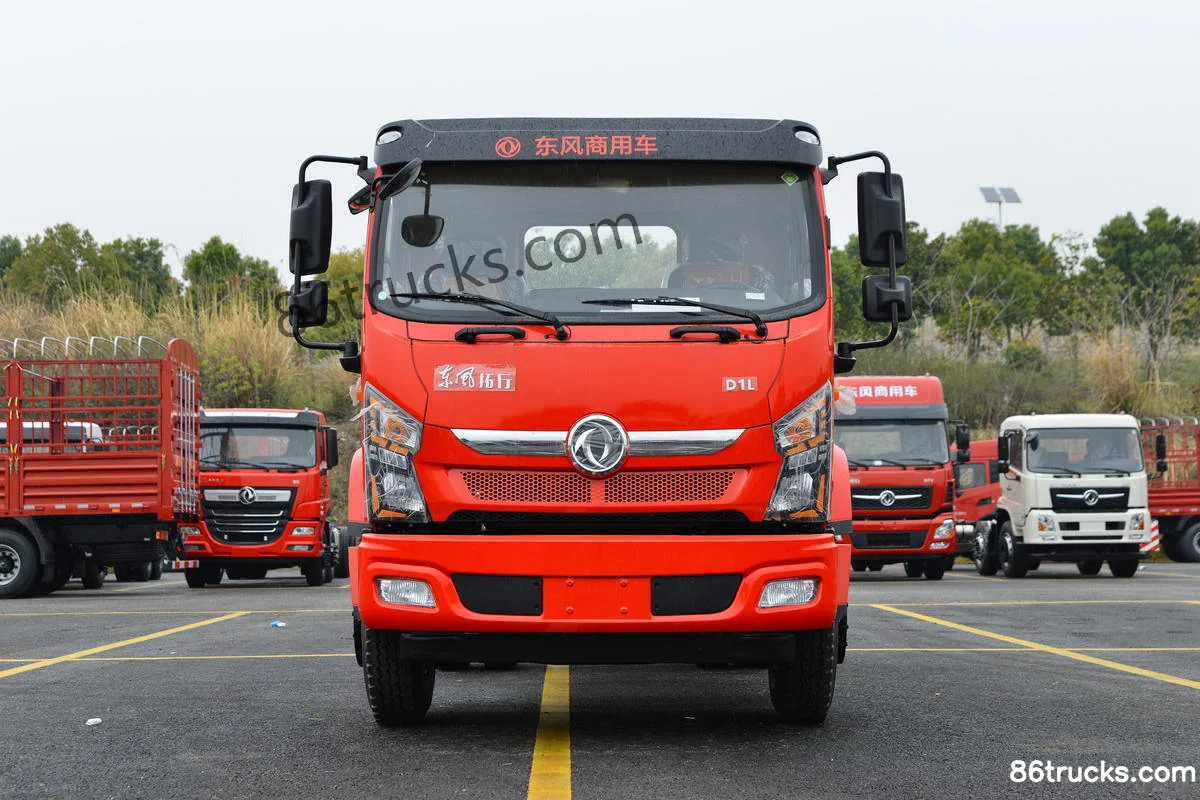

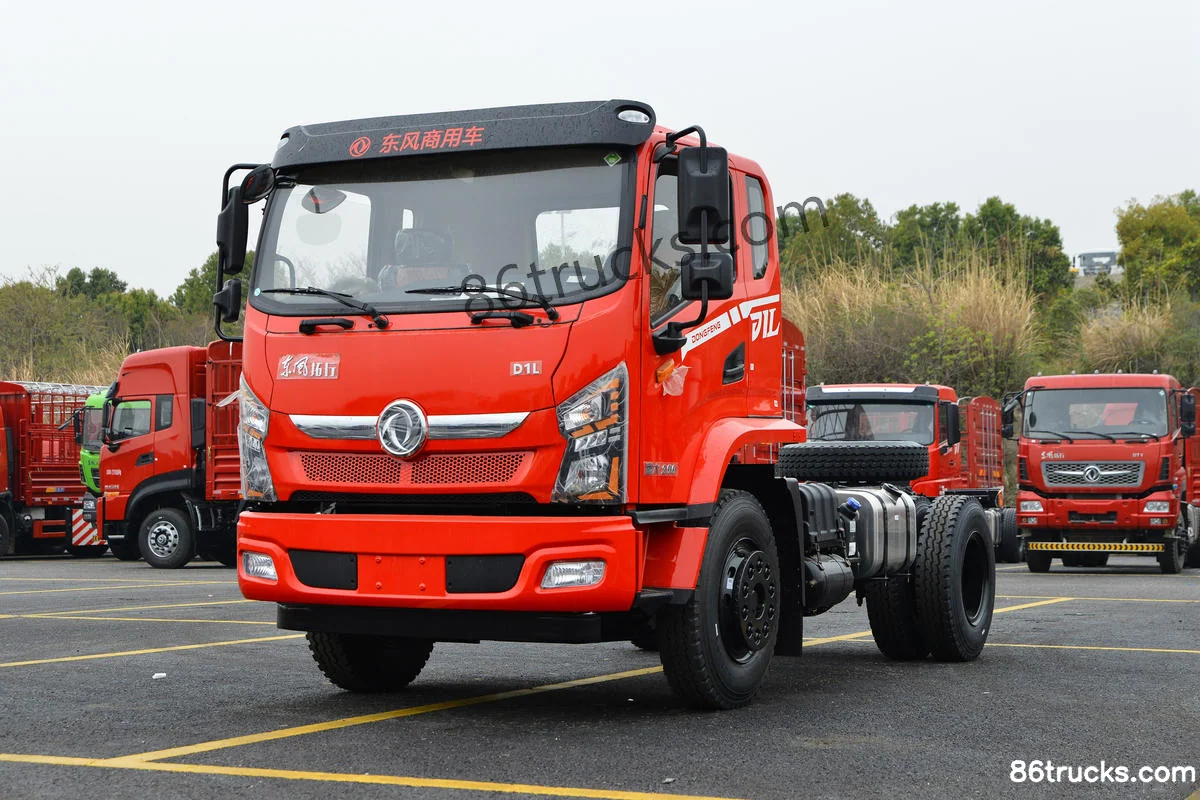

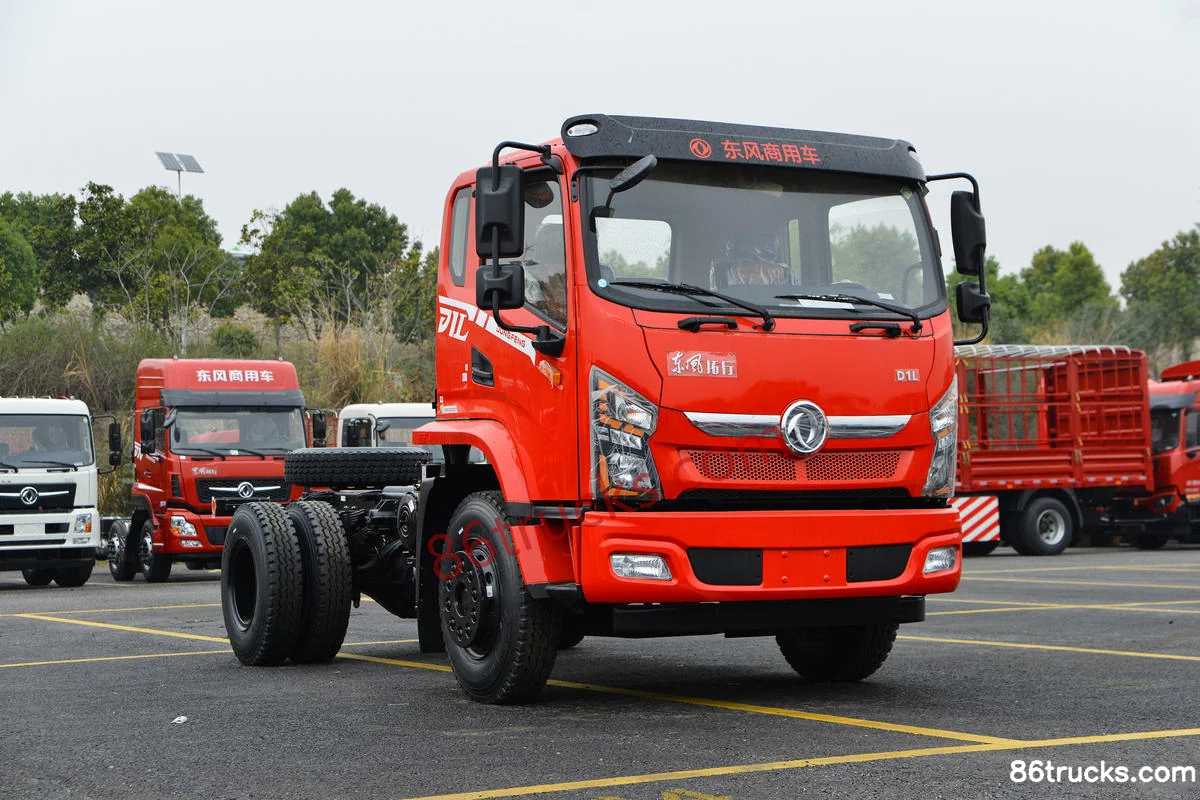

Exterior3

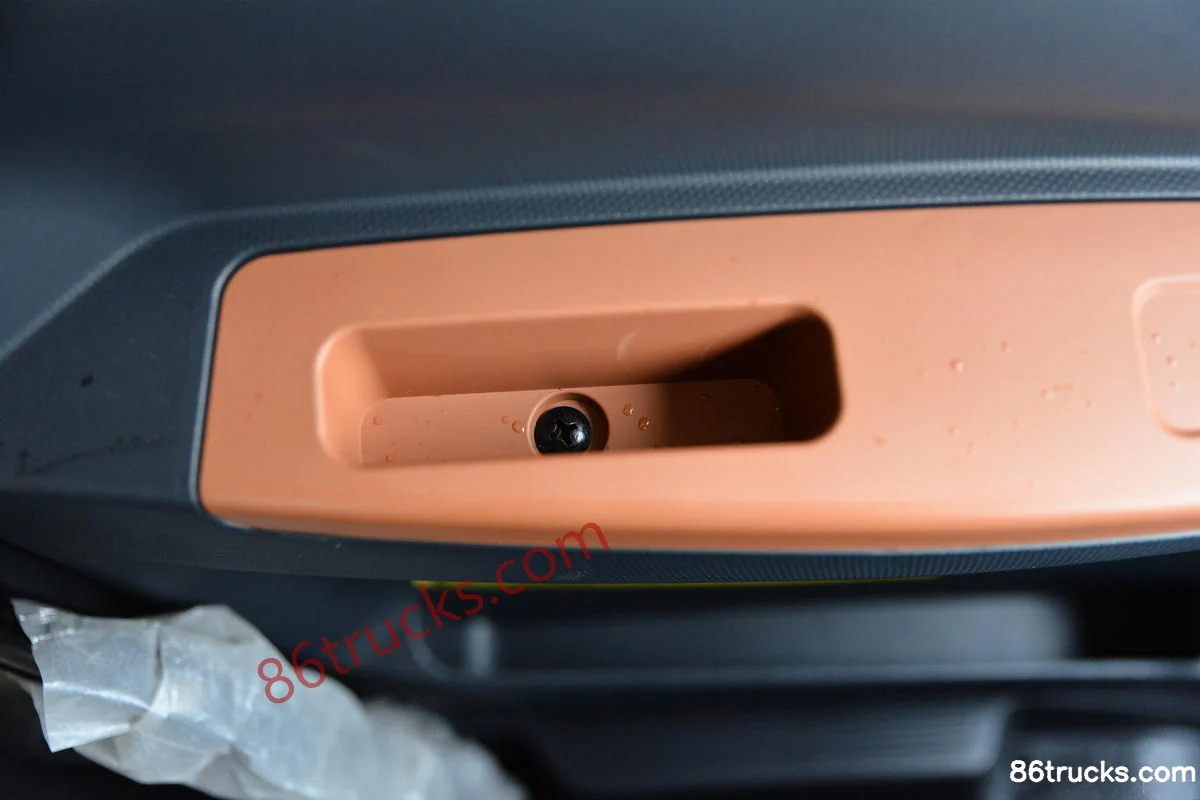

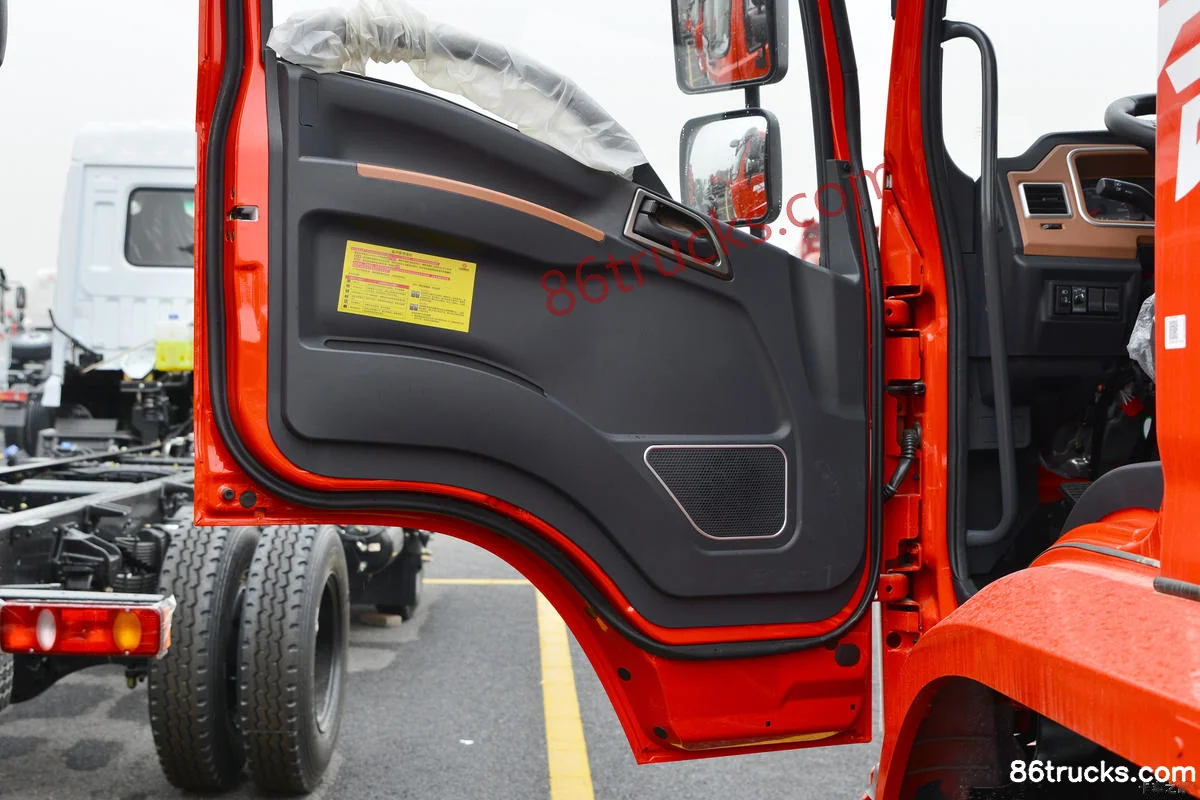

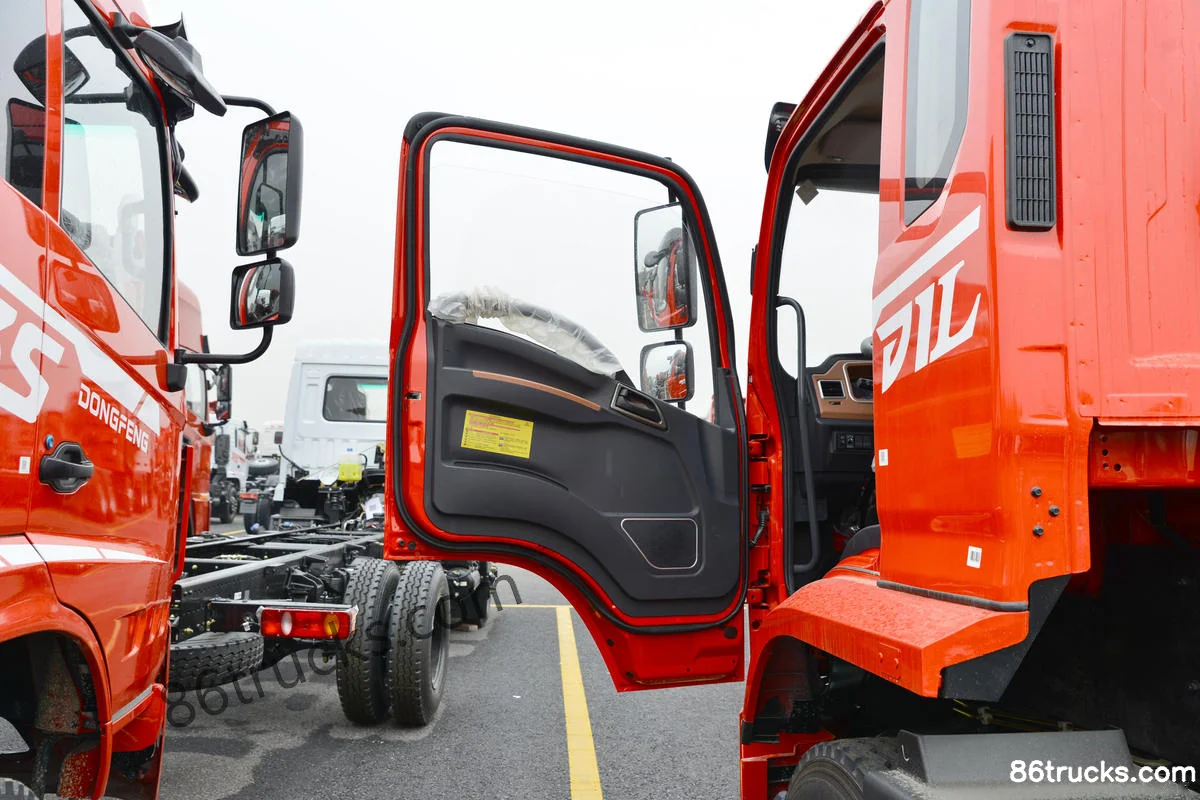

Cab3

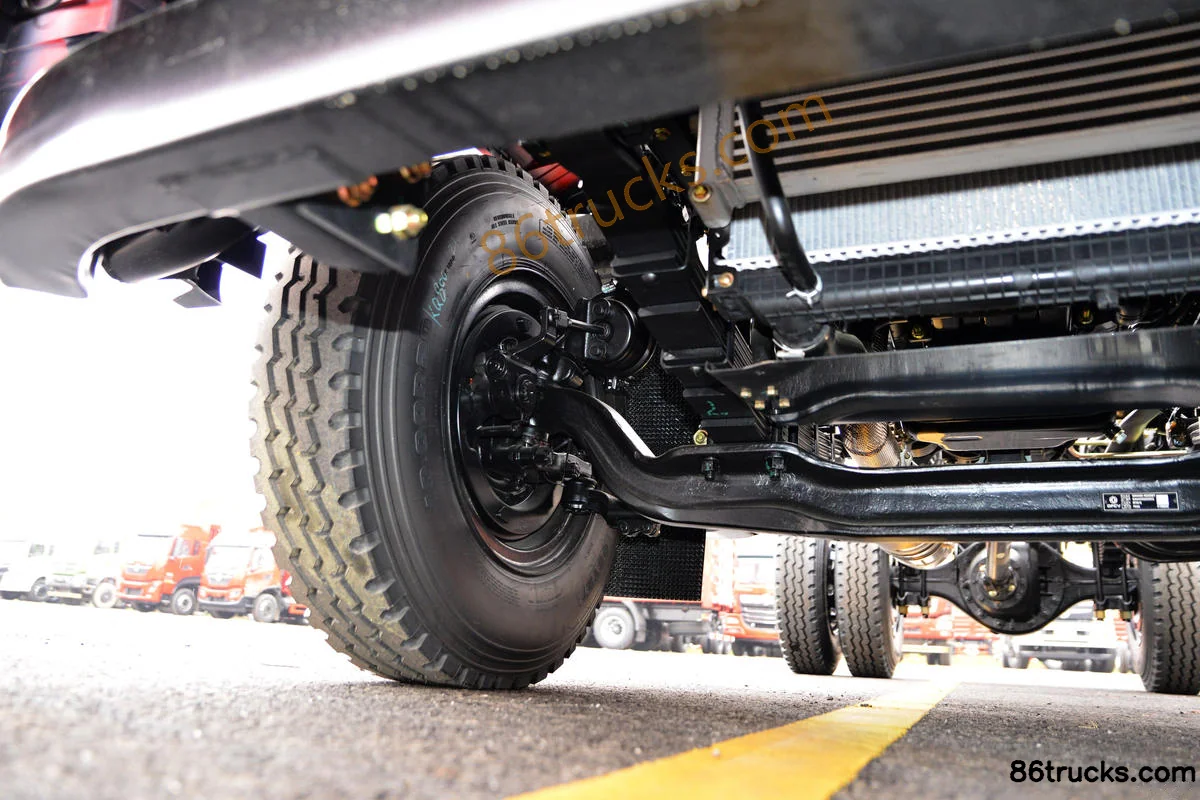

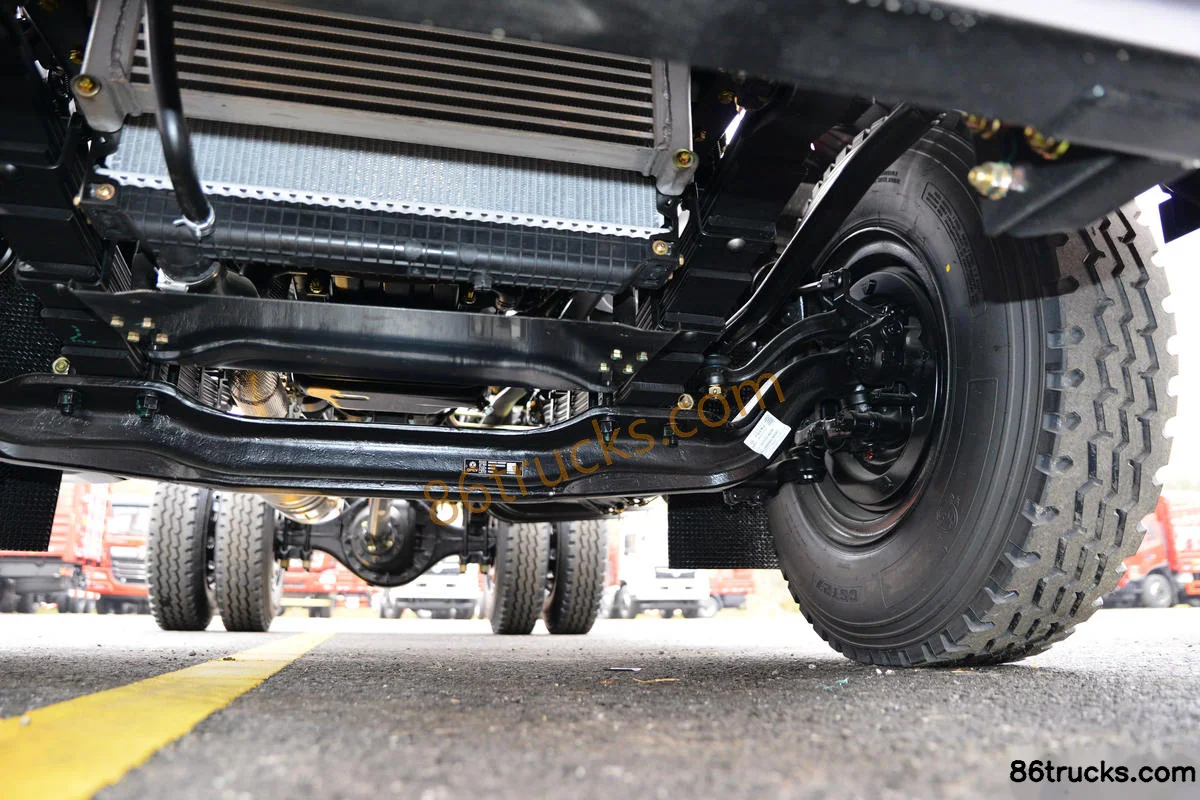

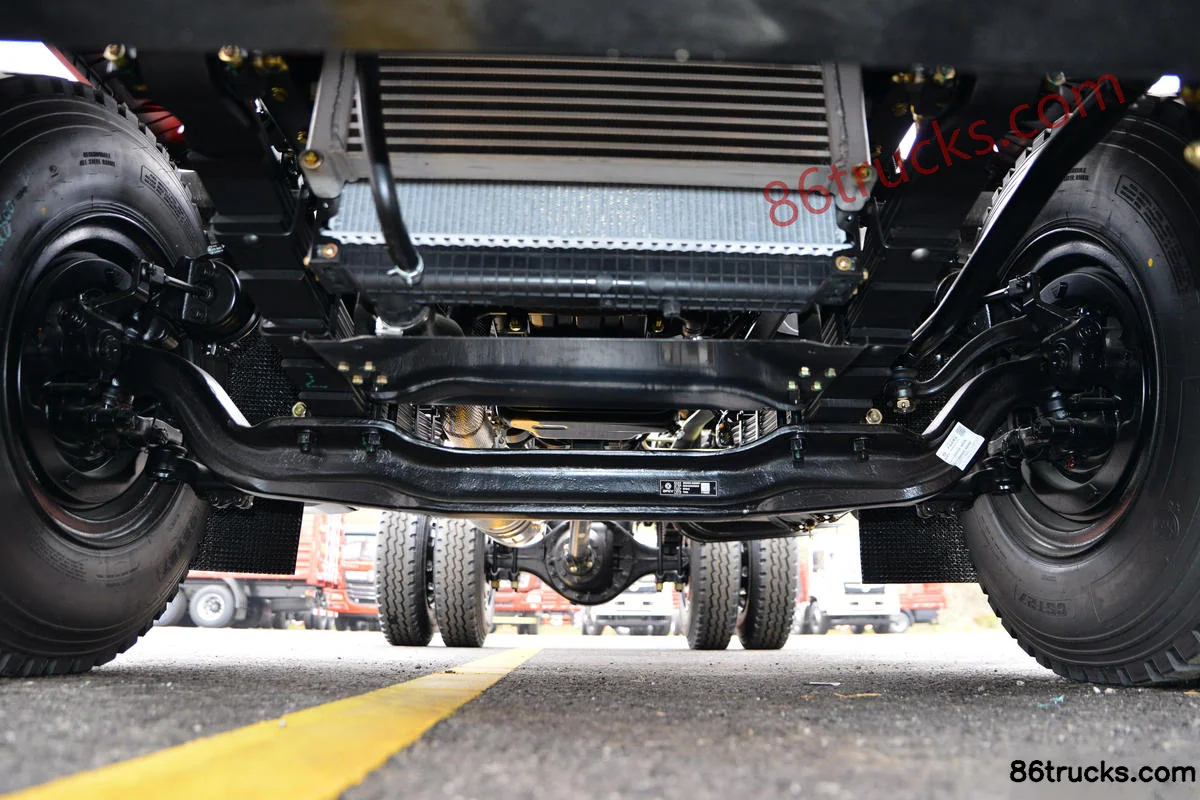

Chassis3

9 photos

FAQ

What is the export price of Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle), and what does it include?

Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) export reference is about From $25,861; MSRP is ¥18.62M CNY. This estimate is based on China MSRP (near factory/EXW style) and usually excludes ocean freight, insurance and destination charges. Quantity, emission version, FOB/CIF and port change the final price — request a quote on this page.

What emission standard does Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle)?

Key specs of Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle): Drive: 4x2; Horsepower: 200 hp; Emission: China VI; Fuel: Diesel; Transmission: Fast Gear. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) suited for?

Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) is a Dump Trucks model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) differ from other variants in the same series?

Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle) belongs to Dongfeng Tuoxing D1 (Dump Trucks). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export Dongfeng Tuoxing D1L 200 hp 4X2(6 wheels) 4m Dump Truck (5T front axle)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
