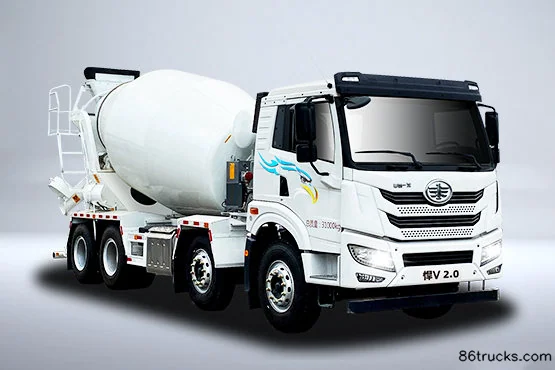

FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI)

Export reference
MSRP N/A
Fuel: Diesel
Curb Weight:: 13.6ton
Wheelbase:: 1900+2950+1350mm
Tire Size:: 11.00R20 18PR
Cab dimensions:: 10.05×2.55×4m
Truck Type:: Concrete mixer truck
Rated payload: 17.27ton
Drive 8X4 (12 wheels)
Horsepower 350
Emission China VI

Overview

The FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) is a concrete mixer truck featuring 17.27t payload, 13.6ton GVW, 8X4 (12 wheels) drive and HanV 2.0 Flat Floor Flat Roof Cab Full Float cab. On the powertrain side, it comes with 350 hp, China VI emissions and Diesel fuel.

China VI 350 Diesel 8X4

Model Specs

Legend: ● Standard ○ Optional - N/A

Basic Info
Cab dimensions: 10.05×2.55×4m
Drive type: 8X4
Truck Type: Concrete mixer truck
Vehicle origin: Qingdao, Chengdu
Front/rear track width: Front: 2020/2020mm; Rear: 1847/1847
Wheelbase: 1900+2950+1350mm
Curb Weight: 13.6ton
Rated payload: 17.27ton
Max. speed: 89km/h
Front/rear suspension: 1.375/2.475m
Body Parameters
Mixing drum capacity: 7.88m³
Vehicle certification code: CA5311GJBP1K2L1T4E6A81
Body Brand: FAW Jiefang brand
Engine parameters
Engine Model: WeichaiWP8.350E61
Number of cylinders: 6cylinder
fuel type: Diesel
Displacement: 7.8L
Emission standard: China VI
Max output power: 257kW
Max hp: 350Horsepower
Rated speed: 2100rpm
Engine Type: Inline 6-cylinder, water-cooled, 4-stroke, high-pressure common rail, turbocharged intercooled, EGR
Chassis Specs
Chassis Series: HanV
Chassis Model: CA1311P1K2L1T4S2BE6A81
Frame Dimensions: 300*80*(8+5)mm
rear axle description: 290 wheel reduction axle
Axle ratio: 5.263
Leaf spring count: 10/10/10
Transmission Parameters
Number of gears: 10Gear
Transmission Model: Fast Gear10JSD140T
Cab parameters
Cab: HanV 2.0 Flat Floor Flat Roof Cab Full Float
Tire
Tire Size: 11.00R20 18PR
Number of tires: 12pcs

Photos

Exterior1

1 photos

FAQ

What emission standard does FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) use, and can it enter my country?

This model is listed as China VI. Import rules differ by country (some require Euro V/VI). Confirm local rules before ordering, and state your destination country in the quote request so we can check a suitable export configuration.

What are the key specs of FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI)?

Key specs of FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI): Drive: 8x4; Horsepower: 350 hp; Emission: China VI; Fuel: Diesel. See full standard/optional equipment on this page. Mention your use case or destination rules in the quote if you need compliance or trailer matching advice.

What transport jobs is FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) suited for?

FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) is a concrete mixer truck model often used on construction, mining and aggregate jobs. Check drive, horsepower and emission; state duty cycle and destination in your quote.

How does FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) differ from other variants in the same series?

FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI) belongs to FAW Jiefang Qingdao HanV heavy truck (concrete mixer truck). Variants usually differ by horsepower band, drive and emission. Compare on-sale configs and price range on the subseries page, then request a quote.

How do I get a real export quote for FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI)?

Use Get a quote or the sidebar form. Include destination port/country, quantity, LHD/RHD, required emission standard and Incoterms (e.g. FOB/CIF) so we can reply with a more executable export price.

Can I export FAW Jiefang Qingdao Han V 2.0 350 hp 8X4(12 wheels) 7.88 m³ Concrete Mixer Truck (China VI)?

Yes. 86Trucks lists Chinese commercial trucks for export and connects quote requests. Documents, sailing and deal terms are confirmed in the quote reply.
